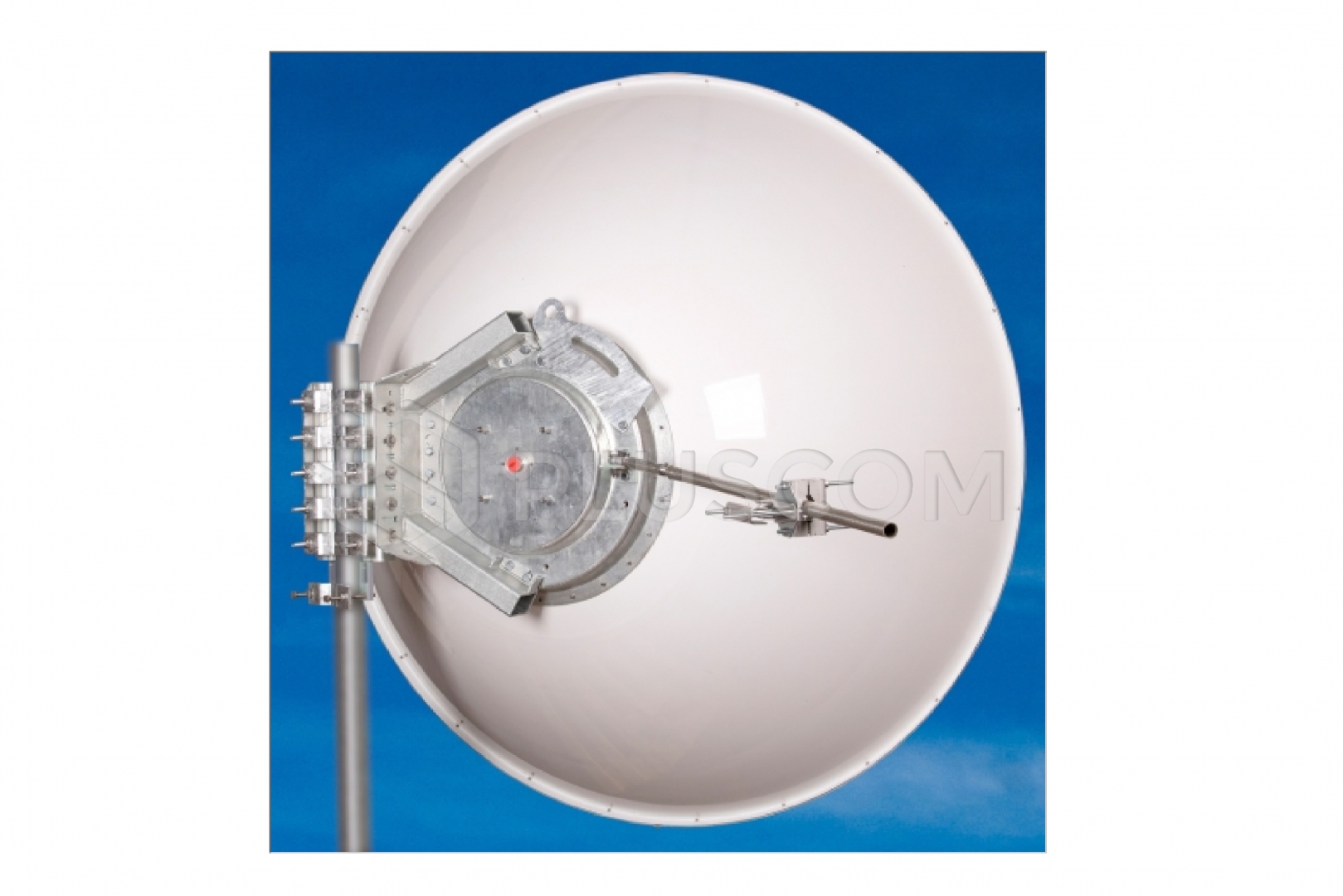

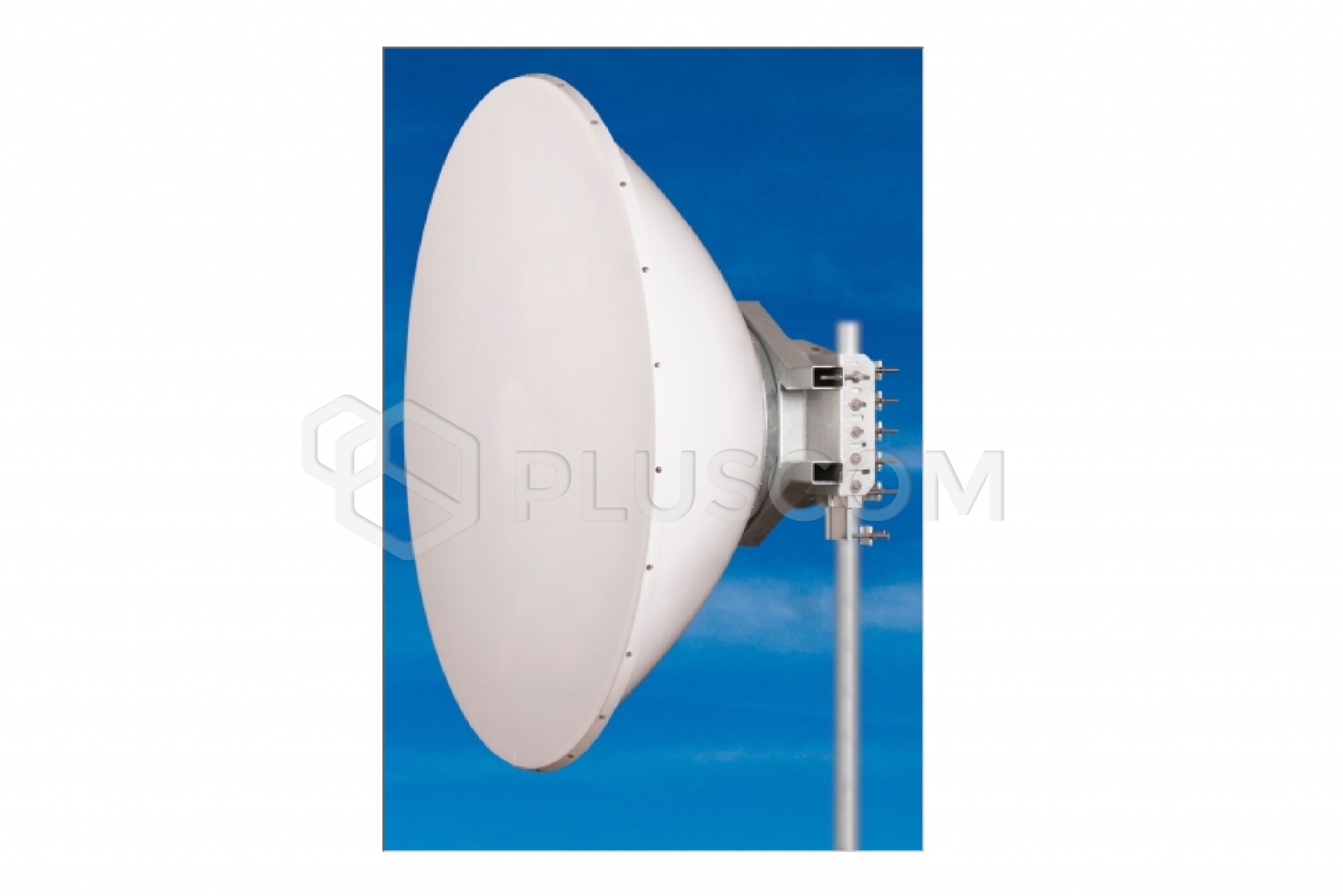

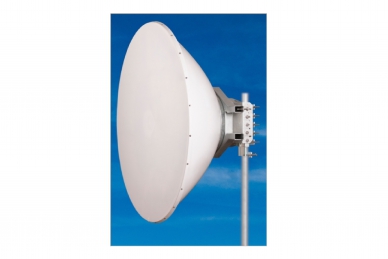

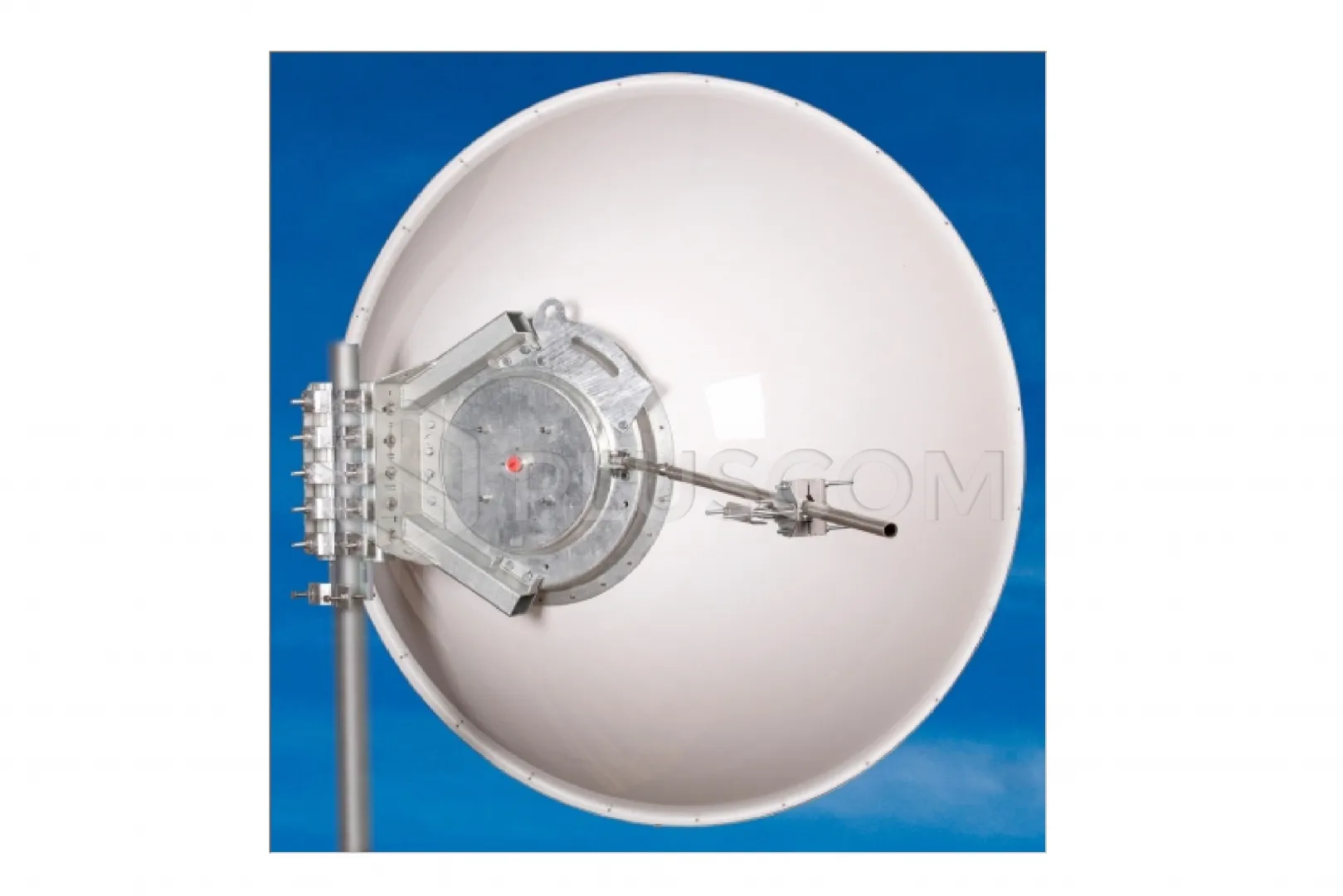

Jirous Parabolic Antenna JRC-38DD MIMO Precision (N-Female Connector)

5420,79 EUR including 23.00% VAT
Product code: #22852
Manufacturer: Jirous
  • Energy gain: 38.0 ± 1 dBi
  • Beam width: 2.1˚
  • Connector: N-female
  • Dimensions: Ø 180 cm
  • Polarization: Linear, vertical/horizontal or 45°

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic Antenna JRC-38DD MIMO Precision (N-Female Connector)


The JRC-38DD MIMO Precision dual-polarized parabolic antenna is designed for directional MIMO connections in the 5 GHz frequency band over very long distances.

Its deep dish design increases isolation between antennas on the mast and improves the front-to-rear signal ratio.

FEATURES:

  • MIMO antenna with dual polarization, horizontal/vertical or 2x45° polarization
  • Adjustable polarization ±5°
  • Precise, durable mount designed for professional microwave connections
  • Adjustable windage set included
  • Precise and easy azimuth and elevation adjustment
  • Additional corrosion resistance
  • Deep antenna increases isolation between antennas on the mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Directional link for very long distances
  • Achievable distance can be calculated from the calculation section
  • Shield included Parabolic (plastic parabolic shield)

Electrical parameters:

  • Frequency range: 4.9 – 6.4 GHz
  • Gain: 38.0 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.4
  • Beamwidth -3 dB: 2.1˚
  • Port-to-port isolation: 5.1 – 5.9 GHz ≥ 26 dB
  • XPD 5.1 – 5.9 GHz: ≥ 25 dB
  • Front-to-back ratio: ≥ 60 dB
  • Polarization: Linear, vertical/horizontal or 45°

Mechanical Parameters:

  • Parabola: Ø 1800 mm, aluminum alloy
  • Radome: UV-resistant composite material
  • Connector Type: N-Female
  • Mast Mounting: Ø 70–120 mm
  • Operating Wind Load: 140 km/h (87 mph)
  • Wind Load Resistance: 210 km/h (131 mph)
  • Antenna Weight: 82 kg
The radiator has been internally treated with a high-frequency "hydrophobic coating" method, which increases moisture resistance.
