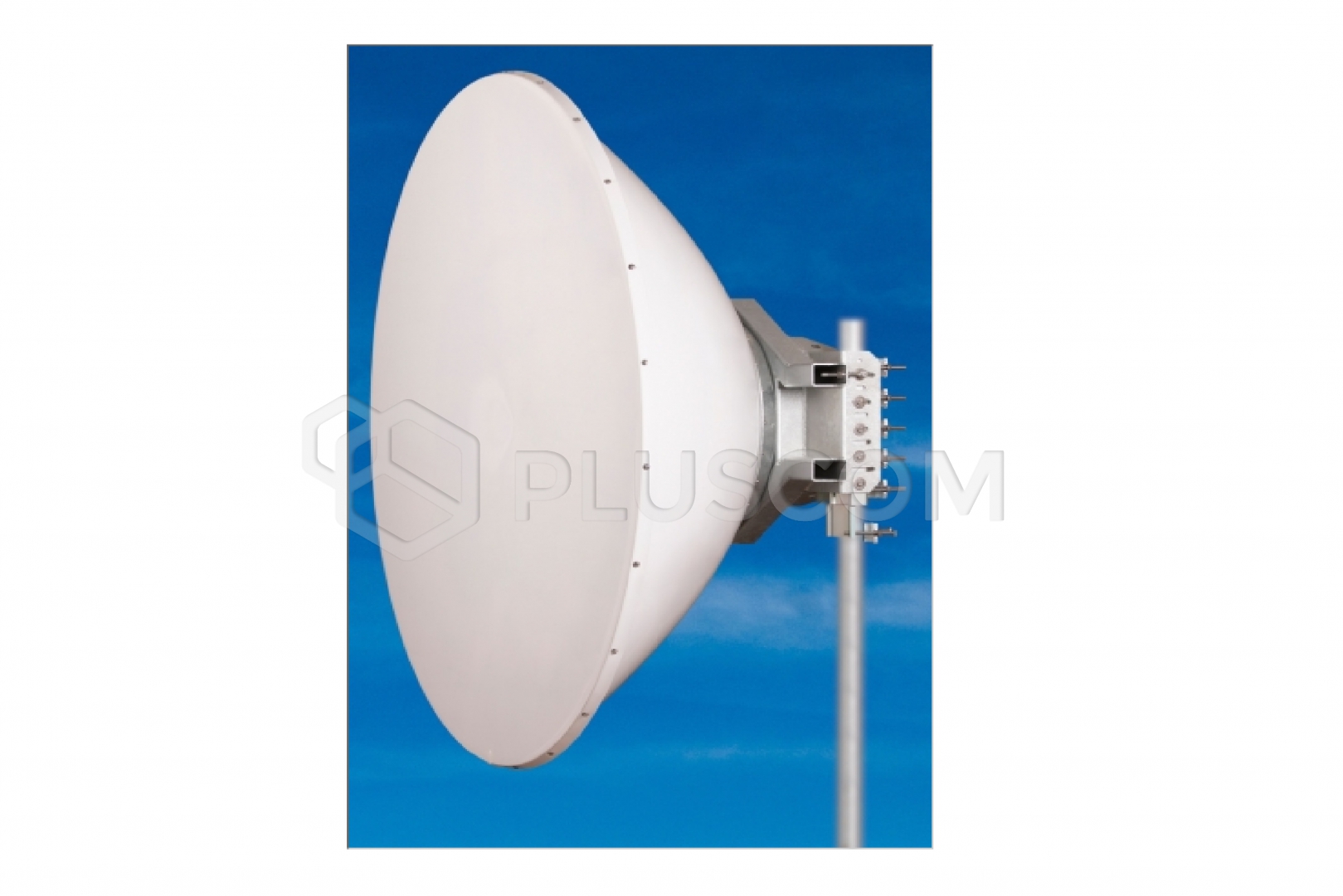

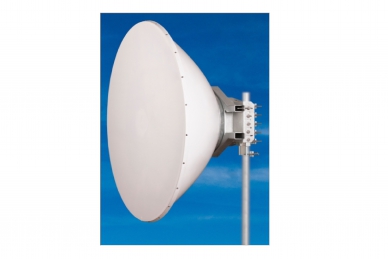

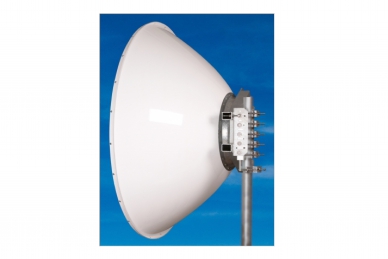

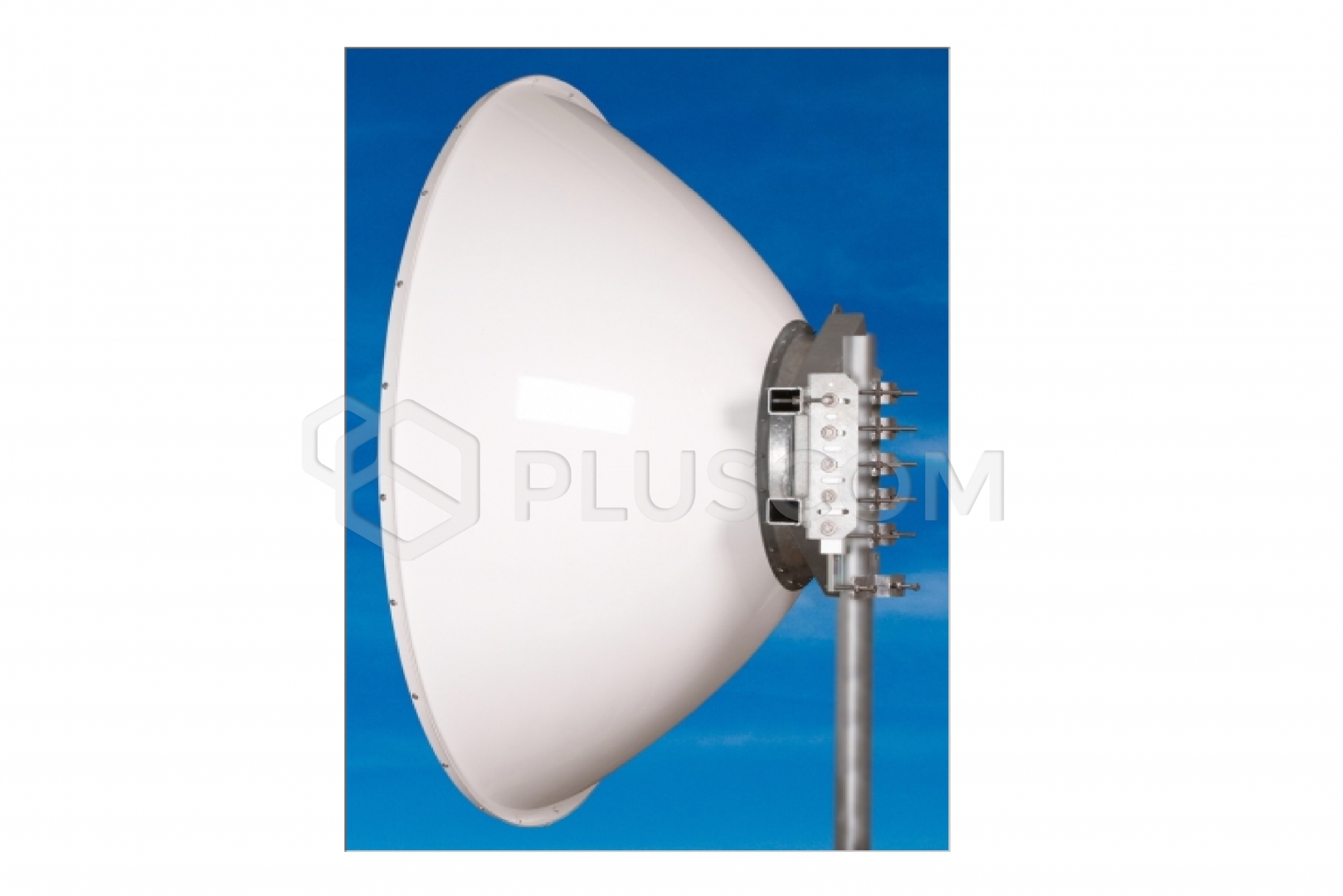

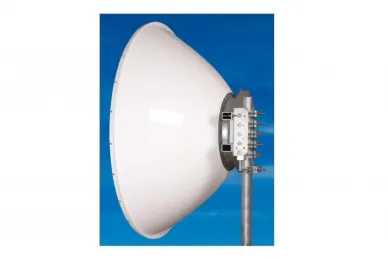

Jirous Parabolic antenna JRC-38DD MIMO MimX

Product code: #43123
Manufacturer: Jirous
  • Energy gain: 38.0 ± 1 dBi
  • Beam width: 2.1˚
  • Connection: Twisted waveguide for C5x, B5x, C6x antennas
  • Dimensions: Ø 180 cm
  • Polarization: Determined by the radio receiver
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRC-38DD MIMO MimX


The JRC-38 Deep Dish MIMO MimX dual-polarized parabolic antenna is designed for connection to dual-polarized C5x, B5x, and C6x radio modems in the 5/6 GHz frequency band.
The antenna is designed for environments with multiple reflections over long and very long distances in challenging conditions.

Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back signal ratio. This new concept expands the frequency band.

FEATURES:

  • Mimosa Twist-on Waveguide Antenna
  • Adjustable polarization ±5°
  • Precise, durable mount designed for professional microwave links
  • Adjustable windage set included
  • Precise and easy azimuth and elevation adjustment
  • Additional corrosion resistance
  • Deep dish increases isolation between antennas on the mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Directional link for very long distances
  • Ability to calculate the distance from the calculation section
  • A parabolic shield (plastic parabolic shield) is included in the price
  • The antenna supports interchangeable waveguides. You can choose any Jirous antenna with a diameter of 180 cm (4 feet). These waveguides must be purchased separately.

  • Electrical Parameters:

    • Frequency Range: 4.9 – 6.4 GHz
    • Gain: 38.0 ± 1 dBi
    • SWR: 5.1 – 5.9 GHz ≤ 1.4
    • Beamwidth -3 dB: 2.1˚
    • Front-to-Back Ratio: ≥ 60 dB
    • Polarization: Determined by the radio receiver

    Mechanical Parameters:

    • Parabola: Ø 1800 mm, aluminum alloy
    • Radome: Radiation-resistant composite material UV
    • Connection: Twisted waveguide for C5x, B5x, C6x antennas
    • Mast mounting: Ø 70 - 120 mm
    • Operating wind load: 140 km/h (87 mph)
    • Wind load resistance: 210 km/h (131 mph)
    • Antenna weight: 82 kg
    • The antenna is supplied with a robust mount that allows for easy mast mounting. The mount can be mounted separately to the mast. The antenna can then be simply hung.

      The antenna mount allows for precise elevation adjustment of ±7°. An adjustable windage set for precise azimuth adjustment of ±7° is included with the antenna.
      Suitable for mounting on both the right and left side.
