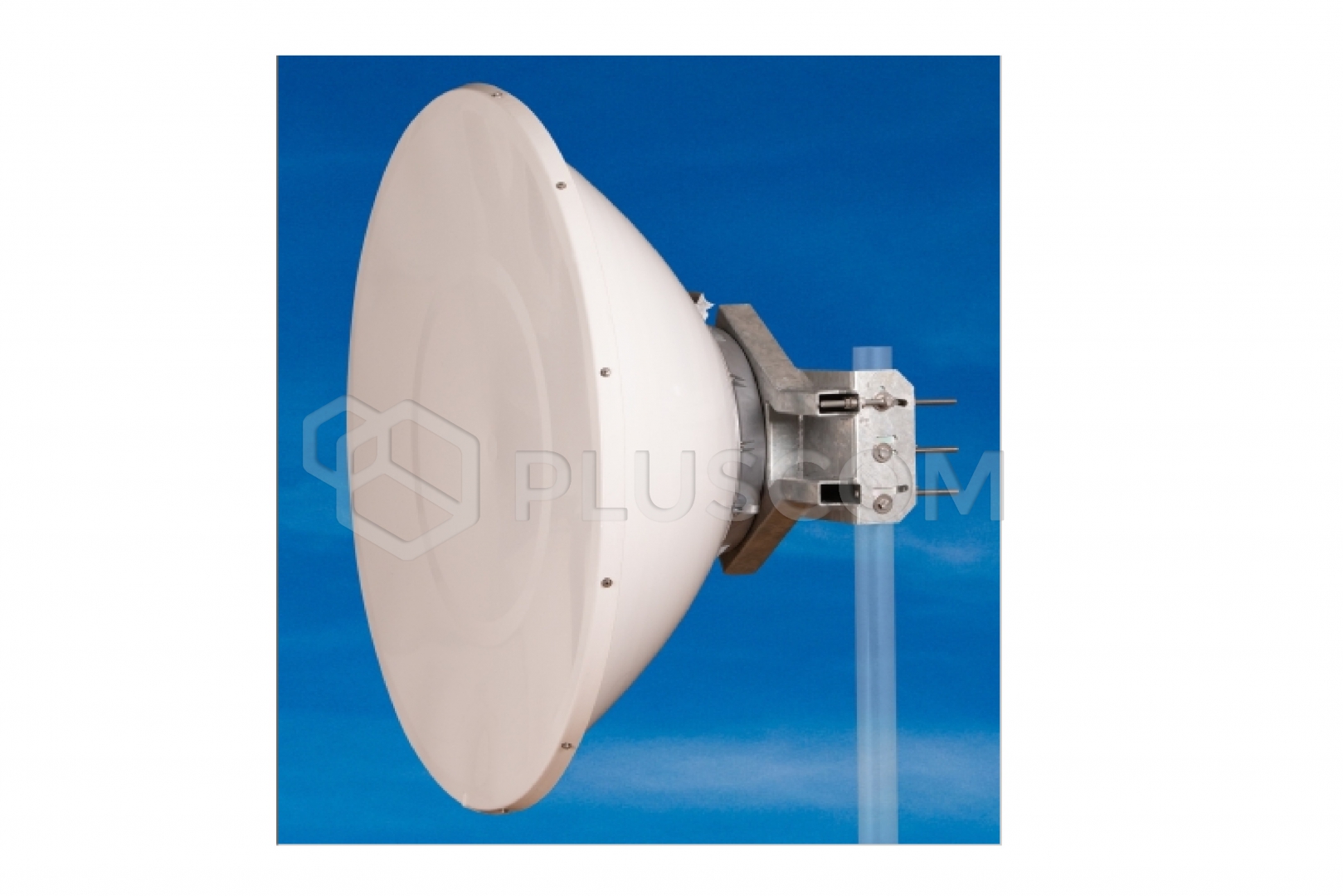

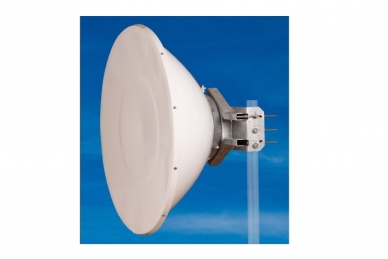

Jirous Parabolic antenna JRC-35DD MIMO Pris

1192,43 EUR including 22.00% VAT
Product code: #18480
Manufacturer: Jirous
  • Energy gain: 35.0 ± 1 dBi
  • Beam width: 3.1˚
  • Connection waveguide for the PrismStation UBNT
  • Dimensions: Ø 120 cm
  • Polarization: Determined by the radio receiver
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous JRZ-1200 Adjustable Wind bracing set

Jirous Parabolic antenna JRC-35DD MIMO Pris


The JRC-35 Deep Dish MIMO Precision PriS dual-polarized parabolic antenna is designed for connection to dual-polarized PrismStation radios in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections over long and medium distances in challenging conditions.

Its design with a deep antenna increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept expands the frequency band.

FEATURES:

  • PrismStation UBNT Antenna with Waveguide Bayonet
  • Precise, durable mount designed for professional microwave links
  • Precise azimuth and elevation adjustment (with adjustable windage gains)
  • Additional corrosion resistance
  • Deep antenna increases isolation between antennas on the mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Directional link for long-haul or medium-haul links in challenging environments
  • Ability to calculate the achievable distance from the calculation section
  • A parabolic shield (plastic cover) is included in the price (parabolic)
Other models:
- JRC-35DD MIMO Precision – standard deep MIMO antenna

Electrical parameters:

  • Frequency range: 4.9 – 6.4 GHz
  • Gain: 35.0 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.3
  • Beamwidth -3 dB: 3.1˚
  • Front-to-back ratio: ≥ 53 dB
  • Polarization: Determined by the radio

Mechanical parameters:

  • Parabolic: Ø 1200 mm, aluminum alloy
  • Radome: Made of UV-resistant ABS plastic
  • Connection waveguide for PrismStation UBNT
  • Mast mounting:
    - Ø 80–120 mm
    - Ø 60–80 mm with adjustable wind brace kit
  • Operating wind load:
    - 110 km/h (68 mph) without wind brace kit
    - 140 km/h (87 mph) with wind brace kit
  • Wind load resistance: 210 km/h (131 mph)
  • Antenna weight: 29 kg
For installation in difficult wind conditions, we recommend using a brace kit Wind braces. When mounting on a 60-80 mm diameter mast, an adjustable wind brace kit is required. Recommended accessories: JRZ-1200 Wind Brace Kit
Download
Datasheet 0.91 MB
