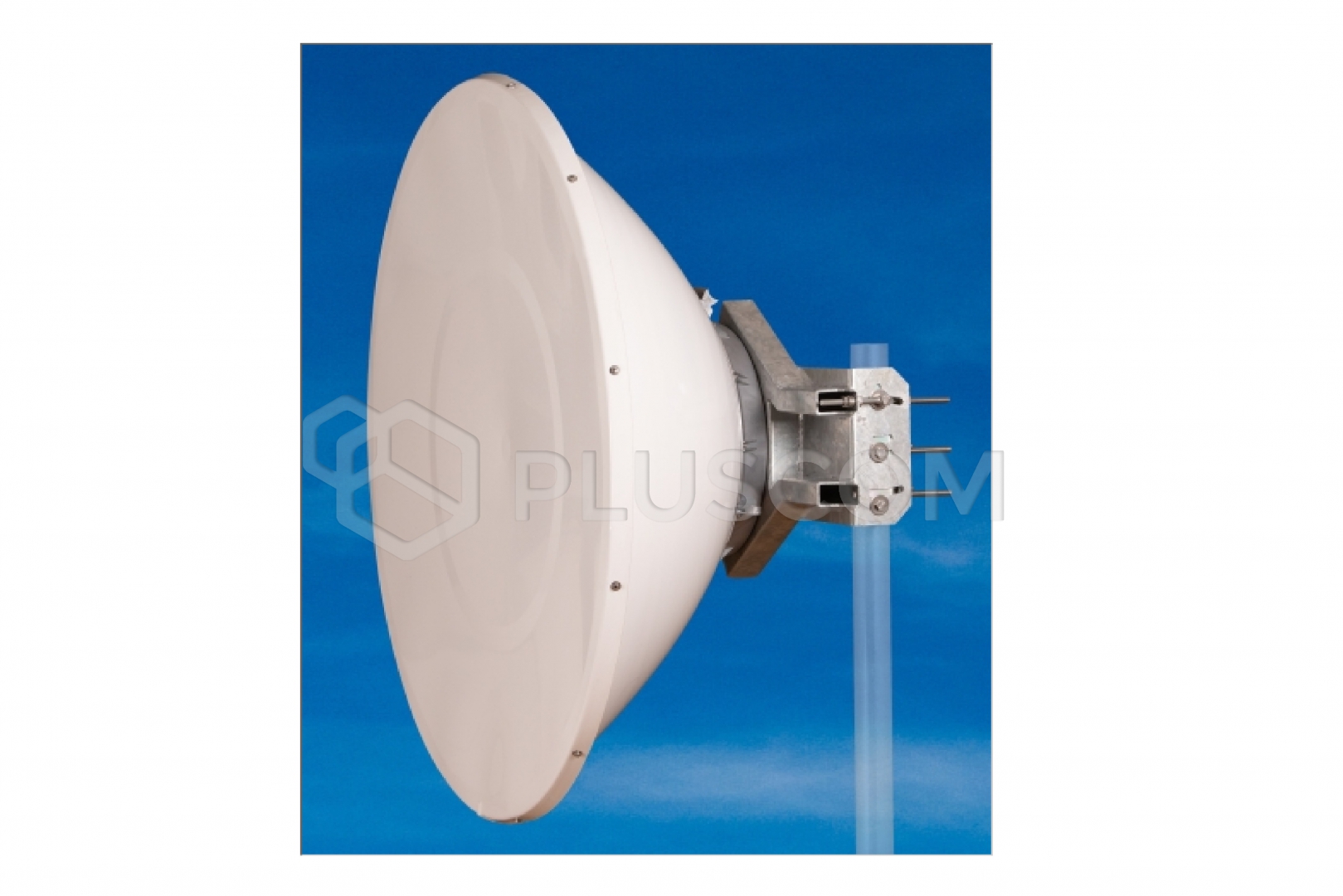

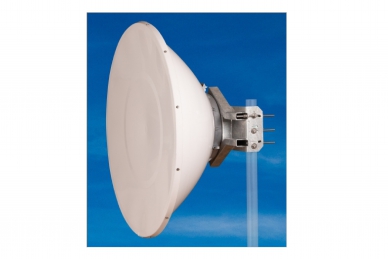

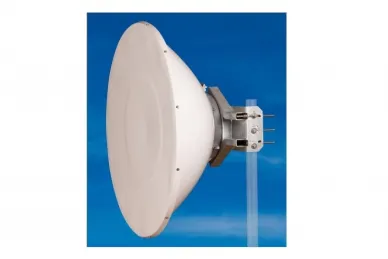

Jirous Parabolic antenna JRC-35DD MIMO Precision (R-SMA connector)

Jirous Parabolic antenna JRC-35DD MIMO Precision (R-SMA connector)

The JRC-35 Deep Dish MIMO Precision dual-polarized parabolic antenna is designed for directional links with MIMO mode in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections over very long or medium distances in challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept expands the frequency band.

FEATURES:

• Dual-polarization MIMO antenna, horizontal/vertical or 2x45° polarization
• Precise, durable mount designed for professional microwave links
• Precise and easy azimuth and elevation adjustment (with adjustable windage gains)
• Additional corrosion resistance
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Directional link for long-haul or medium-haul links in challenging environments
• Achievable distance can be calculated from the calculation section
• A parabolic shield (plastic cover) is included in the price (parabolic)

Other models:
- JRC-35DD MIMO PriS – antenna for the UBNT PrismStation dual-polarization radio

Electrical parameters:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 35 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4
• Beamwidth -3 dB: 3.1˚
• Port-to-port isolation: 5.1 – 5.9 GHz 26 dB
• Front-to-back ratio: ≥ 53 dB
• Polarization: Linear, vertical/horizontal or 45°

Mechanical Parameters:

• Parabola: Ø 1200 mm, aluminum alloy
• Radometer: UV-resistant ABS plastic
• Connector Type: R-SMA
• Mast Mounting:
  - Ø 80–120 mm
  - Ø 60–80 mm with adjustable wind support kit
• Load Rating:
  - 110 km/h (68 mph) without wind support kit
  - 140 km/h (87 mph) with wind support kit
• Wind Resistance: 210 km/h (131 mph)
• Antenna Weight: 29 kg

Recommended accessories:

• JRZ-1200 Wind Brace Kit

The radiator is internally protected with a high-frequency hydrophobic coating that increases moisture resistance.

For installation in difficult wind conditions, we recommend using a wind brace kit. For installation on a 60-80 mm diameter mast, an adjustable wind brace kit is required.
