Jirous Parabolic antenna JRC-35DD MIMO MimX

Product code: #43124
Manufacturer: Jirous
  • Energy gain: 35.0 ± 1 dBi
  • Beam width: 3.1˚
  • Connection: Twisted waveguide for C5x, B5x, C6x
  • Dimensions: Ø 120 cm
  • Polarization: Determined by the radio station
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

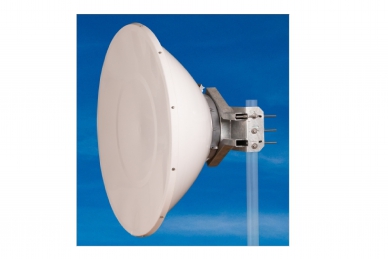

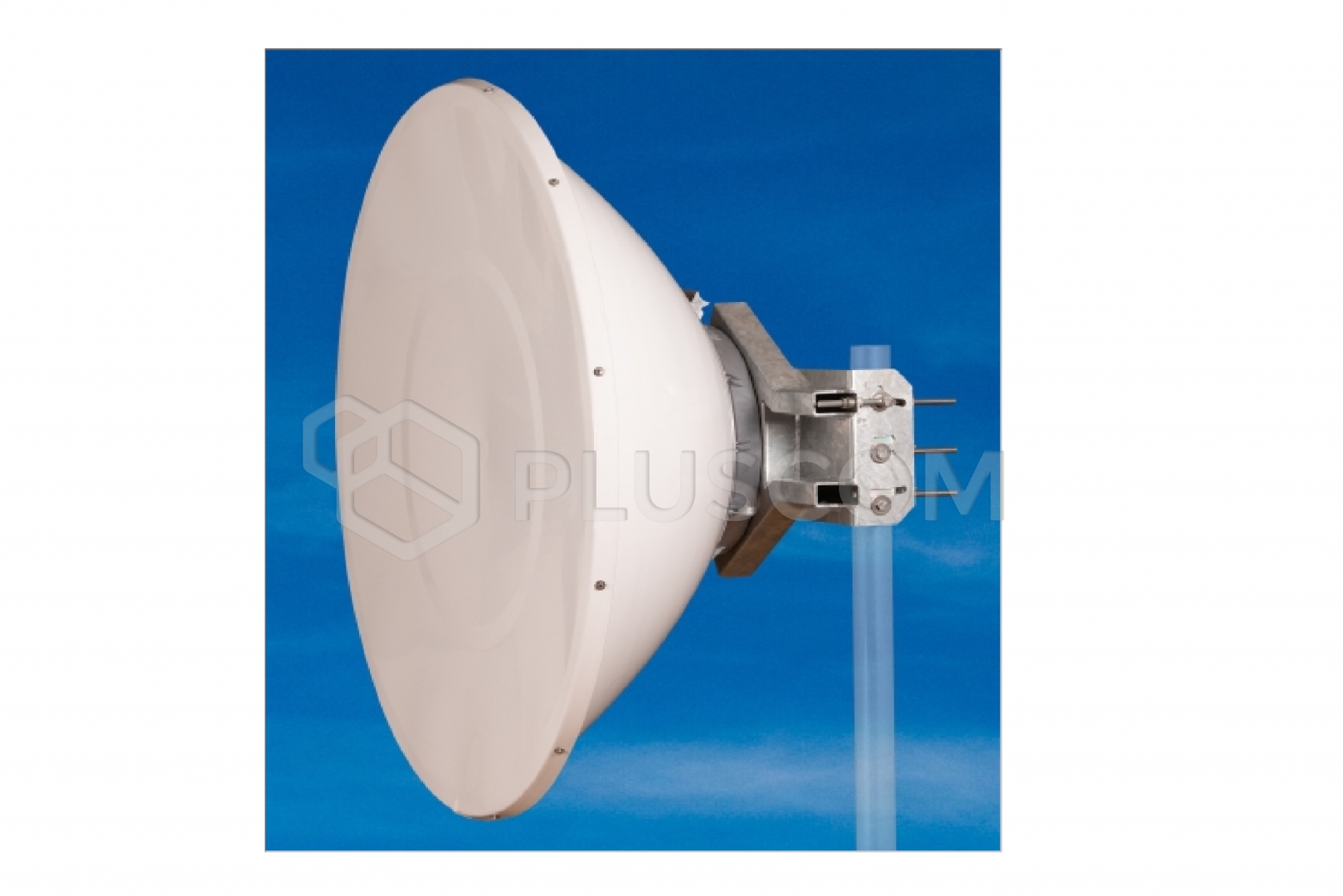

Jirous JRC-35DD MIMO MimX Parabolic Antenna


The JRC-35 Deep Dish MIMO Precision MimX dual-polarized parabolic antenna is designed for connection to C5x, B5x, and C6x dual-polarized radio units in the 5/6 GHz frequency band.
The antenna is designed for long- and medium-range multiple reflection environments in challenging conditions.

Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept expands the frequency band.
The JRC-35DD MIMO Precision MimX includes a robust mount designed for microwave links.

Electrical Parameters:

  • Frequency Range: 4.9 – 6.4 GHz
  • Gain: 35.0 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.3
  • Beamwidth -3 dB: 3.1˚
  • Front-to-Back Ratio: ≥ 53 dB
  • Polarization: Determined by the radio station

Mechanical Parameters:

  • Parabola: Ø 1200 mm, aluminum alloy
  • Radome: ABS plastic, UV-resistant
  • Connection: Twisted waveguide for C5x, B5x, C6x
  • Mast mounting:
    - Ø 80 - 120 mm
    - Ø 60 - 80 mm with adjustable wind protection kit
  • Operating wind load:
    - 110 km/h (68 mph) without wind protection kit
    - 140 km/h (87 mph) with wind protection kit
  • Wind load resistance: 210 km/h (131 mph)
  • Antenna weight: 29 kg
Download
Datasheet 1.07 MB
