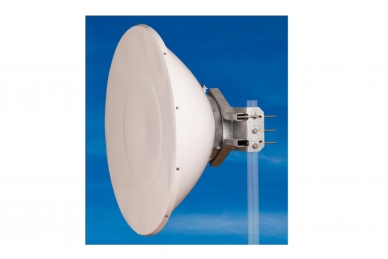

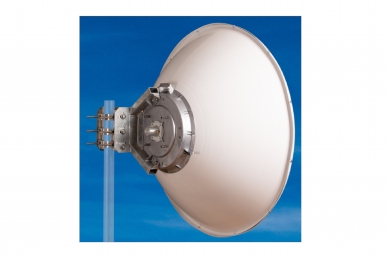

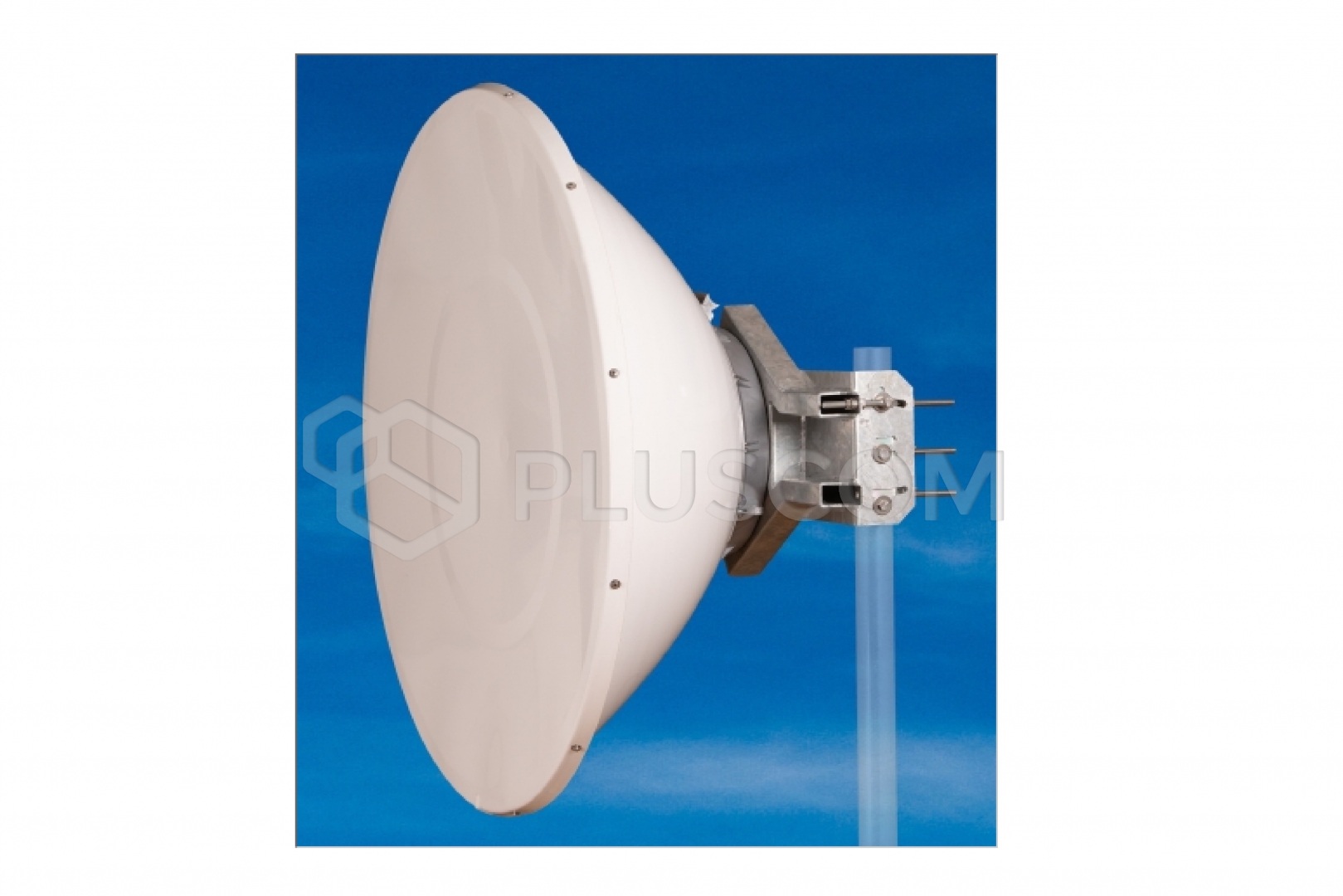

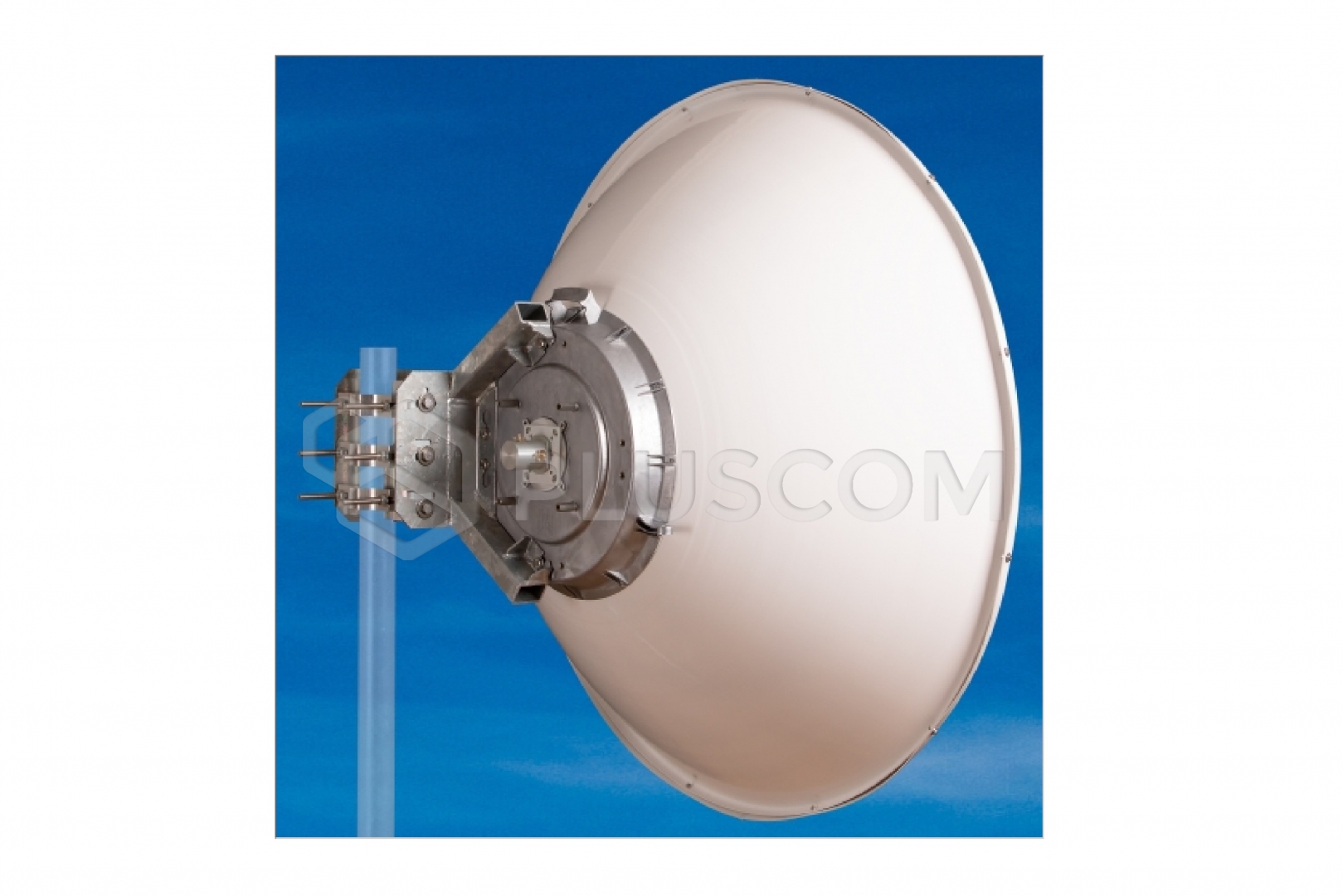

Jirous Parabolic antenna JRC-35DD DuplEX Precision (R-SMA connector)

1146,34 EUR including 23.00% VAT
Product code: #21753
Manufacturer: Jirous
  • Energy gain: 35 ± 1 dBi
  • Beam width: 3.1˚
  • Connector: R-SMA
  • Dimensions: Ø 120 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous JRZ-1200 Adjustable Wind bracing set

Jirous Parabolic antenna JRC-35DD DuplEX Precision (R-SMA connector)


The JRC-35DD DuplEX Precision dual-polarized parabolic antenna is designed for full-duplex or MIMO directional links in the 5 GHz frequency band with high isolation.
The antenna is designed for long-distance operation.

Its deep dish design increases isolation between antennas on the mast and improves the front-to-rear signal ratio.

FEATURES:

  • Dual-polarization antenna: Full duplex or MIMO, horizontal/vertical or 2x45° polarization
  • Excellent port-to-port isolation enables full-duplex connections
  • Precise, durable mount designed for professional microwave links
  • Easy and precise azimuth and elevation adjustment (with adjustable windage gains)
  • Deep antenna increases isolation between antennas on the mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Additional corrosion resistance
  • Directional link for long-haul or medium-haul connections in harsh environments
  • Ability to calculate the achievable distance from the section computational
  • The price includes a parabolic shield (plastic parabolic shield)

Electrical parameters:

  • Frequency range: 4.9 – 6.1 GHz
  • Gain: 35 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.4
  • -3 dB beamwidth: 3.1˚
  • Port-to-port isolation: 5.1 – 5.9 GHz ≥ 50 dB (typical 53 dB) (other frequency bands ≥ 43 dB)
  • Front-to-back ratio: ≥ 53 dB
  • Polarization: Linear, vertical/horizontal or 45°

  • Mechanical parameters:

    • Parabola: Ø 1200 mm, aluminum alloy
    • Radome: UV-resistant ABS plastic
    • Connector type: R-SMA
    • Mast mounting:
      - Ø 80–120 mm
      - Ø 60–80 mm with adjustable wind support kit
    • Wind load during operation:
      - 110 km/h (68 mph) without wind support kit
      - 140 km/h (87 mph) with wind support kit
    • Wind load resistance: 210 km/h (131 mph) mph)
    • Antenna weight: 29.5 kg
    The radiator is internally protected with a high-frequency hydrophobic coating that increases moisture resistance.

    For installation in difficult wind conditions, we recommend using a wind brace kit. For installation on a 60-80 mm diameter mast, an adjustable wind brace kit is required.

    Recommended accessories:

    JRZ-1200 Wind Brace Kit
Download
Datasheet 0.87 MB
