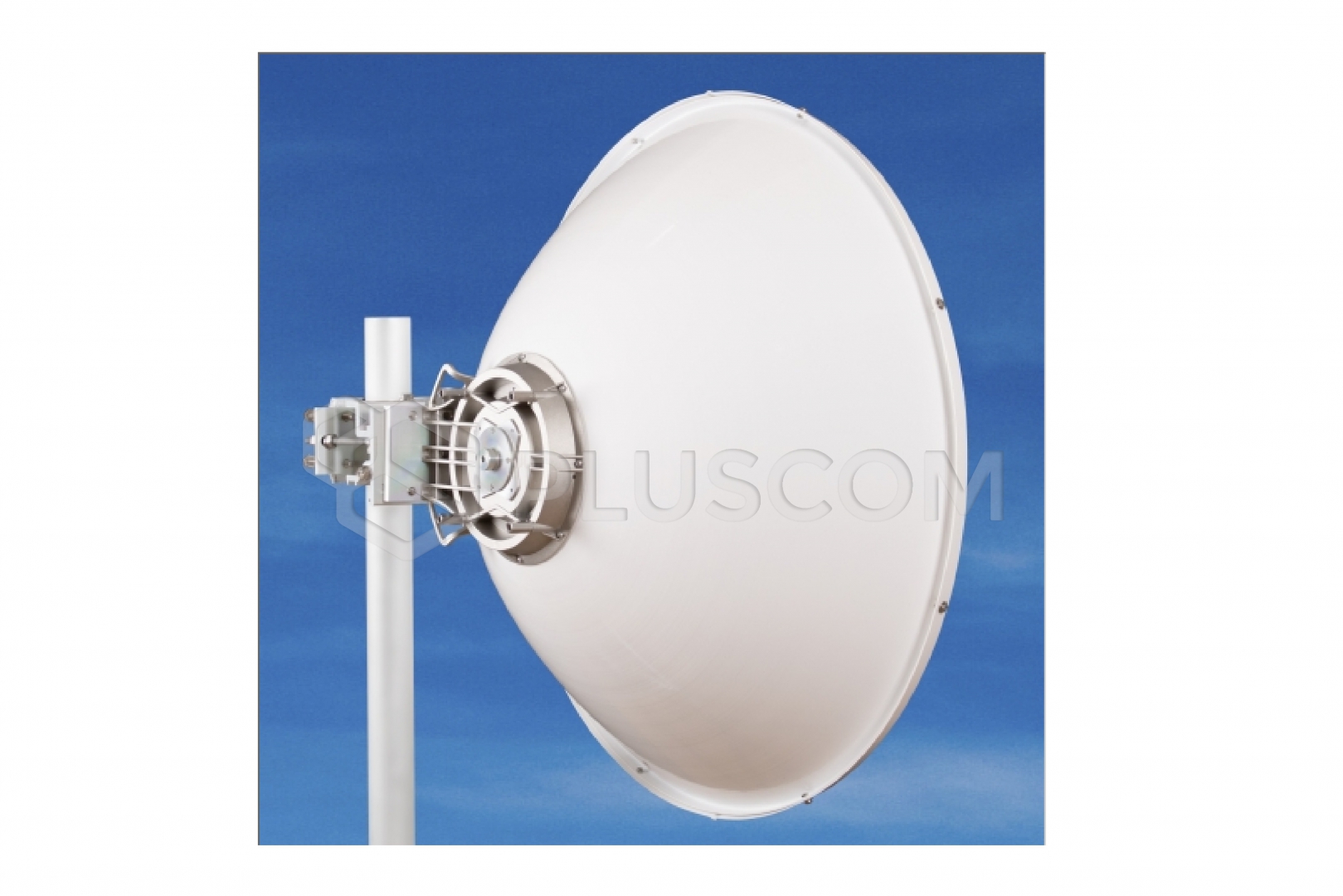

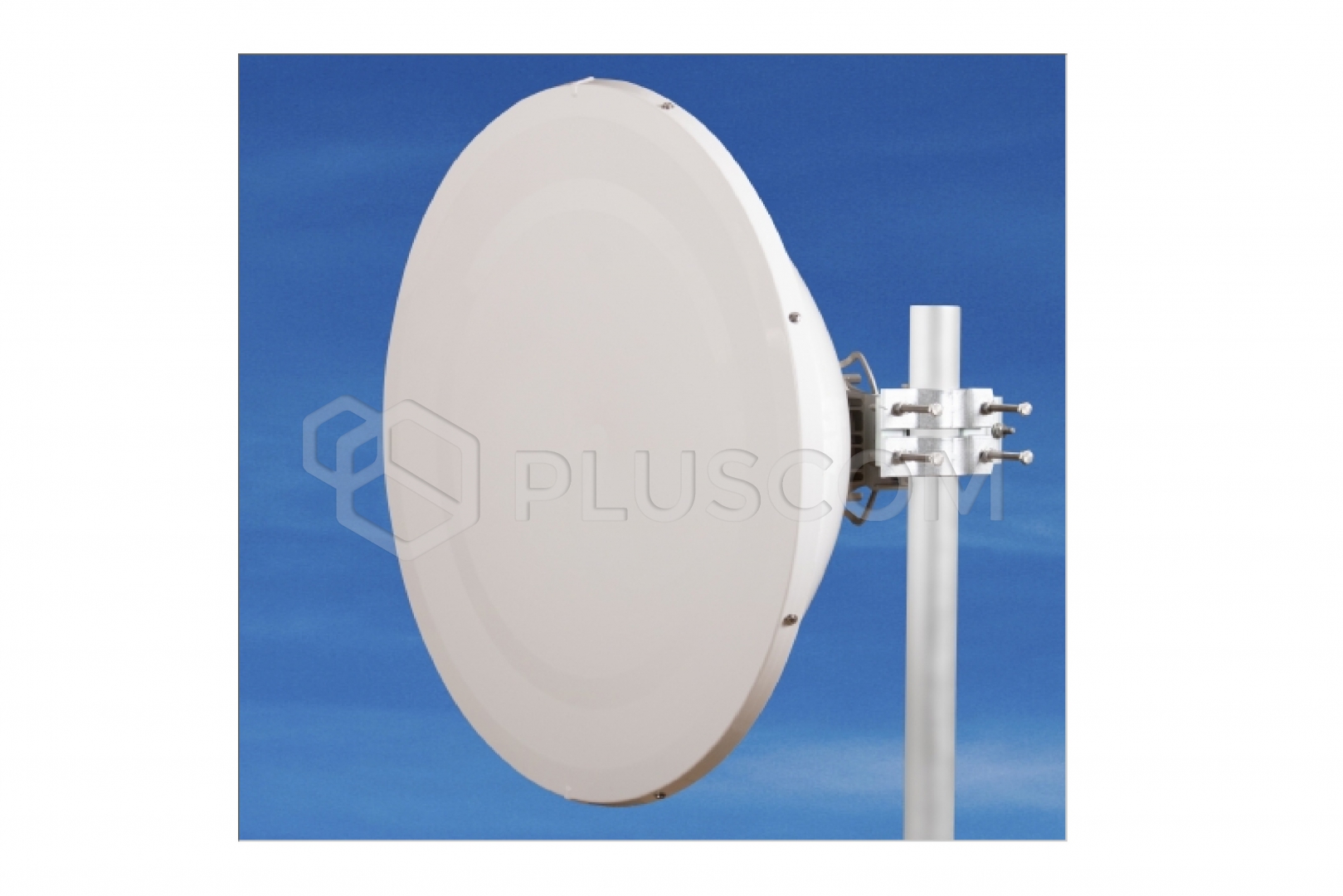

Jirous Parabolic antenna JRC-32DD MIMO Precision PriS

Jirous Parabolic antenna JRC-32DD MIMO Precision PriS

The JRC-32 Deep Dish MIMO Precision PriS dual-polarized parabolic antenna is designed for connection to dual-polarized PrismStation radio units in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections over long and medium distances in challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio.
The new concept expands the frequency band. The JRC-32DD MIMO Precision PriS version includes the massive JDMW-900 mount designed for microwave links.

Other models:
- JRC-32DD MIMO Precision – antenna with precision mount
- JDMW-900 AR

FEATURES:

• Antenna for PrismStation UBNT
• Deep antenna increases isolation between antennas on the mast
• Precise, durable JDMW-900 mount designed for professional microwave links
• Precise and easy elevation adjustment
• New concept with extended frequency band
• High front-to-back ratio
• Additional corrosion resistance
• Directional link for long-distance links
• Ability to calculate the achievable distance from the calculation section
• W The price includes a parabolic dish (plastic parabolic dish).

Electrical parameters:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 32.1 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.3
• Beamwidth -3 dB: 4.3˚
• Front-to-back ratio: ≥ 52 dB
• Polarization: Determined by the radio

Mechanical parameters:

• Parabola: Ø 900 mm, aluminum alloy
• Radome: Plastic UV-resistant, ABS
• Connector type: Waveguide for PrismStation UBNT
• Mast mounting: Ø 40–120 mm
• Operating wind load: 140 km/h (87 mph)
• Wind load resistance: 210 km/h (130 mph)
• Antenna weight: 8.2 kg
• Bracket weight: 3.2 kg
