Jirous Parabolic antenna JRC-32DD MIMO Precision (N-female connctor)

Jirous Parabolic antenna JRC-32DD MIMO Precision (N-female connctor)

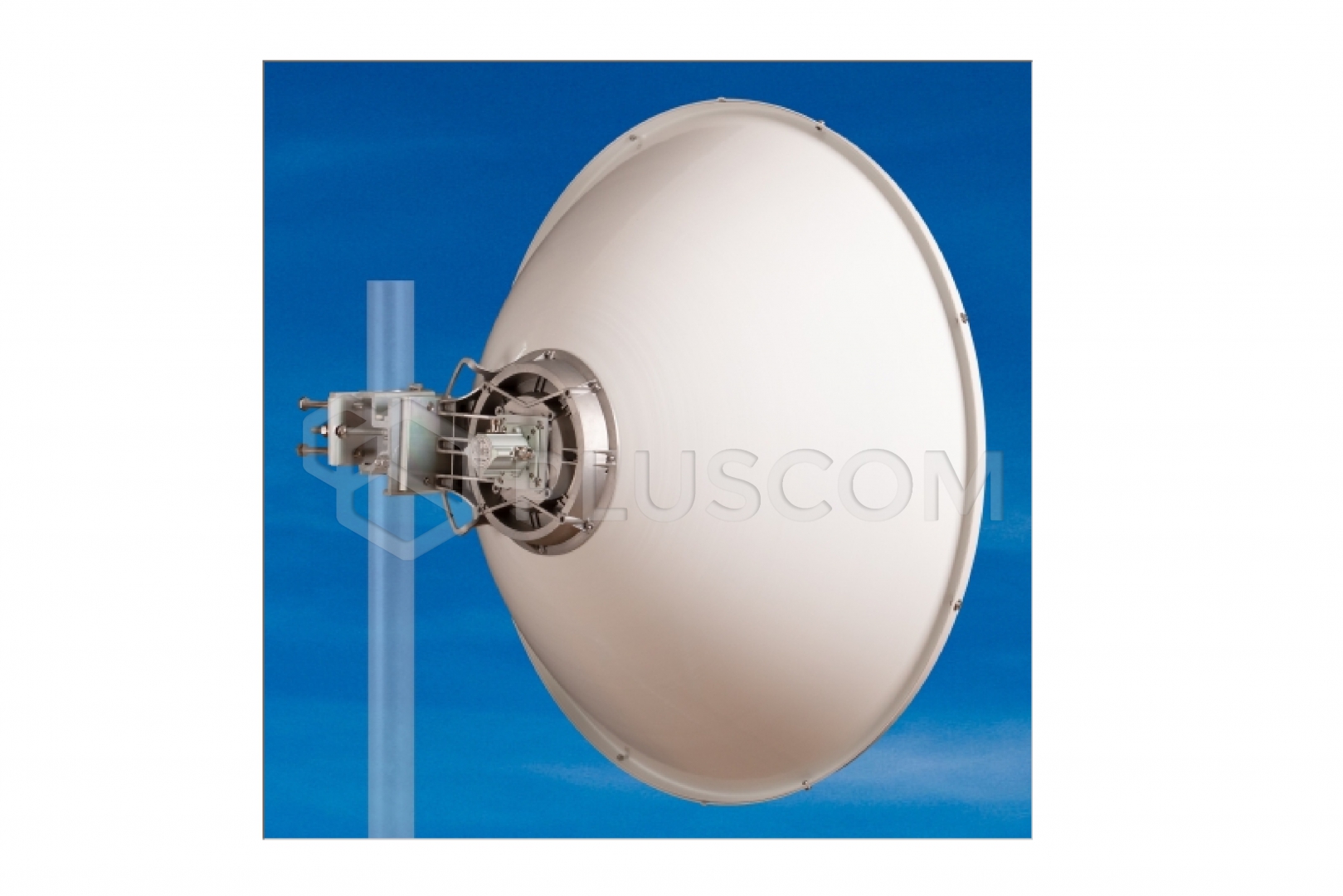

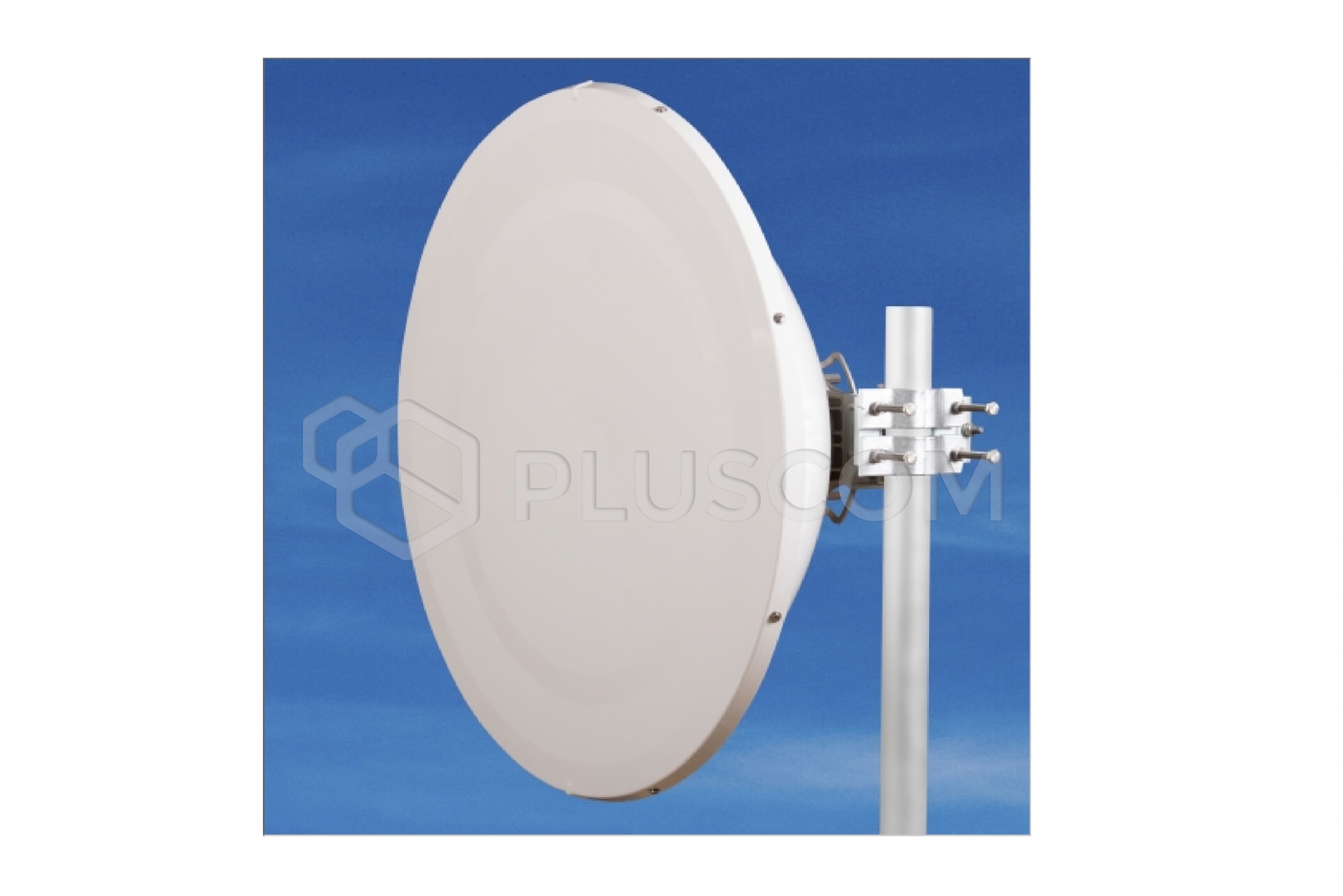

The JRC-32 Deep Dish MIMO Precision dual-polarized parabolic antenna is designed for directional links with MIMO mode in the 5 GHz frequency band.
The antenna is designed for environments with many reflections over long distances.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept expands the frequency band. The Precision version includes the massive JDMW-900 holder designed for microwave links.

FEATURES:

• New design with a deep antenna increases isolation between antennas on the mast.
• Dual-polarization antenna, horizontal/vertical or 2x45°.
• Extended frequency band.
• Long range in challenging environments.
• Very high front-to-back ratio.
• Easy to use with the GentleBOX JR-200 or JR-250 Alu.
• Ability to calculate the achievable distance from the calculation section.
• Parabolic shield (plastic) included.

Other models:
- JRC-32DD MIMO PriS – antenna for the UBNT PrismStation dual-polarization radio.

Parameters Electrical:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 32.1 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4 (other frequency bands ≤ 1.7)
• Beamwidth -3 dB: 4.3˚
• Port-to-port isolation: 5.1 – 5.9 GHz ≥ 26 dB
• Front-to-back ratio: ≥ 52 dB
• Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

• Parabola: Ø 900 mm, aluminum alloy
• Dome: UV-resistant plastic, ABS
• Connector type: N-female
• Mast mounting: Ø 40 - 120 mm
• Operating wind load: 140 km/h (87 mph)
• Survival wind load: 210 km/h (130 mph)
• Antenna weight: 8.2 kg
• Bracket weight: 3.2 kg

Recommended accessories

• GentleBOX JR-200 or JR-250 Alu (we recommend using R-SMA connectors)
• Bracket GentleCLIP pairs for mounting Ubiquiti Rocket M5
• Pigtail R-SMA/MMCX
• Pigtail R-SMA/UF.L
