Jirous Parabolic antenna JRC-32DD MIMO Precision MimX

Jirous Parabolic antenna JRC-32DD MIMO Precision MimX

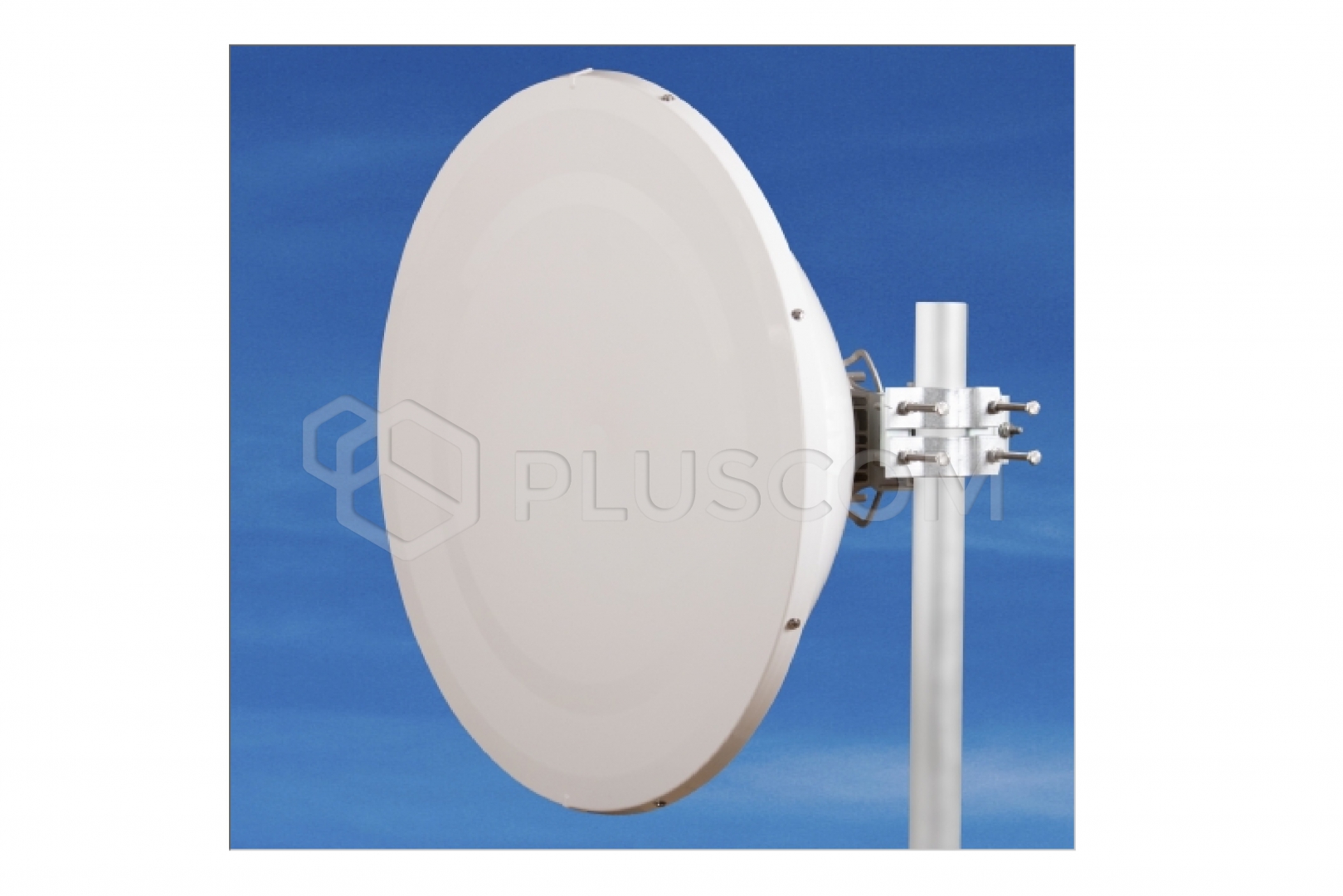

The JRC-32 Deep Dish MIMO Precision MimX dual-polarized parabolic antenna is designed for use with C5x, B5x, and C6x dual-polarized radio units in the 5/6 GHz frequency band.
The antenna is designed for long- and medium-range multiple reflection environments in challenging conditions.

Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept expands the frequency band.

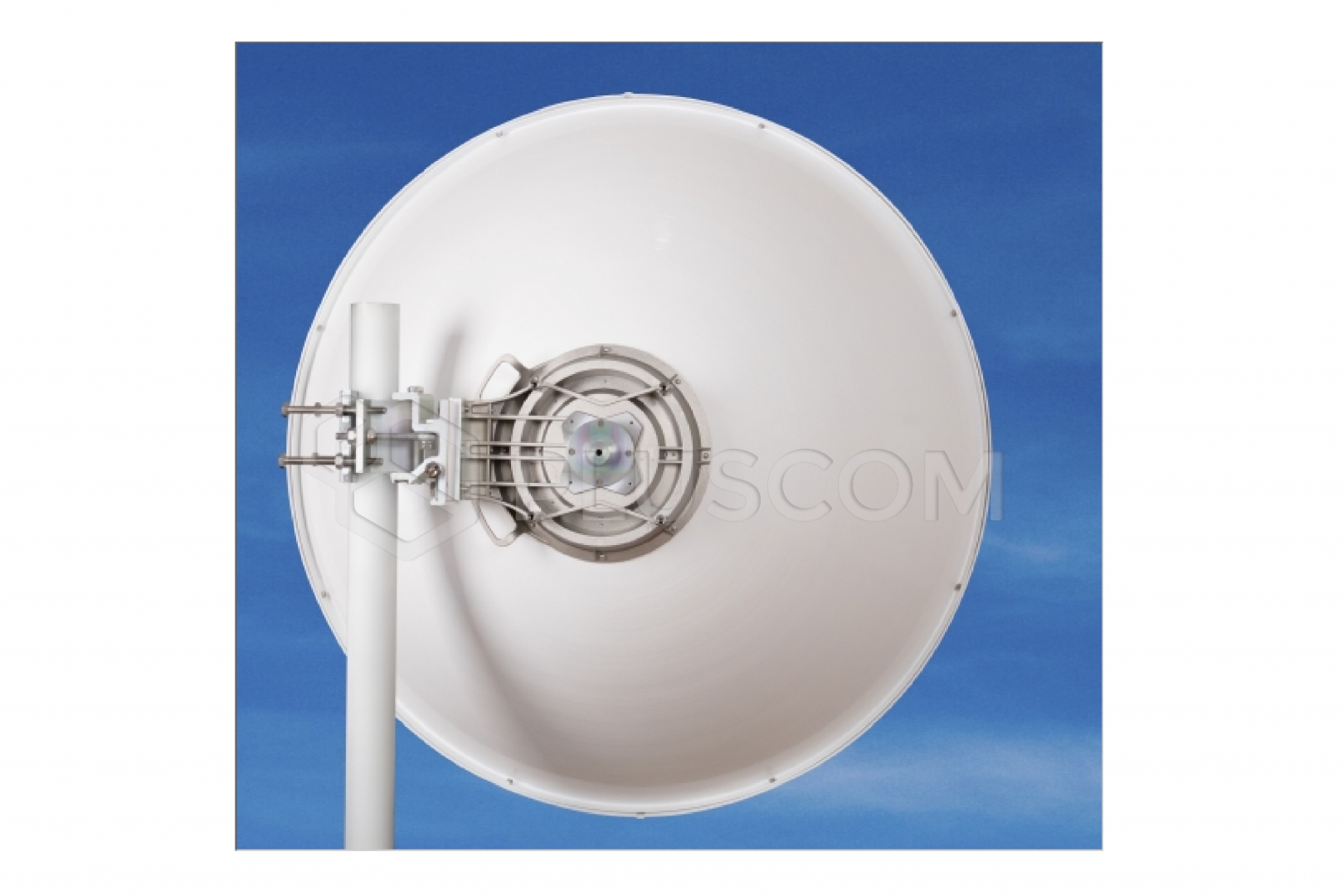

The JRC-32DD MIMO Precision MimX version includes the massive JDMW-900 mount, developed for microwave links.

FEATURES:

• Mimosa Twist-on Waveguide Antenna
• Deep antenna increases isolation between antennas on the mast
• Precise, durable JDMW-900 mount designed for professional microwave links
• Precise and easy elevation adjustment
• New concept with extended frequency band
• High front-to-back ratio
• Additional corrosion resistance
• Directional link for long-distance link
• Ability to calculate the achievable distance from the calculation section
• A parabolic shield (plastic cover) is included in the price
• The antenna supports interchangeable waveguides. Choices include the connector-style, high-performance DuplEX waveguide or the circular waveguide for Prismstation. These waveguides must be purchased separately.

• Electrical Parameters:

  • Frequency Range: 4.9 – 6.4 GHz
  • Gain: 32.1 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.3
  • Beamwidth -3 dB: 4.3˚
  • Front-to-Back Ratio: ≥ 52 dB
  • Polarization: Determined by the radio receiver.

  Mechanical Parameters:

  • Parabola: Ø 900 mm, aluminum alloy.
  • Radome: ABS plastic, radiation-resistant. UV
  • Connector type: Twisted waveguide for C5x, B5x, C6x
  • Mast mounting: Ø 40–120 mm
  • Operating wind load: 140 km/h (87 mph)
  • Wind resistance: 210 km/h (130 mph)
  • Antenna weight: 8.2 kg
  • Bracket weight: 3.2 kg
