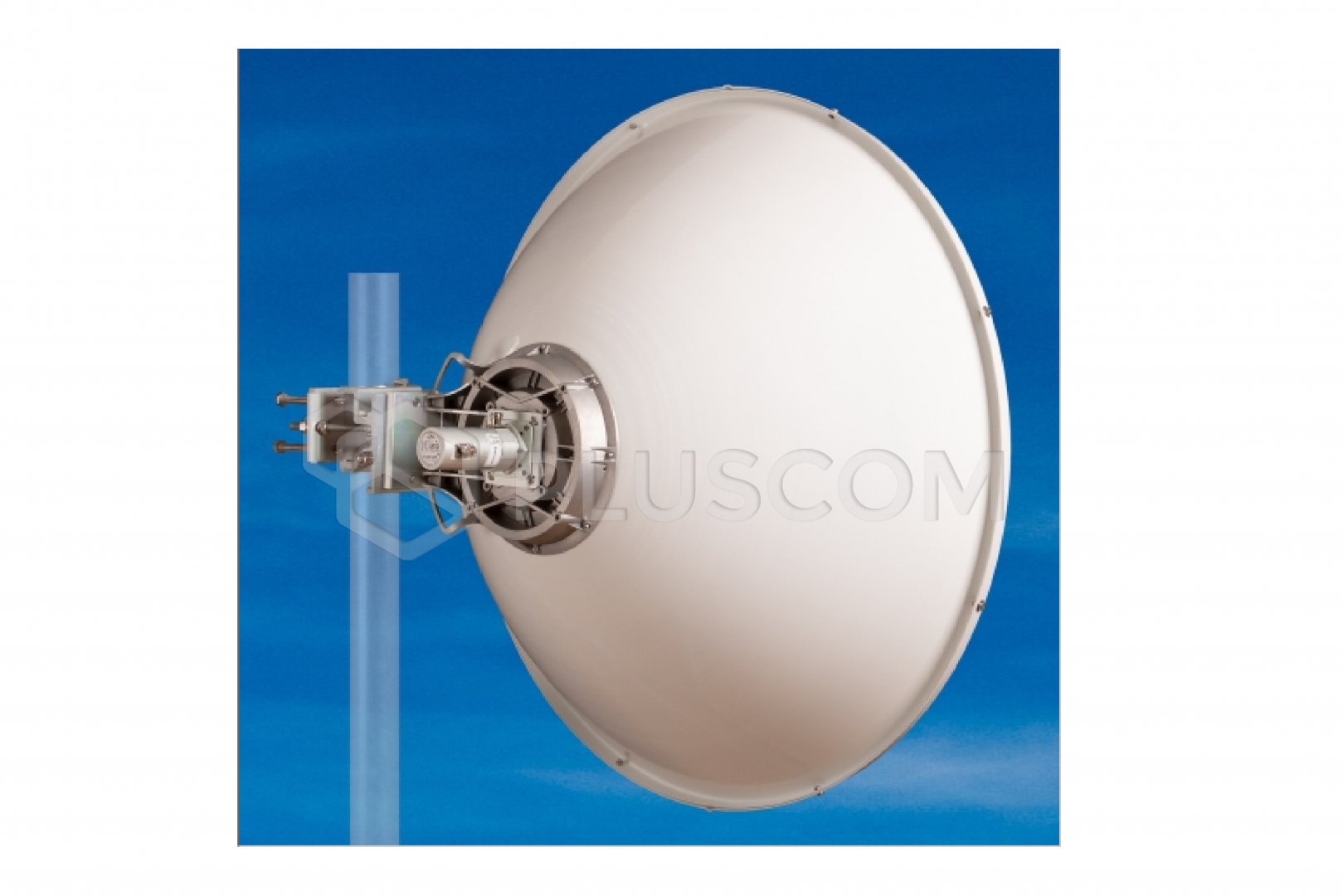

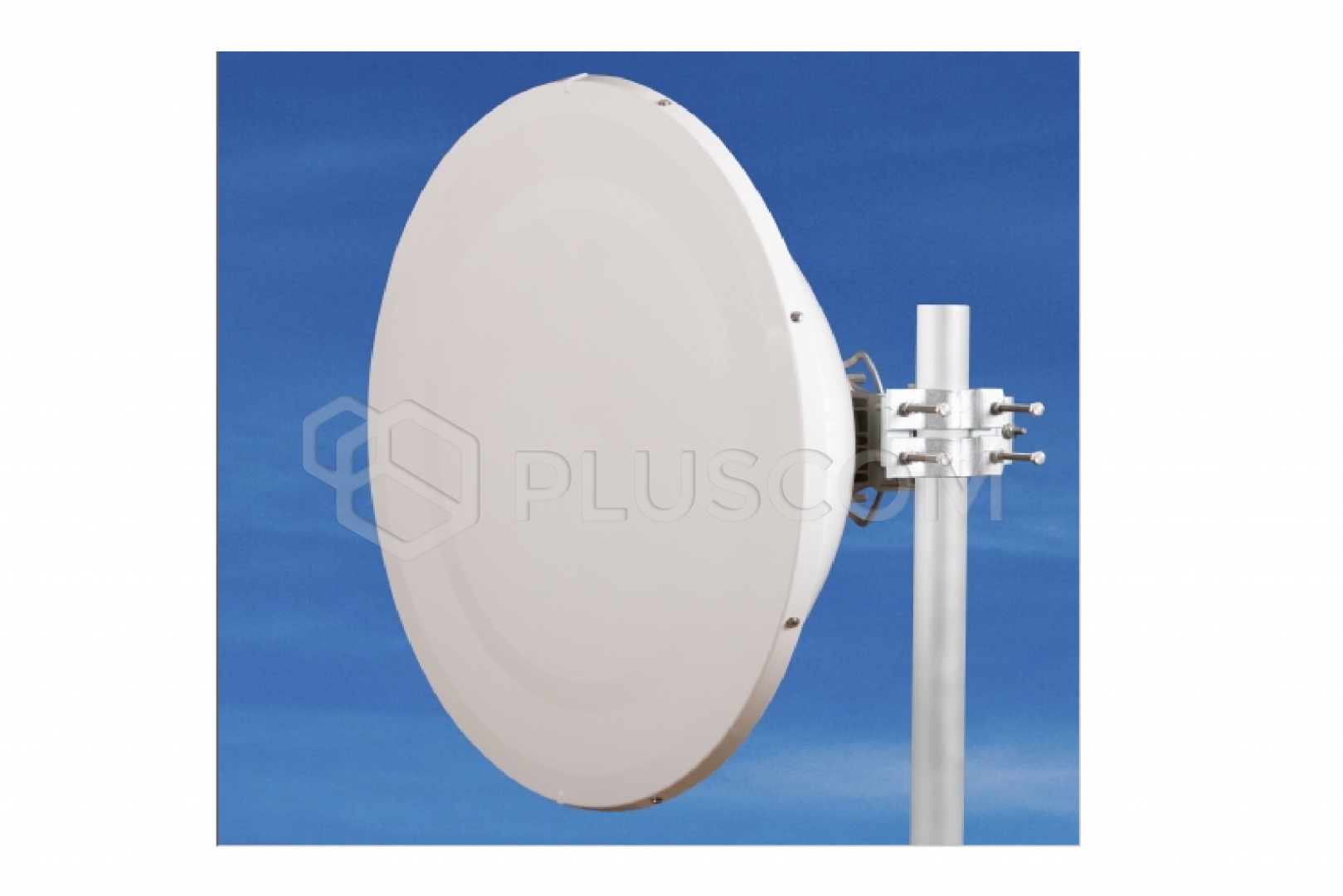

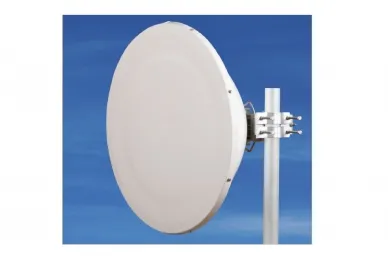

Jirous Parabolic antenna JRC-32DD DuplEX Precision (N-female
connector)
A high-gain, dual-polarization parabolic antenna with a 32 dBi gain for
building efficient point-to-point connections over long distances. Ideal for
building Nstreme Dual connections.
The antenna has significantly greater separation between polarizations compared
to microstrip antennas (min. 53 dB).
The manufacturer guarantees a low VSWR (≤ 1.5), which, along with the
separation, is measured in every manufactured unit. The special elongated
parabolic design significantly reduces the impact of interference from the back
and sides of the antenna.
This allows multiple antennas to be placed on a single mast without fear of
decreasing CCQ and throughput.
The antennas have a robust mount that allows for precise adjustment and
mounting of the antenna in difficult conditions. The antenna radiator can also
be mounted at a 45° angle to achieve oblique polarization.
Applications:
- Dual-polarization antenna, horizontal and vertical polarization
- The greatest separation! 53 dB
- Only 1 antenna instead of two!
- Very high front/rear beam power ratio
- The metal collar provides increased separation between antennas on the
mast, resulting in less interference between connections.
- Stable in strong winds.
- For outdoor use.
Technical parameters:
- Frequency range: 5.45 - 5.85 GHz. Gain: 32.2 dBi ± 0.6 dBi.
- VSWR: ≤ 1.5 dB.
- Connector separation: 53 dB (≥ 45 dB).
- Front/rear beam power ratio: ≥ 52dB
- Connectors: N/female - JRC-32DuplEX Precision
- RP-SMA/female - JRC-32DuplEX-SMA Precision
- Linear, horizontal, and vertical polarization
- Parabola Ø90 cm powder-coated aluminum alloy
- UV-resistant ABS cover
The interior of the radiator is made using high-frequency
"Hydrophobic coating" technology, which prevents moisture buildup.
Accessories:
When using the GentleBOX JR-300 housing, we recommend
using the version with RP-SMA connectors. For the version with N connectors, it
is necessary to use one pigtail with an N angled connector or an N angled
adapter.
Packaging:
1 pc. per box
