Jirous Parabolic antenna JRC-29DD SX MIMO (connector R-SMA)

Jirous Parabolic antenna JRC-29DD SX MIMO (connector R-SMA)

Jirous Parabolic antenna JRC-29DD SX MIMO (connector N-female)

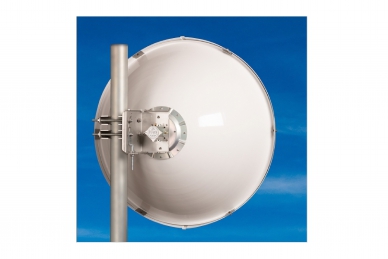

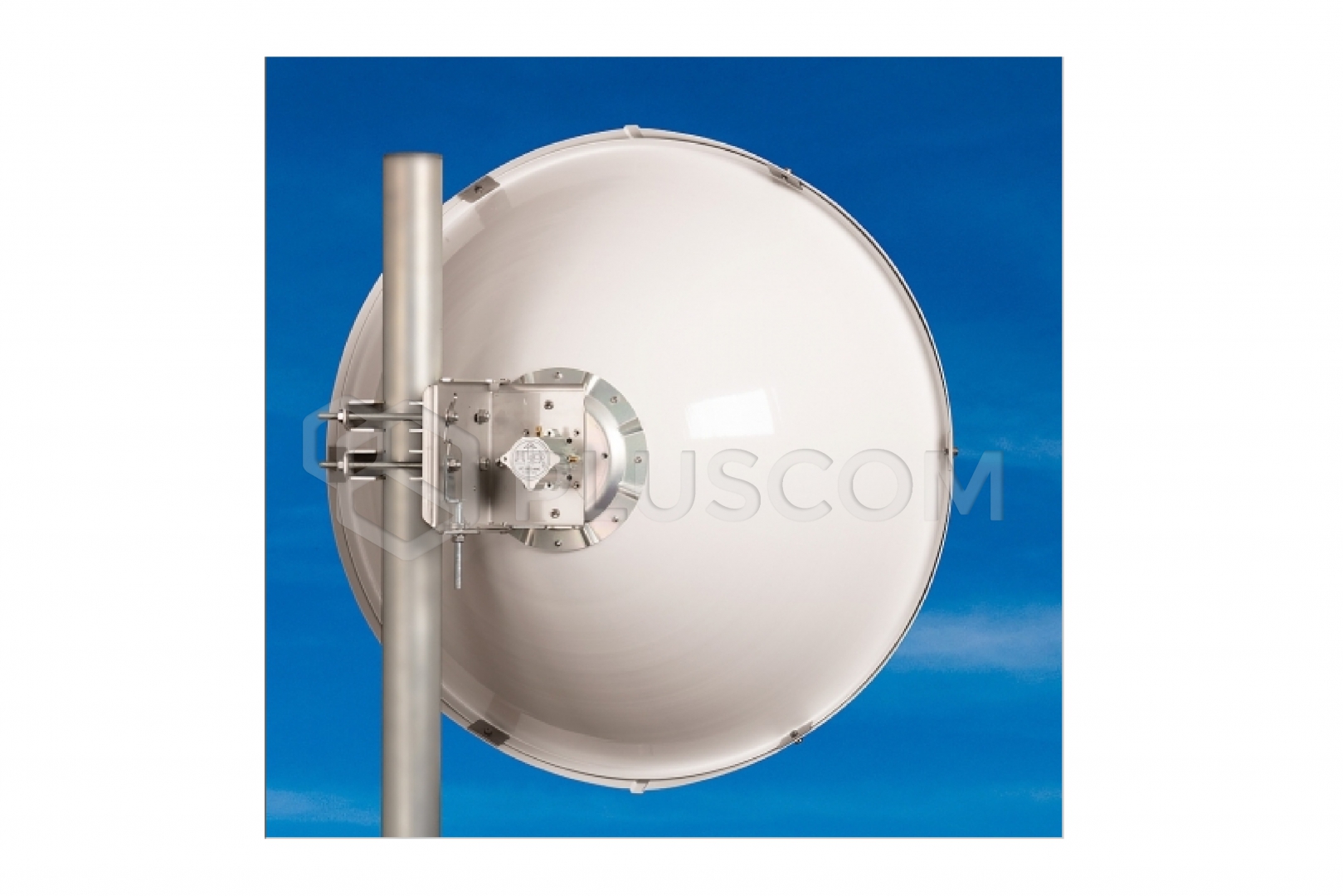

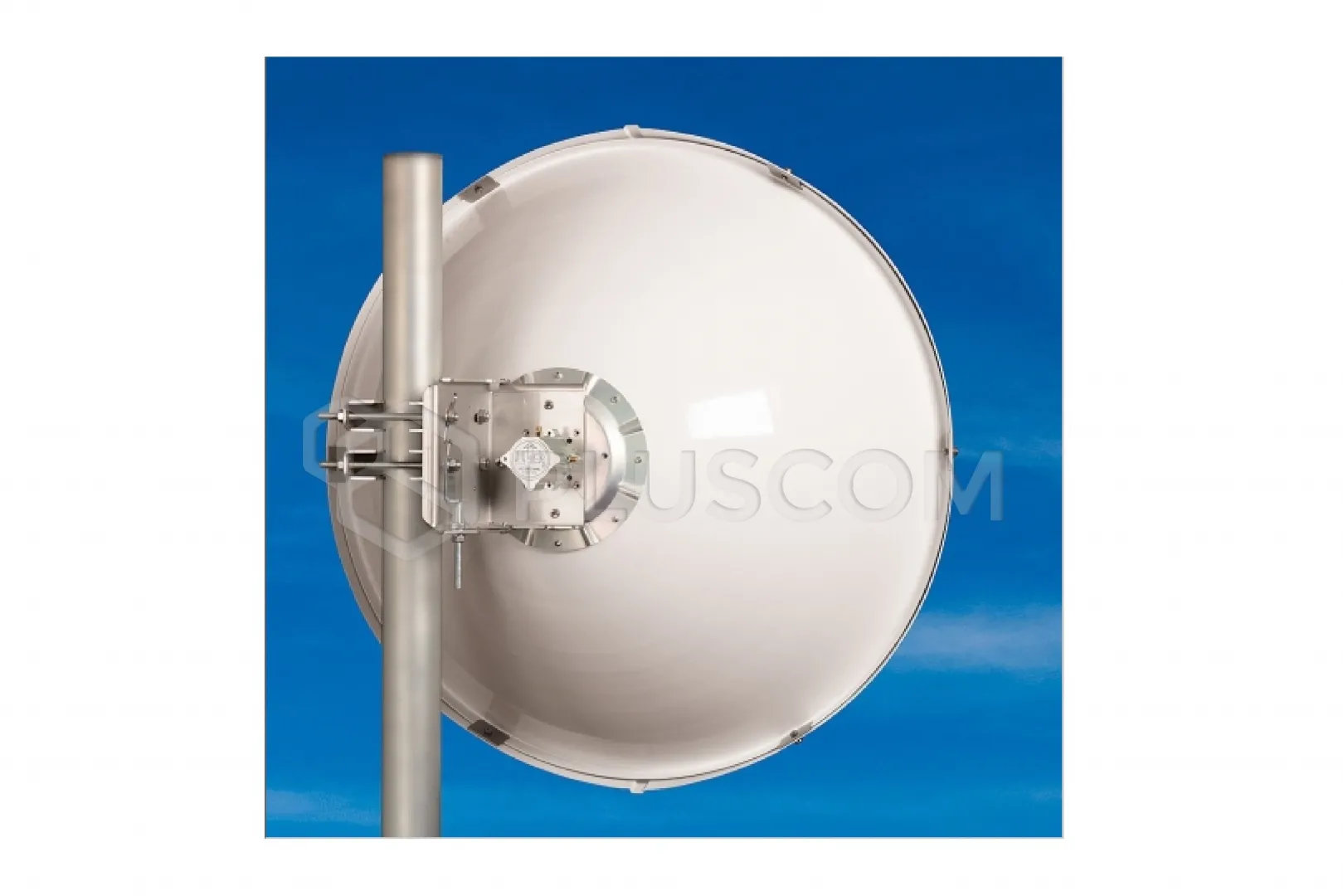

The JRC-29 Deep Dish MIMO dual-polarized parabolic antenna is designed for directional MIMO connections in the 5 GHz frequency band.
The antenna is designed for operation in multi-reflective environments over long and medium distances in harsh conditions.

Its deep dish design increases isolation between the antennas on the mast and increases the front-to-back ratio.
This new concept expands the frequency band. The SX version is equipped with a stainless steel mount that is resistant to adverse corrosive conditions.

The set contains 2 pieces.

FEATURES:

• Dual-polarization MIMO antenna, horizontal/vertical or 2x45° polarization
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Easy installation of GentleBOX JR-200 or JR-250 Aluminum
• Additional corrosion resistance
• Directional link for medium or short distance connections in challenging environments
• Precise height adjustment
• Achievable distance can be calculated from the calculation section
• Plastic parabolic shield included in the price

Other models:
- JRC-29DD MIMO Precision – Precision Antenna with Precision Mount
- JDMW-900 AR
- JRC-29DD MIMO – Standard Depth MIMO Antenna
- JRC-29DD MIMO PriS – Antenna for the UBNT PrismStation Dual-Polarization Radio

Electrical Parameters:

• Frequency Range: 4.9 – 6.4 GHz
• Gain: 29.0 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4
• Beamwidth -3 dB: 5.5˚
• Port-to-Port Isolation: 5.1 – 5.9 GHz ≥ 25 dB (other frequency bands ≥ 22 dB)
• Front-to-back ratio: ≥ 49 dB
• Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

• Parabola: Ø 680 mm, aluminum alloy
• Radome: UV-resistant ABS plastic
• Connector type: R-SMA
• Pole mounting: Ø 27–74 mm
• Antenna weight: 5.9 kg

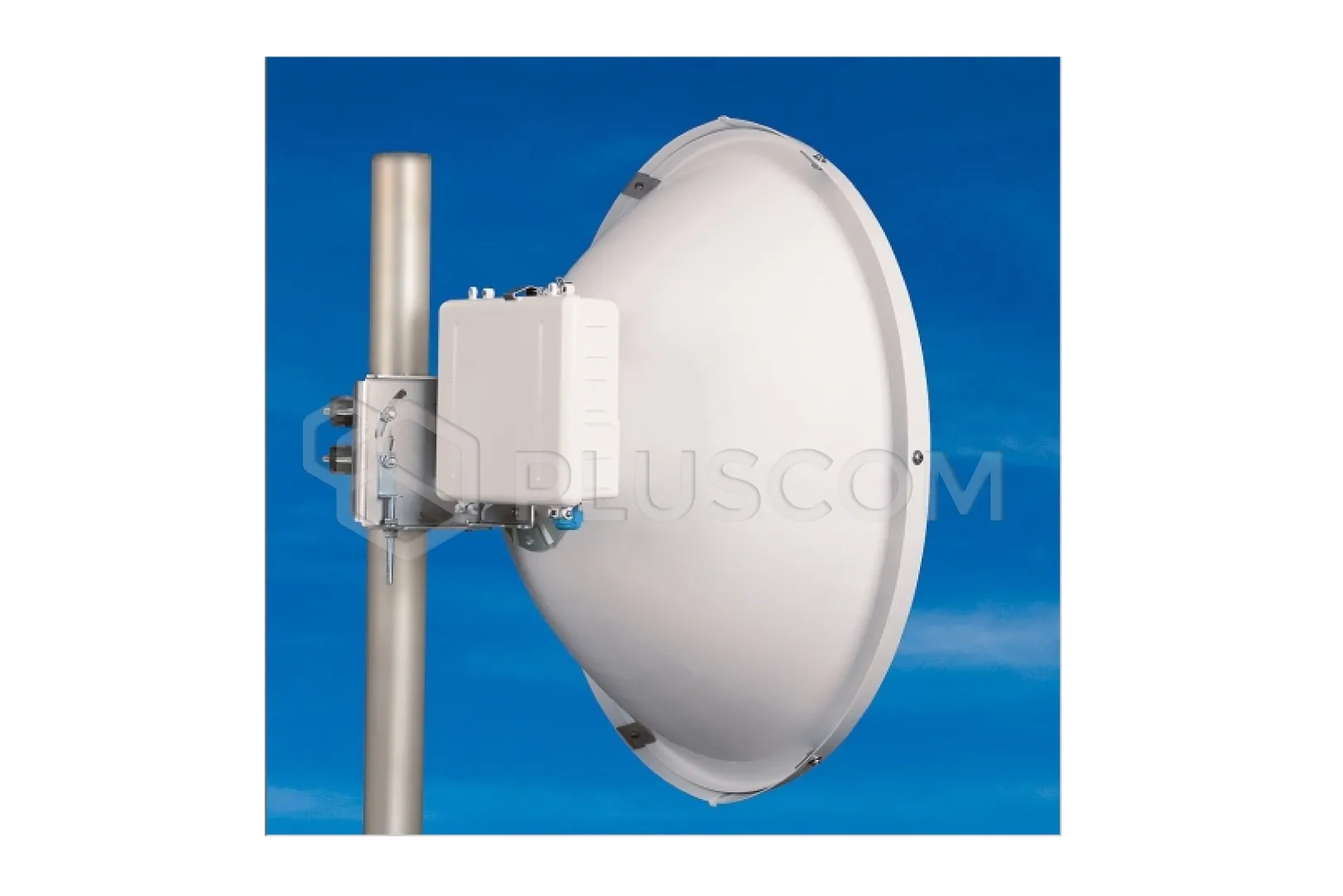

• The antenna can be used with the JR-250 Alu external metal housing for access points, RouterBOARDs, and other electronics, or with the GentleCLIP bracket for easy mounting of snap-in devices.
  The antenna has separate snap-in nuts for easy installation and azimuth and elevation adjustment. Right- and left-sided mounting possible.

Recommended accessories:

• For use with the GentleBOX JR-200 and JR-250 Alu, we recommend the model with R-SMA connectors.
• GentleCLIP pair bracket for mounting the Ubiquiti Rocket M5
• R-SMA/MMCX pigtail
• R-SMA/UF.L pigtail
