Jirous Parabolic antenna JRC-29DD MIMO Pris (2pcs)

Jirous Parabolic antenna JRC-29DD MIMO Pris (2pcs)

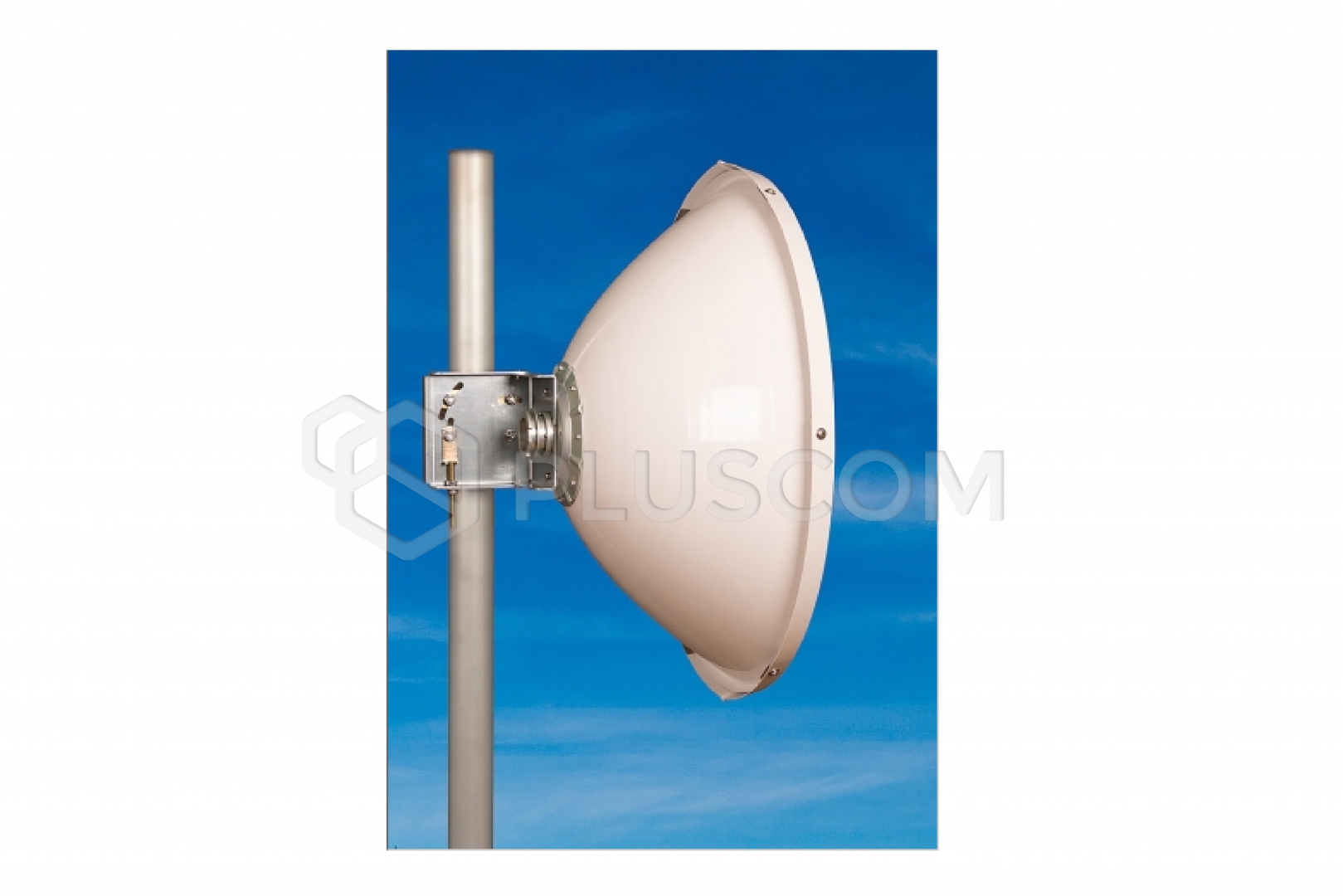

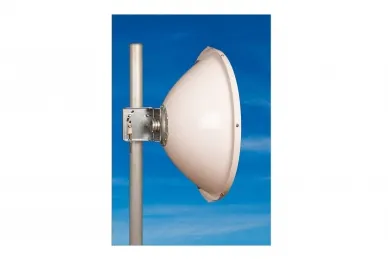

The JRC-29 Deep Dish MIMO PriS dual-polarized parabolic antenna is designed for connection to dual-polarized PrismStation radio units in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections over long and medium distances in challenging conditions.

Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back signal ratio. The new design expands the frequency band.

The set includes 2 pieces.

FEATURES:

• Antenna for the dual-polarization UBNT PrismStation radio
• Deep dish design increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-rear signal ratio
• Directional link for medium or short distances in challenging environments
• Ability to calculate the achievable distance from the calculation section
• Plastic parabolic shield included

Other models:
- JRC-29DD MIMO – standard MIMO antenna with a deep dish
- JRC-29DD MIMO Precision – antenna with a precision mount
- JDMW-900 AR
- JRC-29DD-SX MIMO – Antenna with Stainless Steel Bracket for Operation in Harsh, Corrosive Environments

Electrical Parameters:

• Frequency Range: 4.9 – 6.4 GHz
• Gain: 29.0 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4
• Beamwidth -3 dB: 5.5˚
• Front-to-Back Ratio: ≥ 49 dB
• Polarization: Determined by the Radio

Mechanical Parameters:

• Parabola: Ø 680 mm, Aluminum Alloy
• Radome: UV-resistant ABS plastic
• Connection: Waveguide to PrismStation UBNT
• Mast mounting: Ø 27–74 mm
• Antenna weight: 6.1 kg (13.4 lbs)
