Jirous Parabolic antenna JRC-29DD MIMO Precision MimX

Jirous Parabolic antenna JRC-29DD MIMO Precision MimX

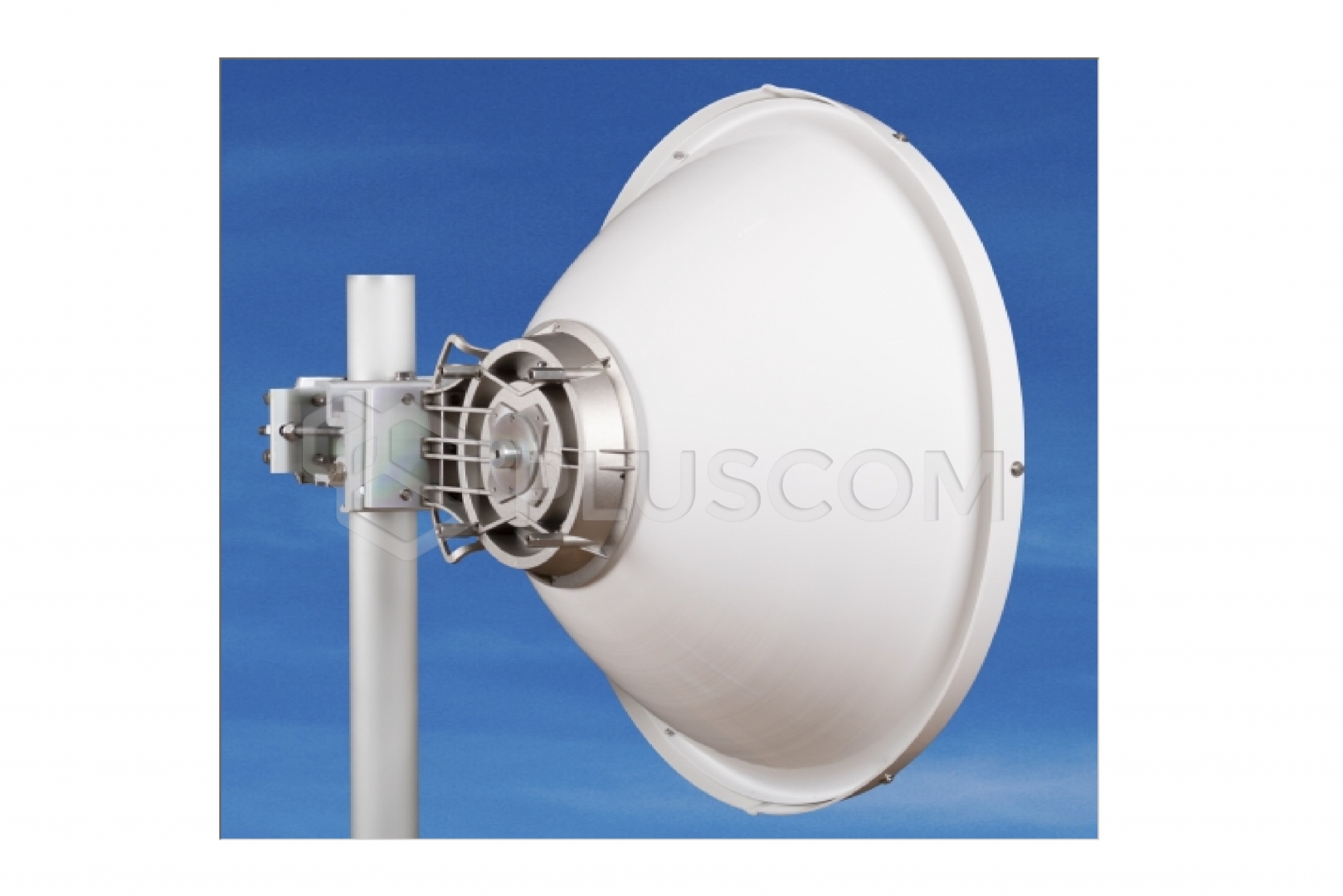

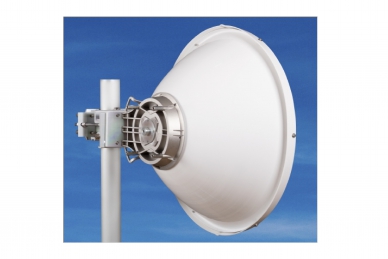

The JRC-29 Deep Dish MIMO Precision MimX dual-polarized parabolic antenna is designed for directional connections using dual-polarized C5x, B5x, and C6x radio units in the 5/6 GHz frequency band.
The antenna is designed for operation in multi-reflective environments over long and medium distances under challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back signal ratio. This new concept expands the frequency band.
The antenna includes the robust JDMW-900 mount, developed for microwave links.

FEATURES:

• Mimosa Twist-on Waveguide Antenna
• Precise, durable JDMW-900 mount designed for professional microwave links
• Easy and precise azimuth and elevation adjustment
• Additional corrosion resistance
• Deep dish increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Directional link for medium and short distances in challenging environments
• Ability to calculate the achievable distance from the calculation section

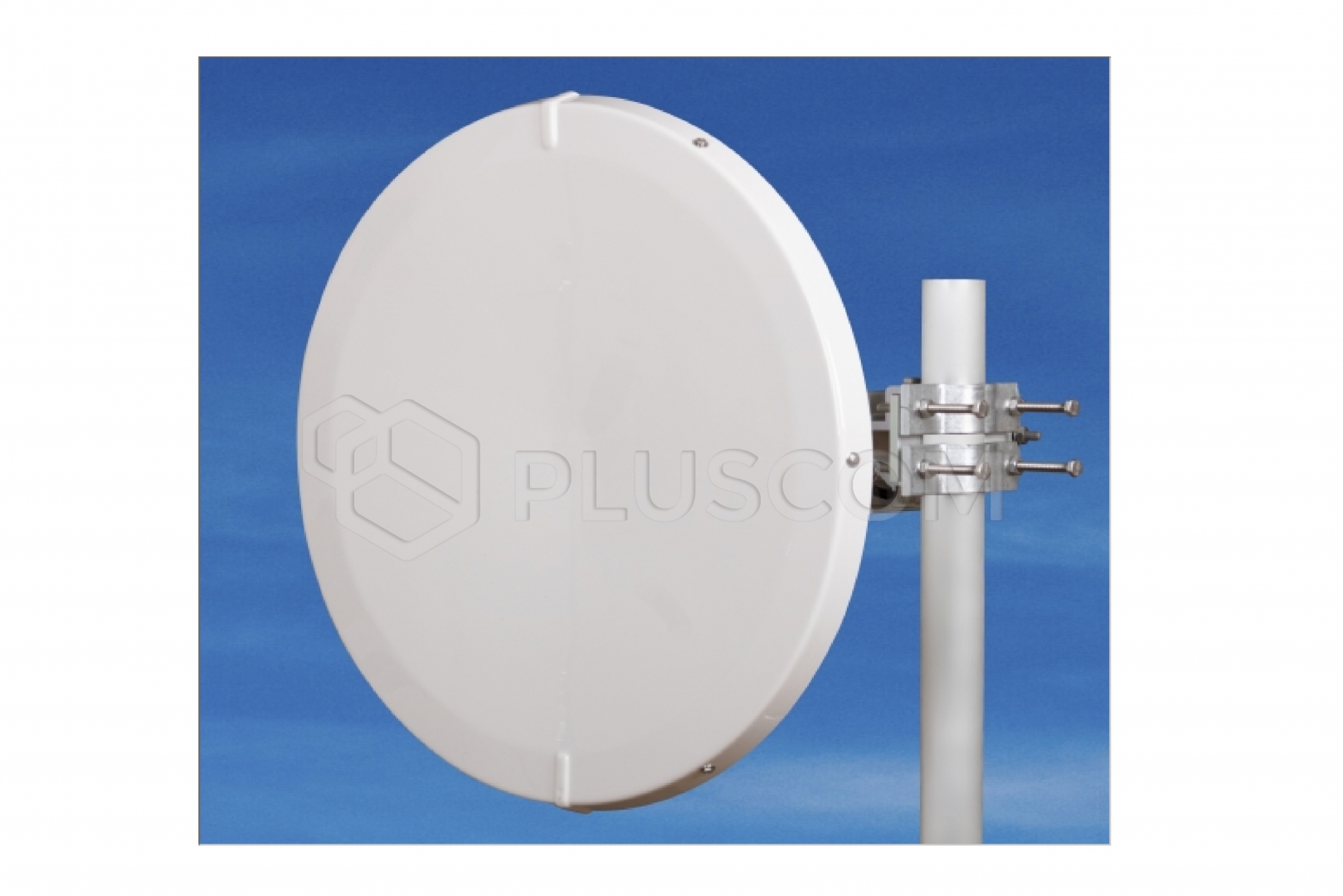

• A parabolic shield (plastic parabolic shield) is included in the price
• The antenna supports interchangeable waveguides. Choices include the connector-style, high-performance DuplEX waveguide or the circular waveguide for Prismstation. These waveguides must be purchased separately.

Electrical Parameters:

• Frequency Range: 4.9 – 6.4 GHz
• Gain: 29.0 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4
• Beamwidth -3 dB: 5.5˚
• Front-to-Back Ratio: ≥ 49 dB
• Polarization: Determined by the radio

Mechanical Parameters:

• Parabola: Ø 680 mm, aluminum alloy
• Radome: ABS plastic, radiation-resistant UV
• Connector type: Twisted waveguide for C5x, B5x, C6x
• Mast mounting: Ø 40 - 120 mm
• Antenna weight: 5.0 kg
• Bracket weight: 3.2 kg
