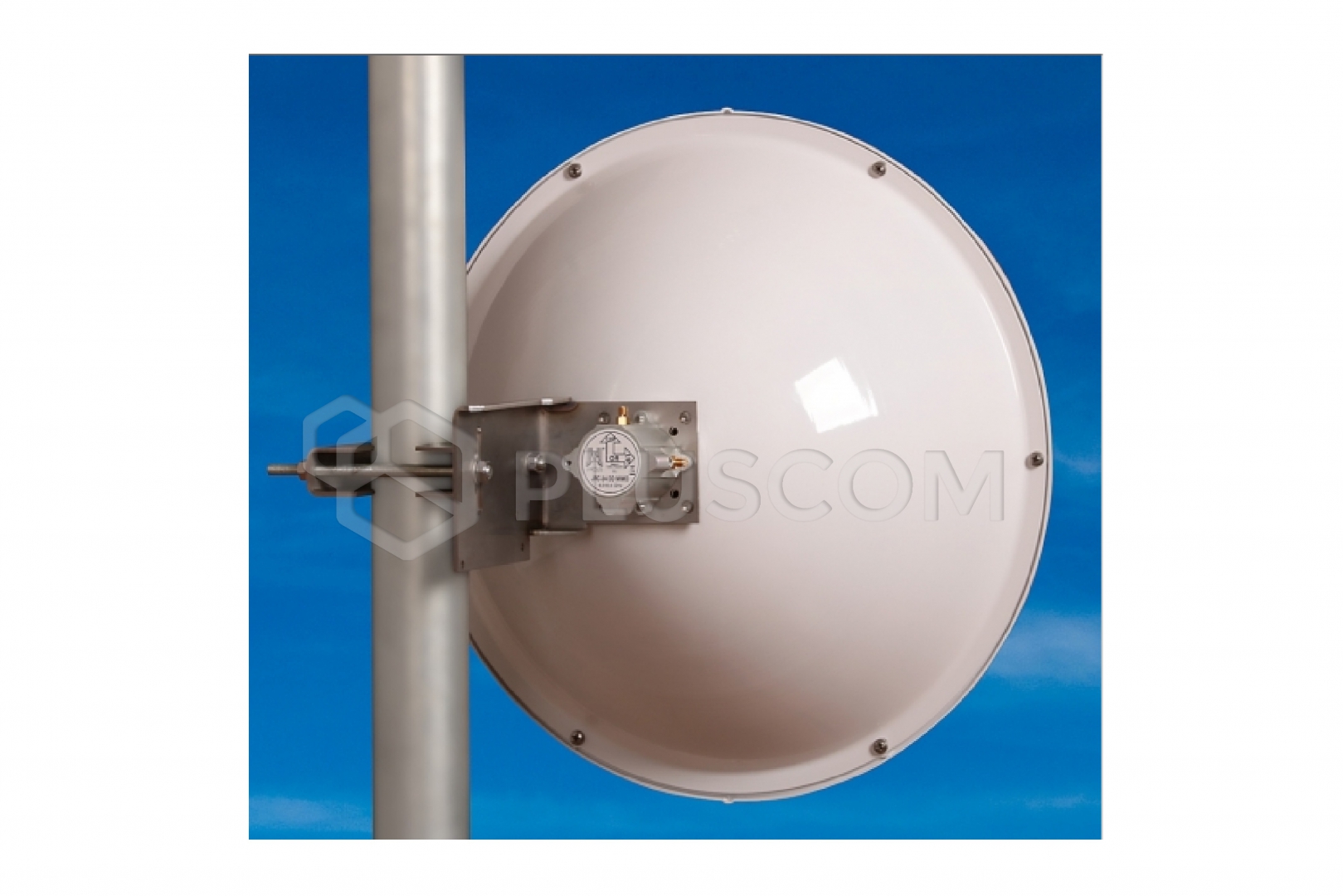

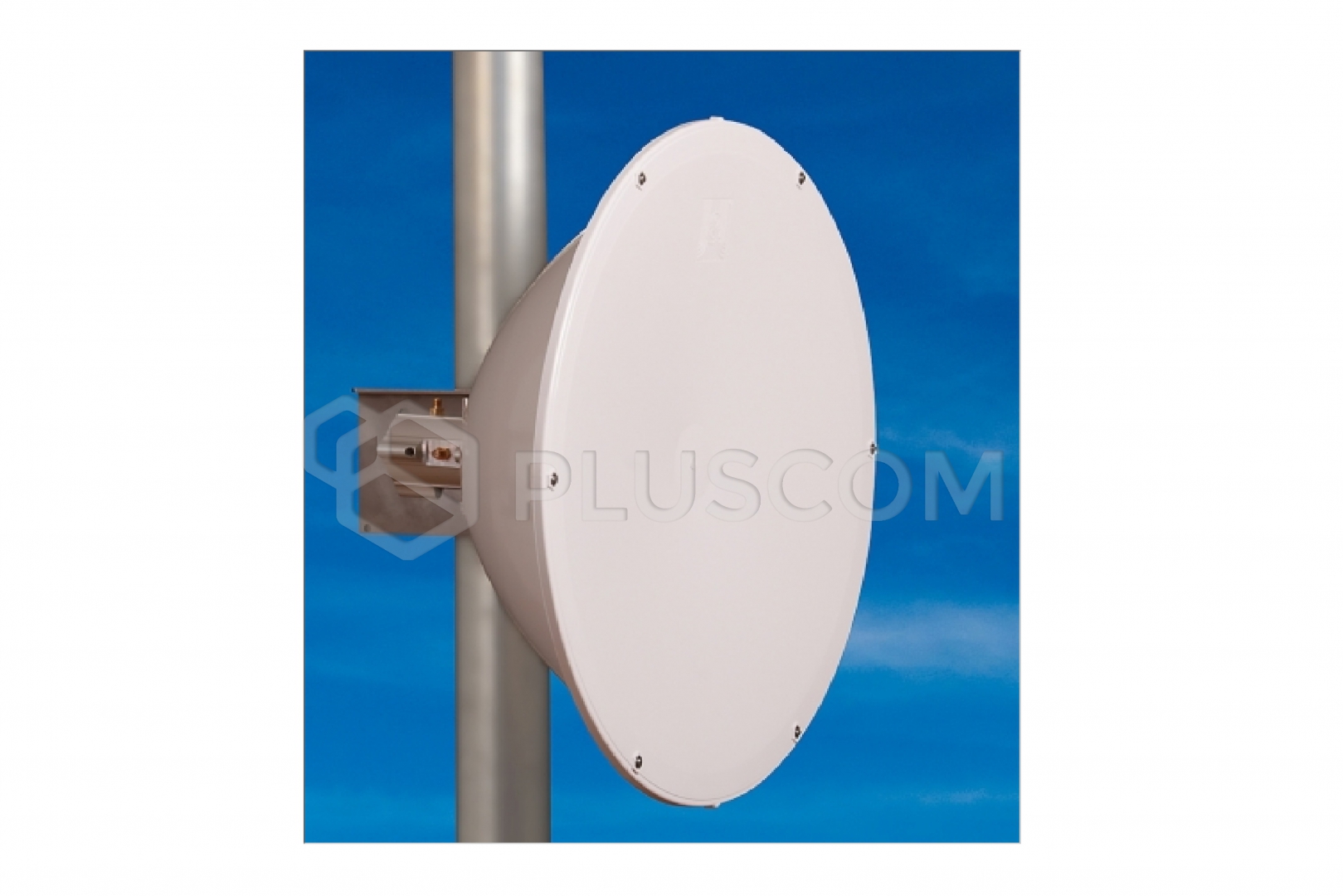

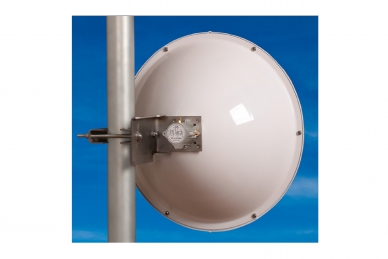

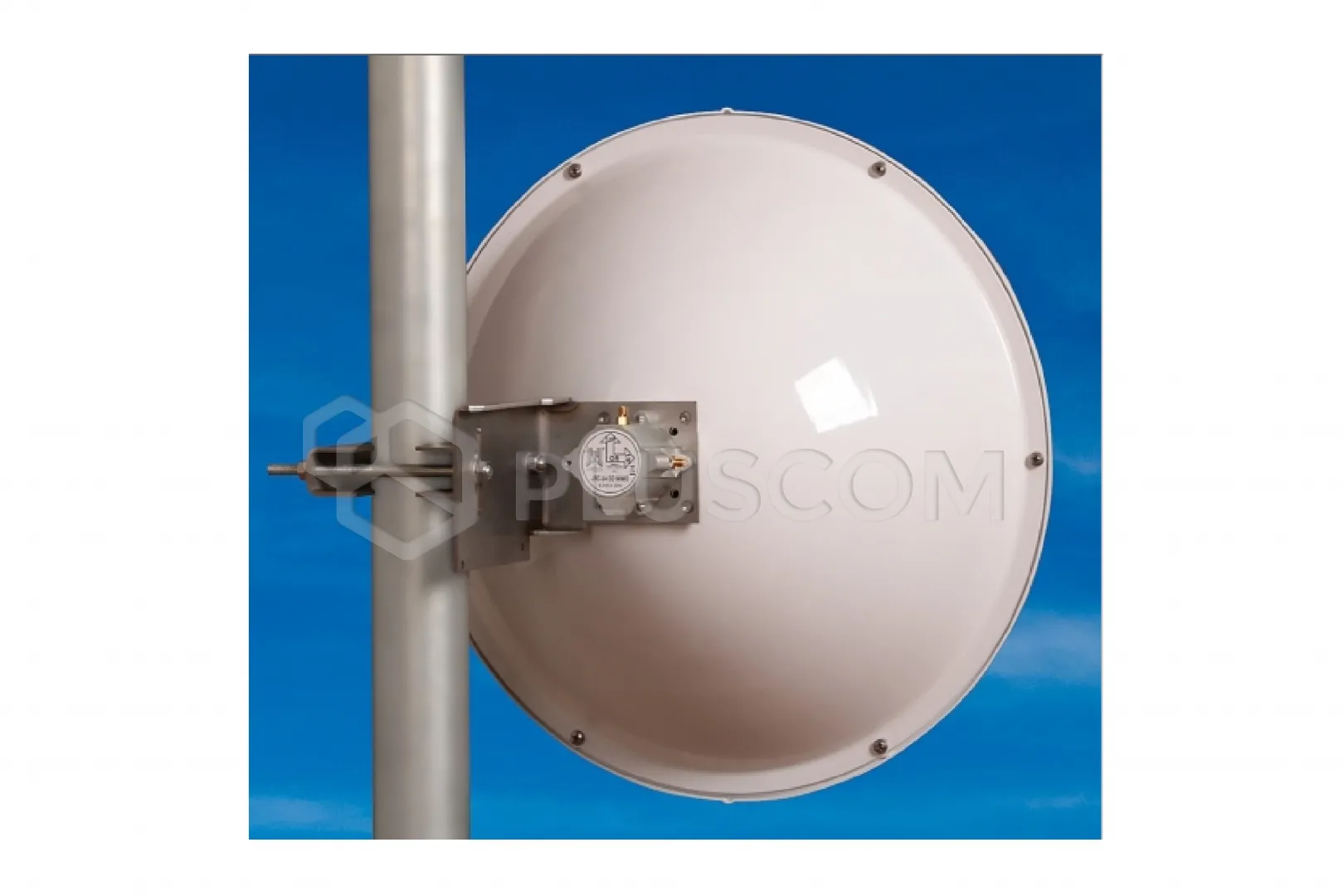

Jirous Parabolic antenna JRC-24DD SX MIMO (R-SMA connector) (2pcs.)
The JRC-24 Deep Dish MIMO dual-polarized parabolic antenna (R-SMA connector) is
designed for directional MIMO connections in the 5 GHz frequency band.
The antenna is designed for operation in environments with high reflections at
medium and short distances under harsh conditions.
Its deep dish design increases isolation between the antennas on the mast and
increases the front-to-back ratio. This new design expands the frequency band.
The SX version is equipped with a stainless steel mount that is resistant to
adverse corrosive conditions.
The set contains 2 pieces.
FEATURES:
- Dual-polarization MIMO antenna, horizontal/vertical or 2x45°
polarization
- Deep antenna increases isolation between antennas on the mast
- New concept with extended frequency band
- High front/back ratio
- Easy installation with GentleBOX JR-200 or JR-250 Aluminum
- Additional corrosion resistance
- Directional link for medium or short distance connections in challenging
environments
- Independent elevation (gradient) and azimuth adjustment
- Possibility to calculate the distance from the calculation section
- A parabolic shield (plastic cover) is included in the price
(parabolic)
Other models:
- JRC-24DD MIMO Precision – antenna with precision mount
- JDMW-900 AR
- JRC-24DD MIMO – standard deep MIMO antenna
- JRC-24DD MIMO PriS – antenna for the UBNT PrismStation dual-polarization
radio
Electrical parameters:
- Frequency range: 4.9 – 6.4 GHz
- Gain: 24.5 ± 1 dBi
- SWR: 5.1 – 5.9 GHz ≤ 1.4
- -3 dB beamwidth: 9.0˚
- Port-to-port isolation: 5.1 – 5.9 GHz ≥ 27 dB (other frequency bands ≥ 22
dB)
- Front-to-back ratio: ≥ 44 dB
- Polarization: Linear, vertical/horizontal or 45°
Mechanical parameters:
- Parabola: Ø 400 mm, aluminum alloy
- Dome: UV-resistant ABS plastic
- Connector type: R-SMA
- Mast mounting: Ø 27–74 mm
- Antenna weight: 2.5 kg (5.5 lbs)
The antenna can be used in conjunction with the JR – 250 aluminum outdoor
metal housing for access points, RouterBOARDs, and other electronics, or with
the GentleCLIP mount, which facilitates the installation of devices with a
snap-in system.
The antenna has separate snap-in nuts for easy installation and azimuth and
elevation adjustment. Right- and left-sided mounting possible.
