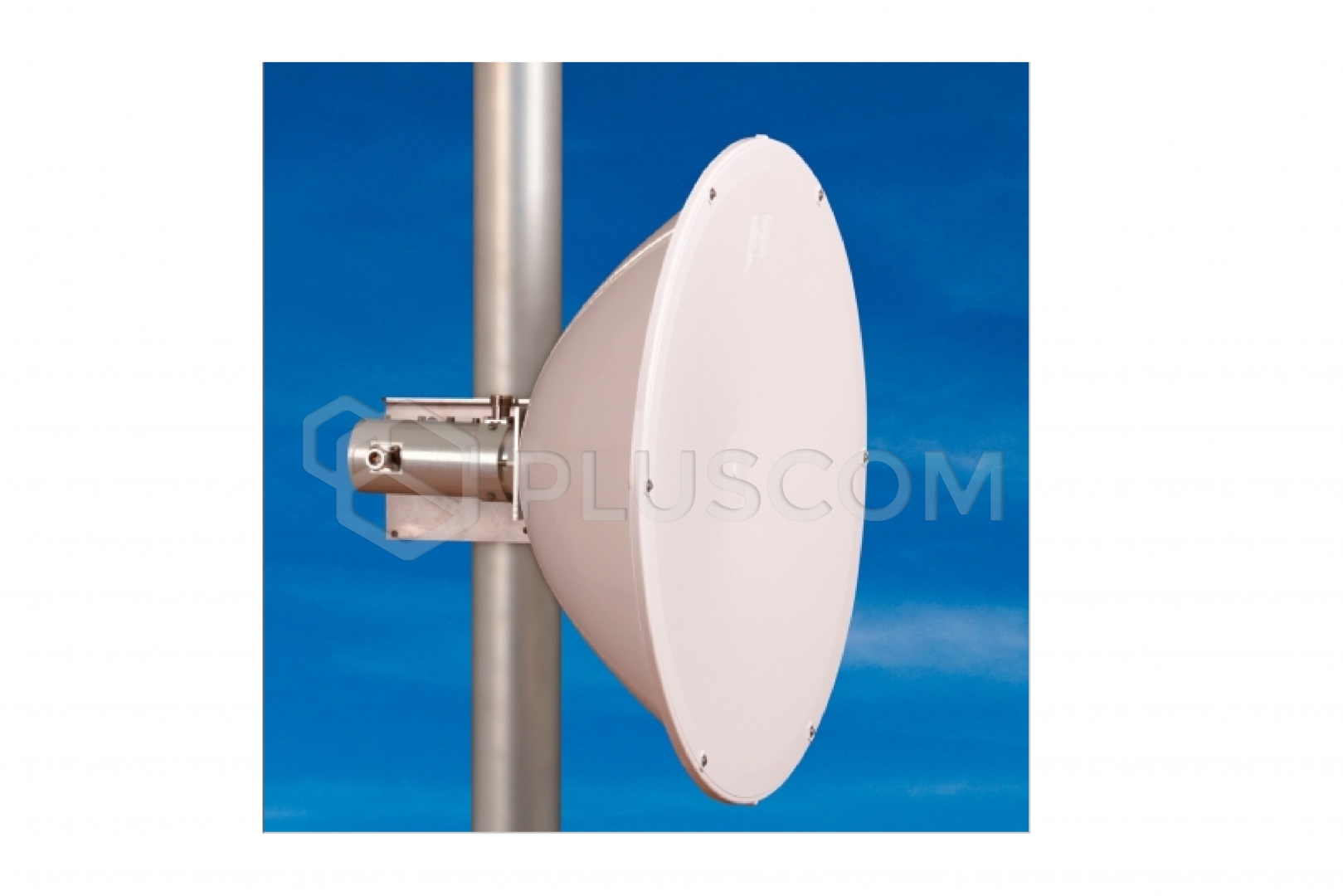

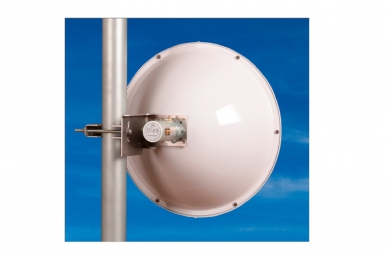

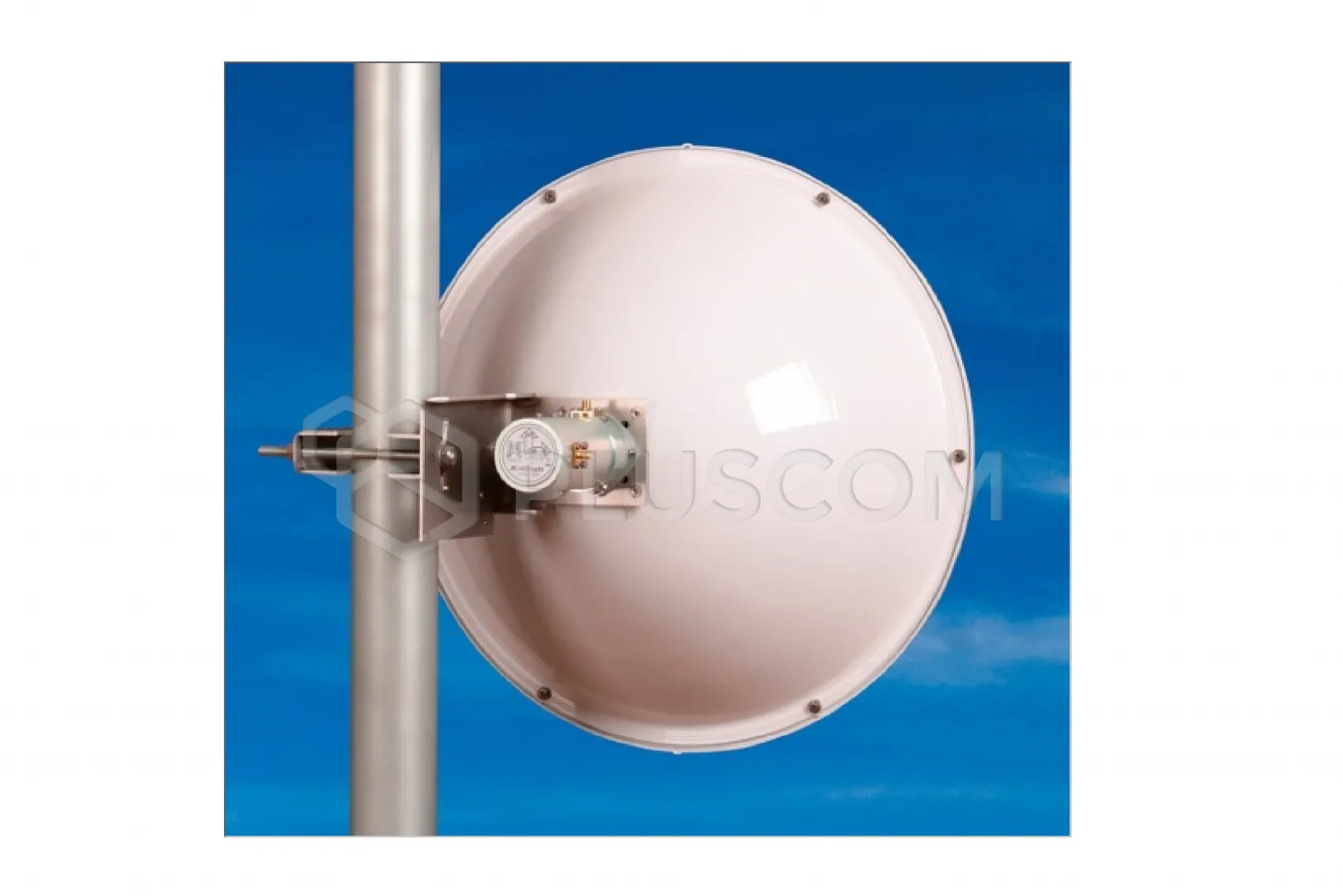

Jirous Parabolic antenna JRC-24DD SX DuplEX (R-SMA) (2 pcs)

Jirous Parabolic antenna JRC-24DD SX DuplEX (R-SMA) (2 pcs)

The JRC-24DD DuplEX dual-polarized parabolic antenna is designed for directional links in full-duplex or MIMO mode in the 5 GHz frequency band with high isolation levels.
The antenna is designed for medium- and short-range operation in harsh environments.

Its deep dish design increases isolation between the antennas on the mast and increases the front-to-back ratio. The SX version features a stainless steel mount that is resistant to adverse corrosion conditions.

The set includes 2 pieces.

FEATURES:

• Dual-polarization antenna: Full duplex or MIMO, horizontal/vertical or 2x45° polarization
• Good port-to-port isolation enables full-duplex connections
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Additional corrosion resistance
• Directional links or client connection for medium or short distances in challenging environments
• Elevation (gradient) and azimuth settings are independently adjustable
• Achievable distance can be calculated from the calculation section
• Plastic parabolic shield included Artificial

Other models:
- JRC-24DD DuplEX – standard deep DuplEX antenna
- JRC-24DD DuplEX Precision – antenna with precision mount
- JDMW-900 AR

Electrical parameters:

• Frequency range: 4.9 – 6.1 GHz
• Gain: 24.5 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.6
• -3 dB beamwidth: 9.0˚
• Port-to-port isolation: 5.1 – 5.9 GHz ≥ 50 dB (typical 53 dB) (other frequency bands ≥ 43 dB)
• Front-to-back ratio: ≥ 44 dB
• Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

• Parabola: Ø 400 mm, aluminum alloy
• Radome: UV-resistant ABS plastic
• Connector type: R-SMA
• Mast mounting diameter: 27–74 mm
• Antenna weight: 2.5 kg (5.5 lbs)
• The antenna can be used in conjunction with the JR-350 Aluminum outdoor metal housing for access points, RouterBOARDs, and other electronics, or with a bracket GentleCLIP, which simplifies the installation of devices with a snap-in system.
  The antenna has separate snap-in nuts, making it easy to install and adjust azimuth and elevation. Right- and left-sided mounting is possible.

  Recommended accessories:

  For use with the GentleBOX JR-300, we recommend:
  - Version with R-SMA connectors (JRC - 24DuplEX - SMA)
  - Version with N connectors should be supplemented with an angled adapter for a horizontally polarized connector
  • R-SMA/MMCX pigtail for JRC-24DuplEX-SMA
  • R-SMA/UF.L pigtail for JRC-24DuplEX-SMA
