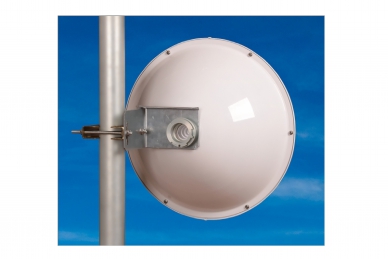

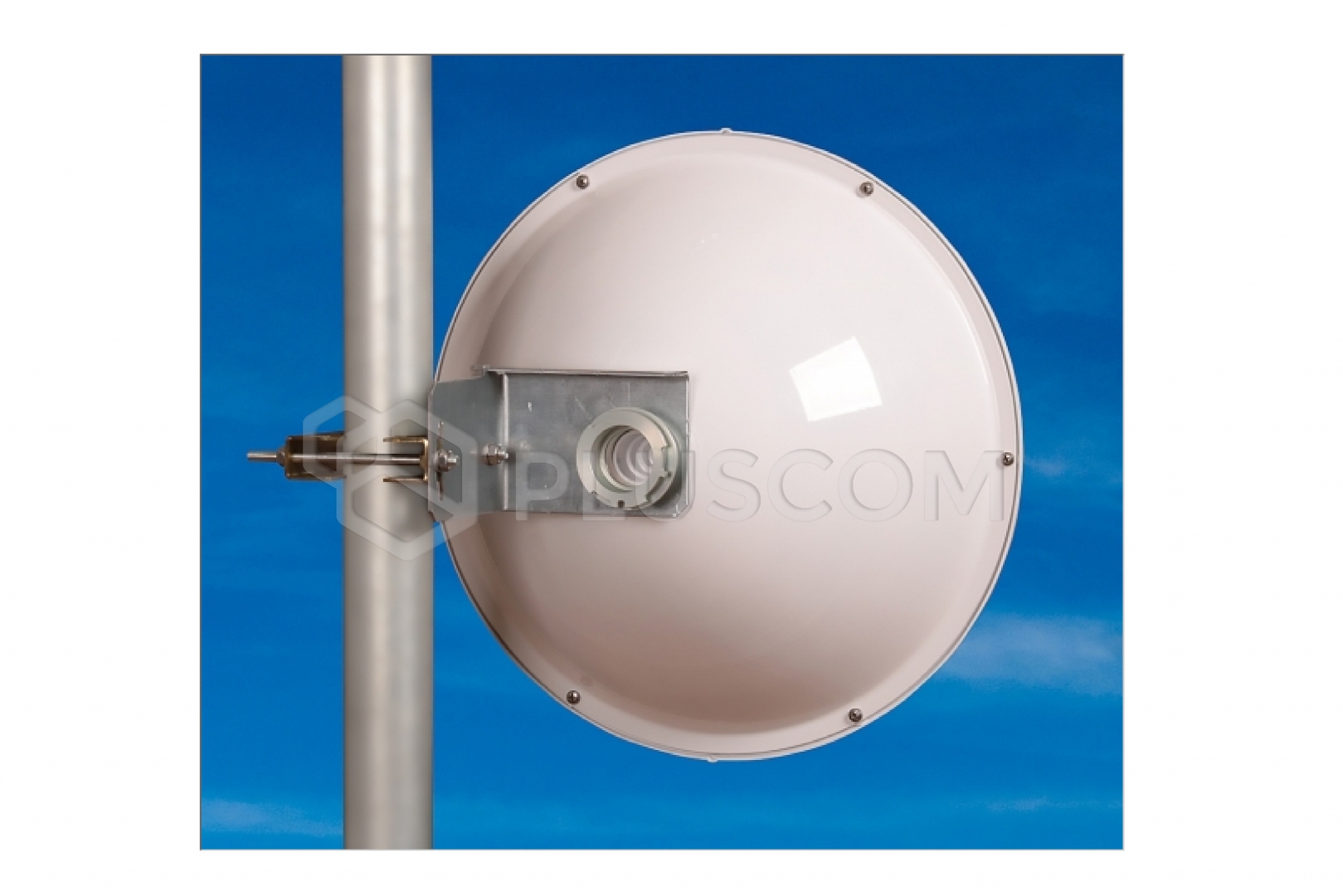

Jirous Parabolic antenna JRC-24DD MIMO PriS (2 pcs)

Jirous Parabolic antenna JRC-24DD MIMO PriS (2 pcs)

The JRC-24 Deep Dish MIMO Pris dual-polarized parabolic antenna is designed for connection to dual-polarized PrismStation radio units in the 5 GHz frequency band. The antenna is designed for environments with multiple reflections at medium and short distances in challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-rear signal ratio. The new design expands the frequency band.

The set includes 2 pieces.

FEATURES:

• Antenna for the UBNT PrismStation dual-polarization radio
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Directional link for medium or short distances in challenging environments
• Elevation (gradient) and azimuth settings with independent adjustment
• Ability to calculate the distance from the calculation section
• Parabolic dish (plastic) included

Other models:
- JRC-24DD MIMO – standard MIMO antenna with a deep dish
- JRC-24DD MIMO Precision – antenna with a precision mount
- JDMW-900 AR
- JRC-24DD-SX MIMO – antenna with stainless steel bracket for operation in harsh, corrosive conditions

Electrical parameters:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 24.5 ± 1 dBi
• SWR: ≤ 1.2
• -3 dB beamwidth: 9.0˚
• Port-to-port isolation: 5.1 – 5.9 GHz ≥ 27 dB (other frequency bands ≥ 22 dB)
• Front-to-back ratio: ≥ 44 dB
• Polarization: Determined by Radio Receiver

• Mechanical Specifications:

  • Parabola: Ø 400 mm, aluminum alloy
  • Radome: UV, ABS plastic
  • Connection: Waveguide to UBNT PrismStation
  • Mounting on a mast with a diameter of: 27–74 mm
  • Antenna Weight: 1.7 kg (4.8 lbs)
  •

    The antenna has separate snap-in nuts for easy installation and azimuth and elevation adjustment. Right- or left-side mounting possible.
