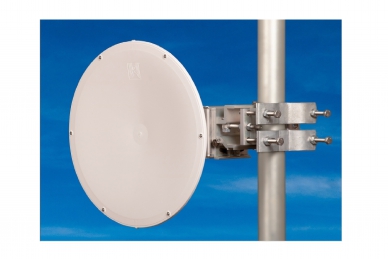

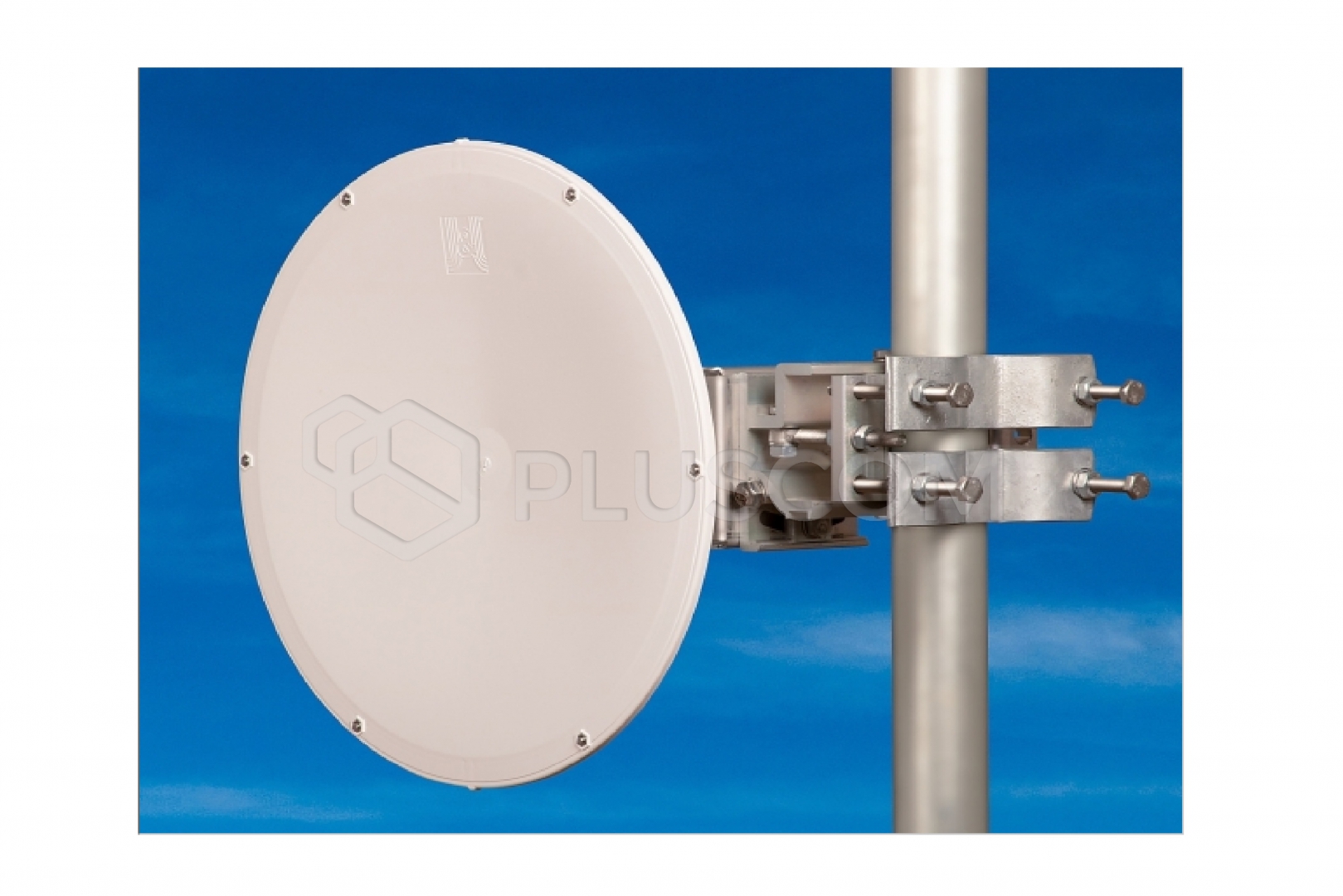

Jirous Parabolic antenna JRC-24DD MIMO Precision (connector N-female)

Jirous Parabolic antenna JRC-24DD MIMO Precision (connector N-female)

The JRC-24 Deep Dish MIMO Precision dual-polarized parabolic antenna is designed for directional links with MIMO mode in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections at medium and short distances in challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio. This new concept extends the frequency band.

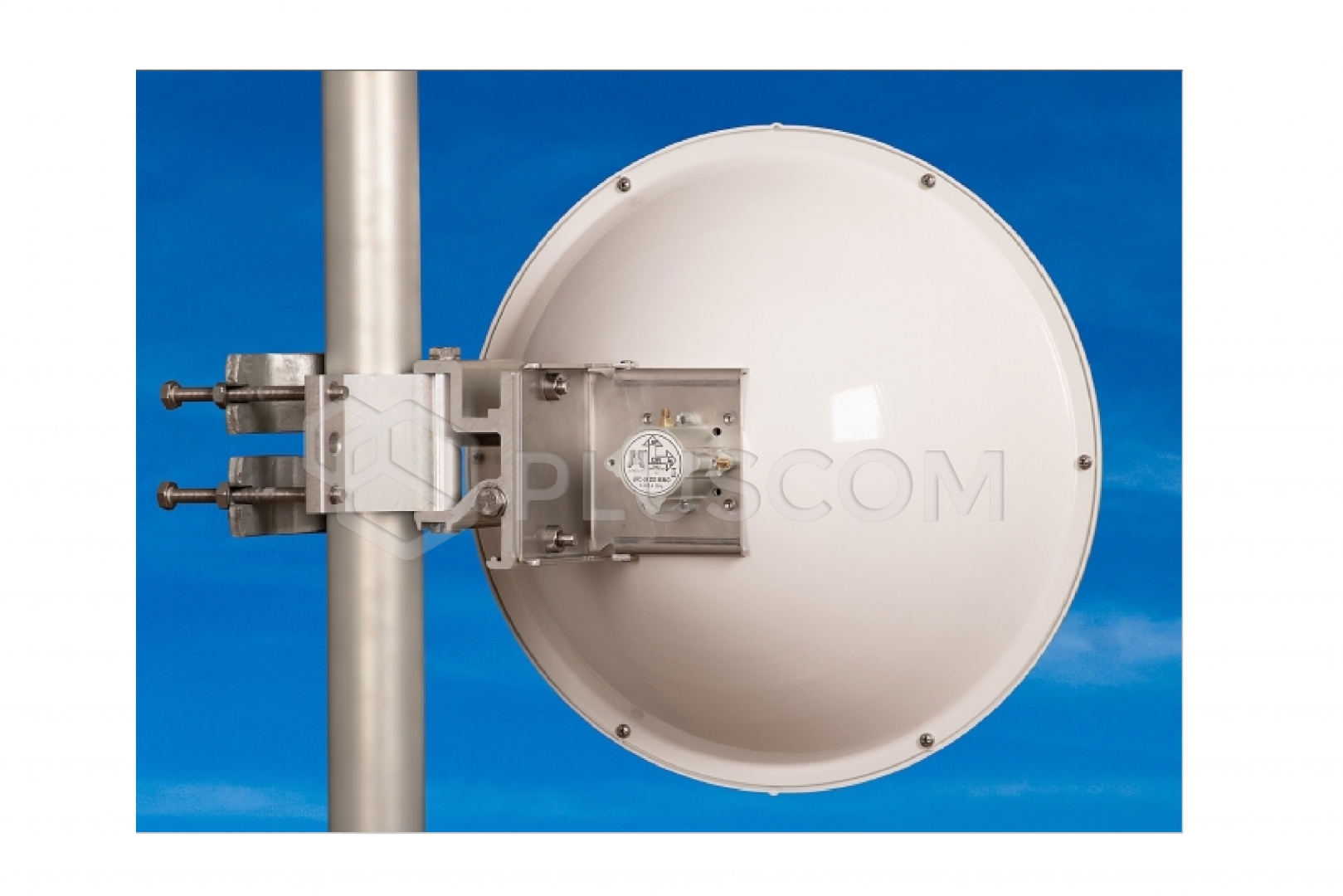

The Precision version includes the massive JDMW-900 mount, developed for microwave links.

FEATURES:

• MIMO antenna with dual polarization, horizontal/vertical or 2x45° polarization
• Precision, durable JDMW-400 mount designed for professional microwave links
• Independent elevation (gradient) and azimuth adjustments
• Additional corrosion resistance
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Easy GentleBOX JR-200 or JR-250 Aluminum installation
• Directional link for medium or short distances in challenging environments
• Ability to calculate the achievable distance from the antenna
• The price includes a parabolic (plastic) cover.
• Other models:
  - JRC-24DD MIMO – standard deep MIMO antenna
  - JRC-24DD-SX MIMO – antenna with a stainless steel bracket for operation in harsh, corrosive environments
  - JRC-24DD MIMO PriS – antenna for the UBNT PrismStation dual-polarization radio

  Electrical parameters:

  • Frequency range: 4.9 – 6.4 GHz
  • Gain: 24.5 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.4 (other frequencies ≤ 1.6)
  • Beamwidth -3 dB: 9.0˚
  • Isolation: Port-to-port 5.1 – 5.9 GHz ≥ 27 dB (other frequencies ≥ 22 dB)
  • Front-to-back ratio: ≥ 44 dB
  • Polarization: Linear, vertical/horizontal or 45°

  Mechanical parameters:

  • Parabola: Ø 400 mm, aluminum alloy
  • Dome: UV-resistant ABS plastic
  • Connector type: N-female
  • Mast mounting: Ø 40–120 mm
  • Operating wind load: 180 km/h (112 mph) mph)
  • Wind load resistance: 240 km/h (149 mph)
  • Antenna weight: 2.1 kg
  • Bracket weight: 2.4 kg
  The radiator has been internally treated with a high-frequency "hydrophobic coating" method, which increases moisture resistance.

  Recommended accessories:

  • For use with the GentleBOX JR-200 and JR-250 Alu, we recommend the model with R-SMA connectors.
  • GentleCLIP bracket for mounting the Ubiquiti Rocket M5
  • R-SMA/MMCX pigtail
  • R-SMA/UF.L pigtail
