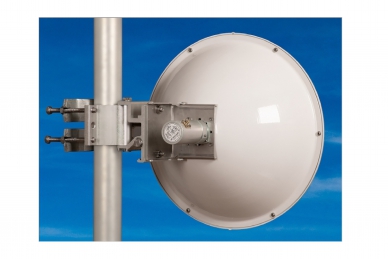

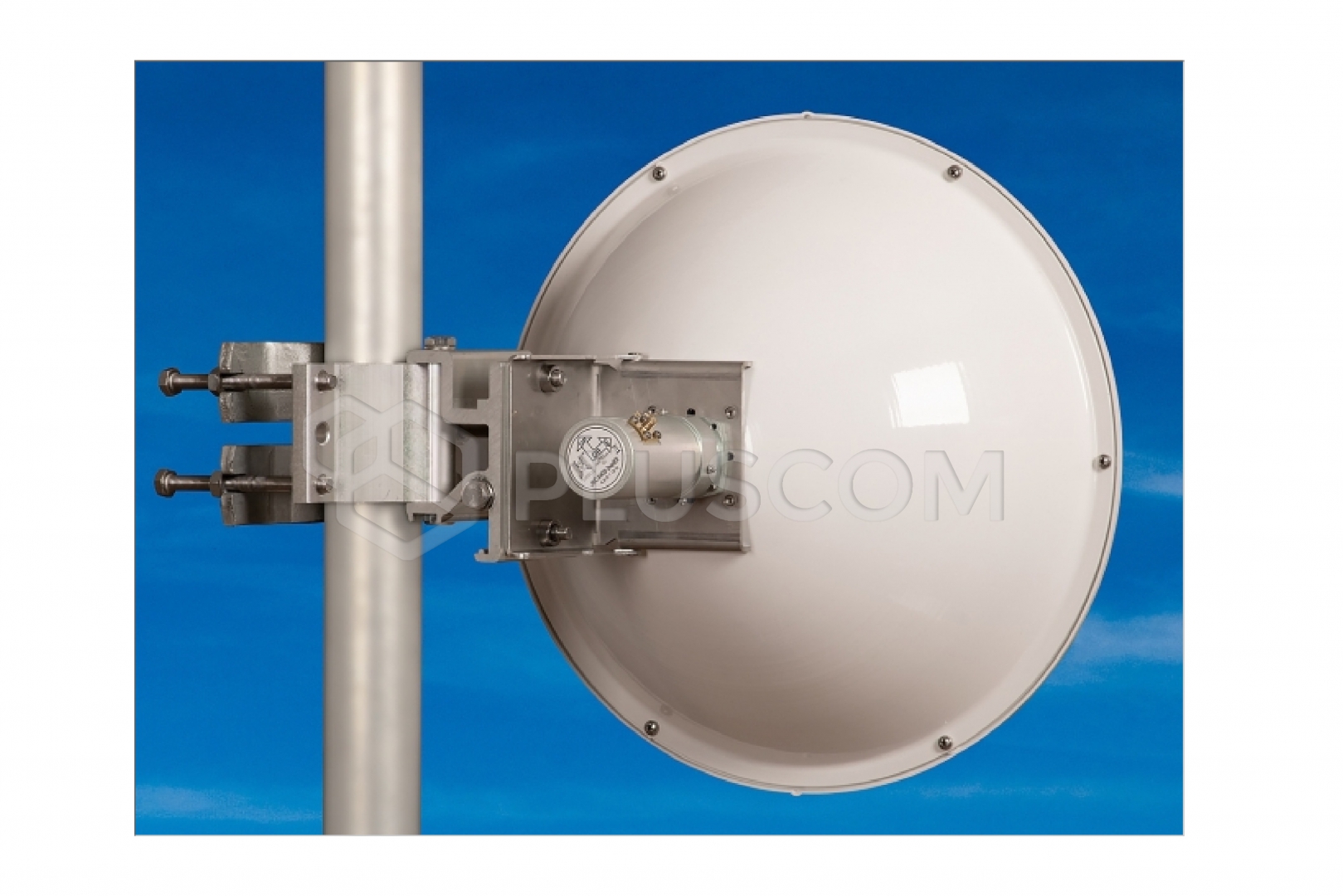

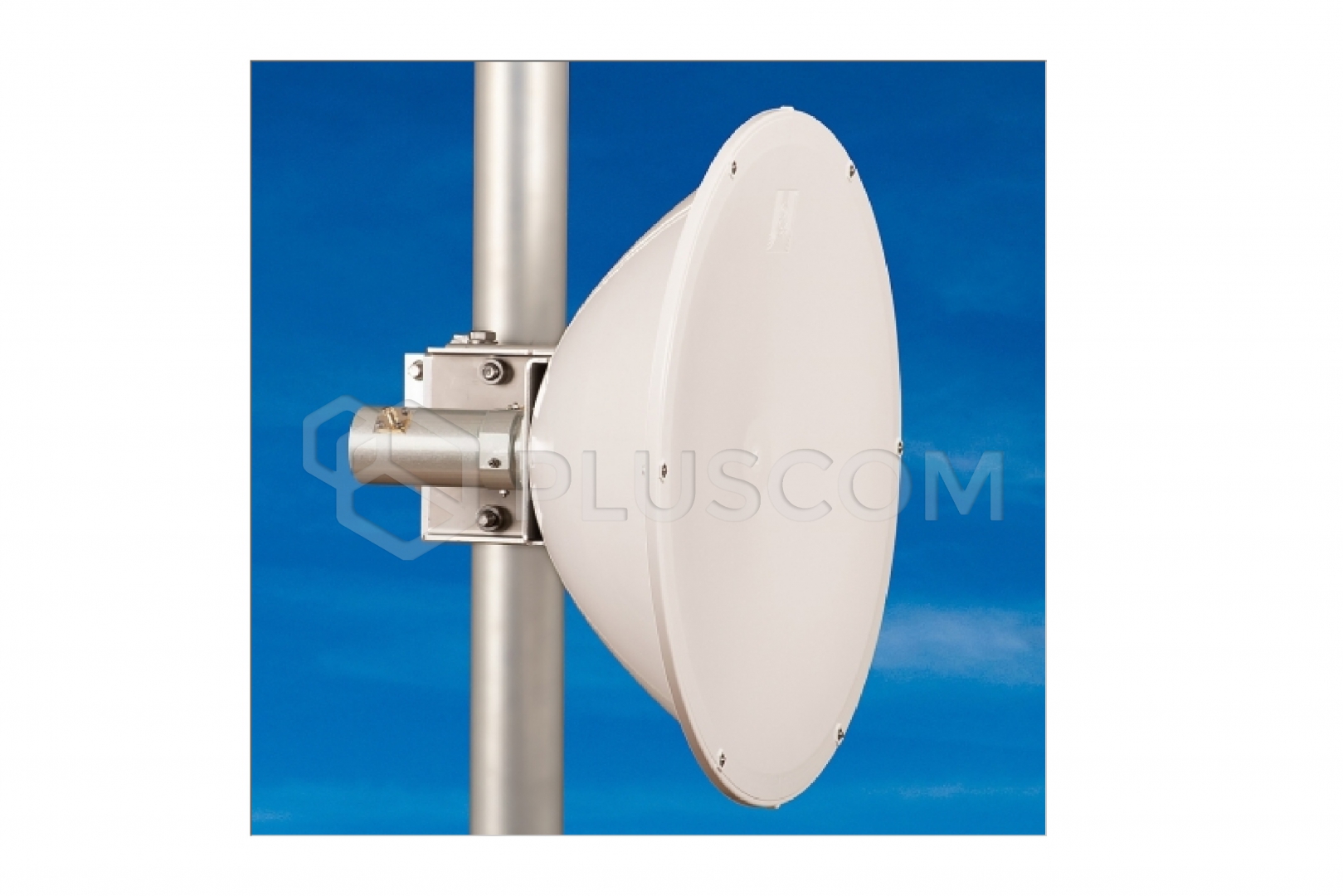

Jirous Parabolic antenna JRC-24DD DuplEX Precision (N-female connector)

Product code: #43104
Manufacturer: Jirous
  • Energy gain: 24.5 ± 1 dBi
  • Beam width: 9.0˚
  • Connector: N-female
  • Dimensions: Ø 40 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRC-24DD DuplEX Precision (N-female connector)


The JRC-24DD DuplEX Precision dual-polarized parabolic antenna is designed for full-duplex or MIMO directional links in the 5 GHz frequency band with high isolation levels.
The antenna is designed for medium- and short-range operation in harsh environments.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio.
The Precision version includes the robust JDMW-900 mount, designed for microwave links. Other models: JRC-24DD-SX DuplEX – antenna with a stainless steel mount for operation in harsh, corrosive environments JRC-24DD DuplEX – standard deep DuplEX antenna.

FEATURES:

  • Full duplex or MIMO dual-polarization antenna, horizontal/vertical or 2x45° polarization
  • Good port-to-port isolation enables full duplex connections
  • Precise, durable JDMW-400 mount designed for professional microwave links
  • Elevation (gradient) and azimuth adjustments with independent adjustment
  • Deep antenna increases isolation between antennas on the mast
  • New concept with extended frequency band
  • High front-to-back ratio
  • Additional corrosion resistance
  • Directional links or client connection for medium or short distances in harsh environments
  • Achievable distance can be calculated from the section computational
  • A plastic parabolic shield is included in the price.

Electrical parameters:

  • Frequency range: 4.9 – 6.1 GHz
  • Gain: 24.5 ± 1 dBi
  • SWR: 5.1 – 5.9 GHz ≤ 1.6
  • -3 dB beamwidth: 9.0˚
  • Port-to-port isolation: 5.1 – 5.9 GHz ≥ 50 dB (typical 53 dB) (other frequency bands ≥ 43 dB)
  • Front-to-back ratio: ≥ 44 dB
  • Polarization: Linear, Vertical/horizontal or 45°

Mechanical parameters:

  • Parabola: Ø 400 mm, aluminum alloy
  • Radome: UV-resistant ABS plastic
  • Connector type: N female connector
  • Mast mounting: Ø 40 - 120 mm
  • Antenna weight: 2.4 kg
  • Bracket weight: 2.4 kg

Recommended accessories:

For use with the GentleBOX JR-300, we recommend:
- version with R-SMA connectors (JRC - 24DuplEX - SMA)
- to use the version with N connectors, an angled adapter for the connector is required Horizontal polarization
  • R-SMA/MMCX Pigtail for JRC-24DuplEX-SMA
  • R-SMA/UF.L Pigtail for JRC-24DuplEX-SMA
Download
Datasheet 0.64 MB
