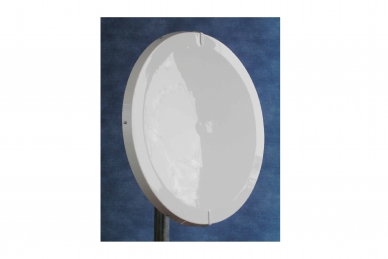

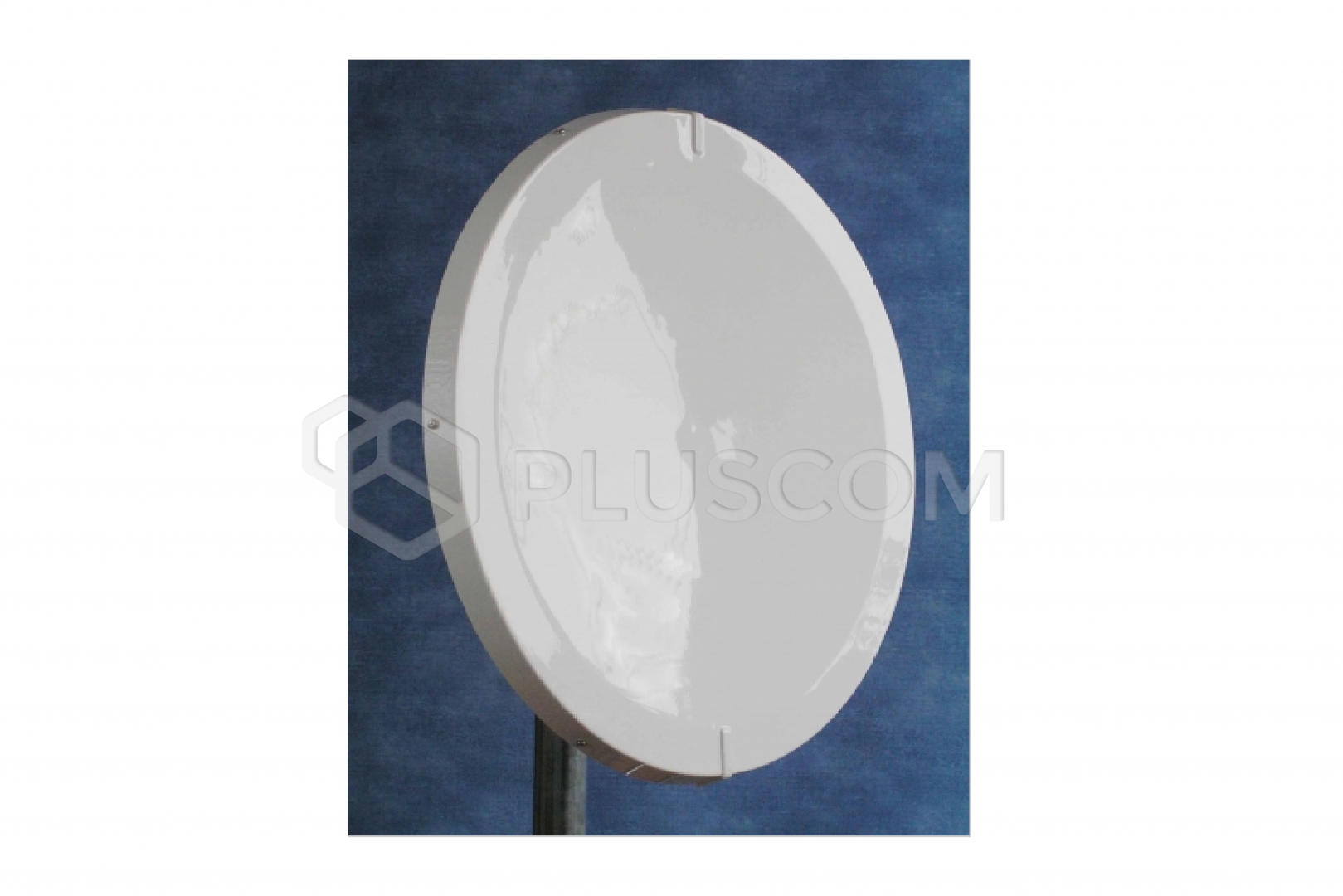

Jirous Parabolic antenna JRB-25 MIMO

Product code: #43081
  • Energy gain: 25 ± 0.6 dBi
  • Beam width: 8.5°
  • Connector: R-SMA
  • Dimensions: Ø 68 cm
  • Polarization: Vertical/horizontal
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRB-25 MIMO Parabolic Antenna


The JRB-25 MIMO dual-polarization parabolic antenna is designed for directional links in the 3.5 GHz frequency band.
It is supplied with a special, deep reflector dish that provides increased interference immunity.

Electrical Parameters:

  • Frequency Range: 3.4 – 3.7 GHz
  • Gain: 25 ± 0.6 dBi
  • Beamwidth -3 dB: 8.5°
  • SWR: ≤ 1.5
  • Cross-port Isolation: ≥ 26 dB
  • Side Lobe Level: ≤ 15 dB
  • Front-to-Back Ratio: ≥ 32 dB
  • Polarization: Vertical/Horizontal

Mechanical Parameters:

  • Parabola: Ø 680 mm, aluminum alloy
  • Cover: UV-resistant plastic, ABS
  • Connector type: R-SMA
  • Mast mounting: Ø 27 - 74 mm
  • Maximum wind load during operation: 150 km/h
  • Maximum wind resistance: 180 km/h
  • Transport dimensions: 800 mm x 800 mm x 435 mm
  • Antenna weight: 10.75 kg

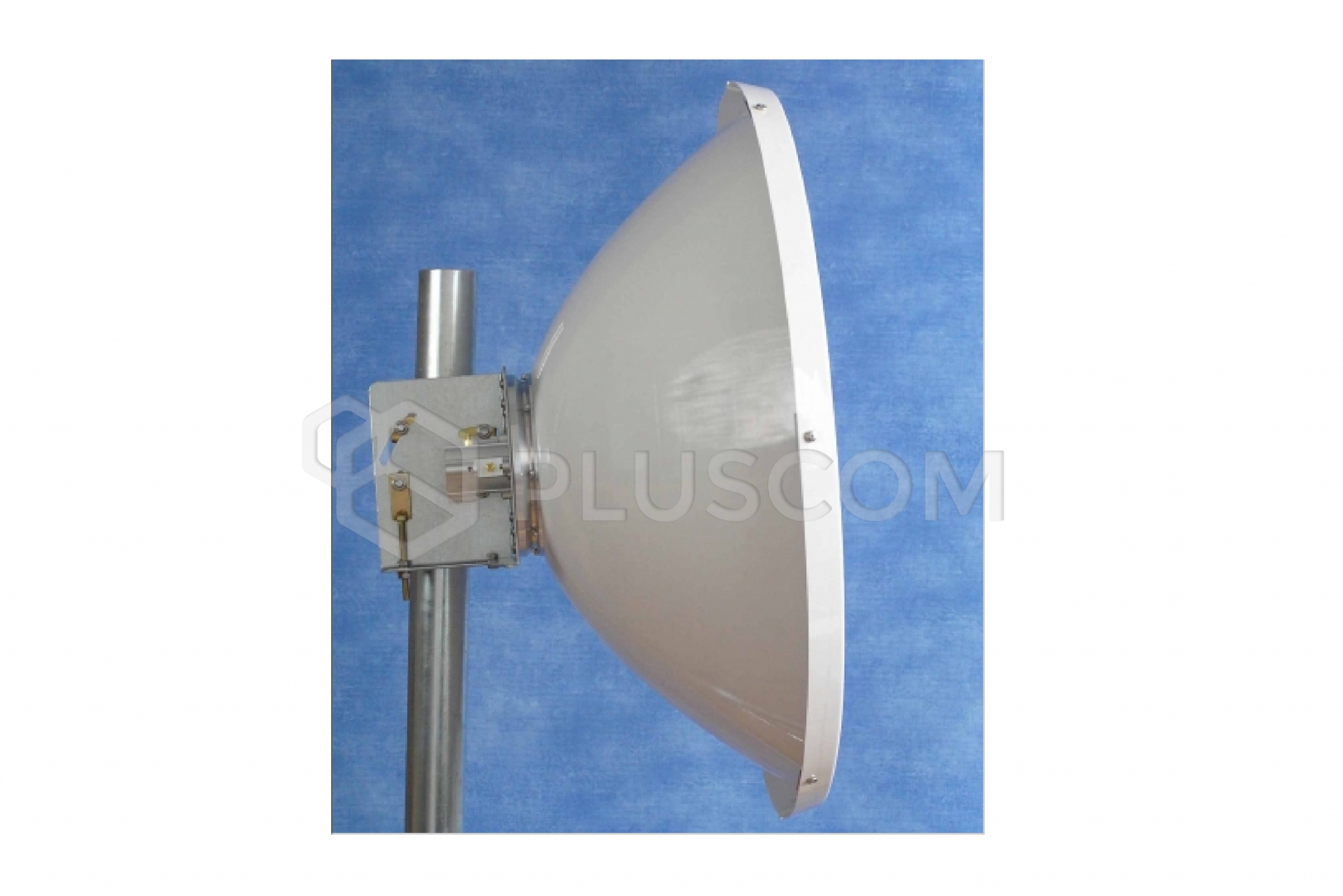

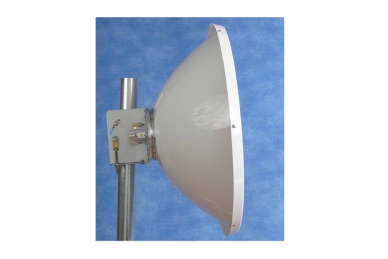

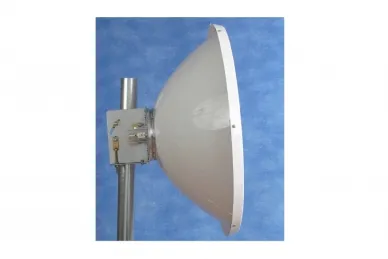

  • The antenna is supplied with a bracket that can be easily adjusted in both directions.
    The antenna can also be ordered with a stainless steel bracket. The antenna can be used in conjunction with the GentleBOX JR-200 external enclosure for access points, RouterBOARDS, and other electronics, or with the GentleCLIP mount for easy mounting of the Rocket M3 or other devices with the same mounting system.
Download
Datasheet 0.43 MB
