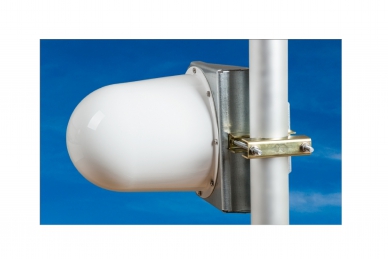

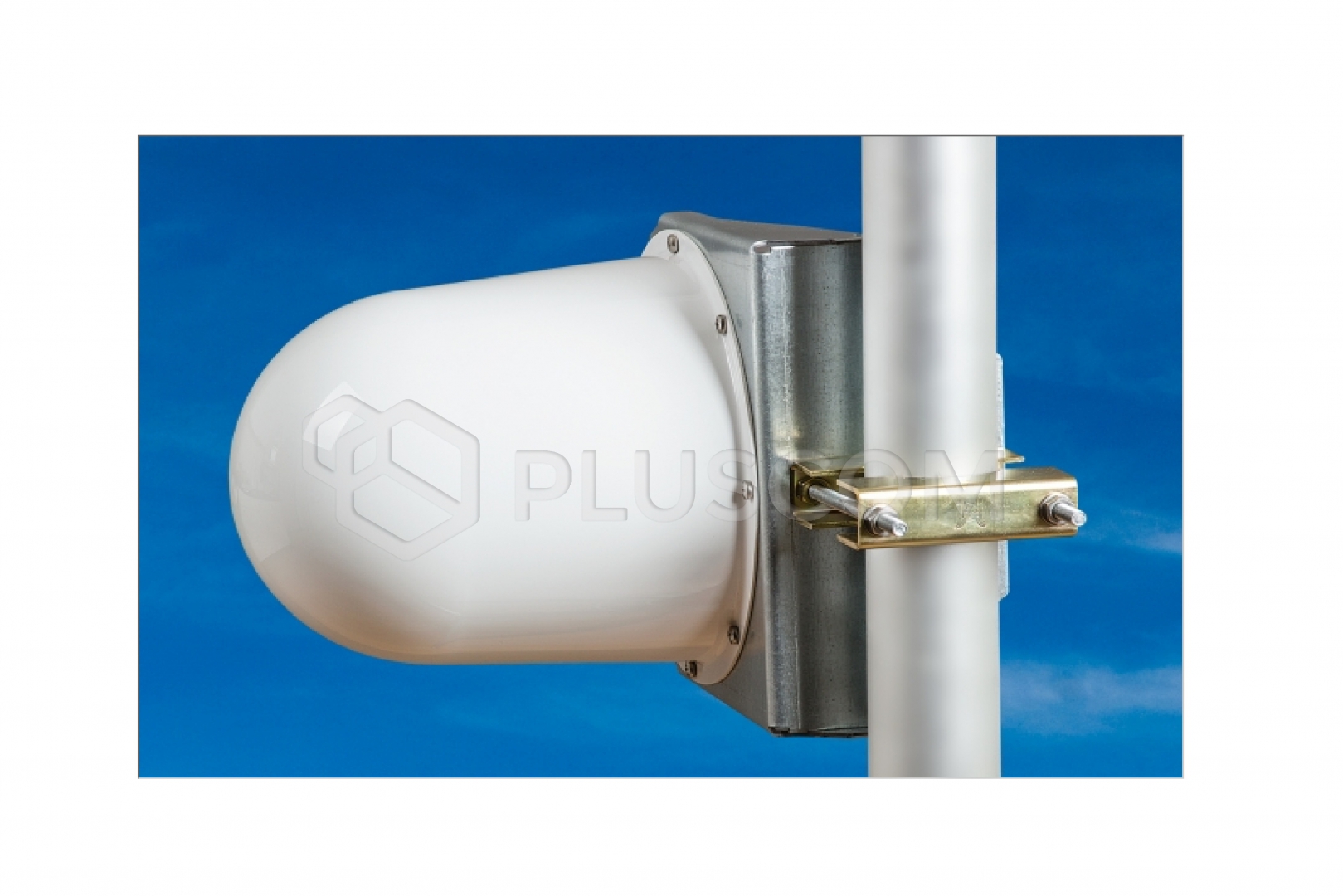

Jirous JSMA-10-50 Sector antenna

Product code: #43137
Manufacturer: Jirous
  • Gain: 16.5 ± 0.6 dBi
  • Mast mounting: Ø 27 - 74 mm
  • Beam width azimuth: 45°
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JSMA-10-50 Sector antenna


The JSMA-10-50 dual-polarized sector antenna is designed for point-to-multipoint connections in the 10 GHz frequency band. Applications depend on the legal regulations governing telecommunications systems in various countries.

Electrical Parameters:

  • Frequency Range: 10 – 10.7 GHz
  • Gain: 16.5 ± 0.6 dBi
  • Return Loss: ≥ 16 dB
  • Beamwidth Azimuth -3 dB: 45°
  • Beamwidth Elevation -3 dB: 10°
  • Front-to-Back Ratio: ≥ 35 dB
  • Polarization: Linear, vertical, and horizontal

Mechanical Parameters:

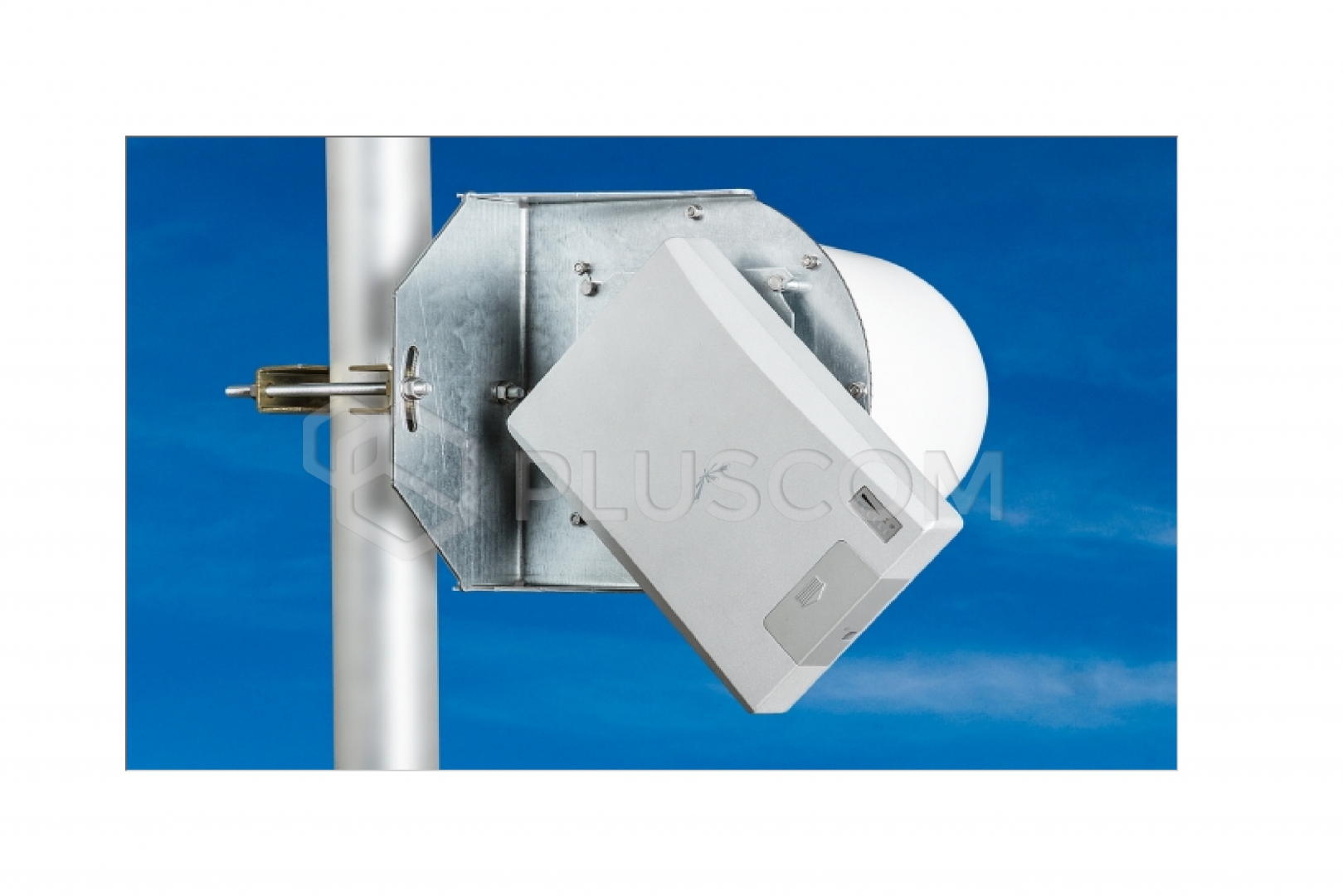

  • Input/Output: Circular Waveguide for UBIQUITI AP PBM10 - 10 GHz PowerBridge (others available upon request) (to order)
  • Housing: UV-resistant plastic, ABS
  • Mast mounting: Ø 27 - 74 mm
  • Antenna weight: 3.3 kg
Usage depends on the legal regulations in force in individual countries, including telecommunications regulatory authorities.

Connection to a specific radio device upon request.
Download
Datasheet 0.91 MB
