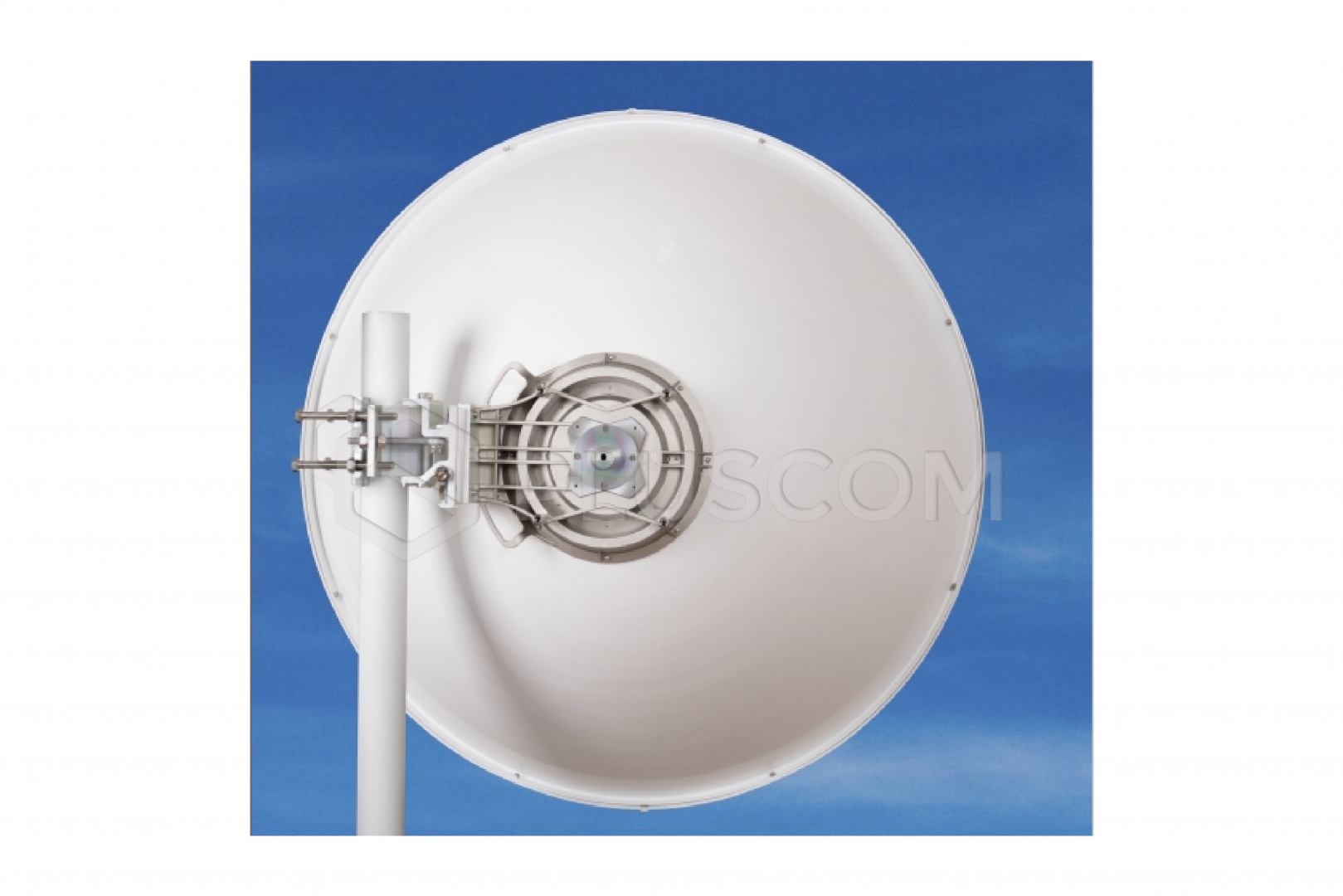

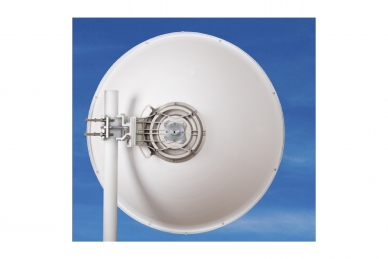

Jirous JRME-900-6 parabolic antenna

Product code: #43063
Manufacturer: Jirous
  • Energy gain: 33.0 ± 1 dBi
  • Beam width: 3.1°
  • Input/Output: Circular waveguide
  • Dimensions: Ø 90 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRME-900-6 Parabolic Antenna


The JRME-900-6 dual-polarized parabolic antenna (circular waveguide) is designed for microwave links in the 6 GHz frequency band. Its excellent performance, thanks to its deep reflector antenna and additional flange, complies with ETSI Class 3 and US FCC Cat B2 standards.

FEATURES:

  • Deep parabola with flange for extra height, high interference immunity
  • Very high isolation of adjacent cells
  • Radome included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • Extreme wind stability

Electrical parameters:

  • Frequency range: 5.9–7.125 GHz
  • Gain: 33.0 ± 1 dBi
  • Front-to-back ratio: ≥ 60 dB
  • -3 dB beamwidth: 3.1°
  • SWR: ≥ 1.4
  • Polarization: Linear, vertical/horizontal or 45°
  • Electrical Compliance:
    - Class 3 ETSI EN 302-217-4-2 v1.5.1
    - Cat B2 US FCC
  • Input/Output: Circular Waveguide

Mechanical Parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Mast Installation: Ø 40–120 mm
  • Operating Wind Load: 140 km/h (87 mph)
  • Wind Load Survival speed: 210 km/h (130 mph)

  • Dimensions:

    • Antenna weight: 11.1 kg
    • Mount weight: 3.2 kg
