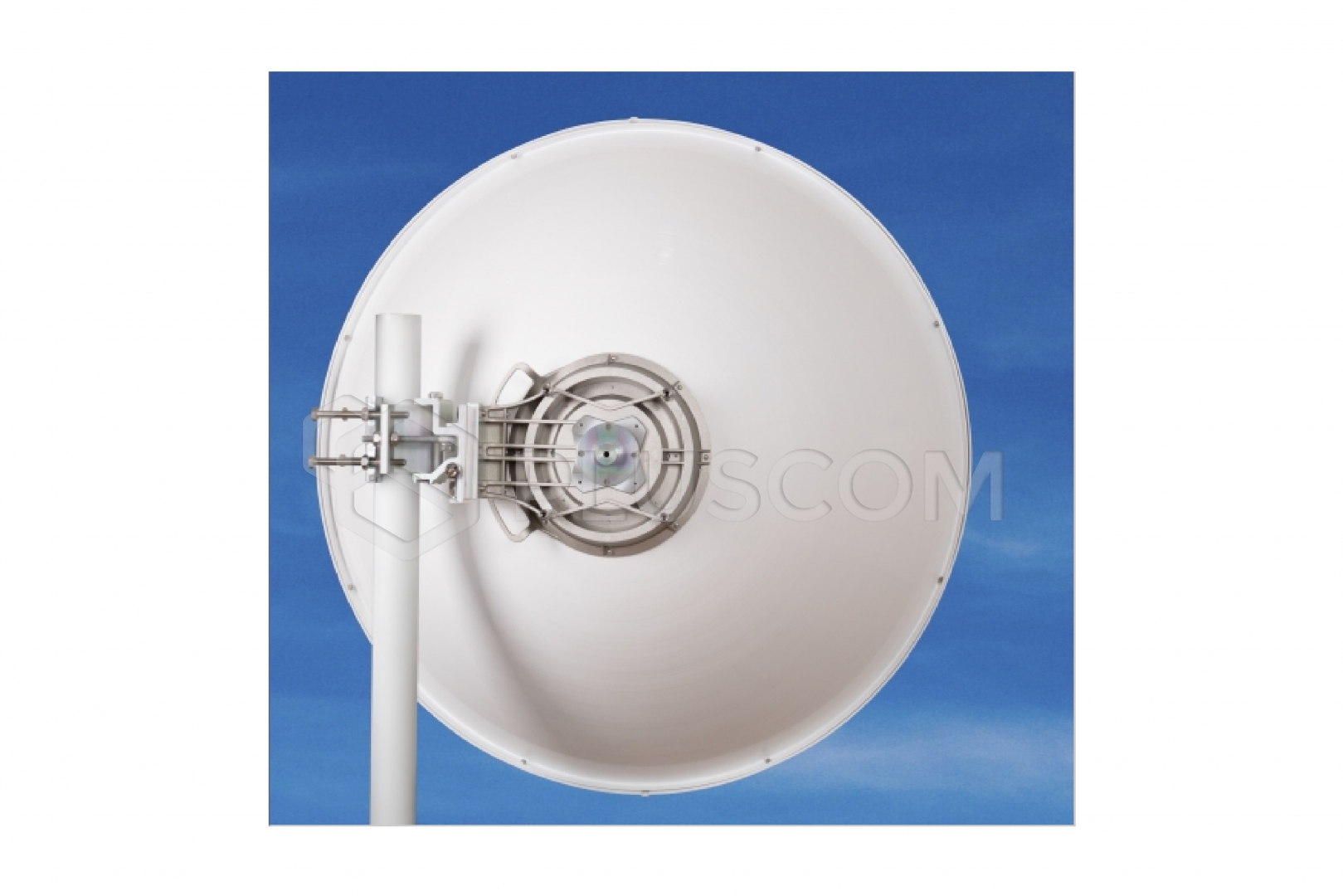

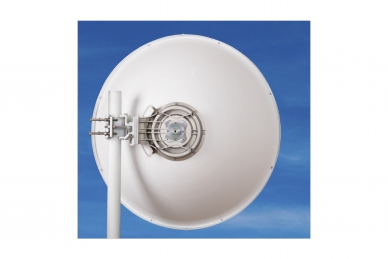

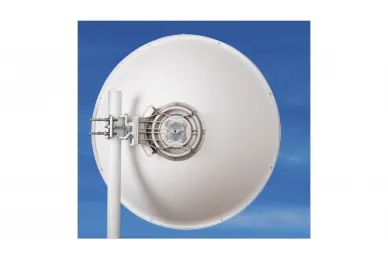

Jirous JRME-900-6 MIMO Parabolic antenna (N-female connector)

Product code: #43128
Manufacturer: Jirous
  • Energy gain: 33.0 ± 1 dBi
  • Beam width: 3.1°
  • Connectors: N-female
  • Dimensions: Ø 90 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRME-900-6 MIMO Parabolic antenna (N-female connector)


The JRME-900-6 MIMO dual-polarization parabolic antenna (with connectors) is designed for MIMO connections in the 6 GHz frequency band. Its excellent performance, thanks to its deep reflector dish and additional flange, complies with ETSI Class 3 and US FCC Cat B2 standards.

FEATURES:

  • Deep parabola with flange for extra height, high interference immunity
  • Very high isolation of adjacent cells
  • Radio is included in the kit
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-sided mount
  • Extreme wind stability

Electrical parameters:

  • Frequency range: 5.9 – 7.125 GHz
  • Gain: 33.0 ± 1 dBi
  • Front-to-back ratio: ≥ 60 dB
  • Width -3 dB Beam: 3.1°
  • SWR: ≥ 1.4
  • Polarization: Linear, vertical/horizontal or 45°
  • Electrical Compliance:
    - Class 3 ETSI EN 302-217-4-2 v1.5.1
    - Cat. B2 US FCC
  • Isolation between connectors: ≥ 35 dB
  • Connector type: N-female

Mechanical parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV-resistant plastic, ABS
  • Mast mounting: Ø 40 – 120 mm
  • Operating wind load: 140 km/h (87 mph)
  • Wind resistance: 210 km/h (130 mph)

Dimensions:

  • Antenna weight: 11.1 kg kg
  • Handle weight: 3.2 kg
Download
Datasheet 0.57 MB
