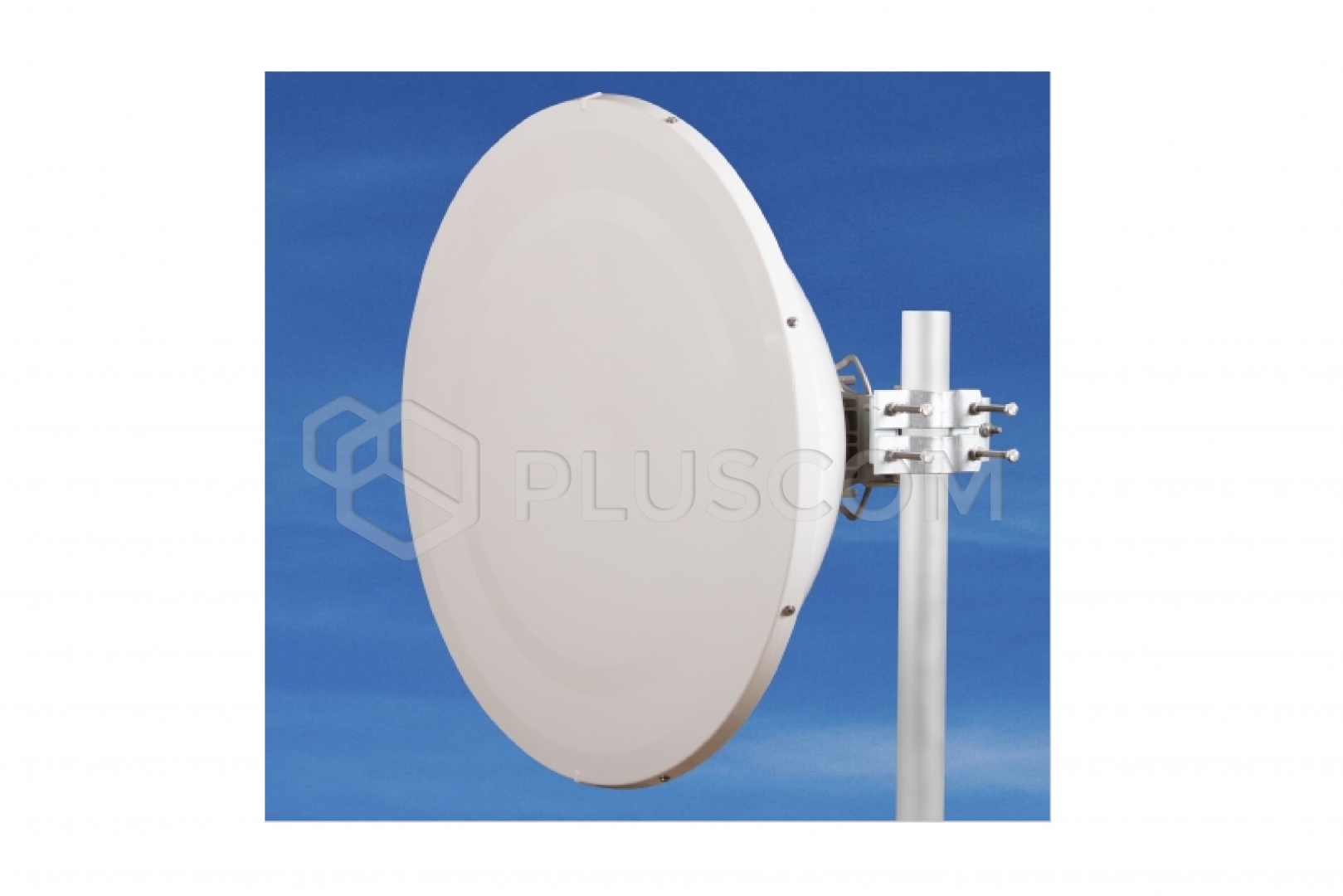

Jirous JRMD-900-6 parabolic antenna

Product code: #43061
Manufacturer: Jirous
  • Energy gain: 33,0 ± 1 dBi
  • Beam width: 3,1°
  • Input/Output: Circular Waveguide
  • Dimensions: Ø 90 cm
  • Pole installation: Ø 40–120 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-900-6 parabolic antenna


The JRMD-900-6 dual-polarized parabolic antenna (circular waveguide) is designed for microwave links in the 6 GHz frequency band. Precise performance with a deep reflector compliant with ETSI class 2 standard.

We recommend mounting on a mast with a diameter of min. ø 70 mm in areas where strong winds are expected.

Electrical parameters:

  • Frequency range: 5.9–7.125 GHz
  • Gain: 33.0 ± 1 dBi
  • Front-to-back ratio: ≥ 53 dB
  • Beamwidth-3 dB: 3.1°
  • SWR ratio: ≥ 1.4
  • Polarization: Linear, vertical/horizontal or 45°
  • Electrical compliance: Class 2 ETSI EN 302-217-4-2 v1.5.1

Parameters mechanical:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Input/output: Round waveguide
  • Mast installation: Ø 40–120 mm
  • Working wind load: 140 km/h (87 mph)
  • Survival wind load: 210 km/h (130 mph)

Dimensions:

  • Antenna weight: 8.2 kg
  • Bracket weight: 3.2 kg
Download
Datasheet 0.66 MB
