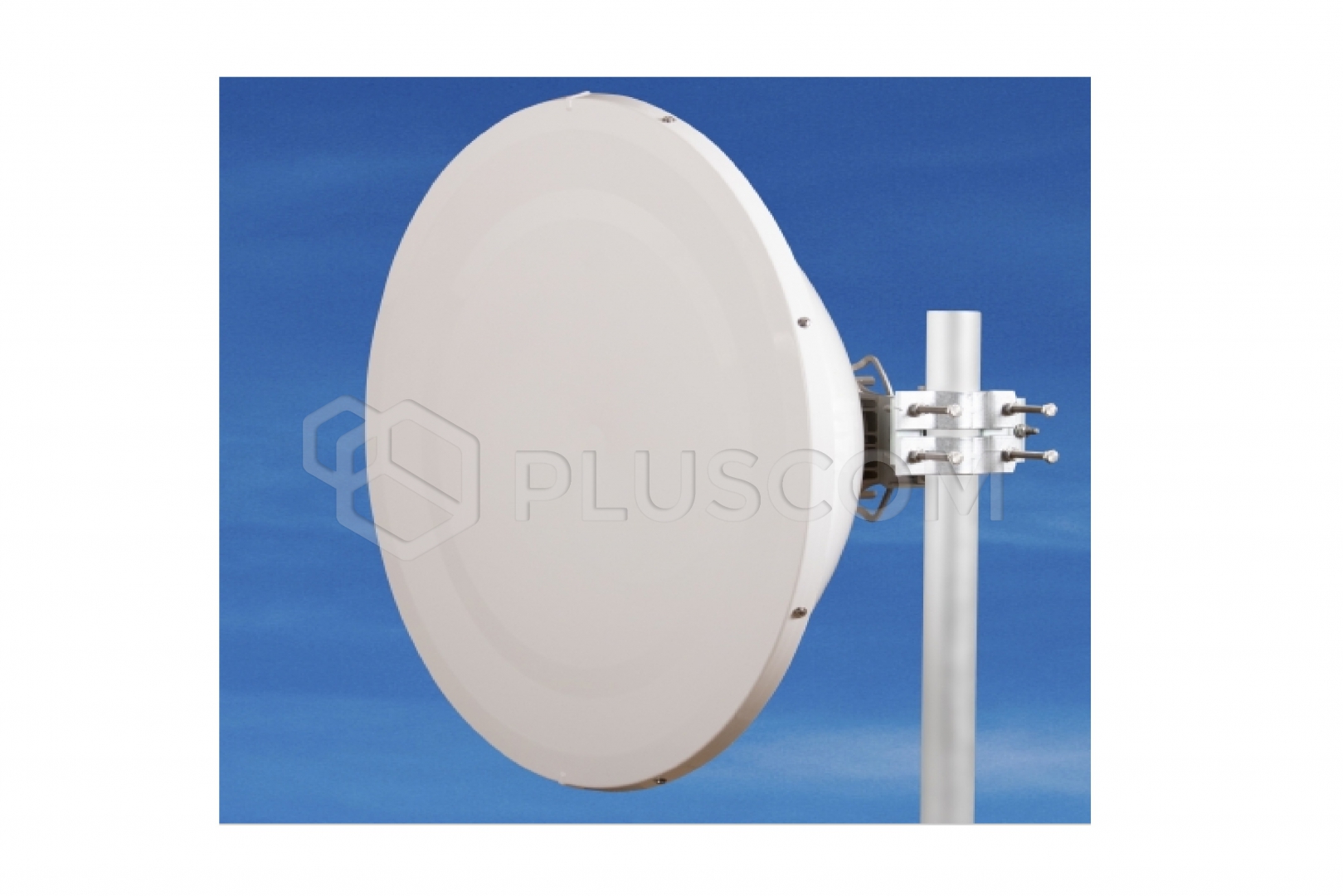

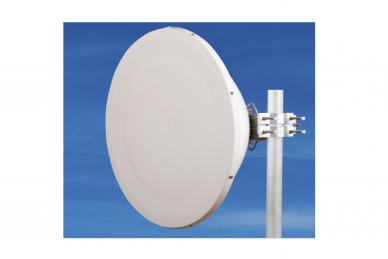

Jirous JRMD-900-6 MIMO Parabolic antenna (N-female connector)

Product code: #43127
Manufacturer: Jirous
  • Energy gain: 33,0 ± 1 dBi
  • Beam width: 3,1°
  • Connector: N-female
  • Dimensions: Ø 90 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-900-6 MIMO Parabolic antenna (N-female connector)


The JRMD-900-6 MIMO dual-polarization parabolic antenna (with connectors) is designed for MIMO connections in the 6 GHz frequency band. Precise performance with a deep reflector compliant with the ETSI class 2 standard.

We recommend mounting on a mast with a diameter of min. ø 70 mm in areas where strong winds are expected.

FEATURES:

  • Deep parabola with high resistance to interference and high mechanical strength
  • High isolation of neighboring cells
  • Radome is included in the set
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right and left side mounting
  • Extreme wind stability

Electrical parameters:

  • Frequency range: 5.9–7.125 GHz
  • Gain: 33.0 ± 1 dBi
  • Front-to-back ratio: ≥ 53 dB
  • -3 dB beamwidth: 3.1°
  • SWR ratio: ≤ 1.4
  • Polarization: Linear, vertical/horizontal or 45°
  • Electrical compliance: Class 2 ETSI EN 302-217-4-2 v1.5.1
  • Isolation between connectors: ≥ 35 dB
  • Connector type: N-female

Mechanical parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Mast installation: Ø 40–120 mm
  • Working wind load: 140 km/h (87 mph)
  • Wind load: 210 km/h (130 mph)

Dimensions:

  • Antenna weight: 8.2 kg
  • Bracket weight: 3.2 kg
Download
Datasheet 0.66 MB
