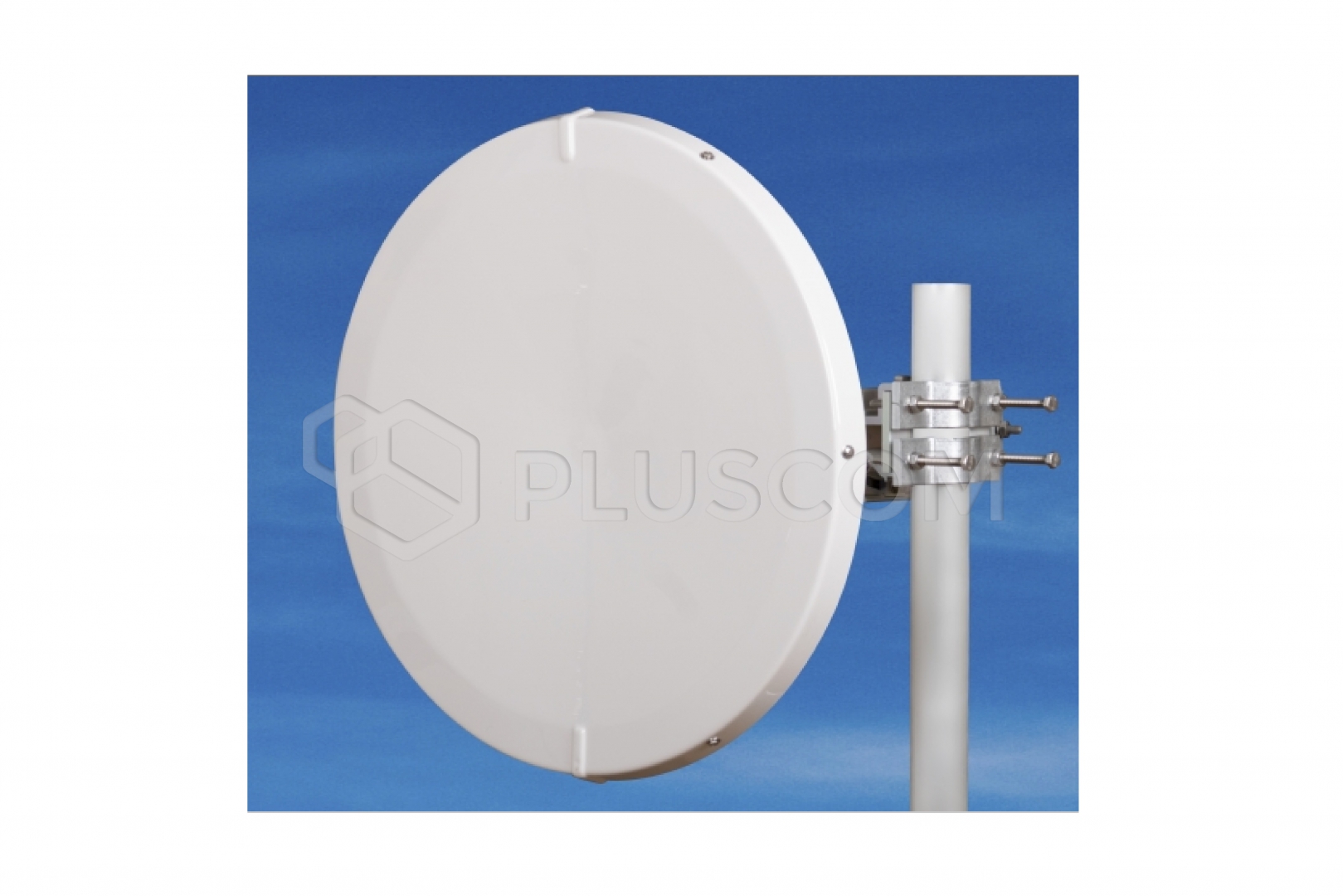

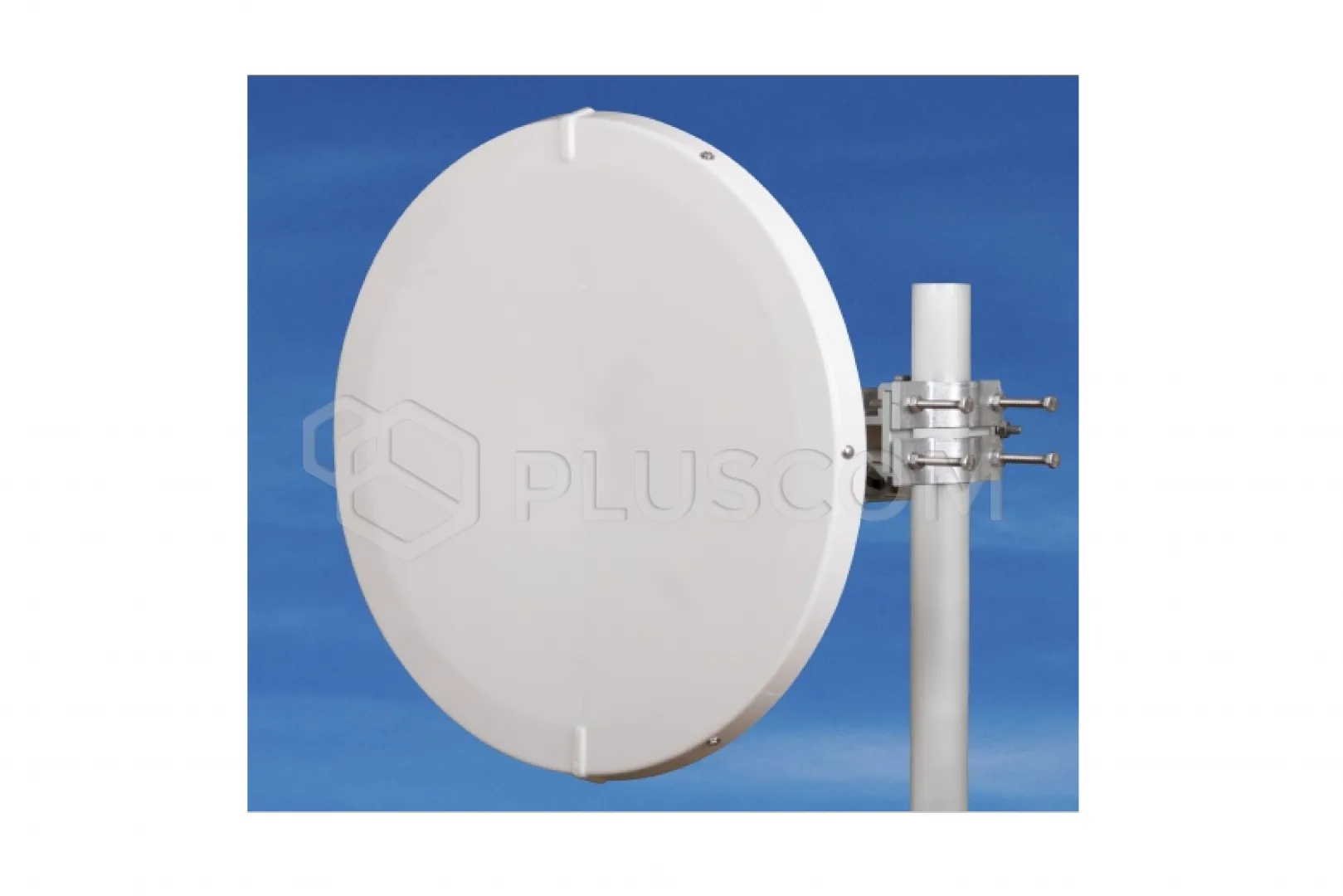

Jirous JRMD-680-6 parabolic antenna

Product code: #43058
Manufacturer: Jirous
  • Energy gain: 30.5 ± 1 dBi
  • Beam width: 4.6°
  • Dimensions: Ø 68 cm
  • Polaryzacja: Liniowa, pionowa/pozioma lub 45°
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-680-6 parabolic antenna


The JRMD–680–6 dual-polarized parabolic antenna (circular waveguide) is designed for microwave links in the 6 GHz frequency band. Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio.

We recommend mounting on a mast with a minimum diameter of ø 50 mm in areas where strong winds are expected.

FEATURES:

  • Deep parabola with high resistance to interference and high mechanical strength
  • High insulation of neighboring cells
  • Radome is included in the set
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right and left side mounting
  • Extreme wind stability

Electrical parameters:

  • Frequency range: 5.9–7.125 GHz
  • Gain: 30.5 ± 1 dBi
  • Front-to-back ratio: ≥ 45 dB
  • -3 dB beamwidth: 4.6°
  • SWR: ≤ 1.6
  • Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

  • Parabola: ø 68 cm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Input/output: Circular waveguide
  • Mast installation: ø 40–120 mm
  • Operating wind load: 180 km/h (112 mph)
  • Survival wind load: 240 km/h (149 mph)

  • Dimensions:

    • Antenna weight: 5.7 kg
    • Bracket weight: 3.2 kg
Download
Datasheet 0.64 MB
