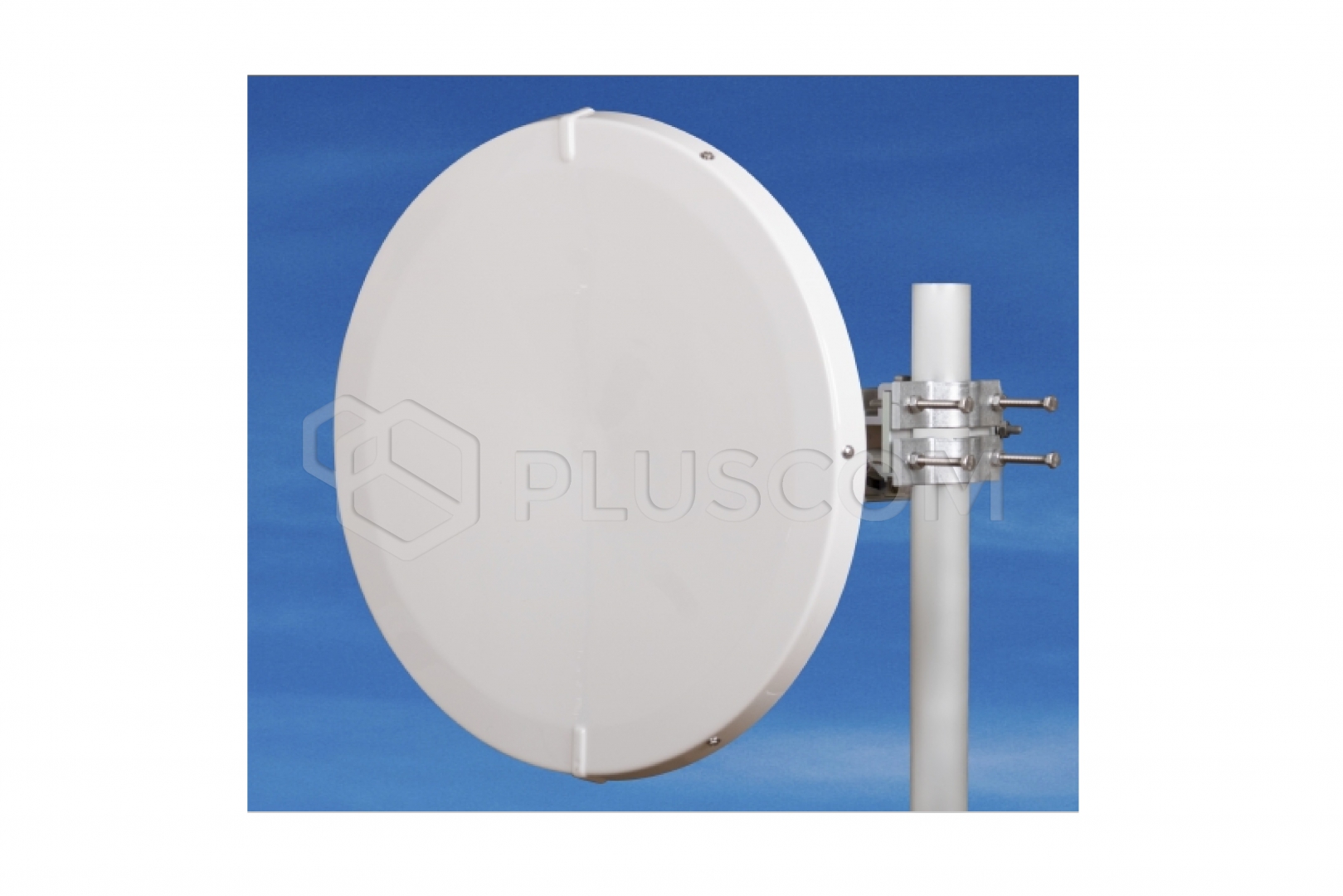

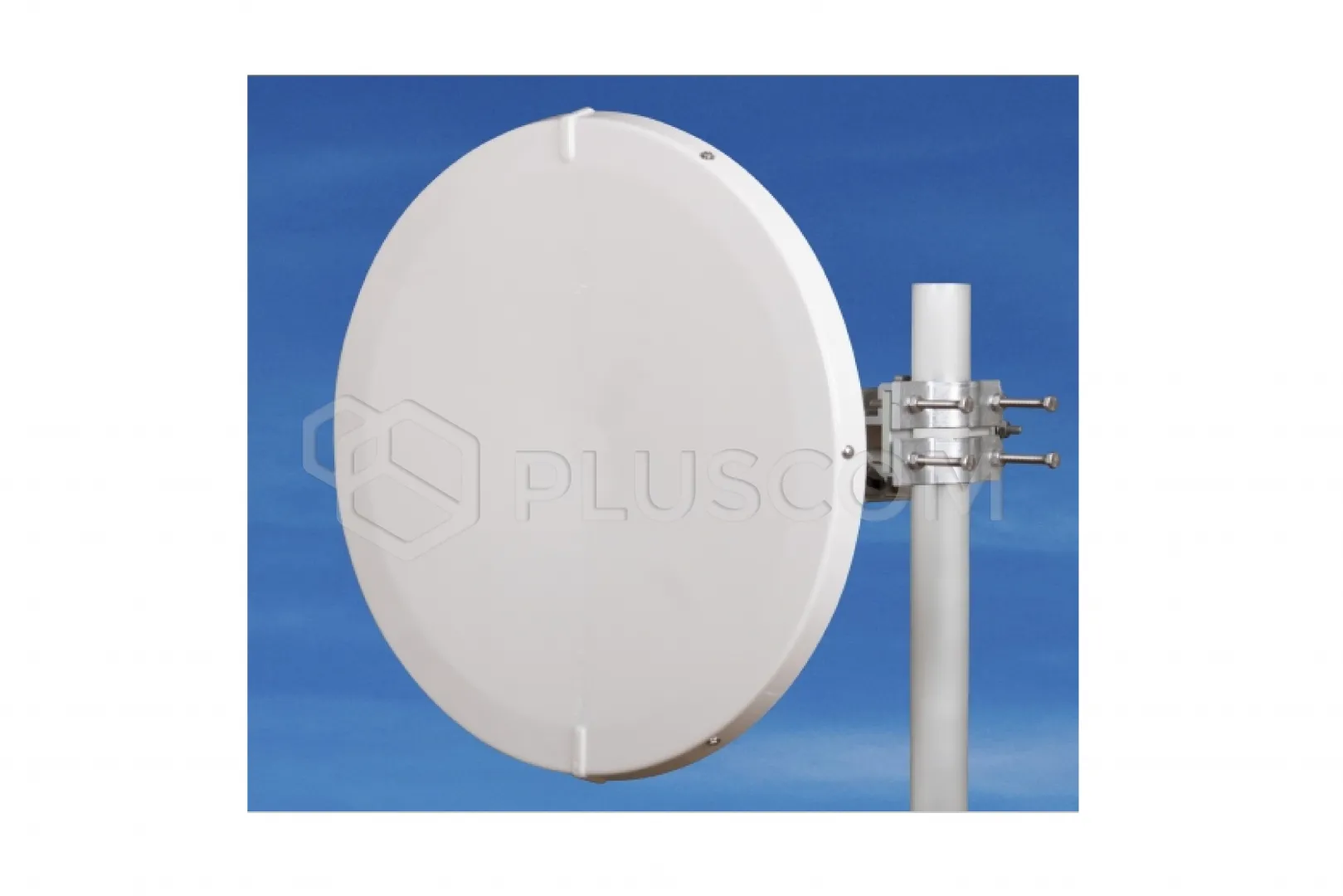

Jirous JRMD-680-6 MIMO Parabolic antenna (R-SMA connector)

Product code: #43057
Manufacturer: Jirous
  • Energy gain: 30.5 ± 1 dBi
  • Beam width: 4.6°
  • Connectors: R-SMA
  • Dimensions: Ø 68 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-680-6 MIMO Parabolic antenna (R-SMA connector)


The JRMD-680-6 MIMO dual-polarization parabolic antenna (with couplers) is designed for MIMO links in the 6 GHz frequency band. Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back ratio.

We recommend mounting on a mast with a minimum diameter of 1.5 m. ø 50 mm in areas where strong winds are expected.

FEATURES:
  • Deep parabola with high interference resistance and high mechanical strength
  • High isolation of adjacent cells
  • Radome included in the kit
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • Extreme wind stability

      • Electrical parameters:

      • Frequency range: 5.9 – 7.125 GHz
      • Gain: 30.5 ± 1 dBi
      • Front-to-back ratio: ≥ 45 dB
      • -3 dB beamwidth: 4.6°
      • SWR: ≤ 1.6
      • Polarization: Linear, vertical/horizontal or 45°

      Mechanical parameters:

      • Parabola: ø 68 cm, aluminum alloy
      • Radome: UV-resistant ABS plastic
      • Connector type: R-SMA
      • Polarization accuracy: ± 5°
      • Mast mounting: ø 40 - 120 mm
      • Operating wind load: 180 km/h (112 mph)
      • Survival wind load: 240 km/h (149 mph)

      Dimensions:

      • Antenna weight: 5.7 kg
      • Mount weight: 3.2 kg

Download
Datasheet 0.86 MB
