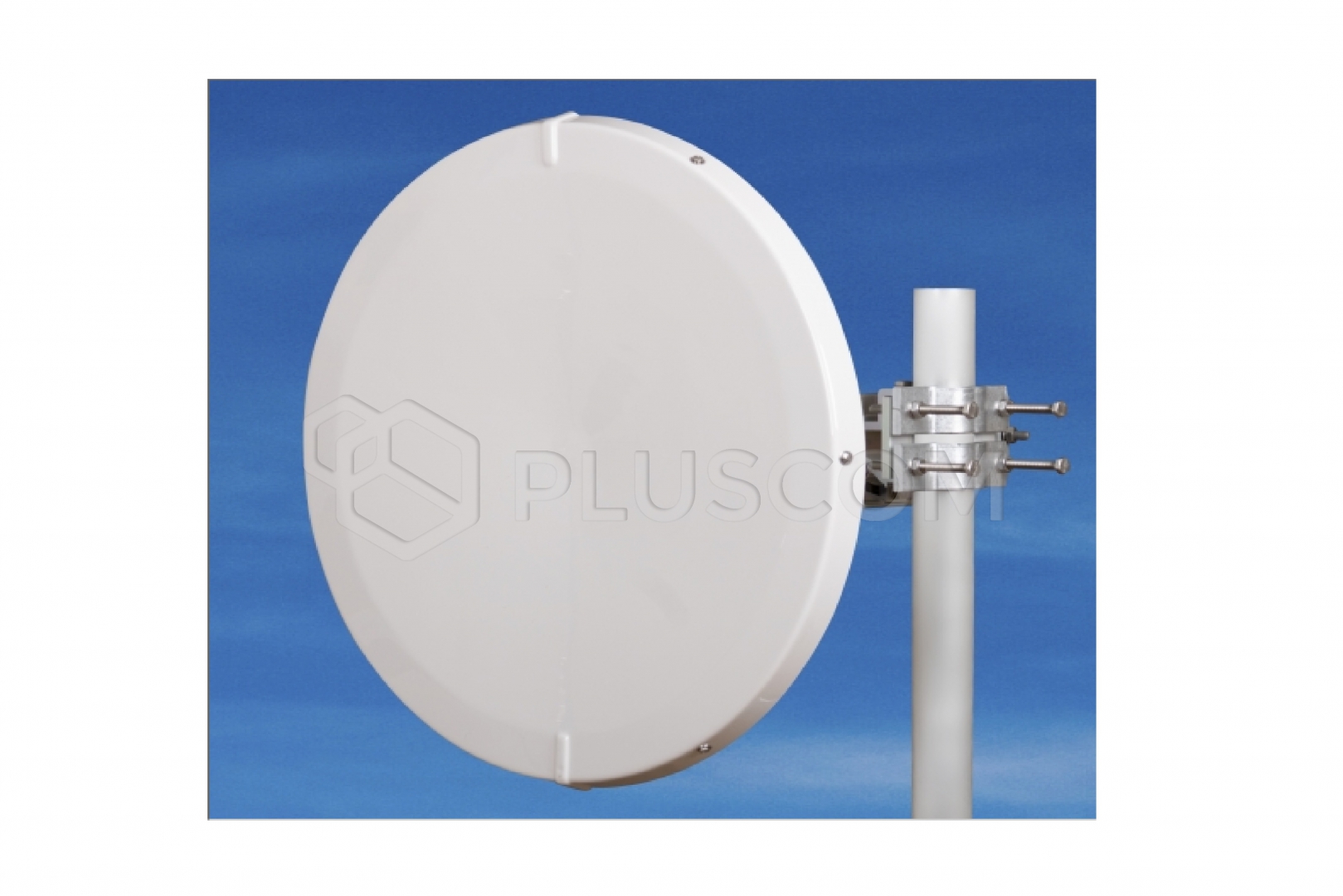

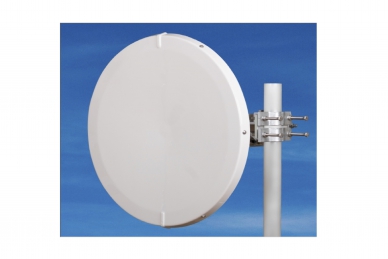

Jirous JRMD-680-4.7 parabolic antenna

Product code: #43083
Manufacturer: Jirous
  • Energy gain - low frequency: 27.0 ± 1 dBi
  • Energy gain - high frequency: 28.0 ± 1 dBi
  • Beam width: 6.8°
  • Dimensions: Ø 68 cm
  • Dual polarization: Vertical and horizontal (precise adjustment ±5°)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-680-4.7 Parabolic Antenna


The JRMD-680-4.7 antenna is designed for microwave communications in the 4.7 GHz frequency band. Precise performance with a deep reflector meets ETSI Class 2 standards.

FEATURES:

  • Dual-polarization antenna with connectors
  • Deep parabola with high interference immunity and high mechanical strength
  • Radar antenna included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- or left-sided mountable
  • Extreme wind stability

    • Electrical parameters:

    • Frequency range: 4.4 – 5.0 GHz
    • Low frequency gain: 27.0 ± 1 dBi
    • Gain – High Frequency: 28.0 ± 1 dBi
    • Beamwidth: 6.8°
    • Front-to-Back Ratio: ≥ 50 dB
    • Connector Isolation: > 35 dB
    • Return Loss: ≥ 14 dB
    • Dual Polarization: Vertical and horizontal (precise alignment ±5°)
    • Cross Polarization: ≥ 28 dB
    • Electrical Compliance: Class 2 ETSI EN 302-217-4-2

    Mechanical Parameters:

    • Parabola: Ø 680 mm, aluminum alloy
    • Dome: UV-resistant plastic, ABS
    • Connector Type: N-Female
    • Mast Mounting: Ø 40 - 120 mm
    • Operating Wind Load: 180 km/h (112 mph)
    • Operating wind load: 240 km/h (149 mph)
    • Antenna weight: 6.4 kg
    • Mount weight: 3.2 kg
Download
Datasheet 0.52 MB
