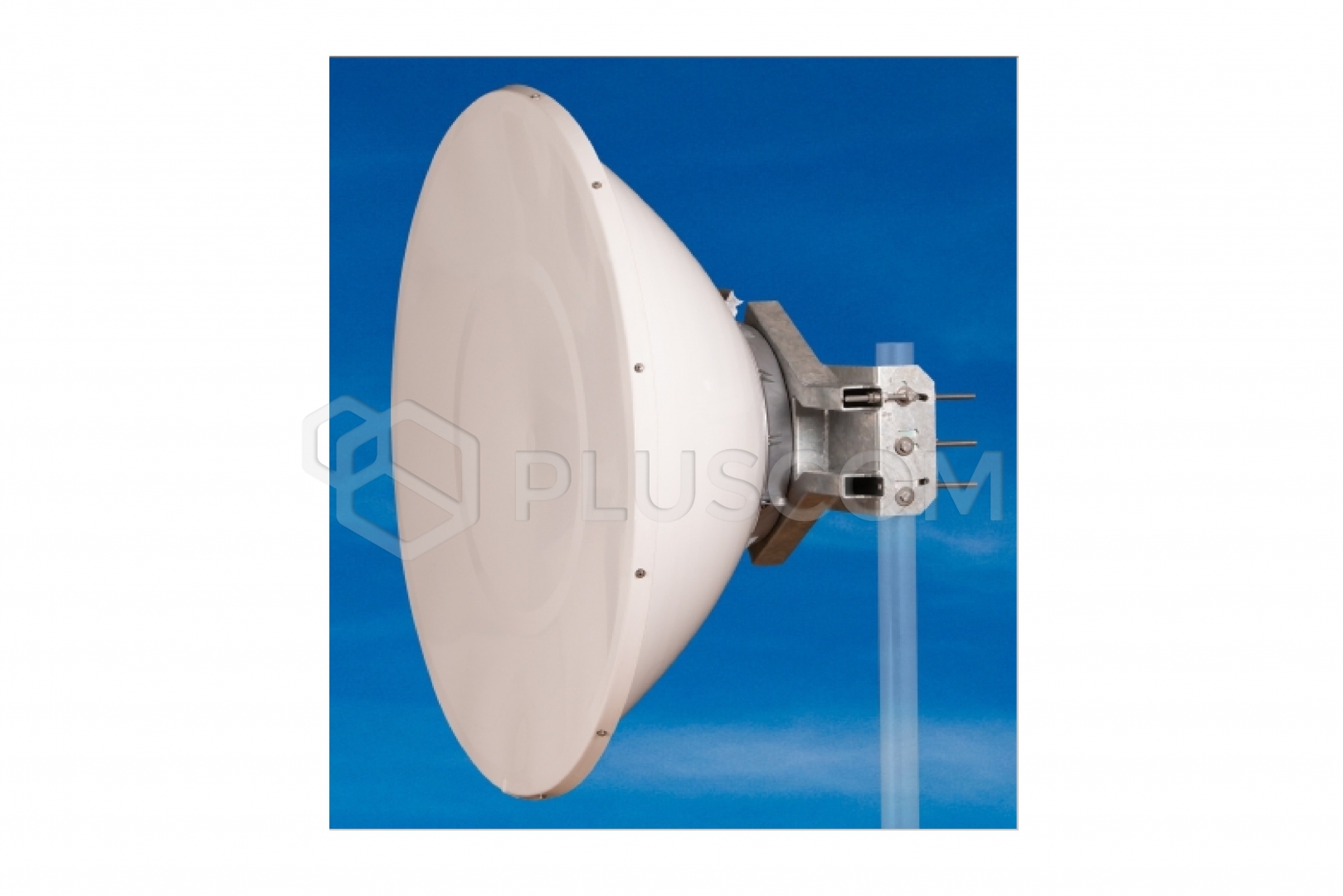

Jirous JRMD-1200-6 parabolic antenna

Product code: #43065
Manufacturer: Jirous
  • Energy gain: 35.5 ± 1 dBi
  • Beam width: 2.5˚
  • Input/Output: Circular waveguide
  • Dimensions: Ø 120 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Germany VAT: 19.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-1200-6 Parabolic Antenna


The JRMD-1200-6 dual-polarized parabolic antenna (circular waveguide) is designed for microwave links in the 6 GHz frequency band. Precise performance with a deep reflector compliant with ETSI Class 2 standards.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radio frequency converter included
  • Massive bracket with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 5.9 – 7.125 GHz
  • Gain: 35.5 ± 1 dBi
  • SWR: ≤ 1.6
  • Beamwidth -3 dB: 2.5˚
  • Front-to-Back Ratio: ≥ 55 dB
  • Polarization: Linear, Vertical/Horizontal or 45°
  • Electrical Compliance: Class 2 ETSI EN 302-217-4-2

Mechanical Parameters:

  • Parabola: Ø 1200 mm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Input/Output: Circular waveguide
  • Mast Installation:
    - Ø 80 - 120 mm
    - Ø 60 - 80 mm with adjustable windage kit
  • Wind Load Operating speed:
    - 110 km/h (68 mph) without wind reinforcement kit
    - 140 km/h (87 mph) with wind reinforcement kit
  • Wind load resistance: 210 km/h (131 mph)
  • Antenna weight: 29 kg
Download
Datasheet 1.03 MB
