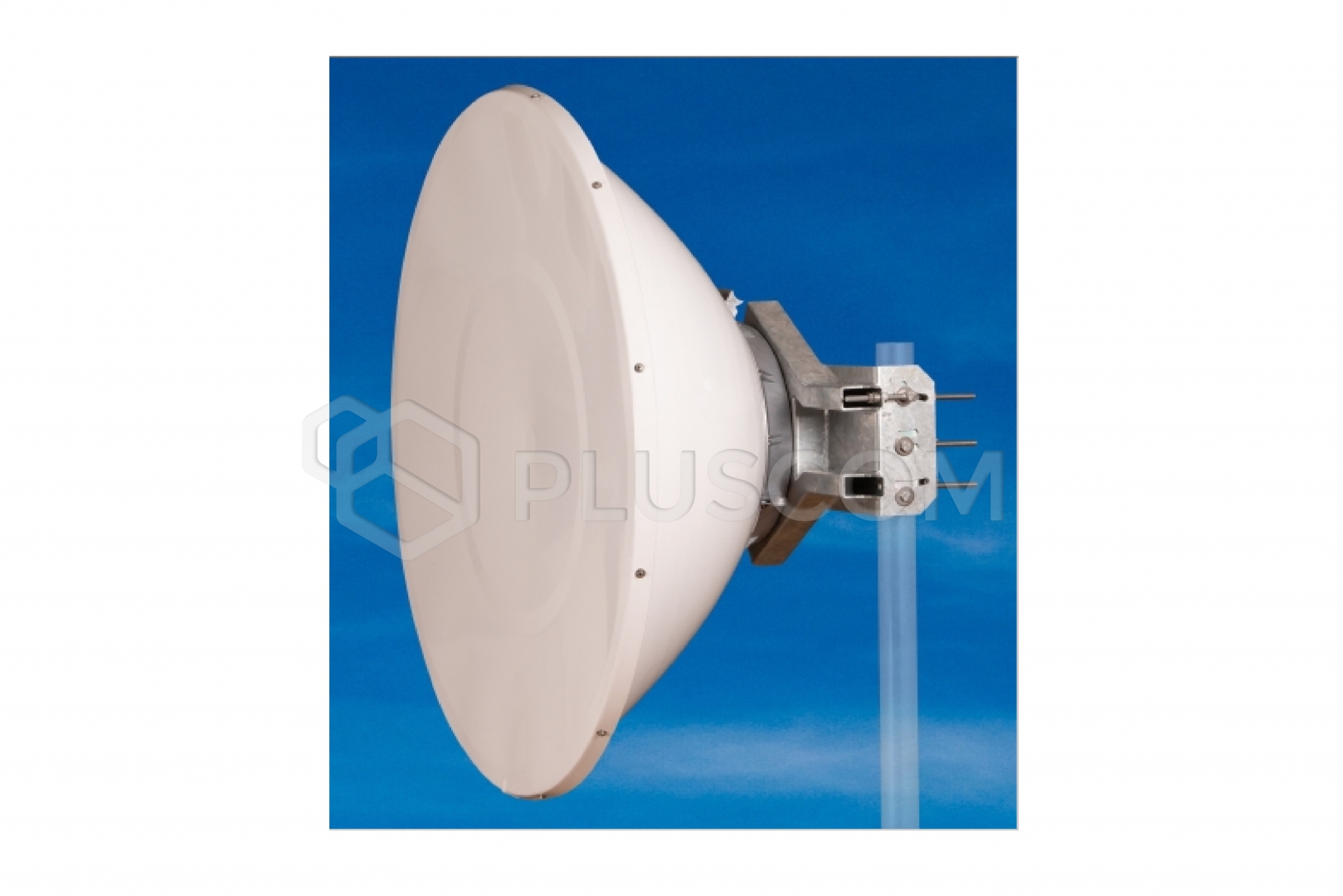

Jirous JRMD-1200-6 MIMO parabolic antenna

Product code: #43064
Manufacturer: Jirous
  • Energy gain: 35.5 ± 1 dBi
  • Beam width: 2.5˚
  • Connectors: R-SMA or N
  • Dimensions: Ø 120 cm
  • Polarization: Linear, vertical/horizontal or 45°

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMD-1200-6 MIMO Parabolic Antenna


The JRMD-1200-6 MIMO dual-polarization parabolic antenna (with connectors) is designed for MIMO connections in the 6 GHz frequency band. Precise performance with a deep reflector The dish complies with the ETSI Class 2 standard.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radio frequency converter included
  • Massive mount with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 5.9 – 7.125 GHz
  • Gain: 35.5 ± 1 dBi
  • SWR: ≤ 1.6
  • Beamwidth -3 dB: 2.5˚
  • Isolation between connectors: ≥ 35 dB
  • Front-to-back ratio: ≥ 55 dB
  • Polarization: Linear, vertical/horizontal or 45°
  • Electrical compliance: Class 2 ETSI EN 302-217-4-2

Mechanical parameters:

  • Parabola: Ø 1200 mm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Connector type: R-SMA or N
  • Mast installation:
    - Ø 80 - 120 mm
    - Ø 60 - 80 mm with Adjustable wind reinforcement kit
  • Operating wind load:
    - 110 km/h (68 mph) without wind reinforcement kit
    - 140 km/h (87 mph) with wind reinforcement kit
  • Survival wind load: 210 km/h (131 mph)
  • Antenna weight: 29 kg

Download
Datasheet 0.98 MB
