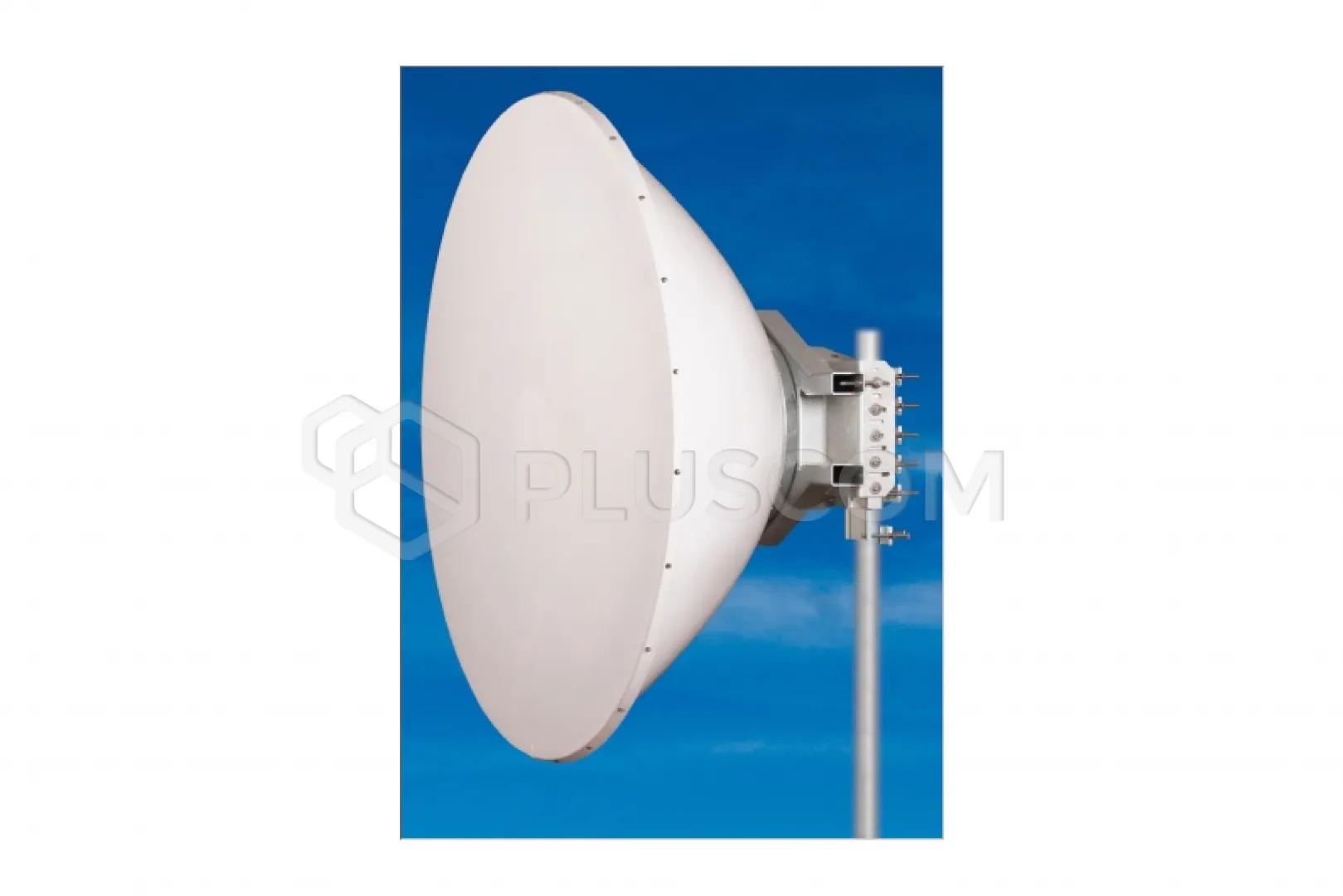

Jirous JRMC-1800-6 parabolic antenna

Product code: #43067
Manufacturer: Jirous
  • Energy gain: 38.6 ± 1 dBi
  • Beam width: 1.7°
  • Waveguide: Circular waveguide
  • Dimensions: Ø 180 cm
  • Polarization: Horizontal/Vertical or 45°
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMC-1800-6 Parabolic Antenna


The JRMC-1800-6 antenna is designed to create wireless communication lines in the 6 GHz frequency band. The new generation of Jirous antennas is available with a deep reflector and a massive mount, which significantly improves the antenna's operational capabilities.
The entire antenna system is characterized by a relatively high wind resistance.
Precise operation with a deep reflector complies with ETSI Class 3 and US FCC Category A standards.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radio is included in the kit
  • Massive bracket with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 5.9 - 7.125 GHz
  • Gain: 38.6 ± 1 dBi
  • Beamwidth -3 dB: 1.7°
  • SWR: ≤ 1.6
  • Polarization: Horizontal/Vertical or 45°
  • ETSI EN 302-217-4-2: Class 3
  • US FCC: Cat. A
  • Waveguide: Circular waveguide

Technical parameters:

  • Parabola: Ø 1800 mm, aluminum alloy with bakeable color
  • Radome: UV-resistant composite material
  • Mast installation: ø 70 - 120 mm
  • Operating wind load: max. 140 km/h
  • Survival wind load: max. 210 km/h
