Jirous JRMC-1800-6 MIMO parabolic antenna (R-SMA connector)

Product code: #43066
Manufacturer: Jirous
  • Energy gain: 38.6 ± 1 dBi
  • Beam width: 1.7°
  • Connectors: R-SMA
  • Dimensions: Ø 180 cm
  • Polarization: Horizontal/Vertical or 45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

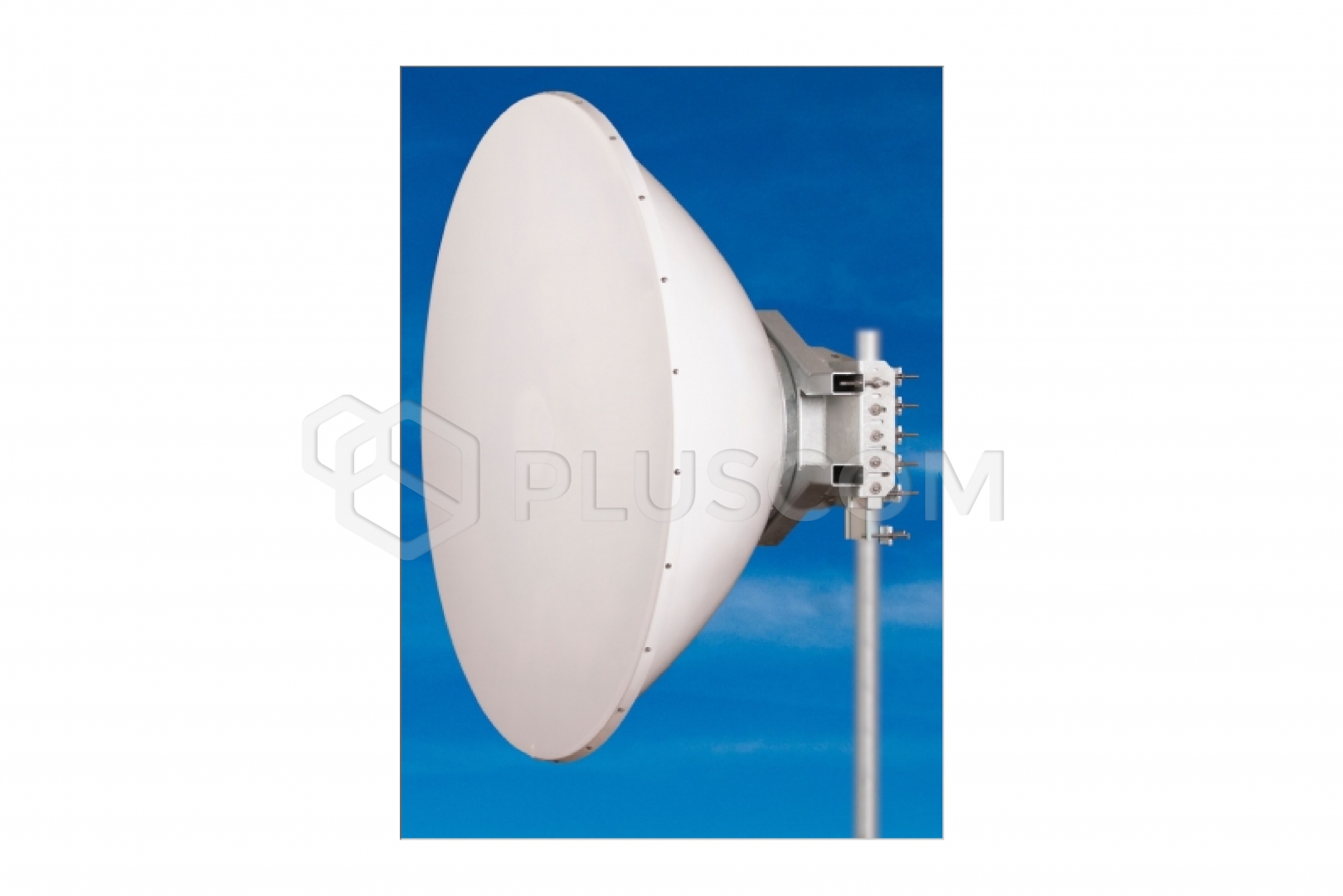

Jirous JRMC-1800-6 MIMO Parabolic Antenna


The JRMC-1800-6 antenna is designed to create communication lines in the 6 GHz frequency band. The new generation of Jirous antennas is available with a deep reflector and a massive mount, which significantly improves the antenna's operational capabilities.
The entire antenna system is characterized by a relatively high wind resistance.
Precise operation with a deep reflector complies with ETSI Class 3 and US FCC Category A standards.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radome included
  • Massive mount with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 5.9 - 7.125 GHz
  • Gain: 38.6 ± 1 dBi
  • Beamwidth -3 dB: 1.7°
  • SWR: ≤ 1.6
  • Polarization: Horizontal/Vertical or 45°
  • Polarization Accuracy: ±5°
  • ETSI EN 302-217-4-2: Class 3
  • US FCC: Cat. A
  • Connector Type: R-SMA

Technical Parameters:

  • Parabola: Ø 1800 mm, aluminum alloy with bakeable color
  • Material: UV-resistant composite antenna cover
  • Mast Installation: ø 70 - 120 mm
  • Maximum Operating Wind Load: 140 km/h
  • Maximum survival wind load: 210 km/h
