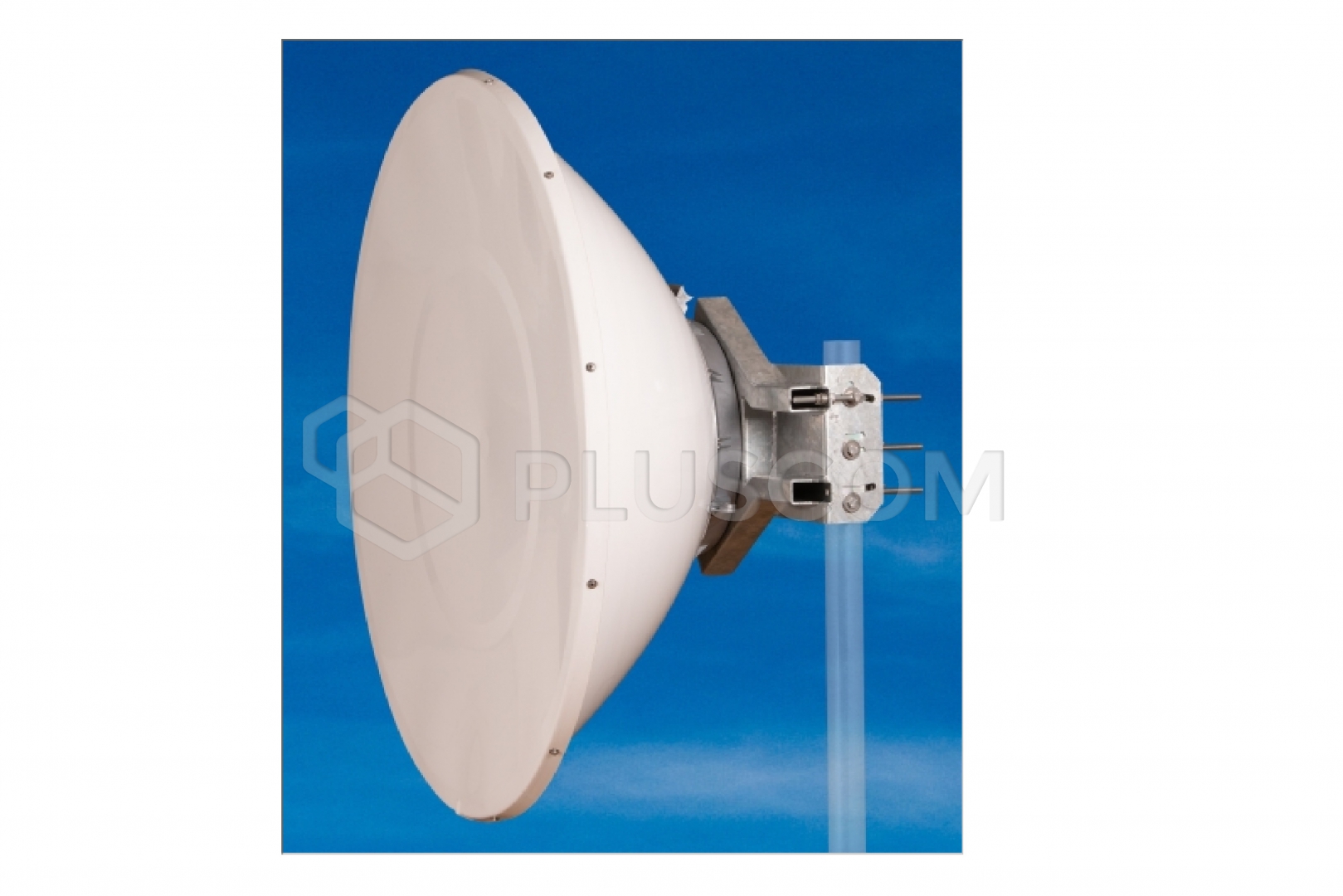

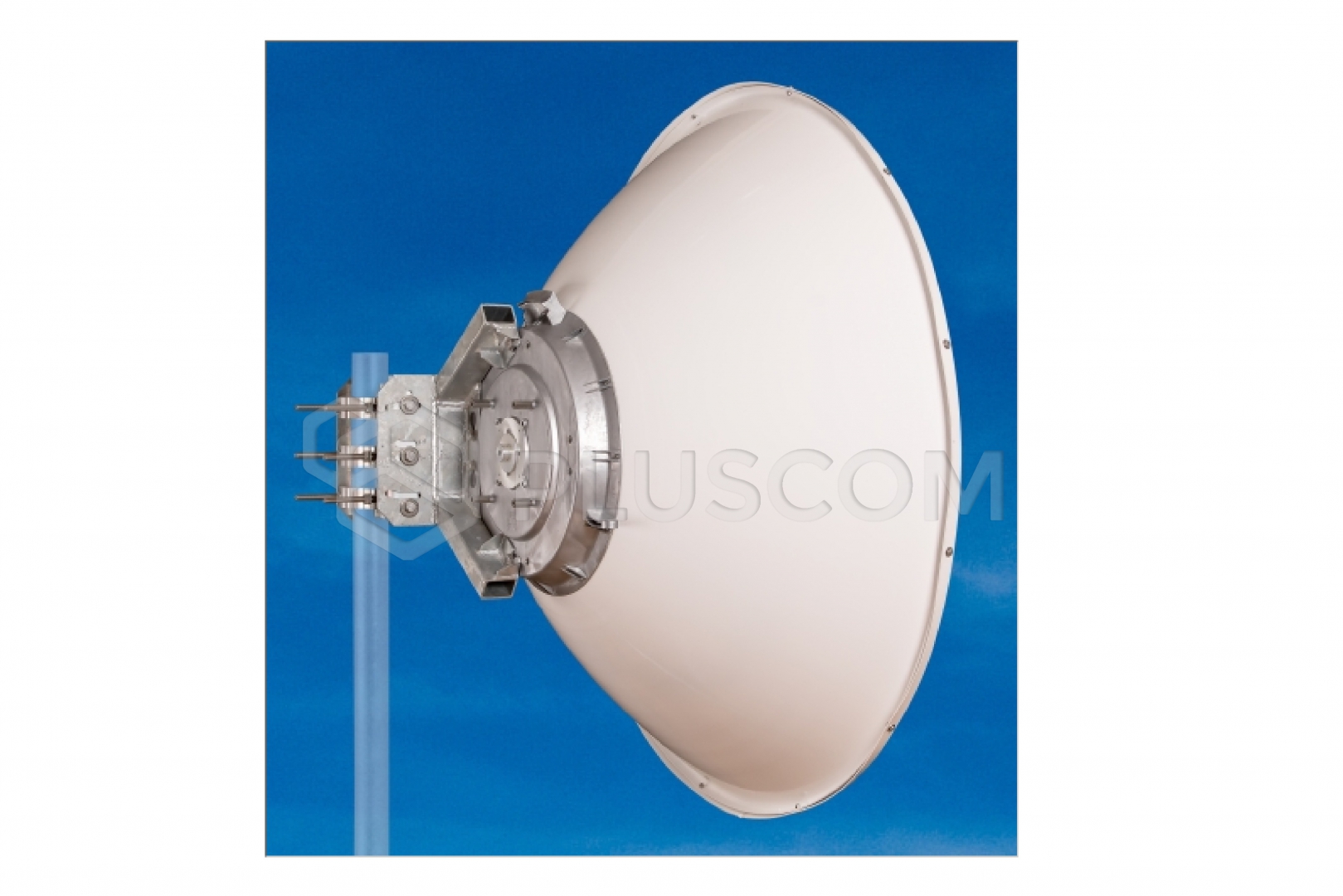

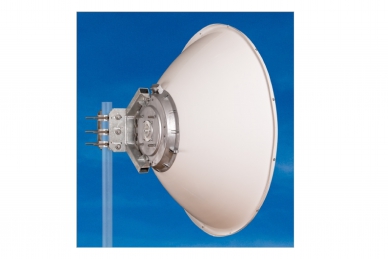

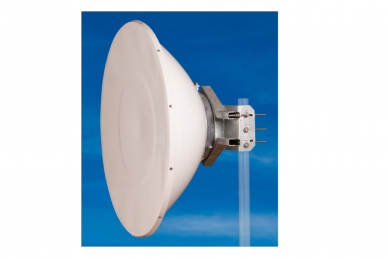

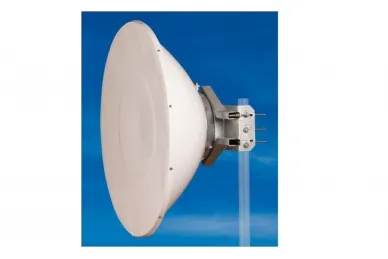

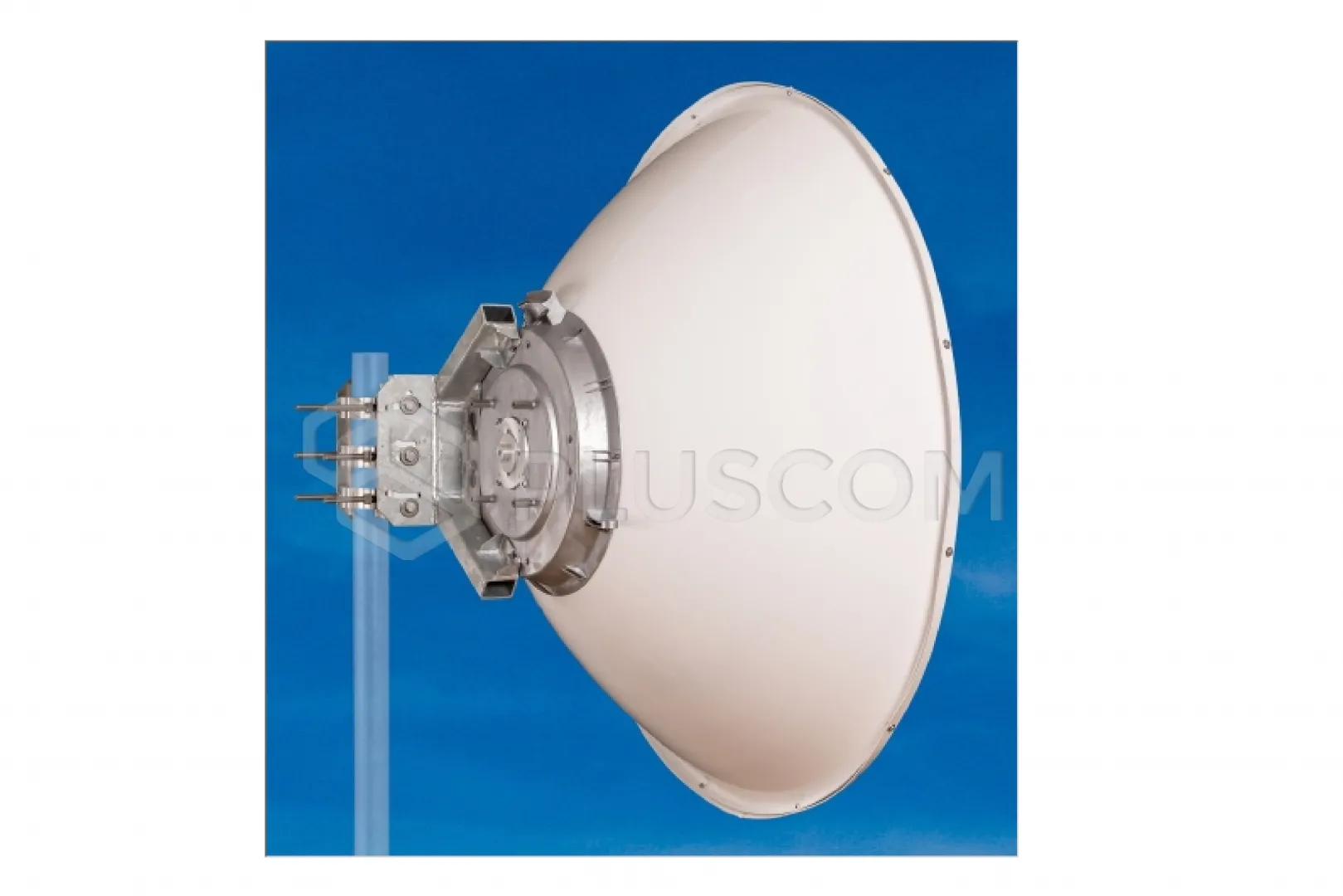

Jirous JRMC-1200-13 Parabolic antenna

Jirous JRMC-1200-13 Parabolic antenna

The JRMC-1200-13 antenna is designed for microwave communications in the 13 GHz frequency band. Its precise performance with a deep reflector complies with ETSI Class 3 and FCC Part 101B standards.

FEATURES:

• Deep reflector dish with high interference resistance and mechanical strength
• High isolation of adjacent cells
• Radar antenna included
• Massive bracket with precise elevation and azimuth adjustment
• Right- and left-sided mounting
• High wind stability

Designed for MW units:

• Please see adapter overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 12.7 – 13.3 GHz
• Gain – low frequency: 40.8 ± 1 dBi
• Gain - High Frequency: 41.5 ± 1 dBi
• Front-to-Back Ratio: ≥ 65 dB
• Beamwidth 3 dB: 1.3°
• Return Loss: ≥ 18 dB
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance
  - US FCC Part 101B
  - (US FCC Part 101A - according to minimum radiated attenuation)
  - Class 3 ETSI EN 302-217-4-2
  - ACMA - RALI FX3 Class B

Mechanical Parameters:

• Parabola: Ø 1200 mm, alloy Aluminum
• Radom UV solid ABS plastic
• Input/output: Circular waveguide
• Mast mounting:
  - Ø 80 - 120 mm
  - Ø 60 - 80 mm – with wind bracing kit
• Operating wind load:
  - without wind bracing kit 110 km/h (68 mph)
  - with wind bracing kit 140 km/h (87 mph)
• Wind load resistance: 210 km/h (130 mph)
• Antenna weight: 28.5 kg

We recommend using the wind bracing kit for mounting on a mast with a diameter less than 80 mm, as well as in areas with strong winds. Winds.

Additional Accessories

• JRZ-1200 Wind Bracing Set
