Jirous JRMB-900-6 MIMO 2xRP-SMA/female

947,93 EUR including 20.00% VAT
Product code: #19592
Manufacturer: Jirous
  • Gain: 32.3 ±0.6dBi
  • Beamwidth: 5.2°
  • Connectors: 2xRP-SMA/female
  • Outer size: Ø90 cm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMB-900-6 MIMO 2xRP-SMA/female

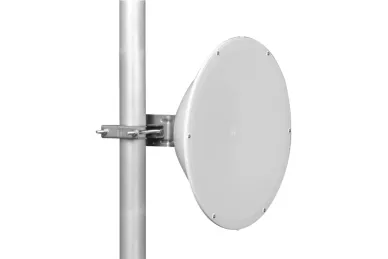

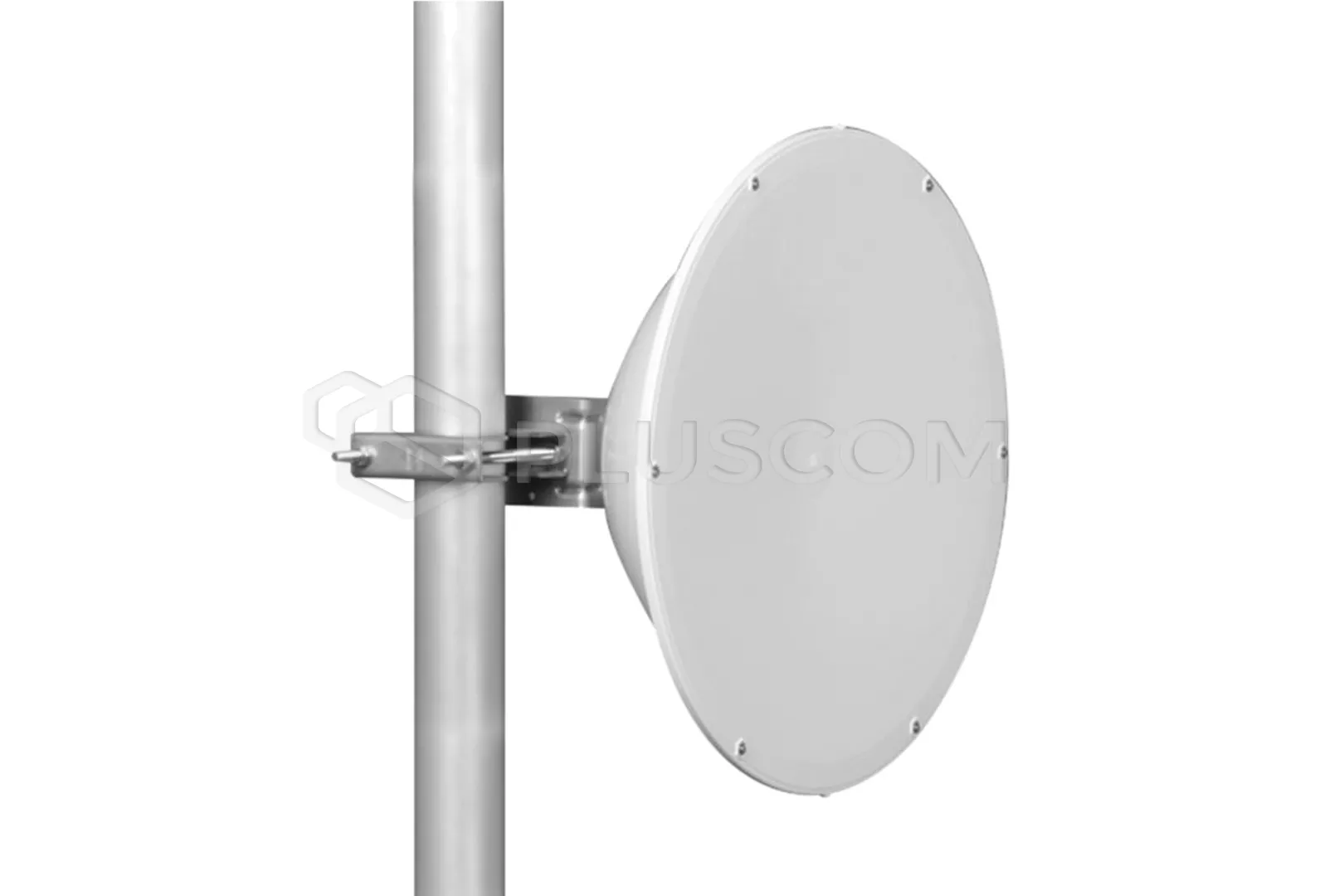

Antenna JRMB – 900 – 6 MIMO is designed for microwave links at the frequency band 6 GHz. It has deep reflector dish and massive holder which allows precise adjustment in both directions. Whole antenna system with bracket JDMW-900 has extreme wind stability.
The antenna is supplied together with a holder that allows easy mounting on a mast. Holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with microwave unit into it. Holder allows precise adjustment in both directions. Mounting to the right or left side is possible.

Description:
  • profesional microwave antenna
  • deep parabola with great resistance to interference and high mechanical strength
  • high isolation between neighbour links
  • radom is included in package
  • massive bracket JDMW-900 with fine setting elevation and azimuth
  • possibility to mount to right and left side
  • other sizes on request
Technical parameters:
  • Frequency range: 5.9 - 6.6 GHz
  • Gain: 32.3 ± 0.6 dBi
  • Beamwidth -3dB: 5.2°
  • Front to back ratio: ≥ 47 dB
  • VSWR: < 1.5
  • Polarization: horizontal and vertical
  • Type of connector: RP-SMA
  • Parabola: ø 900 mm, aluminium alloy with baking colour
  • Cover: UV steady plastic ABS
  • Instalation for mast: ø 40 - 120 mm
Download
Datasheet 0.49 MB
