Jirous JRE-28EX UPB 10GHz 2szt.

218,16 EUR including 20.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #5263
Manufacturer: Jirous
  • Gain: 28.3dBi
  • Beamwidth: 6°
  • Waveguide ø 19,5 mm
  • Antenna for PowerBridge M10 unit
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

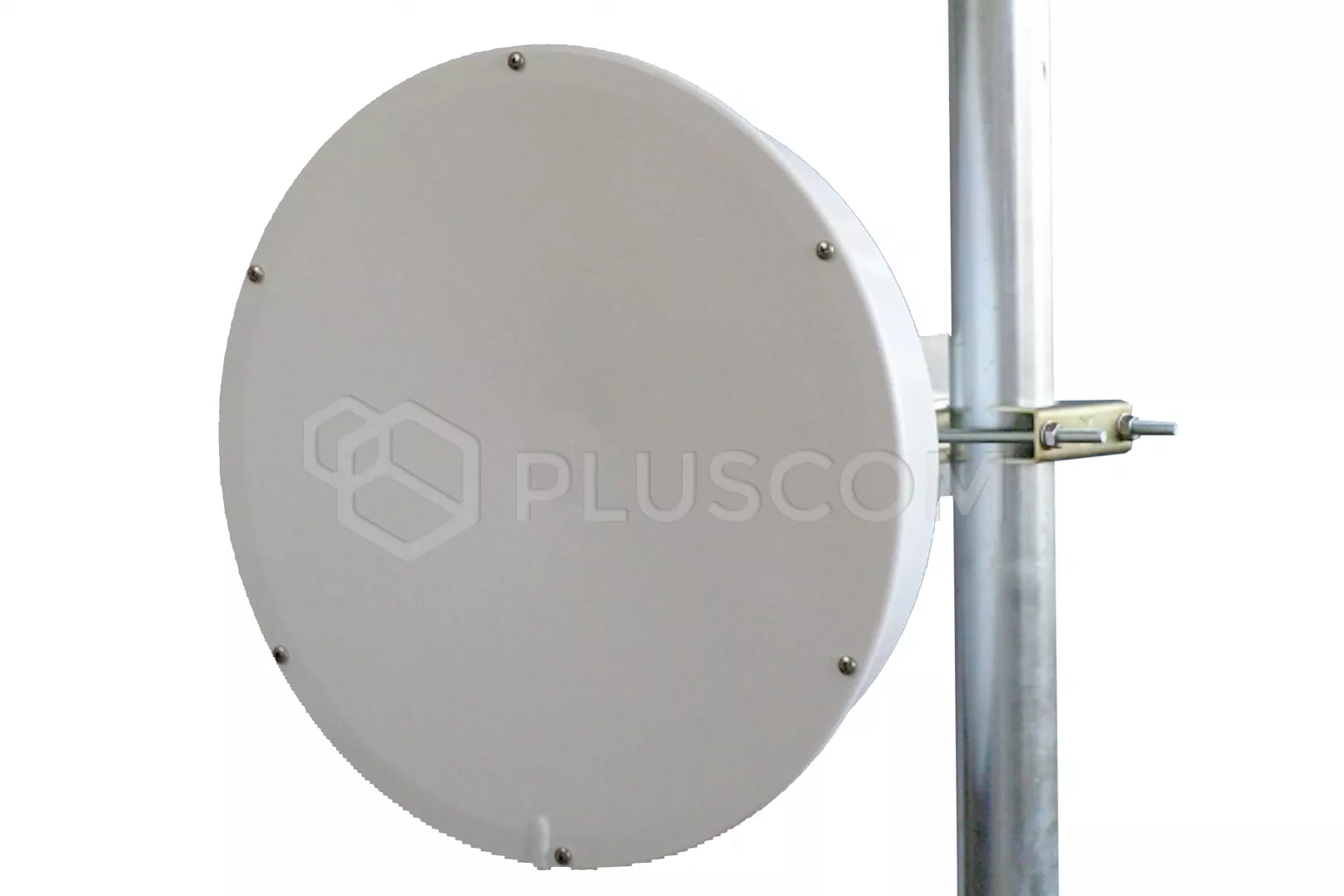

Antenna JRE-28EX UPB 10GHz (2 pcs)

The 28dBi parabolic antenna is designed for the unit PowerBridge M10 and operates in the 10 GHz frequency band. The antenna has high separation between polarities. We can avoid a lot of disruptions and noise from other transmissions thanks to the narrow main beam (6 °).

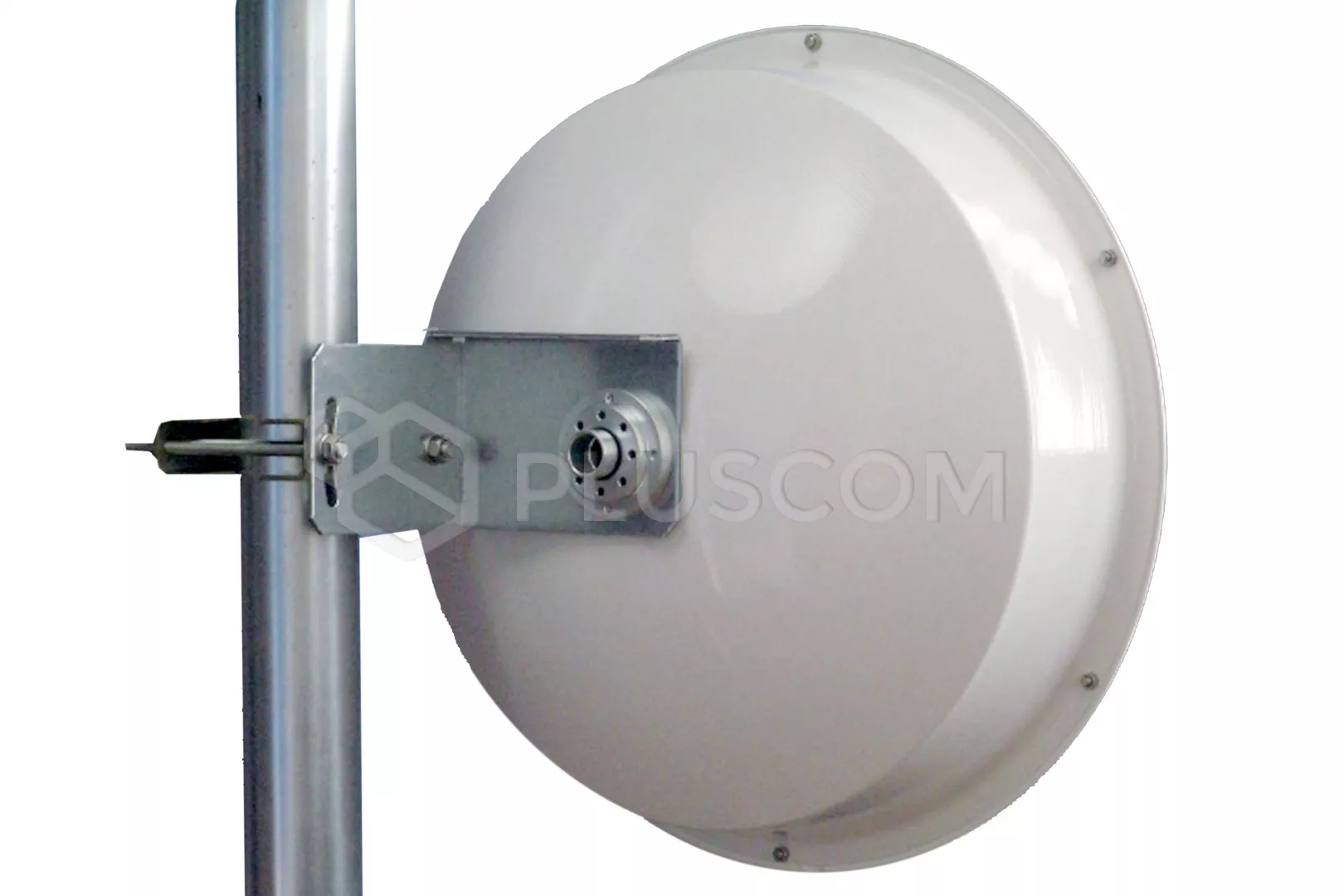

Attached to the antenna is a massive handle that allows precise adjustment in both directions, which makes it possible to change the polarization by 45 ° both vertically and horizontally.

Usage:
  • Antenna parabolic, horizontal and vertical polarization
  • Complete antenna for PowerBridge M10 unit
  • The mount allows for installation on the right and left side
  • The unit can be rotated 45 ° (for horizontal polarization and vertical)
  • Metal plate flange for suppression of high interference
Technical parameters:
  • Frequency range: 10.3-10.7 GHz
  • Gain: 28.3 dBi
  • Polarization: horizontal and vertical
  • Connection: waveguide ø 19.5 mm
Packing:
2 pcs. In a box
