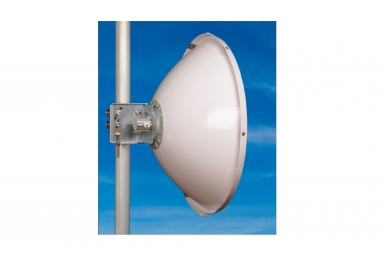

Jirous JRD-30DD MIMO Parabolic antenna (N-female connector)

Product code: #43126
Manufacturer: Jirous
  • Energy gain: 30,5 ± 1 dBi
  • Beam width: 4.6°
  • Connectors: N-female
  • Dimensions: Ø 68 cm
  • Polarization: Linear, vertical/horizontal or 45°
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

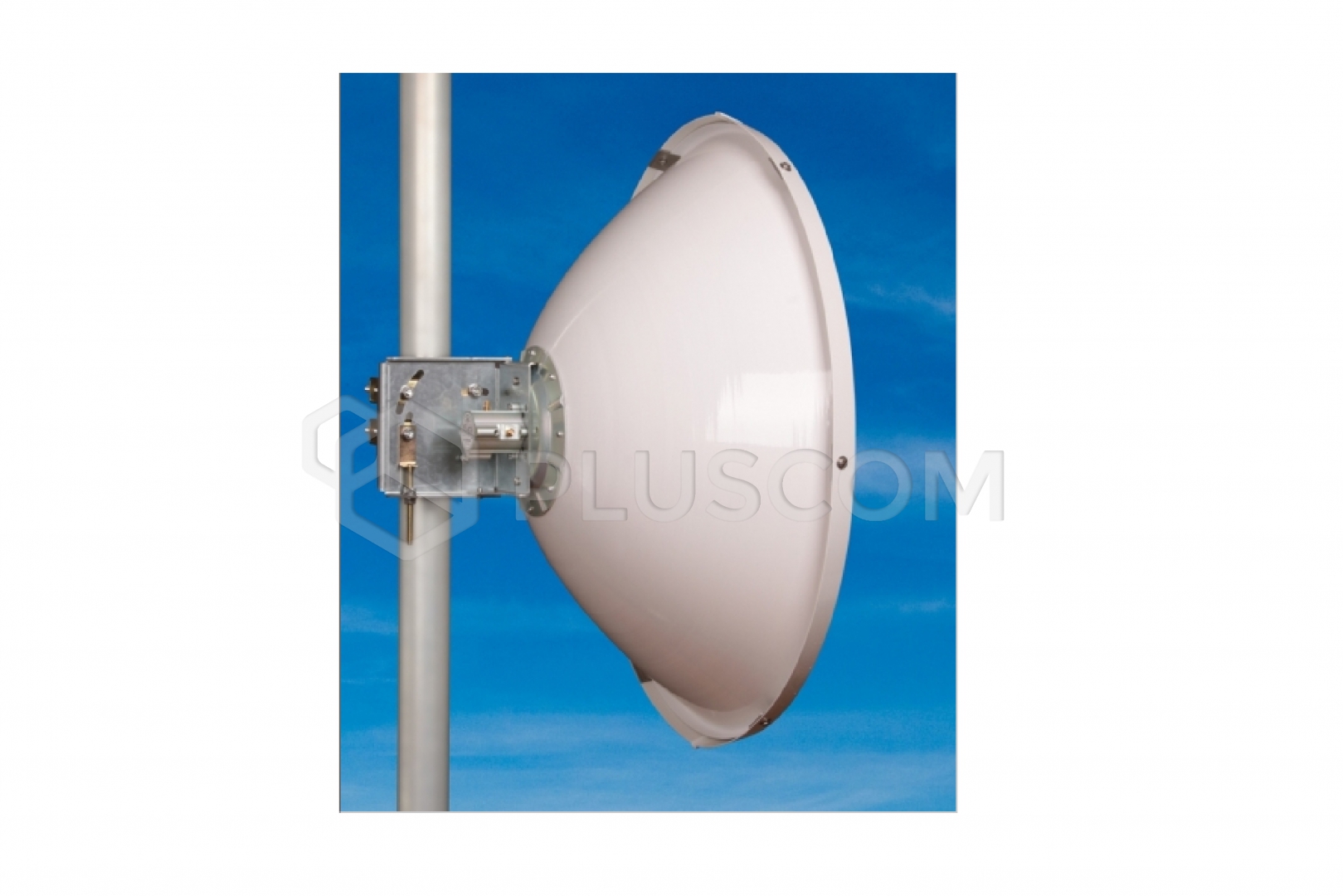

Jirous JRD-30DD MIMO Parabolic antenna (N-female connector)


The JRD–30DD MIMO dual-polarization parabolic antenna (with connectors) is designed for MIMO links in the 6 GHz frequency band. Its deep antenna design increases isolation between antennas on the mast and increases the front-to-back ratio.

FEATURES:

  • Deep parabola with high interference resistance and high mechanical strength
  • High isolation of neighboring cells
  • Radome is included in the set
  • Lighting bracket with precise height adjustment
  • Mounting on the right and left side
  • High wind resistance

Electrical parameters:

  • Frequency range: 5.9 – 7.125 GHz
  • Gain: 30.5 ± 1 dBi
  • Front-to-back ratio: ≥ 45 dB
  • Beam width -3 dB: 4.6°
  • Factor SWR: ≤ 1.6
  • Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

  • Parabola: ø 68 cm, aluminum alloy
  • Radome: UV solid ABS plastic
  • Connector type: N-female
  • Mast mounting: ø 27 - 74 mm
  • Antenna weight: 6.1 kg
Download
Datasheet 0.64 MB
