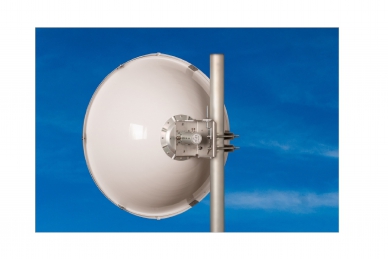

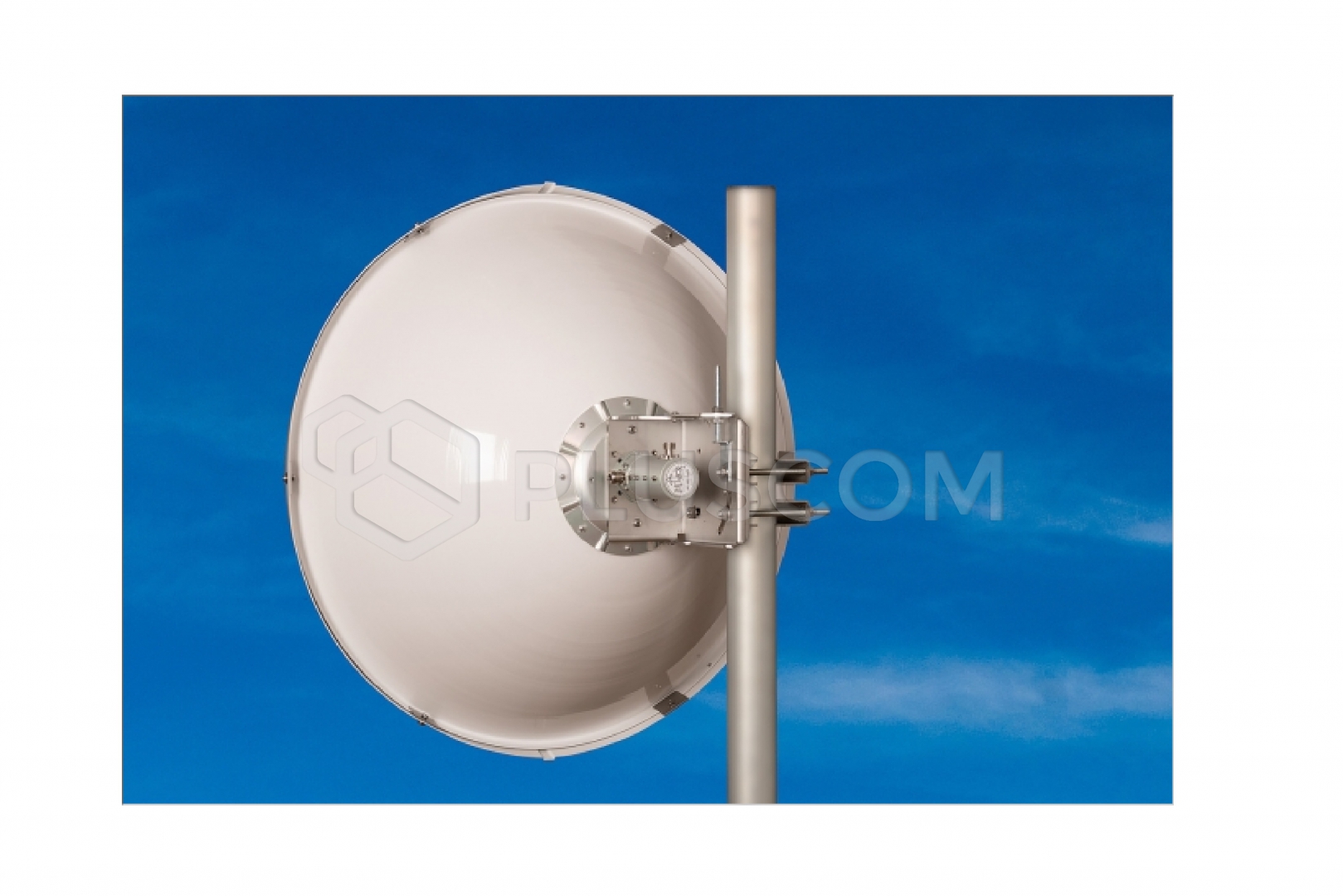

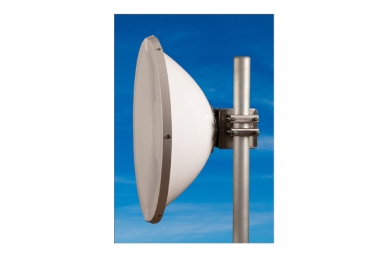

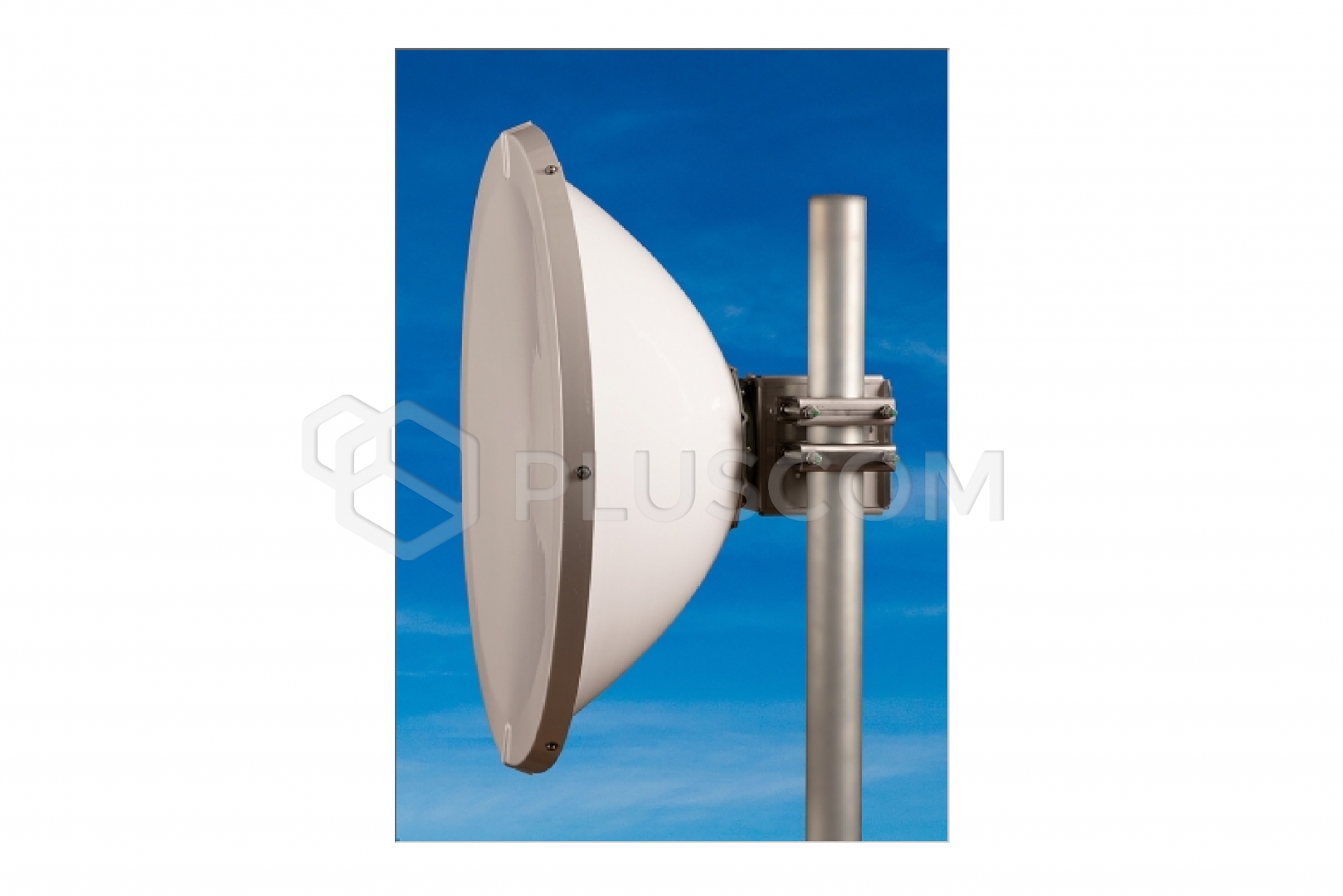

Jirous JRC-29DD SX DuplEX Parabolic Antenna (N-female connector) (2
pcs.)
The JRC-29DD DuplEX dual-polarized parabolic antenna is designed for
directional links in full-duplex or MIMO mode in the 5 GHz frequency band with
a high level of isolation.
The antenna is designed for operation over medium and short distances in harsh
environments.
Its deep dish design increases isolation between the antennas on the mast,
which increases the front-to-back ratio. The SX version has a stainless steel
mount designed for operation in harsh, corrosive environments.
The set includes 2 pieces.
FEATURES:
- Dual-polarization antenna: Full duplex or MIMO, horizontal/vertical or
2x45° polarization
- Excellent port-to-port isolation enables full-duplex connections
- Deep antenna increases isolation between antennas on the mast
- New concept with extended frequency band
- High front-to-back ratio
- Additional corrosion resistance
- Directional link for long-haul or medium-haul connections in harsh
environments
- Precise azimuth and elevation adjustment
- Achievable distance can be calculated from the calculation section
- Plastic parabolic shield included Artificial
Other model:
- JRC-29DD DuplEX – standard deep DuplEX antenna
- JRC-29DD DuplEX Precision – antenna with precision mount
- JDMW-900 AR
Electrical parameters:
- Frequency range: 4.9 – 6.1 GHz
- Gain: 29.0 ± 1 dBi
- SWR: 5.1 – 5.9 GHz ≤ 1.6
- -3 dB beamwidth: 5.5˚
- Port-to-port isolation: 5.1-5.9 GHz ≥ 50 dB (typically 53 dB) (other
frequency bands ≥ 43 dB)
- Front-to-back ratio: ≥ 49 dB
- Polarization: Linear, vertical/horizontal or 45°
Mechanical parameters:
- Parabola: Ø 680 mm, aluminum alloy
- Radome: UV-resistant plastic, ABS
- Connector type: N-female
- Mast mounting diameter: 27–74 mm
- Antenna weight: 6.9 kg (15.2 lbs)
The antenna can be used in conjunction with the JR-350 Alu outdoor metal
housing for access points, RouterBOARDs, and other electronics.
The antenna mount features separate snap-in nuts, making it easy to install and
adjust azimuth and elevation. It can be mounted on either the right or left
side.
Recommended accessories:
When used with the GentleBOX JR-300, we
recommend:
- version with R-SMA connectors (JRC - 24DuplEX - SMA)
- version with N connectors should be supplemented with an angled adapter
for a horizontally polarized connector
- R-SMA/MMCX pigtail
- R-SMA/UF.L pigtail
