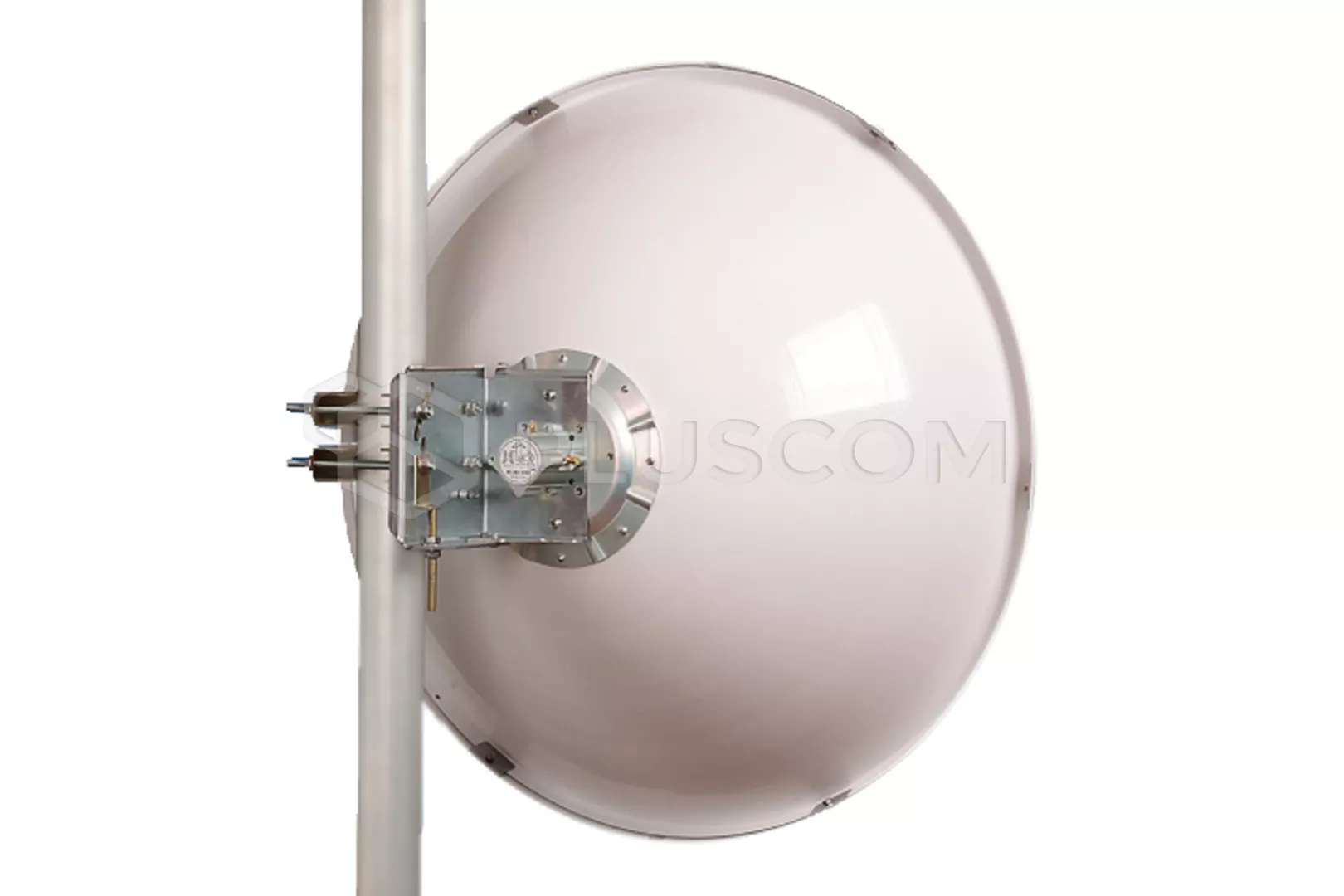

Jirous JRC-29DD MIMO 2szt. (N/female)

655,15 EUR including 23.00% VAT
Product code: #18320
Manufacturer: Jirous
  • Gain: 29 ±1dBi
  • Beamwidth: 5.5°
  • Connectors: 2xN/female
  • Outer size: Ø68 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous GentleBOX JR-200

Jirous JRC-29DD MIMO 2szt. (N/female)

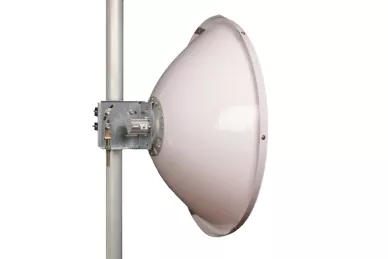

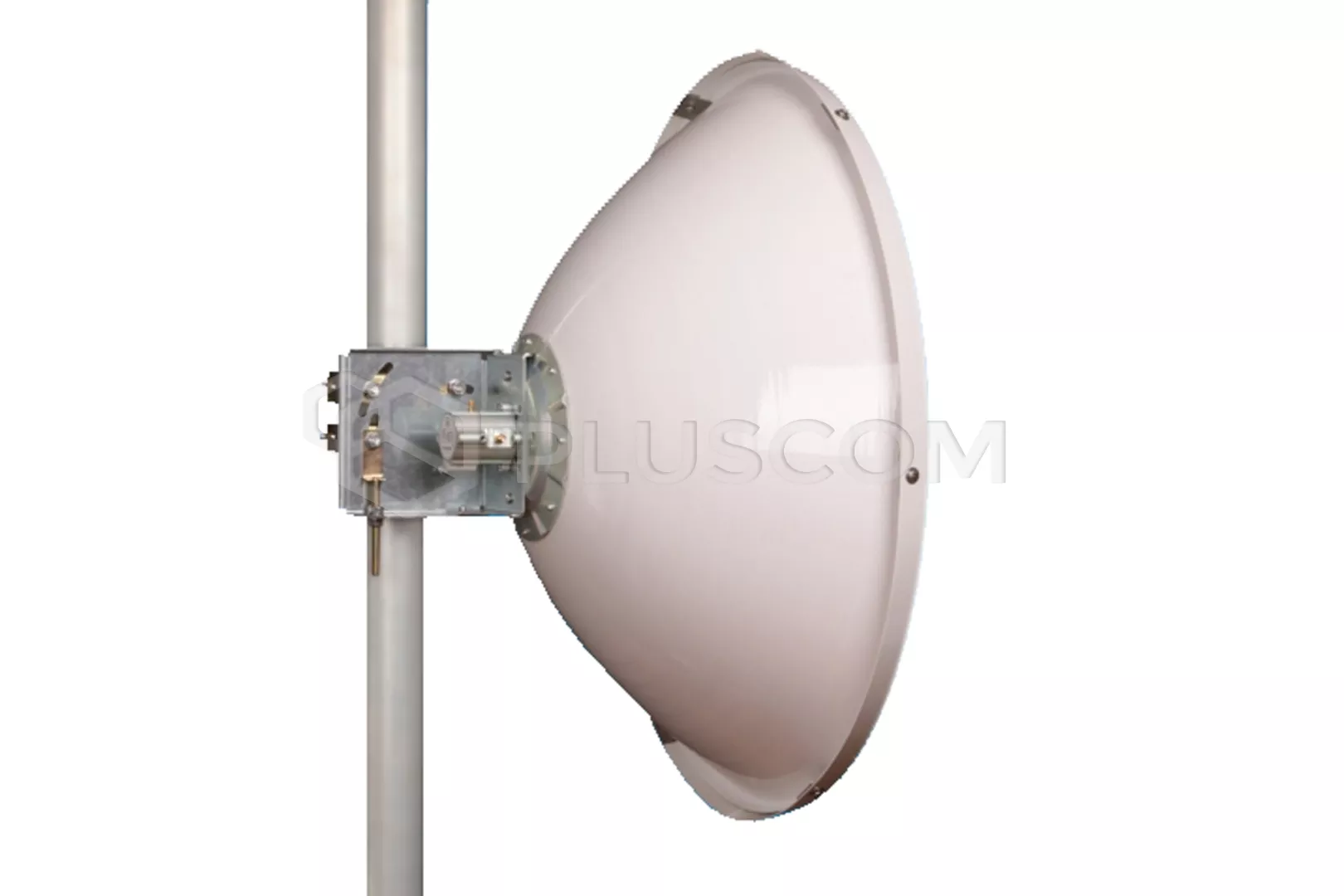

Dual-polarized parabolic antenna JRC-29 Deep Dish MIMO is designed for directional links with MIMO mode at the frequency band 5 GHz. The antenna is designed for environments with multiple reflections for long and medium distances in difficult conditions. Its design with deep dish increases isolation among antennas on a mast and increases front to back ratio. The new concept expands the frequency band.

Specification:
  • dual-polarization antenna, horizontal/vertical or 2x45° polarization
  • deep dish increases isolation among antennas on a mast
  • new concept with extended frequency band
  • high front to back ratio

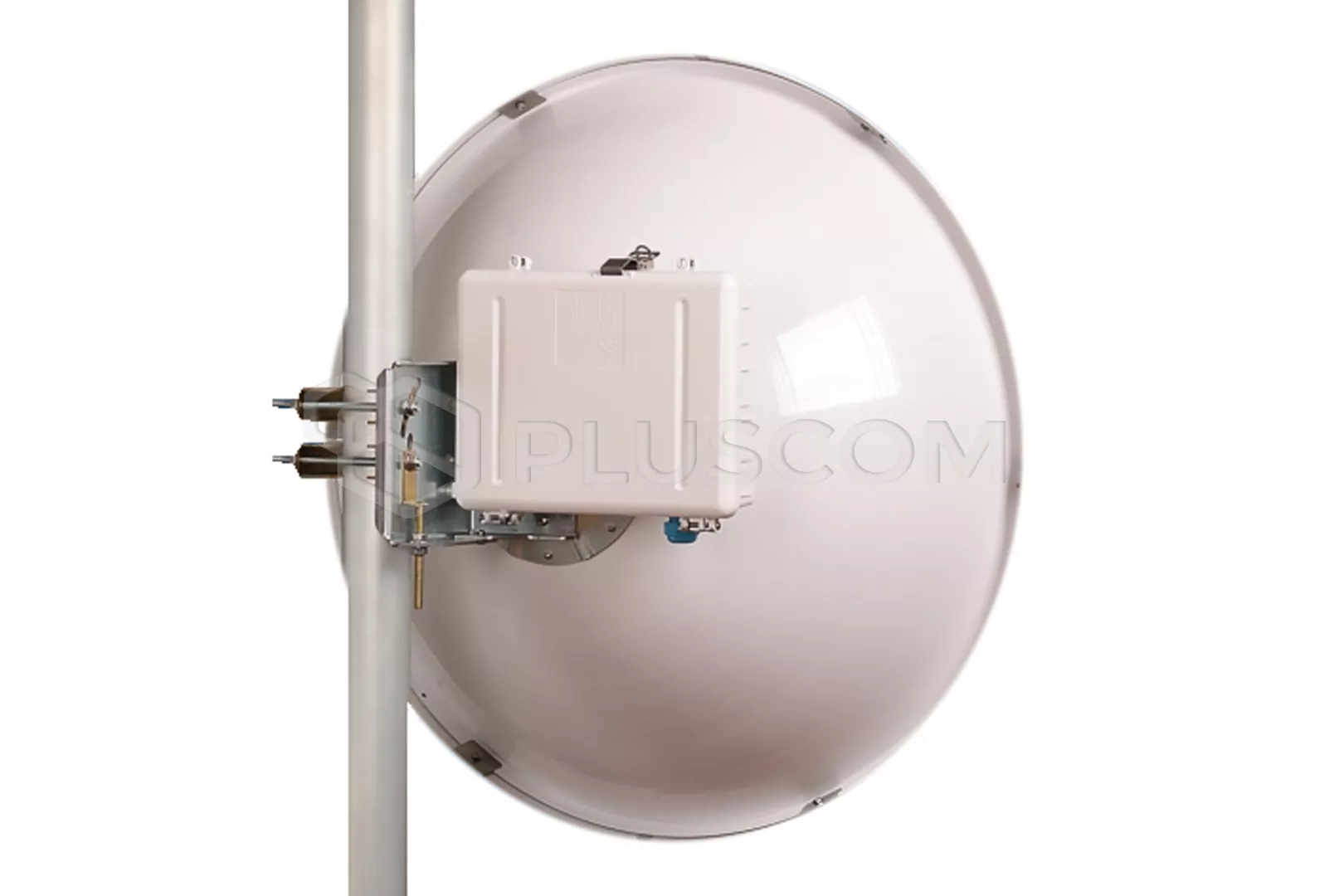

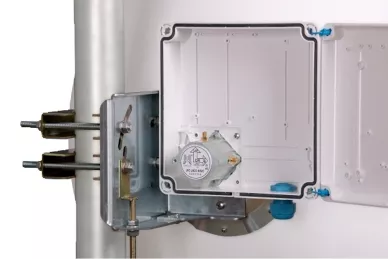

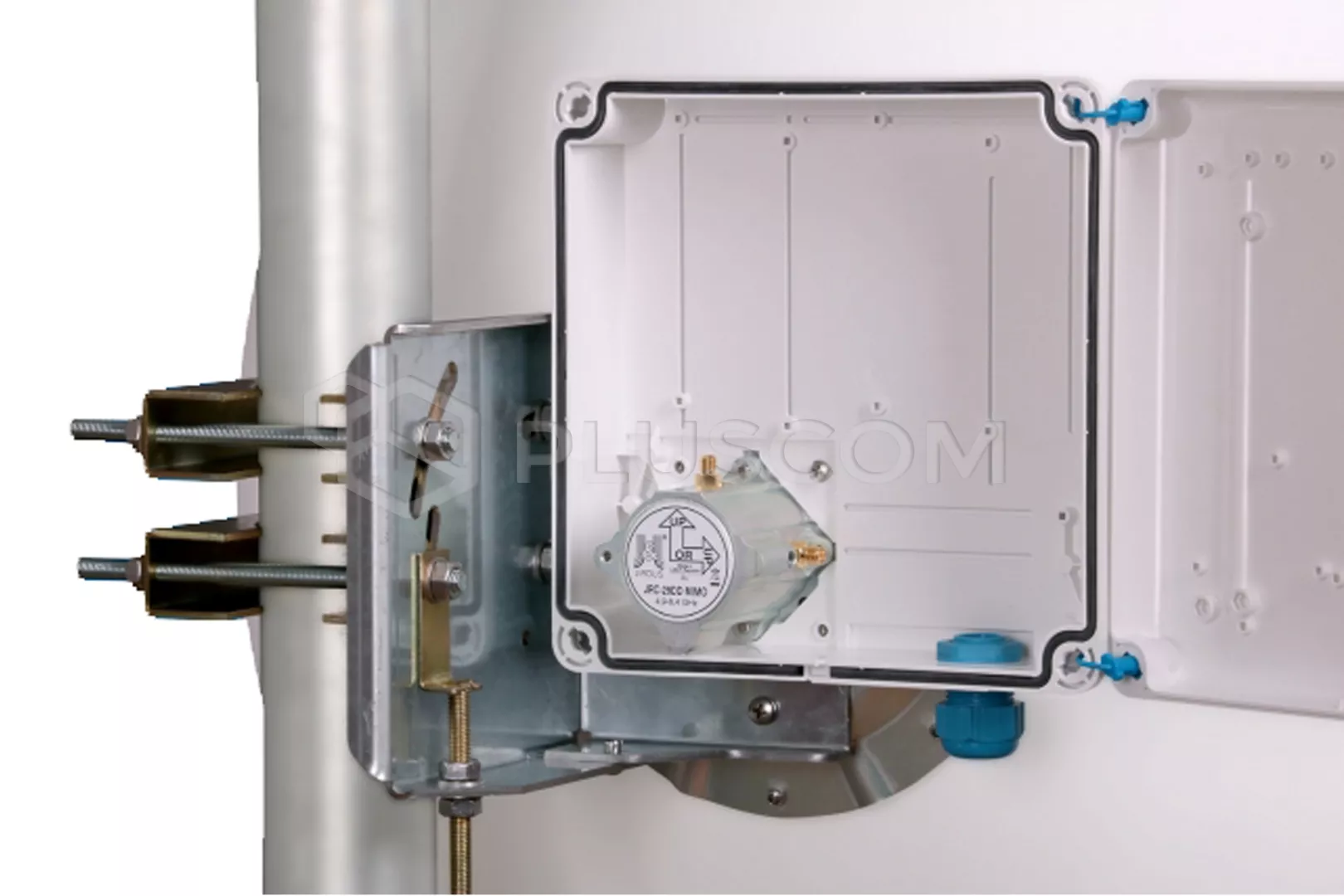

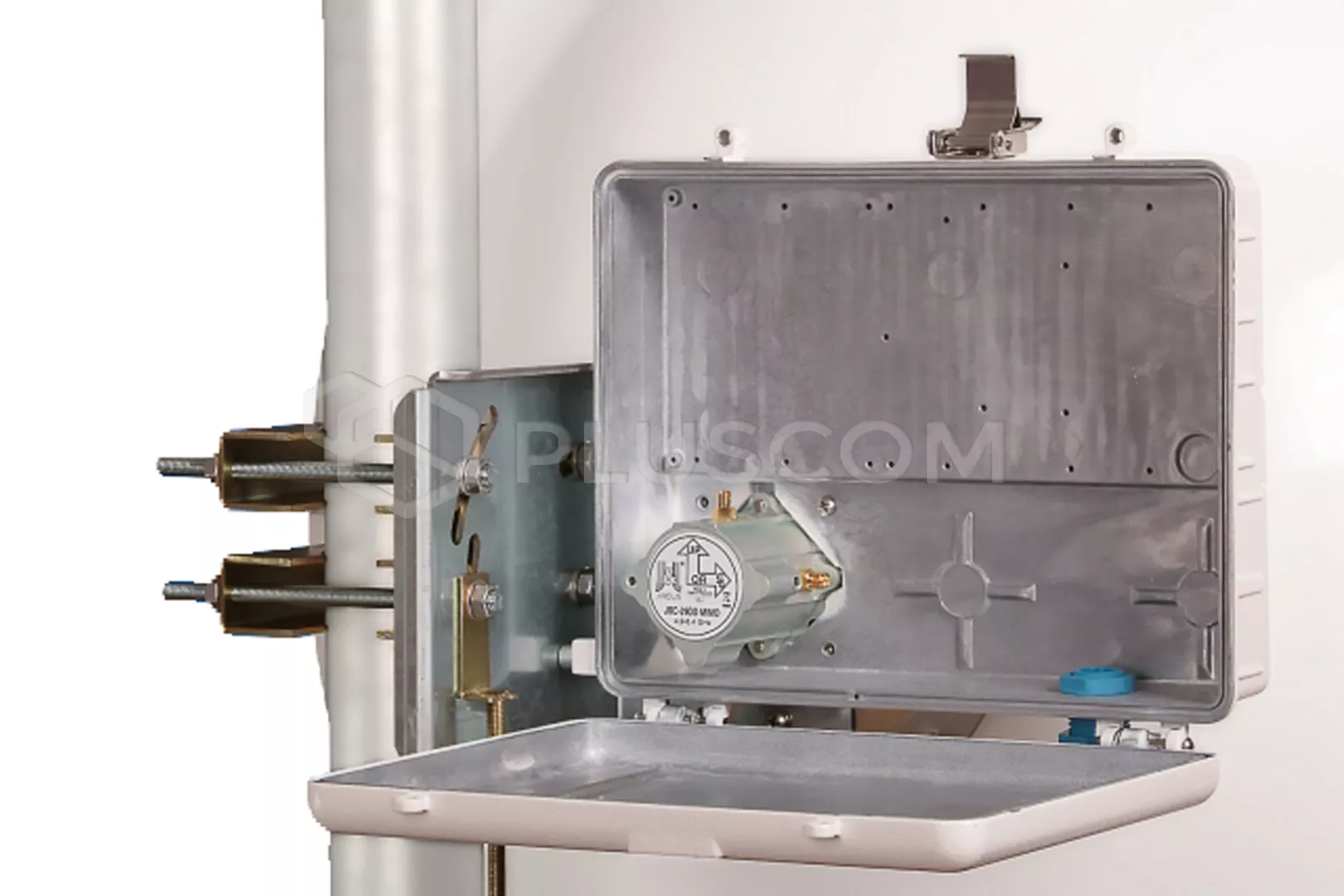

  • easy mounting GentleBOX JR-200 or JR-250 Alu
  • direction link for medium distance or short link in difficult conditions
  • precise elevation settingspossible to count attainable distance from section of calculation
  • radom (plastic parabola cover)is included in the price
Technical parameters:
  • Frequency range    4.9 - 6.4 GHz
  • Gain    29.0 ±1 dBi
  • VSWR 5.1 - 5.9 GHz     ≤ 1.4
  • Front to back ratio    ≥ 49 dB
  • Beamwidth -3 dB    5.5°
  • Polarization    linear, horizontal/vertical or 2x45°
  • Port to port isolation 5.1 - 5.9 GHz     ≥ 25 dB
  • Connector    N-female
  • Parabola    ø 680 mm, Aluminium alloy with baking paint
  • Radome     UV stabilized ABS
  • Installation for mast     ø 27 - 74 mm right or left side

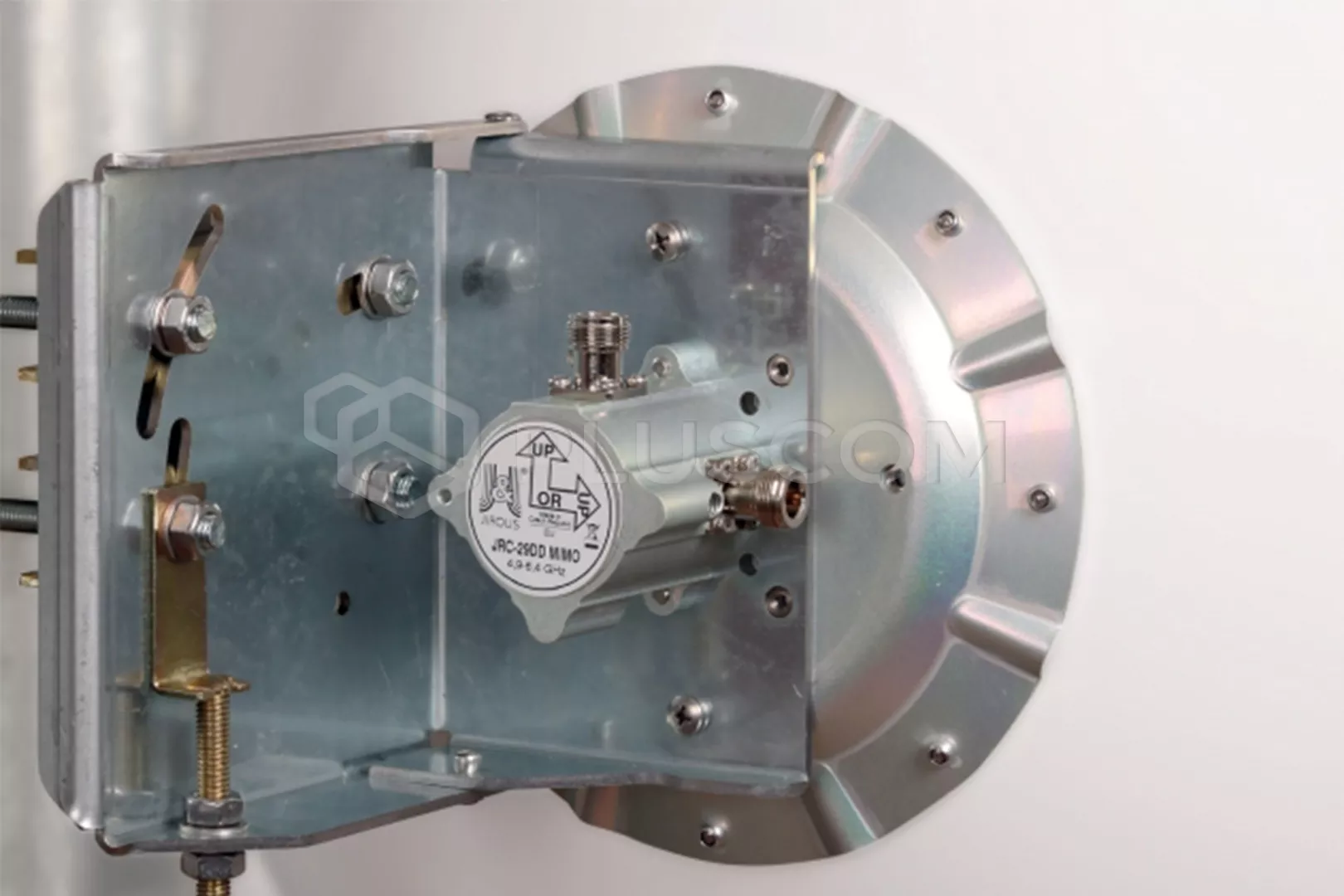

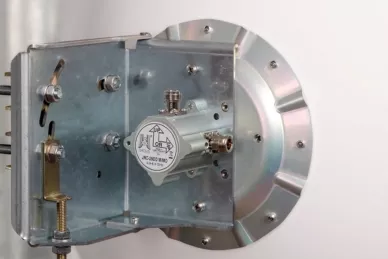

The radiator is internally treated by high-frequency technology "Hydrophobic coating" which increases resistance against humidity.
Download
Datasheet 0.58 MB
