Jirous JRC-29DD DuplEX II 2szt. (2x N/female)

858,60 EUR including 23.00% VAT
Product code: #18322
Manufacturer: Jirous
  • Gain: 29 ±1dBi
  • Beamwidth: 5.5°
  • Connectors: 2xN /female
  • Outer size: Ø68 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous GentleBOX JR-300

Jirous JRC-29DD DuplEX II 2szt. (2x N/female)

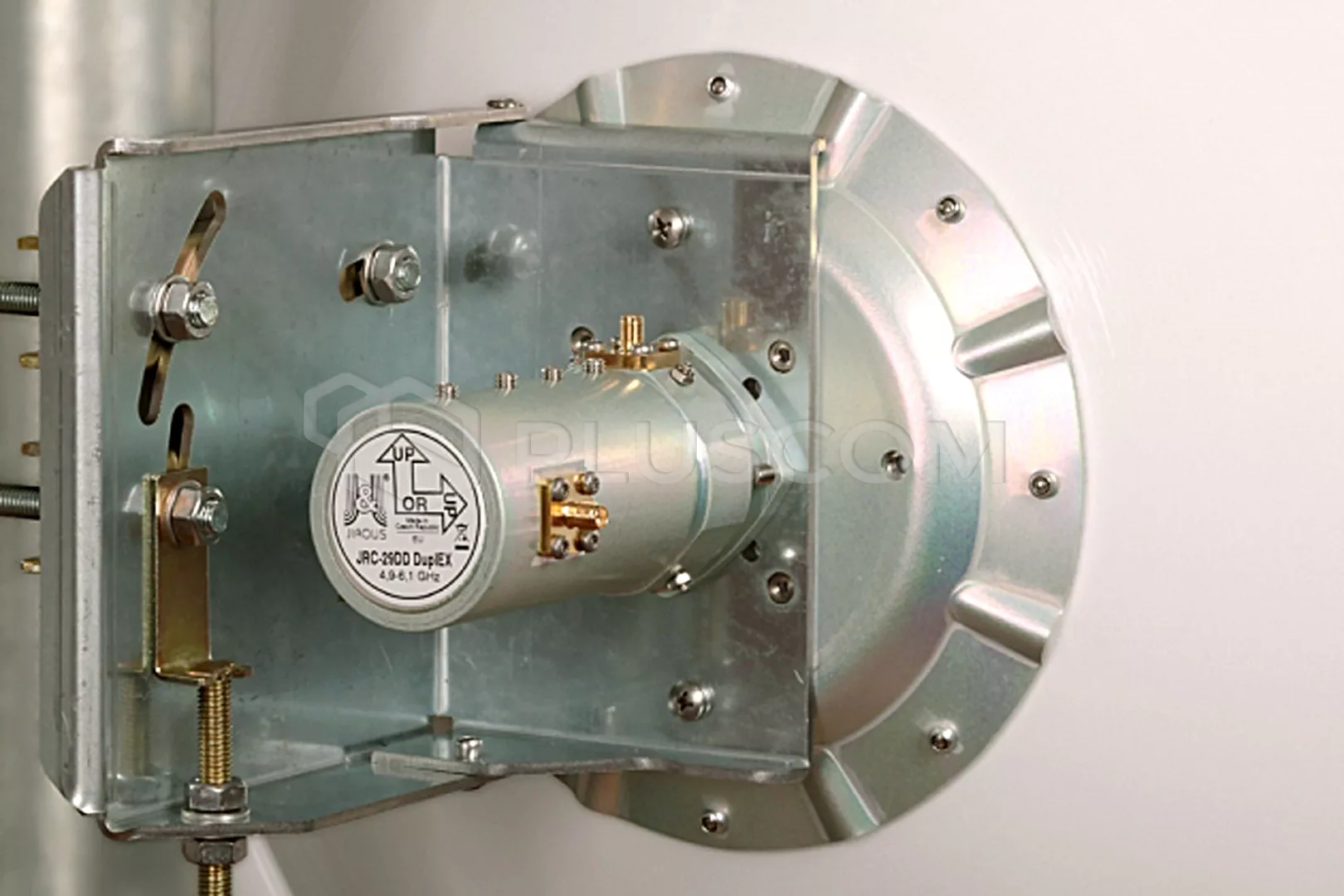

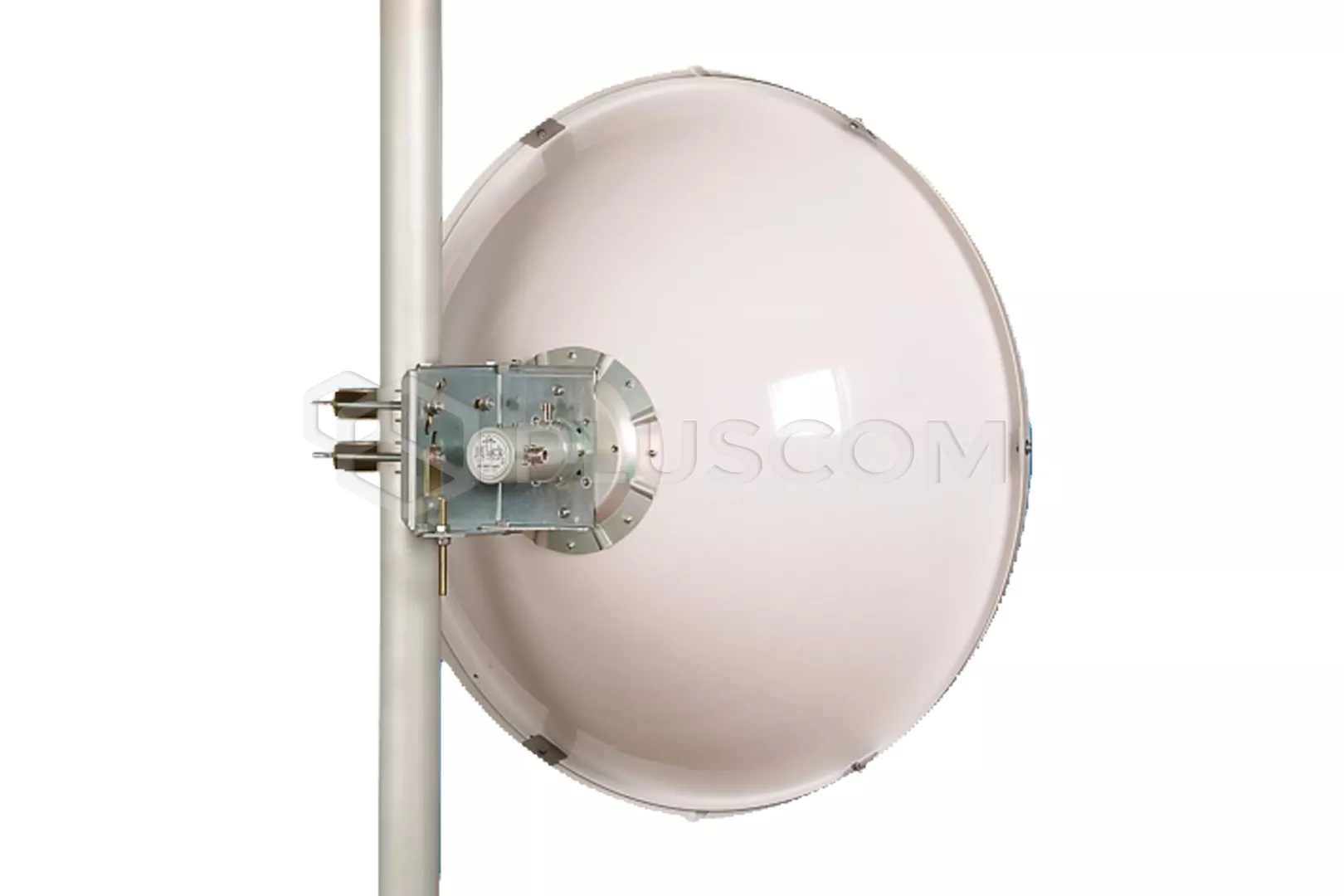

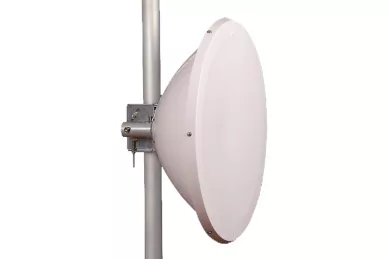

Dual-polarized parabolic antenna JRC-29DD DuplEX is designed for directional links with full-duplex mode or MIMO mode at the frequency band 5 GHz with high isolation level. The antenna is designed for long and medium distances in difficult conditions. Its design with deep dish increases isolation among antennas on a mast increases front to back ratio.

Specification:
  • dual-polarized antenna Full duplex or MIMO, horizontal/vertical or 2x45° polarization
  • good port to port isolation allows fully duplex links
  • deep dish increases isolation among antennas on a mast
  • new concept with extended frequency band
  • high front to back ratio
  • direction links or client connection for medium distance or short link in difficult conditions
  • precise elevation setting
  • possible to count attainable distance from section of calculation
  • radom (plastic parabola cover) is included in the price
Technical parameters:
  • Frequency range: 4,9-6,1GHz
  • Gain: 29 ± 1dBi
  • VSWR: 5,1 - 5,9 GHz: ≤ 1,6
  • Port to port isolation: 53 dB (≥ 50 dB)
  • Beamwidth -3dB:  5.5°
  • Front to back ratio: ≥ 49 dB
  • Polarization: linear, horizontal/vertical or 2x45°
  • Types of connector: N
  • Parabola: ø 680 mm, aluminium alloy with baking colour
  • Radom (cover): UV stabilized ABS
  • Connector: gold-plated conact, dielectric PTFE (Teflon®)
  • Installation on mast : ø 27 - 74 mm right or left mounting
The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

For using with GentleBOXem JR-300 we reccomend:
using version with R-SMA connectors (JRC - 24DuplEX - SMA)
Download
Datasheet 0.57 MB
