Jirous JRC-24DD MIMO 2pcs (RP-SMA/female)

393,27 EUR including 19.00% VAT
Product code: #18211
Manufacturer: Jirous
  • Gain: 24.5 ±1dBi
  • Beamwidth: 9°
  • Connectors: 2xRP-SMA/female
  • Outer size: Ø40 cm

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous GentleBOX JR-200

Jirous JRC-24DD MIMO 2pcs (RP-SMA/female)

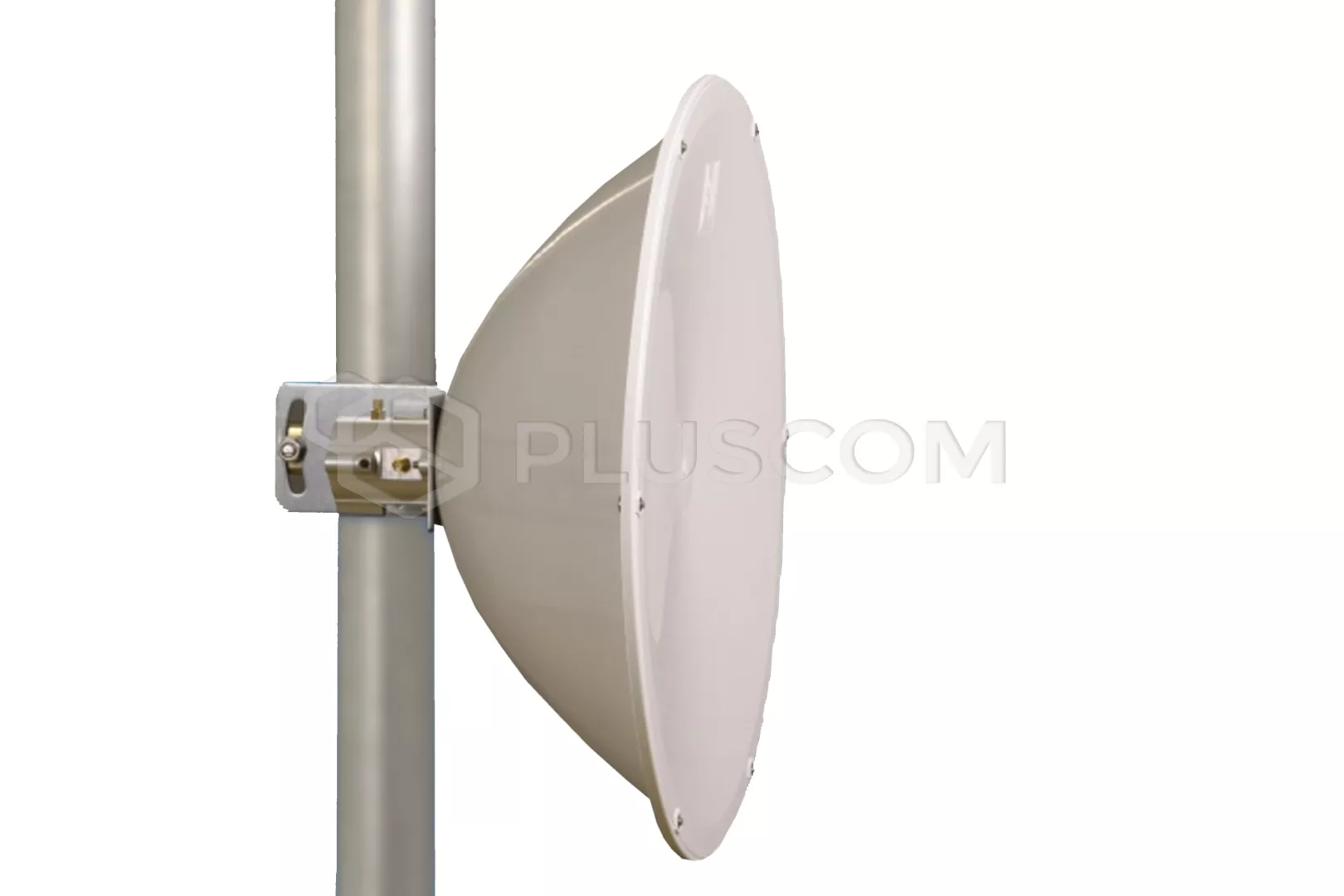

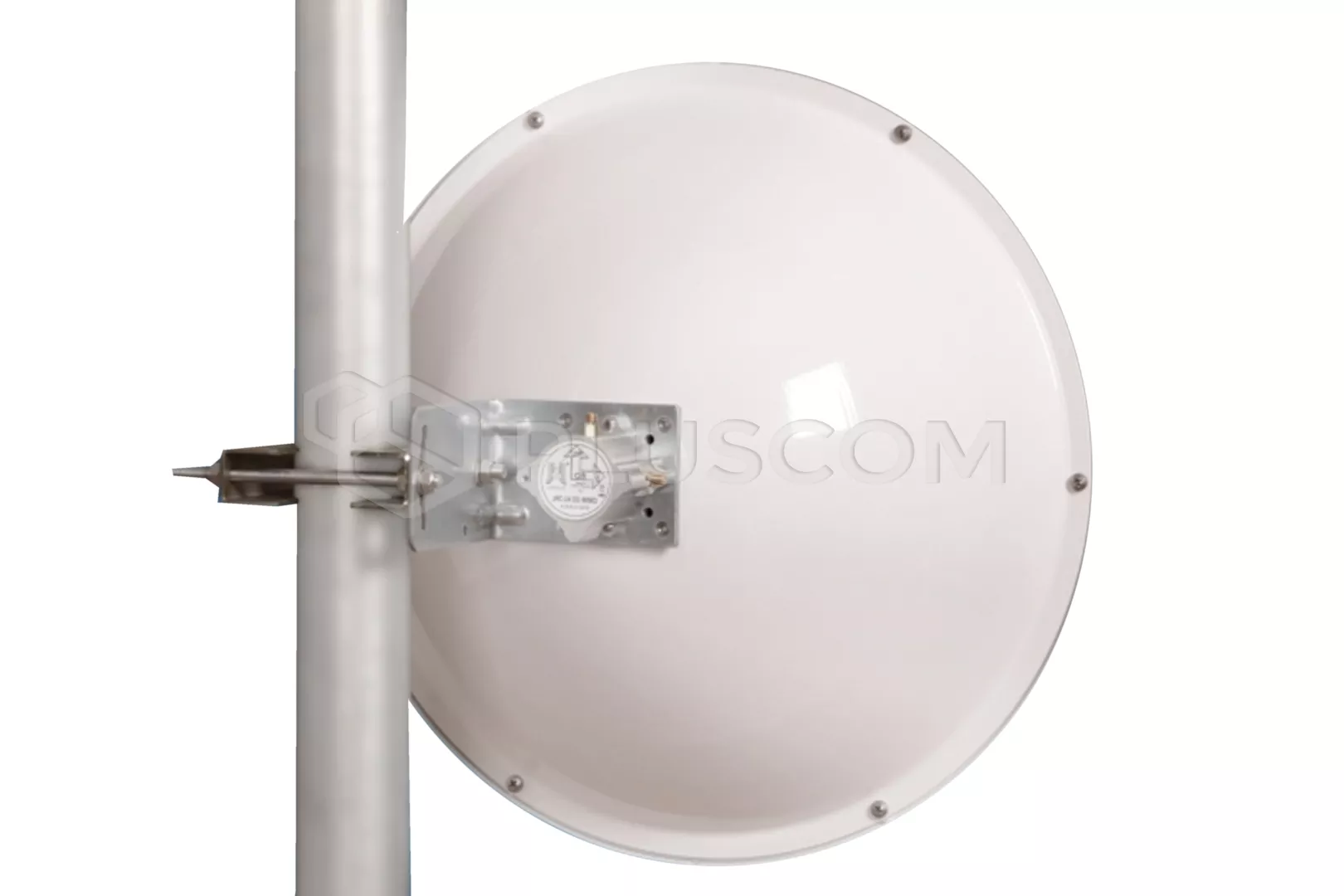

Dual-polarized parabolic antenna JRC-24 Deep Dish MIMO is designed for directional links with MIMO mode at the frequency band 5 GHz. The antenna is designed for environments with multiple reflections for medium and short distances in difficult conditions. Its design with deep dish increases isolation among antennas on a mast and increases front to back ratio. The new concept expands the frequency band.

Specification:
  • dual-polarized antenna, horizontal/vertical or 2x45° polarization
  • deep dish increases isolation among antennas on a mast
  • new concept with extended frequency band
  • high front to back ratio

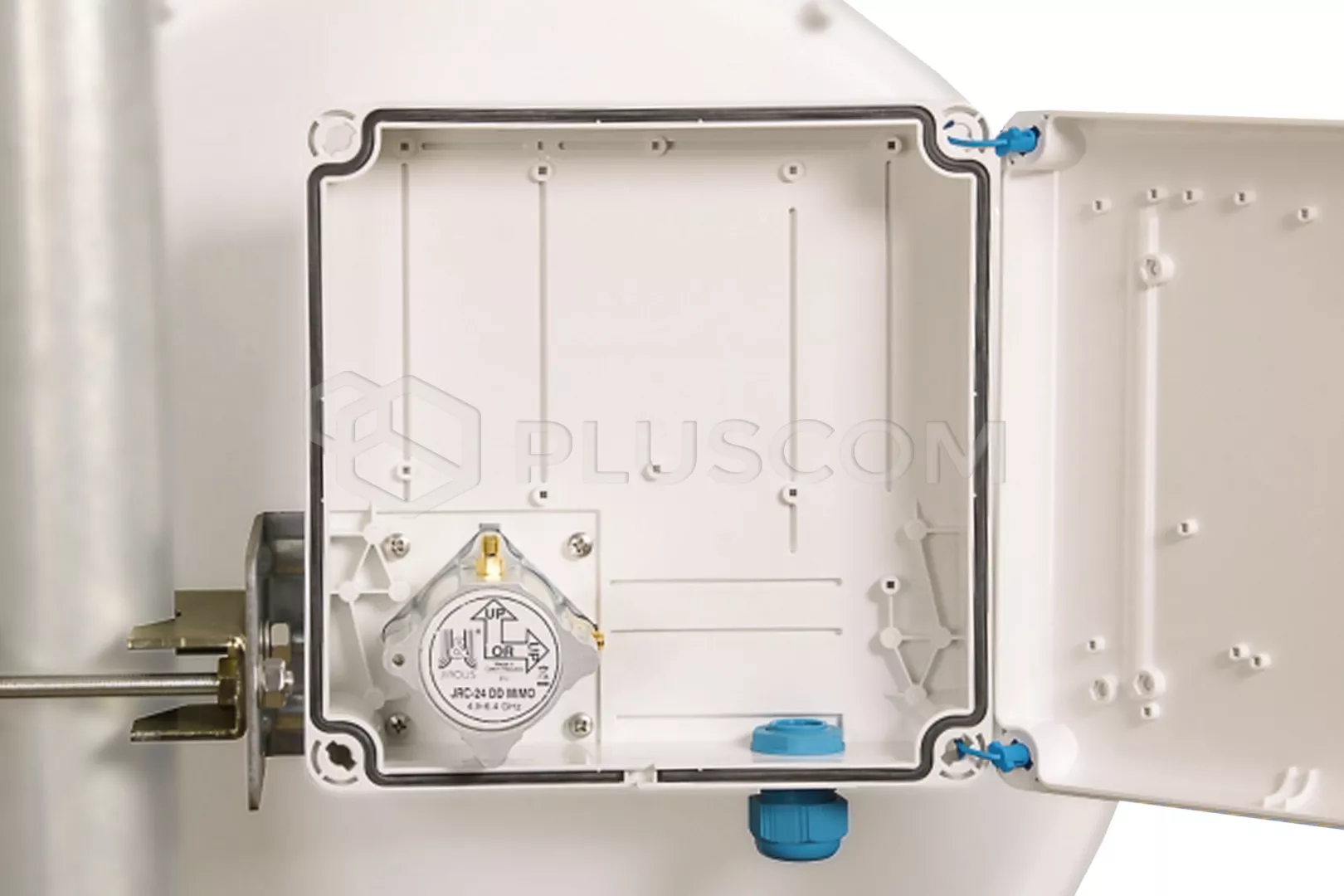

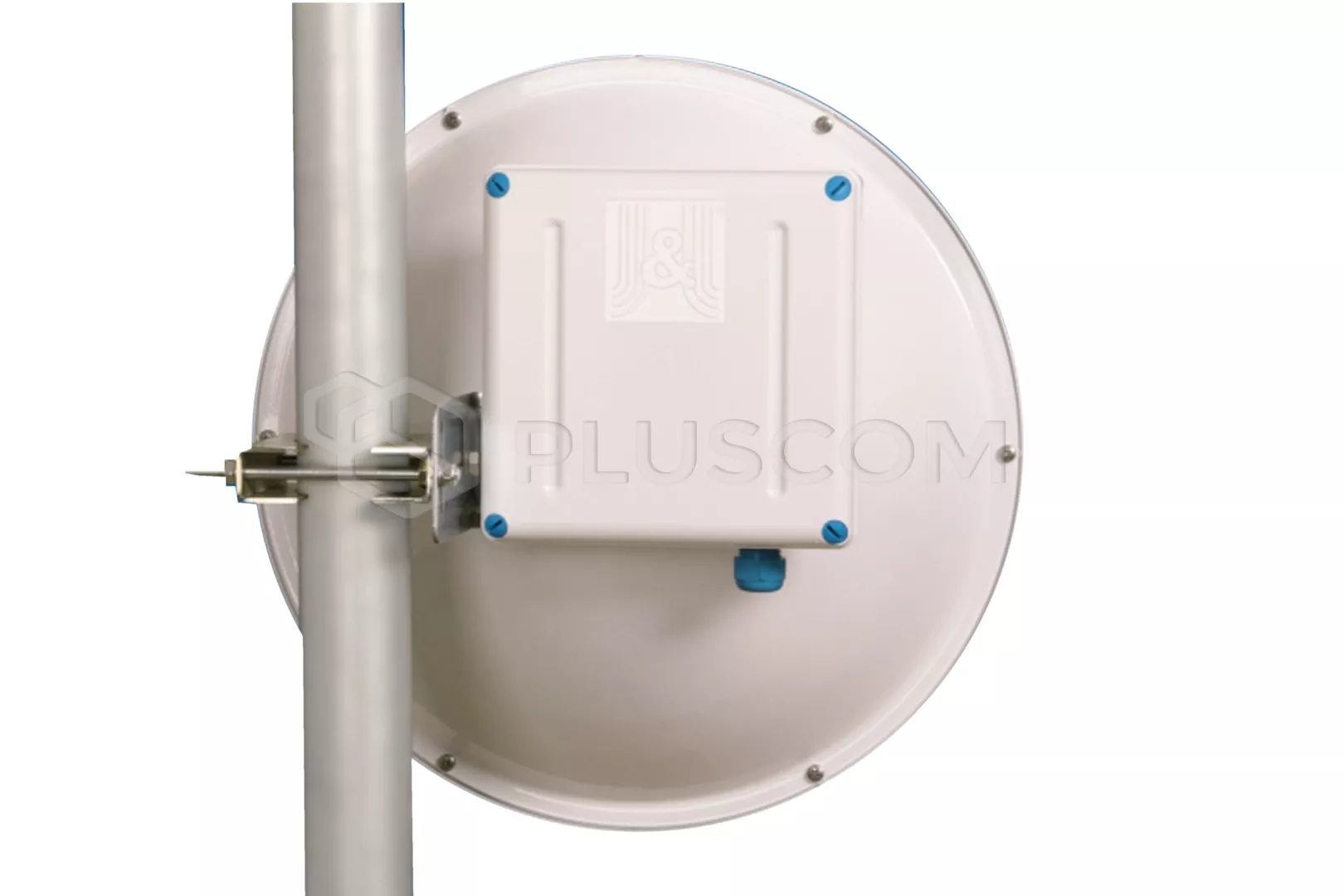

  • easy mounting with GentleBOX JR-200 or JR-250 Alu
  • direction link for medium distance or short link in difficult conditions
  • setting elevation (of a gradient) and azimuth has independent adjustment
  • possible to count attainable distance from section of calculation
  • radom (plastic parabola cover) included in the price

Technical parameters:
  • Frequency range    4.9 - 6.4 GHz
  • Gain: 24.5 ± 1 dBi
  • VSWR 5.1 - 5.9 GHz: ≤ 1.5
  • Front to back ratio: ≥ 44 dB
  • Beamwidth -3 dB    9°
  • Polarization: linear, horizontal/vertical or 2x45°
  • Port to port isolation: ≥ 27 dB
  • Connector: RP-SMA/female
  • Parabola: ø 400 mm
  • aluminium alloy with baking colour
  • Cover    UV stabilized plastic ABS
  • Installation for mast     ø 27 - 74 mm right or left side

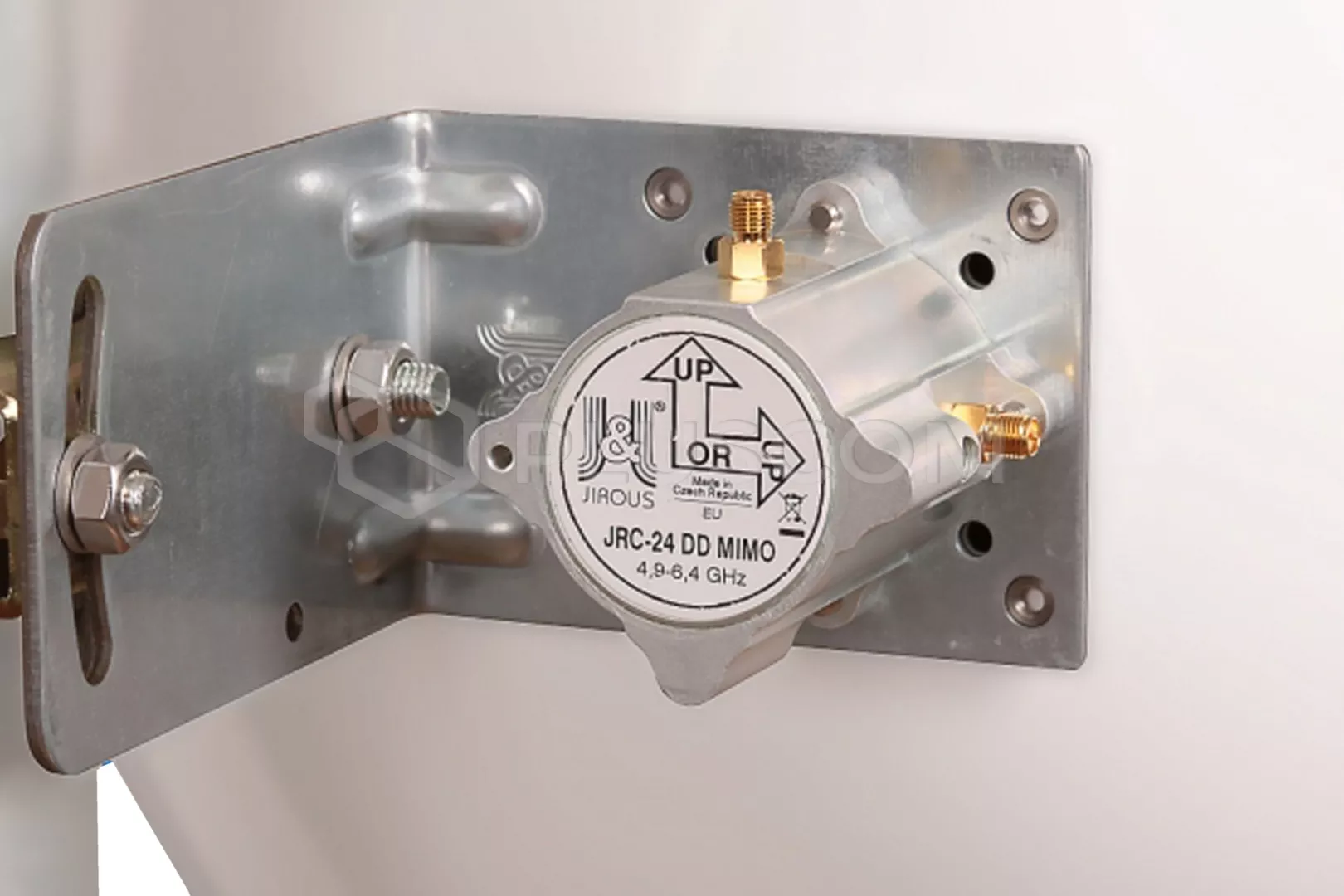

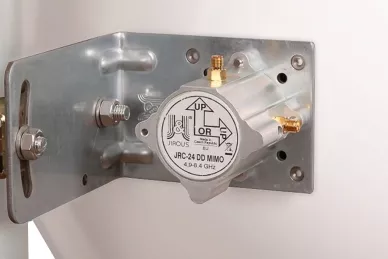

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.


Download
Datasheet 0.52 MB
