Jirous JRC-24DD DuplEX II antenna 2 pcs. (2xN/socket)

Jirous JRC-24DD DuplEX II Antenna (2 pcs)

This dual-polarization parabolic antenna with a gain of 23.6 dBi is designed for directional connections in full-duplex or MIMO mode in the 5 GHz frequency band. The antenna has a very high separation between polarizations of 53 dB. The manufacturer guarantees a low VSWR (≤ 1.6), which, along with the separation, is measured in every unit. The antenna is designed for medium and short distances in difficult conditions.

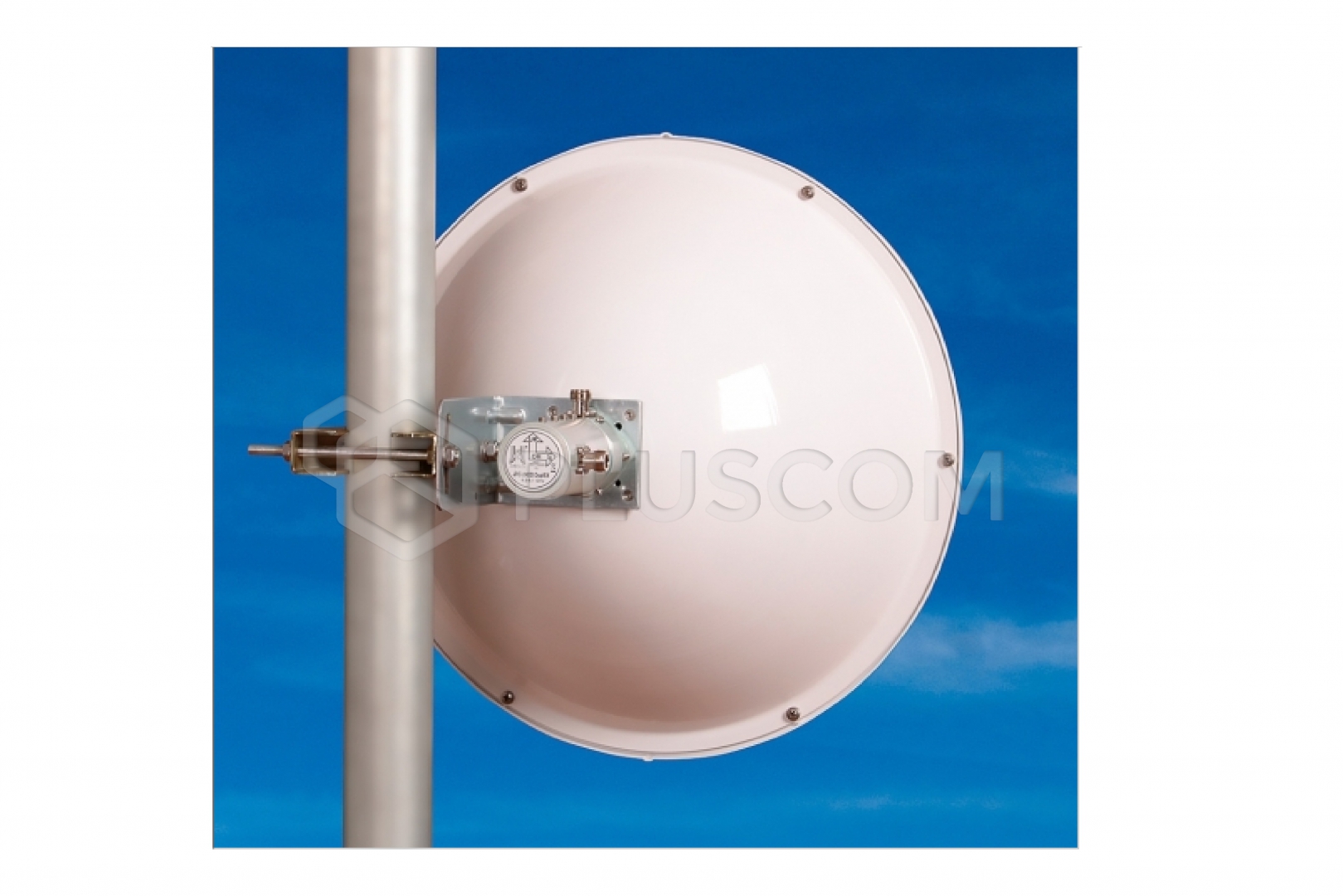

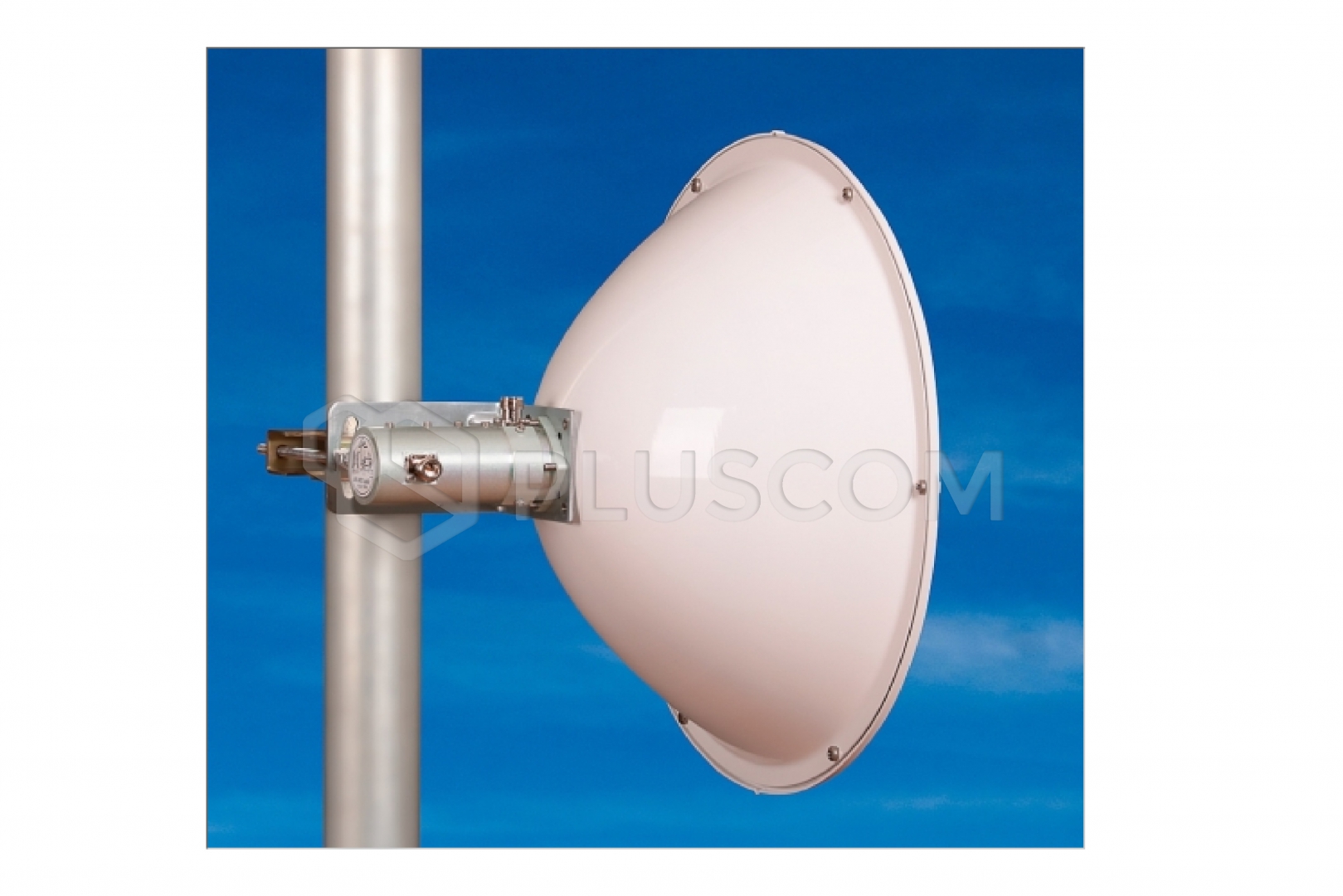

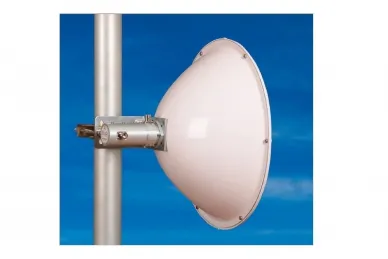

The antennas have a robust mount allowing for precise adjustment and installation of the antenna in difficult conditions. The antenna radiator can also be mounted at a 45° angle to achieve oblique polarization.

Application:

• Dual-polarization antennas, horizontal and vertical polarization
• Polarization separation 53 dB

• High front/rear beam power ratio
• Using Full Duplex and MIMO technology
• Mounting allows for tilting and raising the antenna
• Radom (plastic parabola cover) for every antenna!


Technical Specifications:

• Frequency Range: 4.9 - 6.1 GHz
• Energy Gain: 24.5 dBi ± 1 dBi
• VSWR: ≤ 1.6
• Isolation Between Connectors: 53 dB
• Connectors: 2xN/socket
• Polarization: Linear, horizontal and vertical or 2x45°

• Parabola: Ø40 cm powder-coated aluminum alloy
• Cover: UV-resistant ABS


The interior of the radiator is made using high-frequency "Hydrophobic coating" technology. which prevents moisture from accumulating.

Accessories:
When using the GentleBOX JR-300 enclosure, we recommend the JRC-24DuplEX-SMA with R-SMA connectors.

Packaging:
2 pcs per box
