Jirous JRC-24 MIMO 2pcs (RP-SMA/female)

320,59 EUR including 23.00% VAT
Product code: #18345
Manufacturer: Jirous
  • Gain: 23.6 ± 0,6 dBi
  • Beamwidth: 9°
  • Connectors: 2xRP-SMA/female
  • Outer size: Ø38 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Jirous GentleBOX JR-200

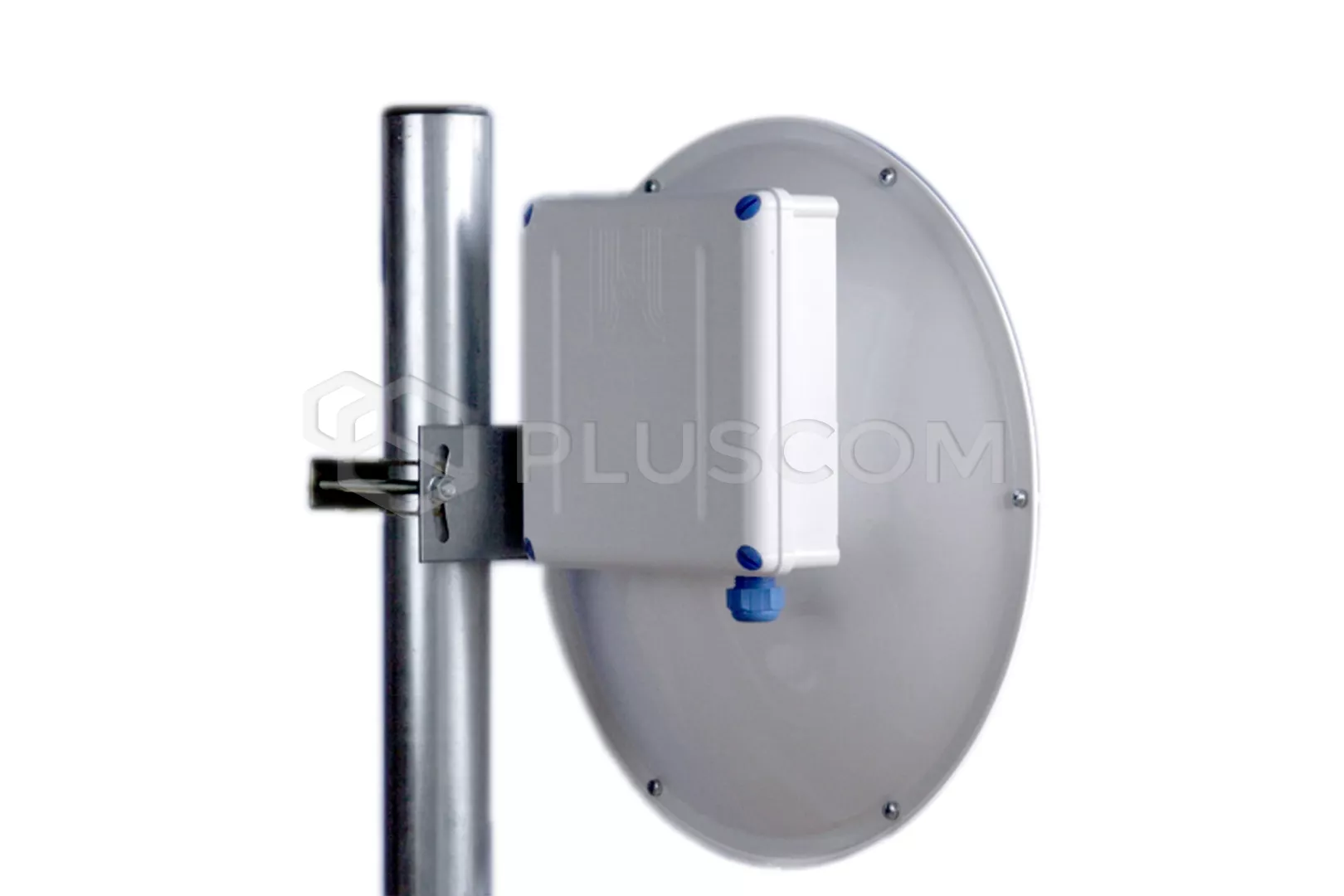

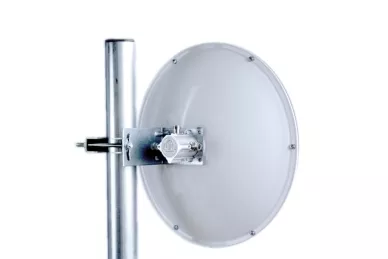

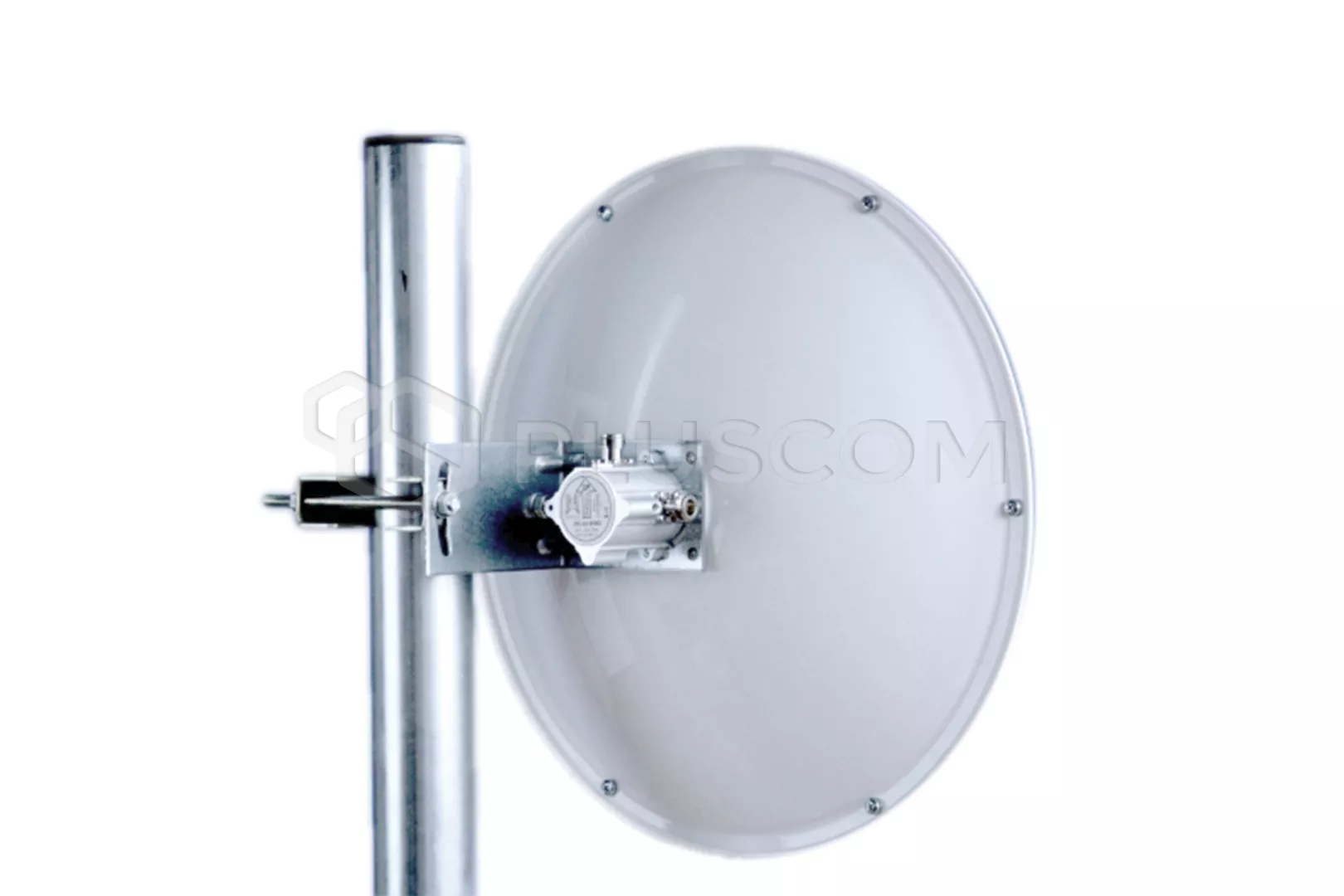

Parabolic antenna JRC-24 MIMO

Single-polarized antennas can be modified by using Upgrade kit JRC-24 MIMO.

Specification:
  • dual-polarized antenna, horizontal and vertical polarization

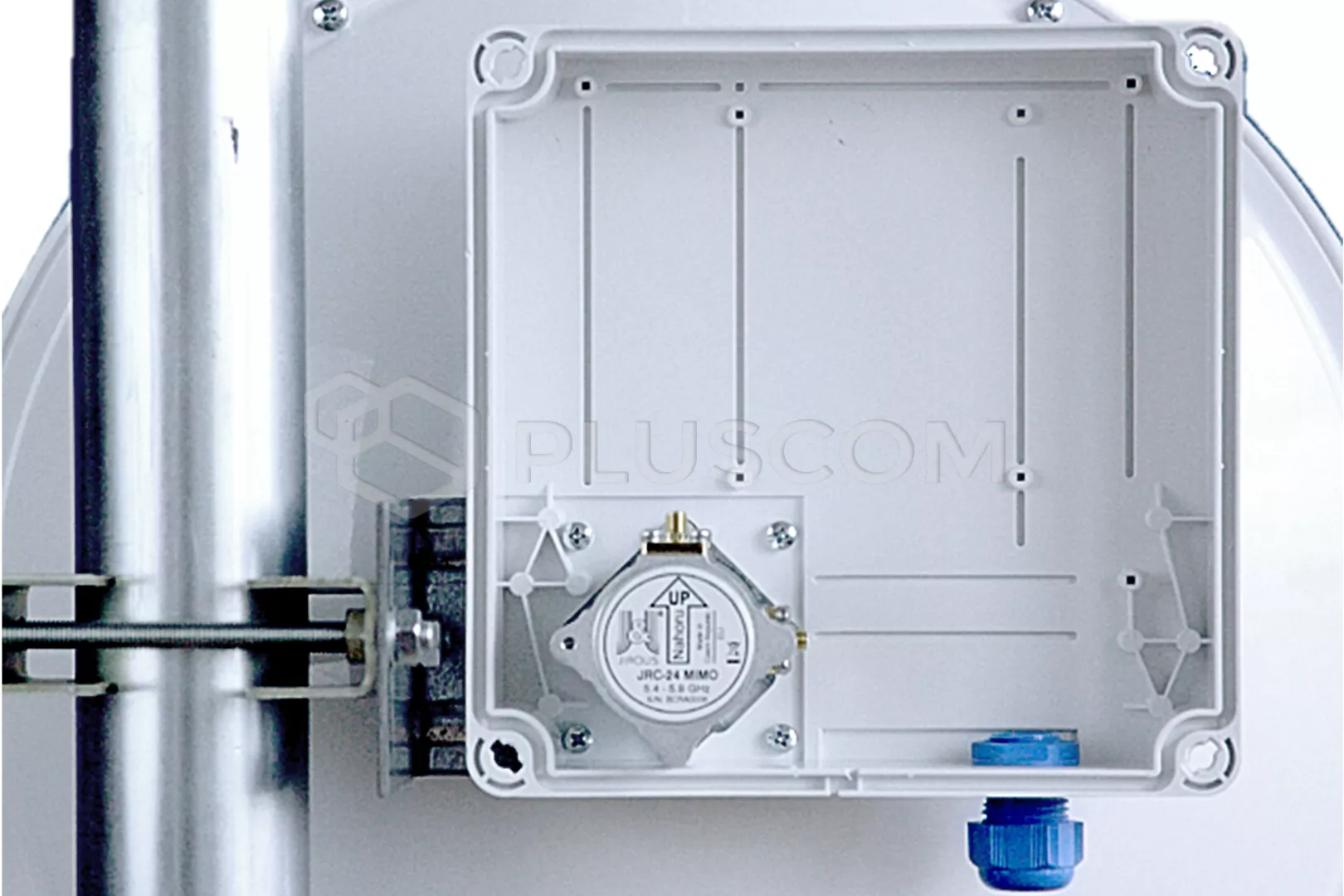

  • easy to use with GentleBOX JR-200
  • keenly priced
  • high front to back ratio
  • direction links for short distance
  • client antenna for large distances and difficult conditions
  • setting elevation (of gradient) and azimuth has independent adjustment
  • you can count attainable distance from section of calculation

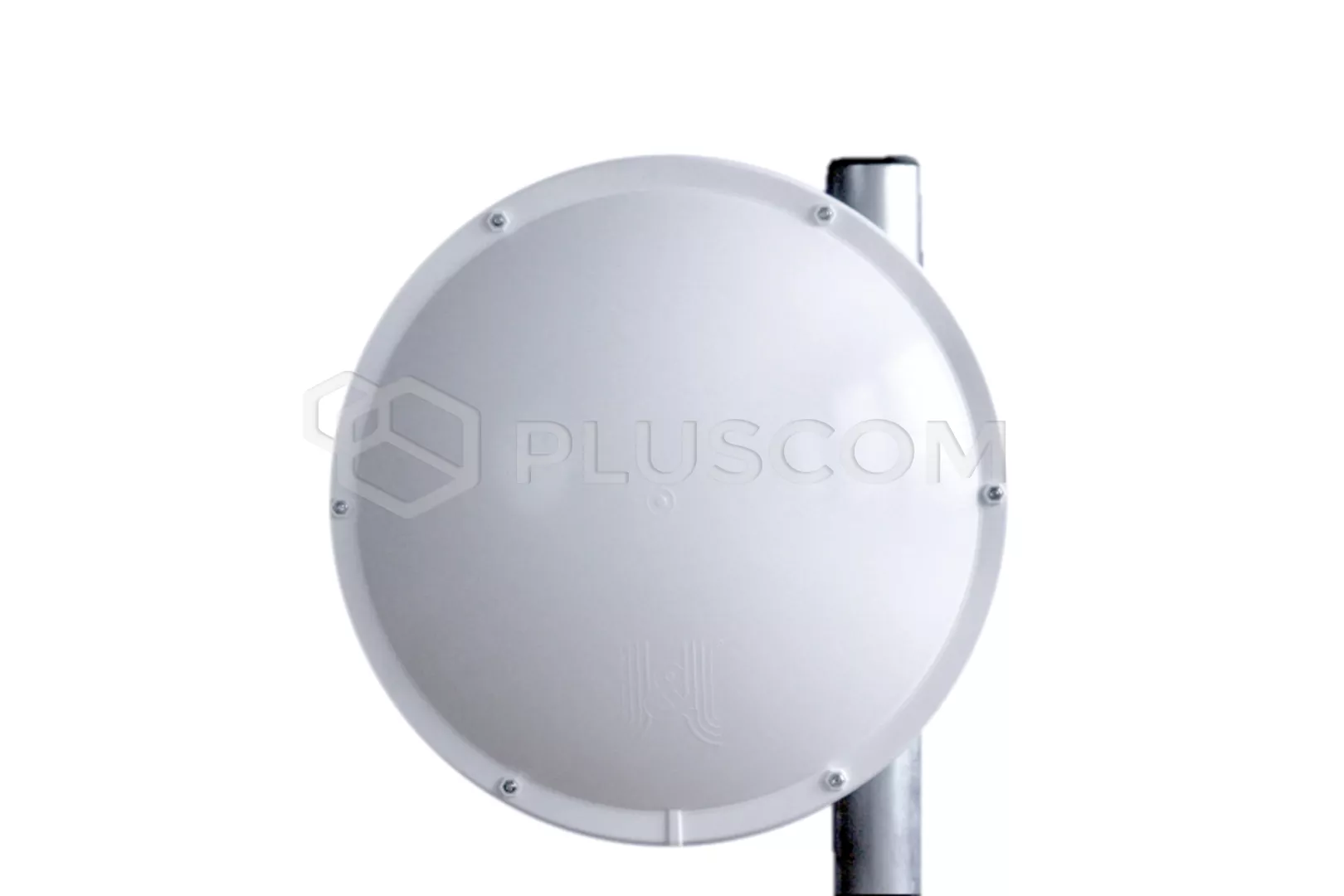

  • radom (plastic parabola cover) for each antenna free!
Technical parameters:
  • Frequency range    5.1 - 6.1 GHz
  • Gain 5.1 - 5.35 GHz    22.0 ±0.6dBi
  • Gain 5.47 - 6.1 GHz    23.6 ±0.6dBi
  • VSWR 5.2 - 6.0 GHz     ≤ 1.5
  • VSWR rest of freq. band     ≤ 1.8
  • Front to back ratio    ≥ 32 dB
  • Beamwidth-3 dB    9°
  • Polarization    linear, horizontal and vertical
  • Isolation between connectors    28dB
  • Connector   RP-SMA/female
  • R-SMA - JRC-24 MIMO-SMA
  • Parabola    ø 38 cm
  • aluminium alloy with baking colour
  • Cover    UV steady plastic
  • Instalation for mast     ø 27 - 74 mm
The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Recommended accessories:
  • Using with GentleBOX JR-200 we recommend JRC-24 MIMO-SMA with R-SMA connectors.
  • Bracket GentleCLIP par for mounting Ubiquiti Rocket M5
  • Pigtail R-SMA/MMCX for JRC-24 MIMO-SMA
  • Pigtail R-SMA/UF.L for JRC-24 MIMO-SMA

Packing:
2 pcs in carton
