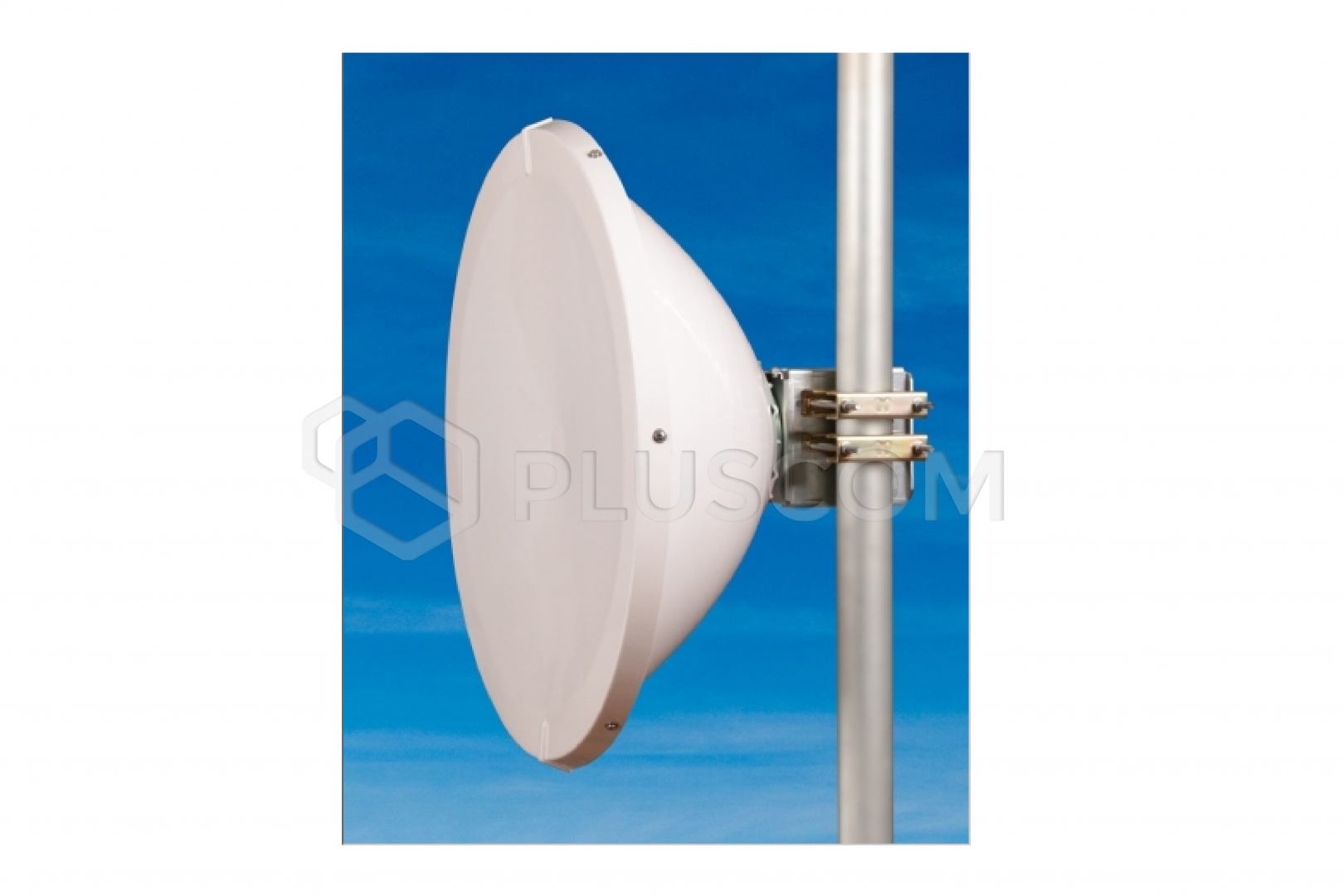

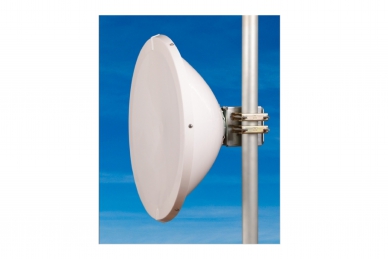

Jirous JRA-23DD MIMO parabolic antenna

Product code: #43080
Manufacturer: Jirous
  • Energy gain: 23 ± 1 dBi
  • Beam width: 14°
  • Connectors: R-SMA on cable
  • Dimensions: Ø 68 cm
  • Polarization: Linear, vertical/horizontal or 2x45°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRA-23DD MIMO Parabolic Antenna


The JRA-23 Deep Dish MIMO dual-polarized parabolic antenna is designed for directional MIMO links in the 2.4 GHz frequency band.
The antenna is designed to operate in environments with multiple reflections over long and medium distances under challenging conditions.
Its deep dish design increases isolation between antennas on the mast and increases the front-to-back ratio.

Electrical Parameters:

  • Frequency Range: 2.3 – 2.7 GHz
  • Gain: 23 ± 1 dBi
  • Cable Attenuation: 0.75 dB
  • SWR: 2.4 – 2.5 GHz ≤ 1.4 (other frequency bands ≤ 1.6)
  • -3 dB Beamwidth: 14°
  • Front/Back Ratio: ≥ 38 dB
  • Polarization: Linear, vertical/horizontal, or 2x45°
  • Polarization Fine Adjustment: ± 5°

Parameters Mechanical:

  • Parabola: Ø 680 mm, aluminum alloy
  • Dome: UV-resistant plastic, ABS
  • Connector type: R-SMA on cable
  • Mast mounting: Ø 27 - 74 mm
  • Antenna weight: 6.1 kg (13.4 lbs)
  • Shipping dimensions - 2 pcs. 810 x 790 x 340 mm/15.5 kg
The antenna can be used with the JR-200 plastic outdoor housing or the JR-250 Alu metal housing, or with the GentleCLIP bracket, which facilitates the installation of devices with a snap-in system.

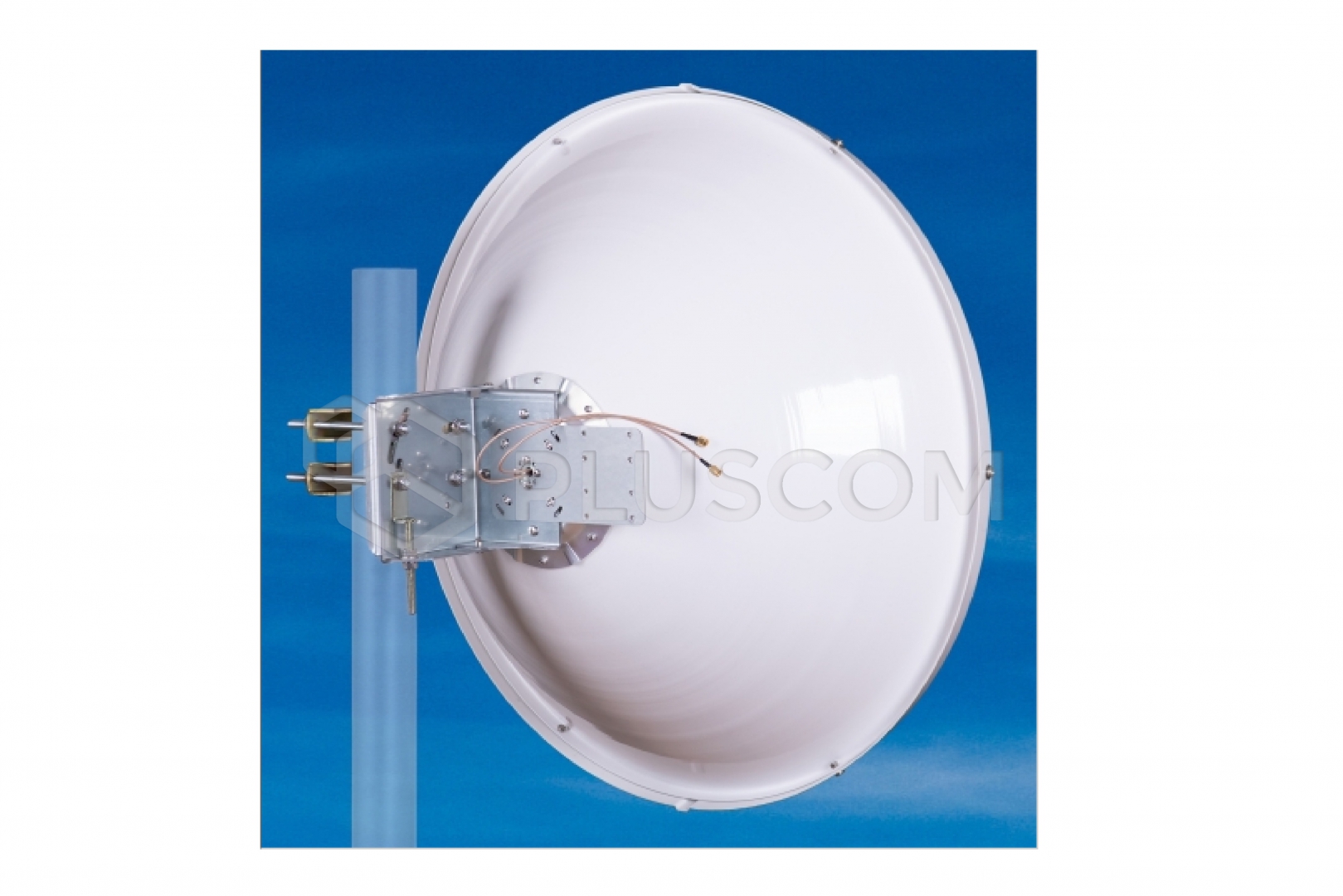

The antenna has separate snap-in nuts for easy assembly and azimuth and elevation adjustment. It can be mounted on the right or left side (with the housing on the right).
Download
Datasheet 0.47 MB
