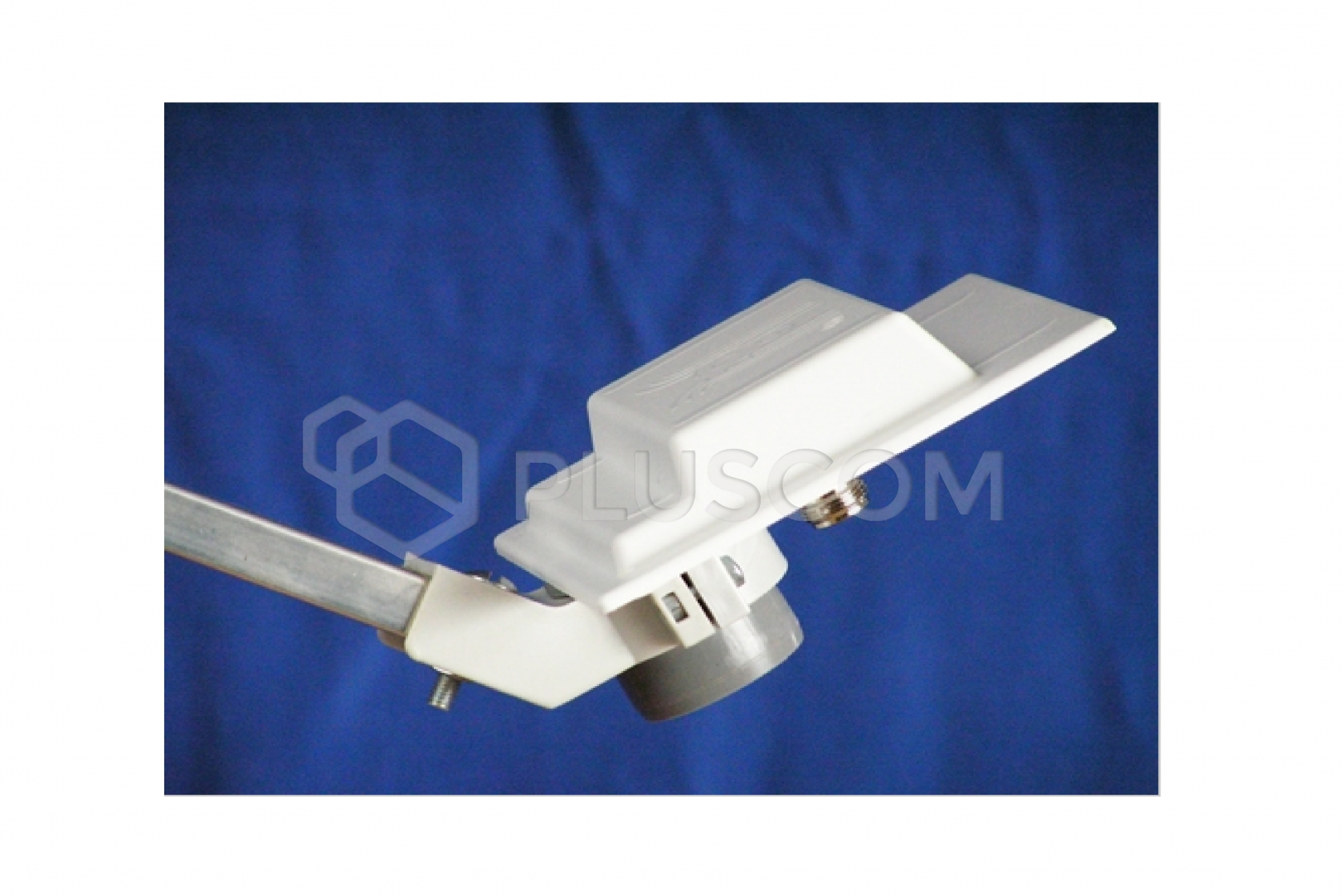

Jirous JPA-10PR Radiator to off-set parabola

Product code: #43079
Manufacturer: Jirous
  • Connector: N - female
  • Polarization: Horizontal or vertical depending on position
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

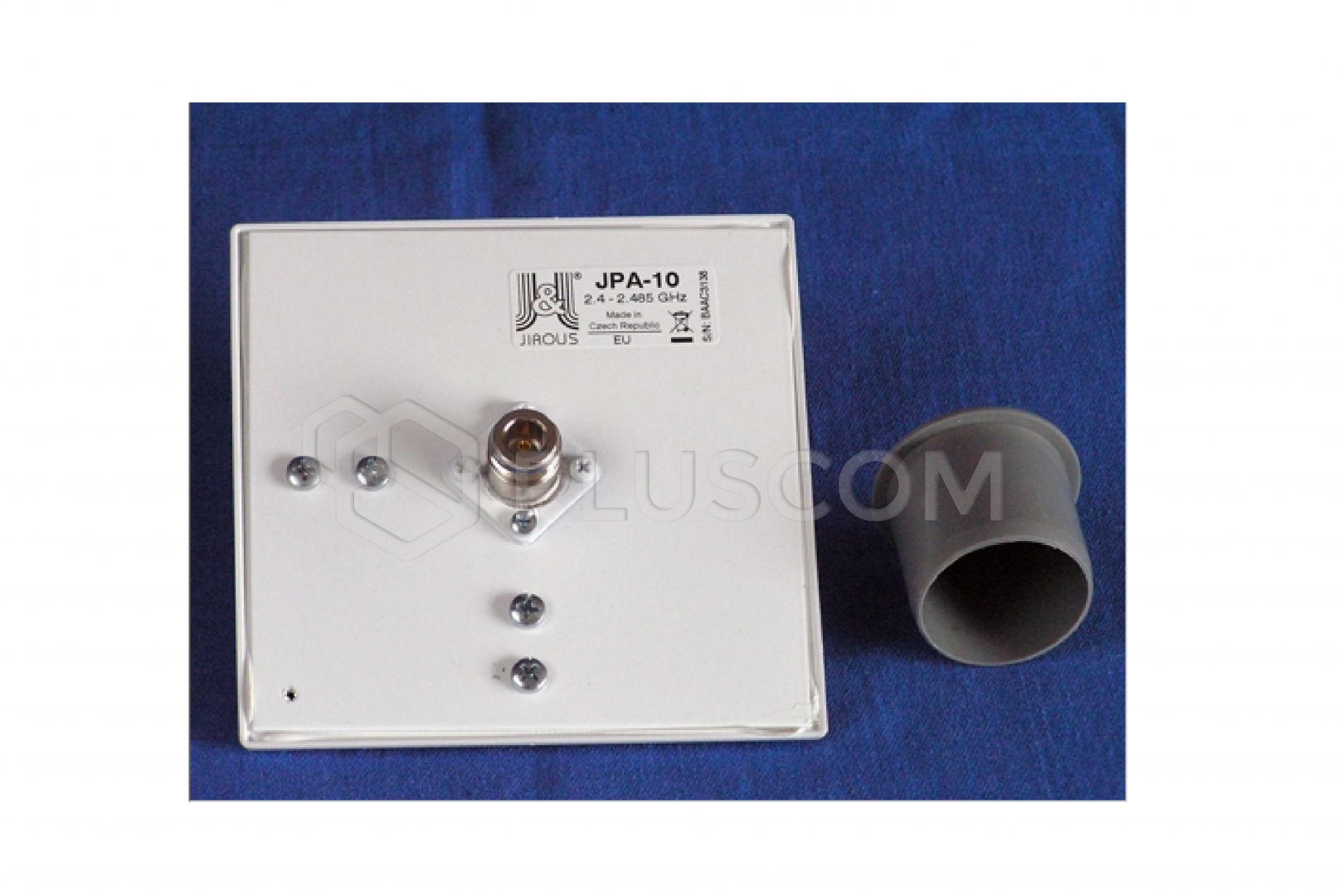

Jirous JPA-10PR Offset Parabolic Antenna Radiator

Specifications:

  • Power Supply for Offset Antennas
  • Fits Most Offset Antennas
  • Includes All Parts Required for Installation
  • Using an Inexpensive Parabolic Antenna Creates a High-Gain Antenna
  • Achievable Distance Can Be Calculated in the Calculations Section

  • Technical Parameters:

    • Frequency Range: 2.4 - 2.485 GHz
    • SWR: ≤ 1.5
    • Connector: N - Female
    • Polarization: Horizontal or Vertical, Depending on Positioning
    • Offset antennas are recommended.
      Some parabolic antennas can be used without mechanical modifications, but for others, it will be necessary to adjust the mount to allow for tilting for horizontal reception.
      The gain of a parabolic antenna depends on several parameters and can therefore be estimated without measuring. Approximate values ​​are given in the table below.

      Approximate energy gain according to the parabola:

      • ø 40 cm 17 dBi
      • ø 60 cm 20 dBi
      • ø 70 cm 22 dBi
      • ø 90 cm 25 dBi
      • ø 120 cm 28 dBi
      • ø 150 cm 30 dBi
