Jirous JPA-10 Panel Antenna

Product code: #43075
Manufacturer: Jirous
  • Energy gain: 10 dBi
  • Beam width: 60° in both planes
  • Connector: N - female
  • Dimensions: 124 x 124 x 25 mm
  • Polarization: Horizontal or vertical - depending on position
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JPA-10 Panel Antenna

Specifications:

  • The perfect panel antenna for demanding users
  • For outdoor and indoor applications
  • Client antenna
  • Point-to-point link
  • Sector antenna
  • To achieve high gain, the antenna can be used as a power supply for a parabolic antenna.

  • Technical parameters:

    • Frequency range: 2.4 - 2.485 GHz
    • Gain: 10 dBi
    • SWR: ≤ 1.5
    • Beamwidth -3 dB: 60° in both planes
    • Polarization: Horizontal or vertical - depending on orientation
    • Connector: N - female
    • Cover: UV-resistant ABS plastic
    • Bottom: Aluminum alloy sheet + galvanic coating
    • Dimensions: 124 x 124 x 25 mm

    • The antenna is available in various versions:

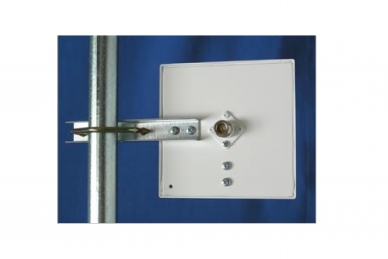

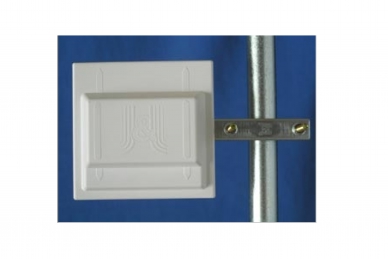

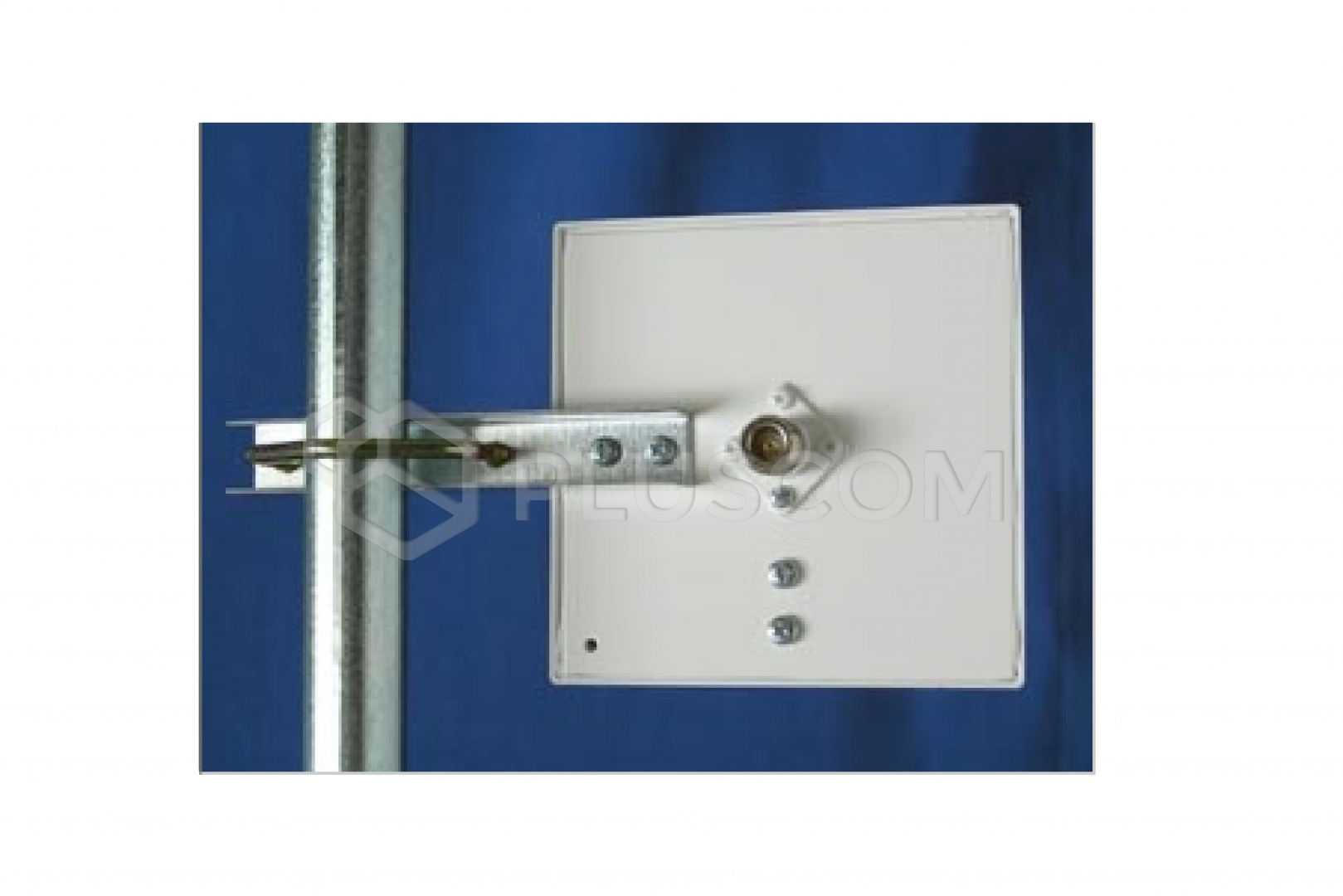

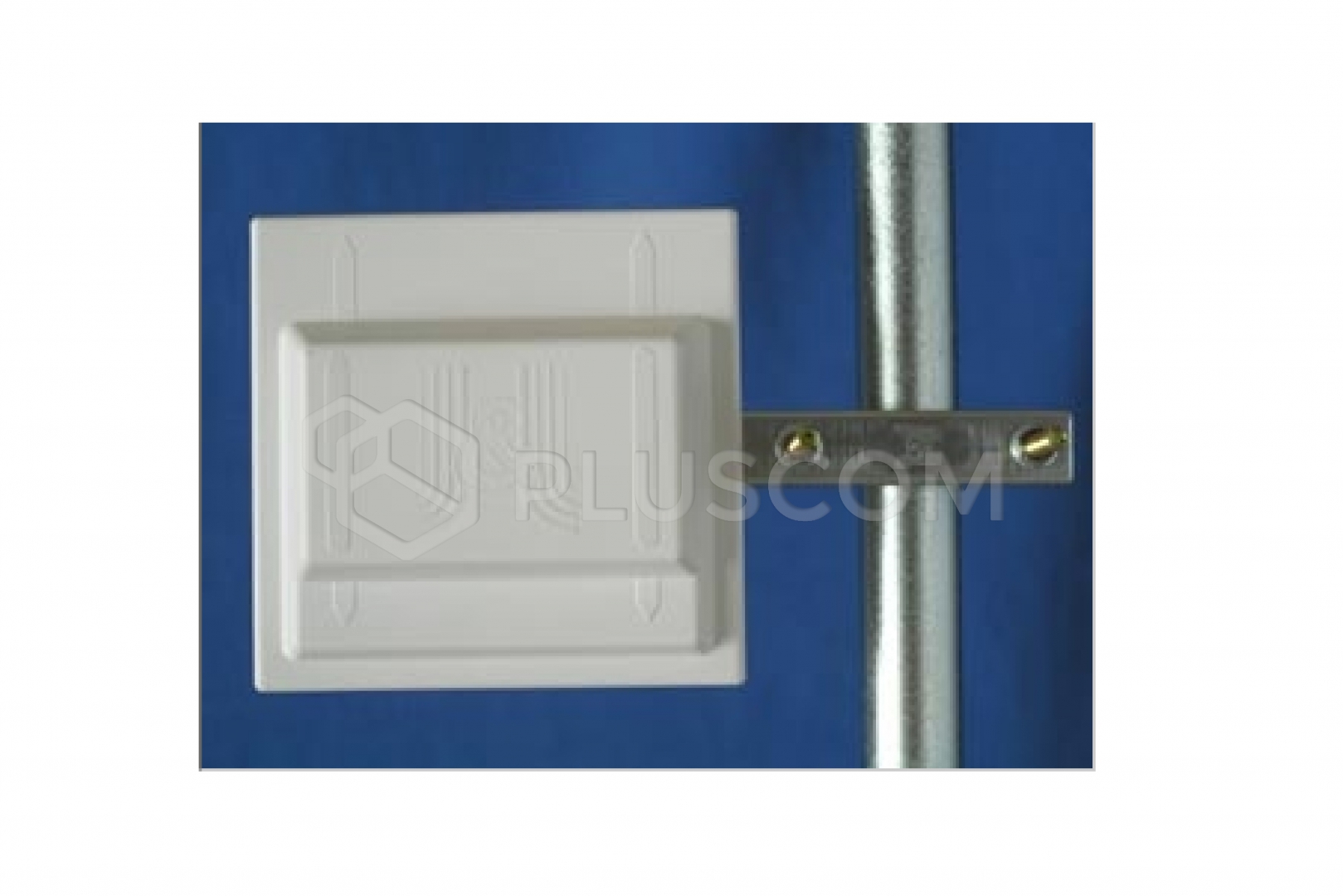

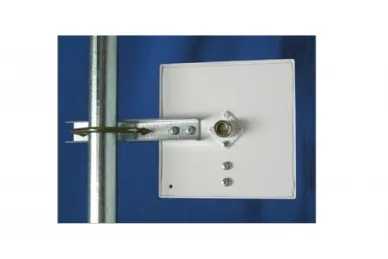

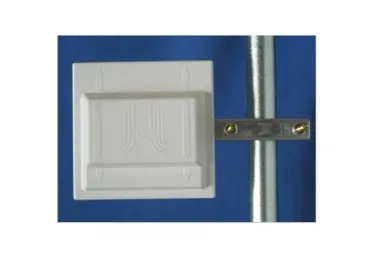

      • JPA-10 with a mount for a ø 19 - 54 mm mast
      • JPA-10PR as a parabolic heater with mounting accessories

      Recommended accessories:

      • GentleBOX JE-200
      • KM60 Antenna Bracket
      • KNS2-K Antenna Bracket
