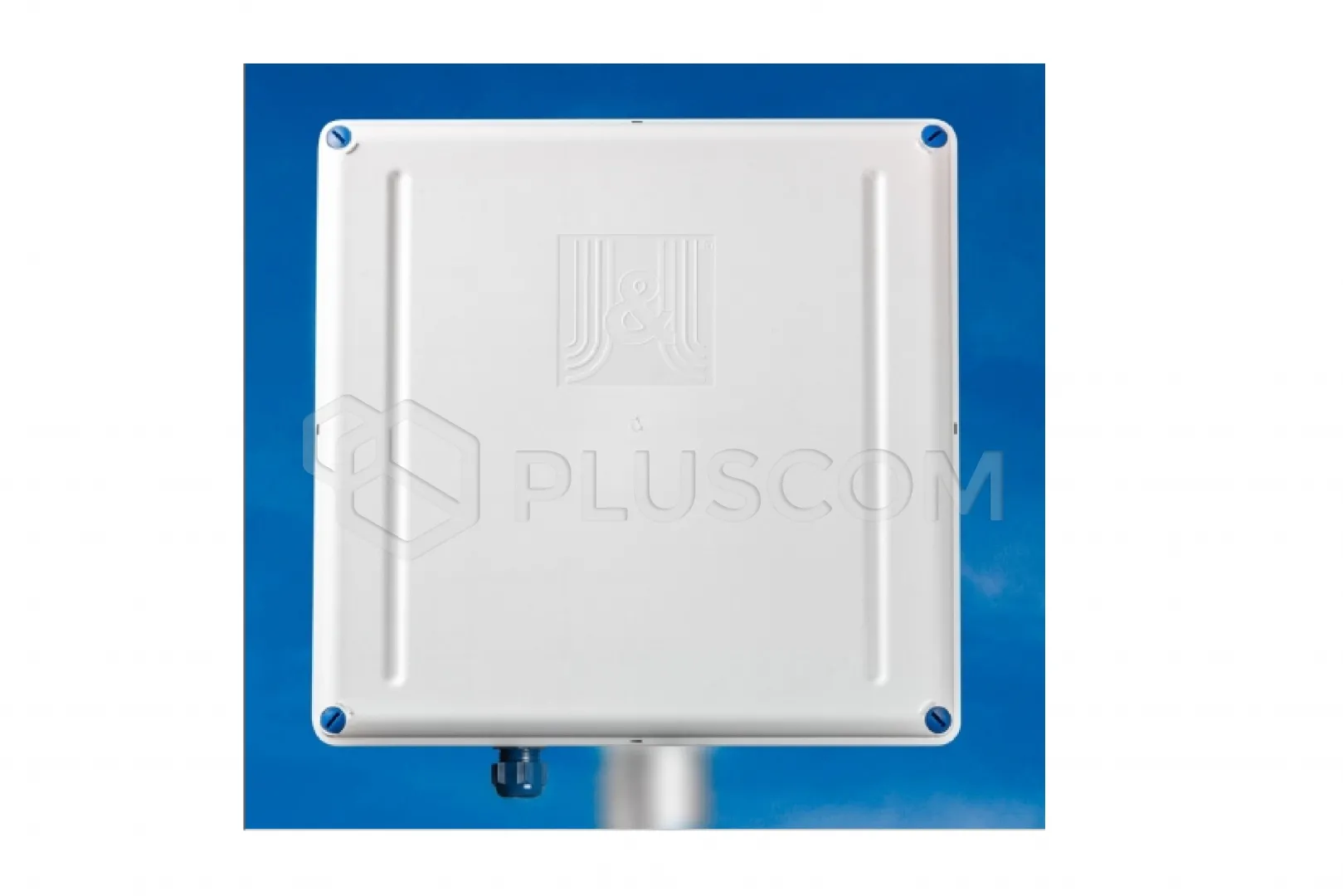

Jirous GentleBOX JB-319 MIMO Integrated Panel Antenna (MMCX)

81,83 EUR including 23.00% VAT
Product code: #18340
Manufacturer: Jirous
  • Energy gain: 18.8 ±1.0 dBi
  • Beam width: 15°/15°
  • Cable connector: MMCX
  • External dimensions: 326 x 326 x 113 mm / Internal dimensions: 309 x 309 x 88 mm
  • Polarization: Horizontal and vertical
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous GentleBOX JB-319 MIMO Integrated Panel Antenna (MMCX)


The GentleBOX JB-319 MIMO (MMCX) features an integrated, dual-polarization panel antenna with surge protection. Its gold-plated construction ensures long life.
This antenna is the optimal solution for customers using the 3.5 GHz frequency band at medium to long distances. It allows for easy connection of the Rocket M3 or other devices with the same latching system when used in conjunction with the GentleCLIP.

Technical Parameters:

  • Frequency Range: 3.4 - 3.7 GHz
  • Gain: 18.8 ±1.0 dBi
  • SWR: ≤ 1.8
  • Beamwidth - 3 dB: 15°/15°
  • Polarization: Horizontal and vertical
  • Cable Connector: MMCX
  • Material: UV-resistant plastic, ABS, polyamide
  • Mounting on a mast with a diameter of: 27 - 74 mm
  • Ability to mount 8 cable glands: 4x Pg11, 4x M20
  • External Dimensions: 326 x 326 x 113 mm
  • Internal dimensions: 309 x 309 x 88 mm

Specifications:

  • GentleBOX is a comprehensive external enclosure for access points, RouterBOARDs, and other electronic devices, equipped with a unique groove and hole system for easy installation of the most popular RouterBOARD types.
  • Easy installation without drilling. Complete assembly requires one flat-head screwdriver, two Phillips-head screwdrivers (PH1 and PH2), and a 13mm wrench.
  • The kit includes a cable gland secured against rotation by specially profiled fastening cables.

Package contents:

  • Mast mount ø 27-74 mm.
  • Loss-proof bayonet locks (4 pcs.) - lubrication with Vaseline or silicone is recommended.
  • M20 cable gland for cables ø 4-10 mm, through which the R145 connector can be inserted (1 pc.)
  • Screws and plastic spacers for easy electronics assembly (8/8 pcs.)
  • Easy-to-use, self-adhesive plastic Pins

Recommended accessories:

  • KNS2-K Antenna Mount
  • GentleCLIP Mount

Other variants:

  • GentleBOX JA-215 with integrated 2.4 GHz dual-polarization antenna
  • GentleBOX JA-318 with integrated 2.4 GHz dual-polarization antenna
  • GentleBOX JC-220 with 5 GHz dual-polarization antenna
  • GentleBOX JC-320 with 5 GHz high-gain dual-polarization antenna
