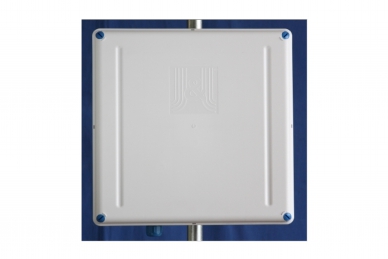

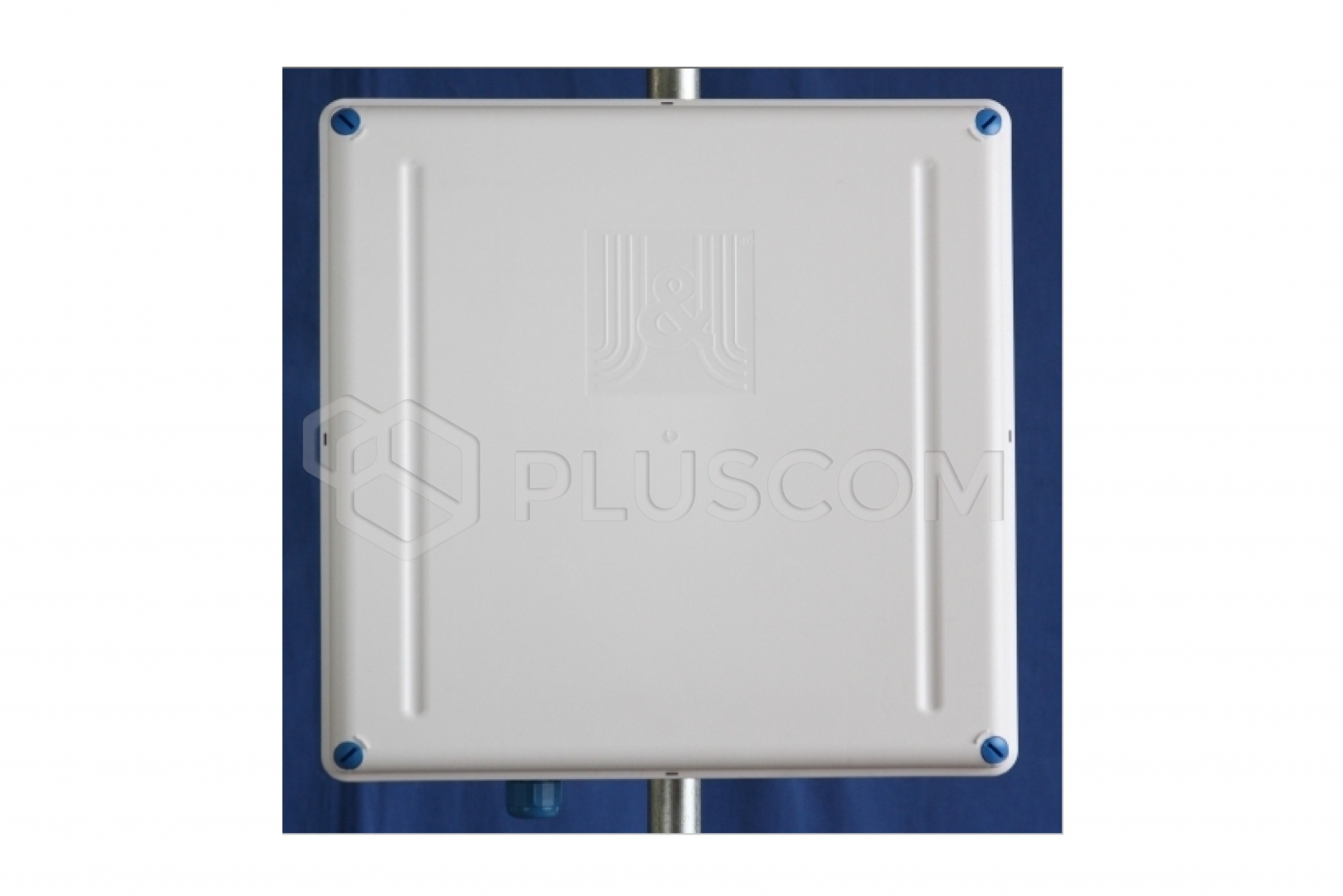

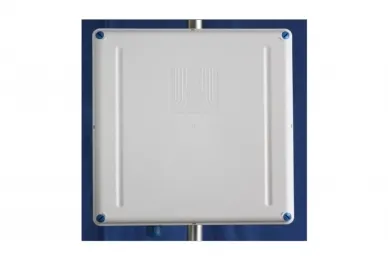

Jirous GentleBOX Integrated Panel Antenna JA-318 MIMO (UF-L)

Product code: #43070
Manufacturer: Jirous
  • Energy gain: 16.5 ± 0.8 dBi
  • Beam width: 22°/22°
  • Cable connector: UF-L
  • Internal dimensions: 309 x 309 x 88 mm / External dimensions: 326 x 326 x 113 mm
  • Polarization: Vertical and horizontal
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous GentleBOX Integrated Panel Antenna JA-318 MIMO (UF-L)


The GentleBOX JA-318 MIMO (UF-L) includes an integrated dual-polarized panel antenna with surge protection. The gold-plated design ensures long life.
This antenna is the optimal solution for long-distance 2.4 GHz clients.

FEATURES:

  • GentleBOX is an inclusive outdoor enclosure for APs, RouterBOARDS, and other electronic devices. It features a unique groove and hole system for easy installation of the most popular routerboard types.
  • Easy, drill-free installation. Complete installation requires 1 flat-head screwdriver, 2 Phillips-head screwdrivers (PH1 and PH2), and a 13mm wrench.
  • A cable gland is included, secured against rotation by specially molded mounting lines.
  • The GentleBOX is prepared for simplified installation of the RB411, RB433, RB800, ALIX2, ALIX3, Compex, Wispstation, and Rocket M2 with the GentleClip.

Electrical parameters:

  • Frequency range: 2.36 – 2.485 GHz.
  • Gain: 16.5 ± 0.8 dBi.
  • SWR: ≤ 1.8.
  • Beamwidth -3 dB. 22°/22°
  • Port Isolation: 30 dB
  • Polarization: Vertical and horizontal

Mechanical Parameters:

  • Cable Connector: UF-L
  • Material: UV-stabilized ABS plastic, polyamide

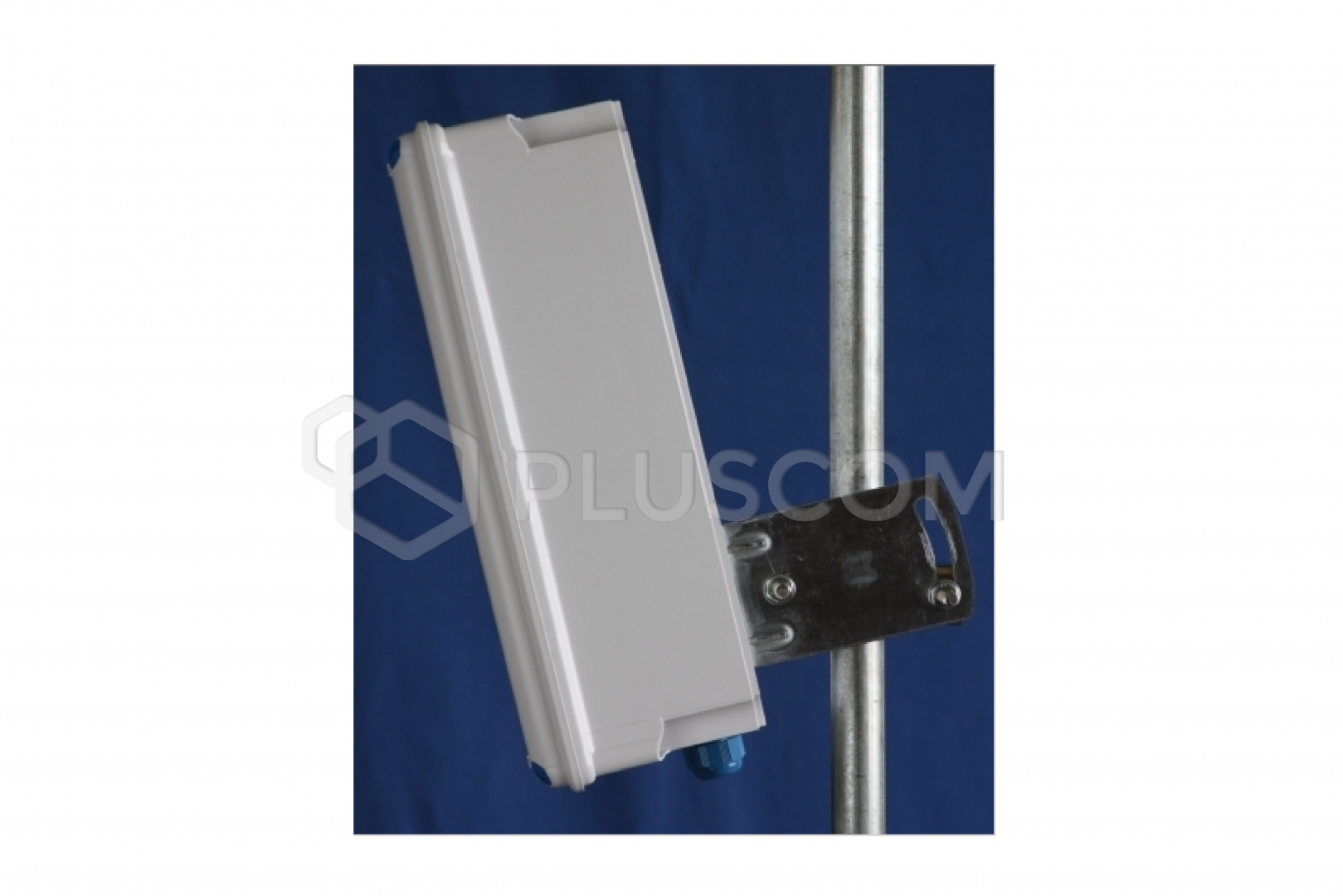

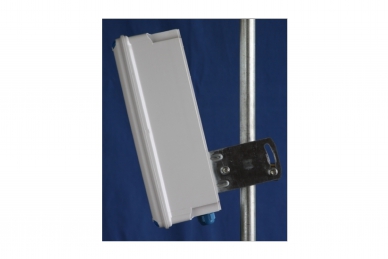

  • Mounting on a pole with a diameter of: 27–74 mm
  • Internal Dimensions: 309 x 309 x 88 mm
  • External Dimensions: 326 x 326 x 113 mm

GentleBOX is an external enclosure for access points, RouterBOARD routers, and other electronics, equipped with a unique system of grooves and holes that facilitates the installation of the most popular types routers.
GentleBOX is designed for simplified installation of the RB411, RB433, RB800, ALIX2, ALIX3, Compex, Wispstation, and Rocket M2 with GentleClip. Installation requires flathead and two Phillips (PH1 and PH2) screwdrivers and a 13mm open-end wrench.

The package includes:

  • Mast mount
  • Blue bayonet locks for easy closure and loss prevention
  • M20 cable gland for cables with a diameter of 4-10 mm, compatible with RJ45 connectors
  • Screws and plastic spacers for easy electronics installation
  • Package dimensions – 350 mm x 380 mm x 140 mm
Download
Datasheet 1.08 MB
