Jirous GentleBOX Integrated Panel Antenna JA-215 MIMO (UF-L)

Jirous GentleBOX Integrated Panel Antenna JA-215 MIMO (UF-L)

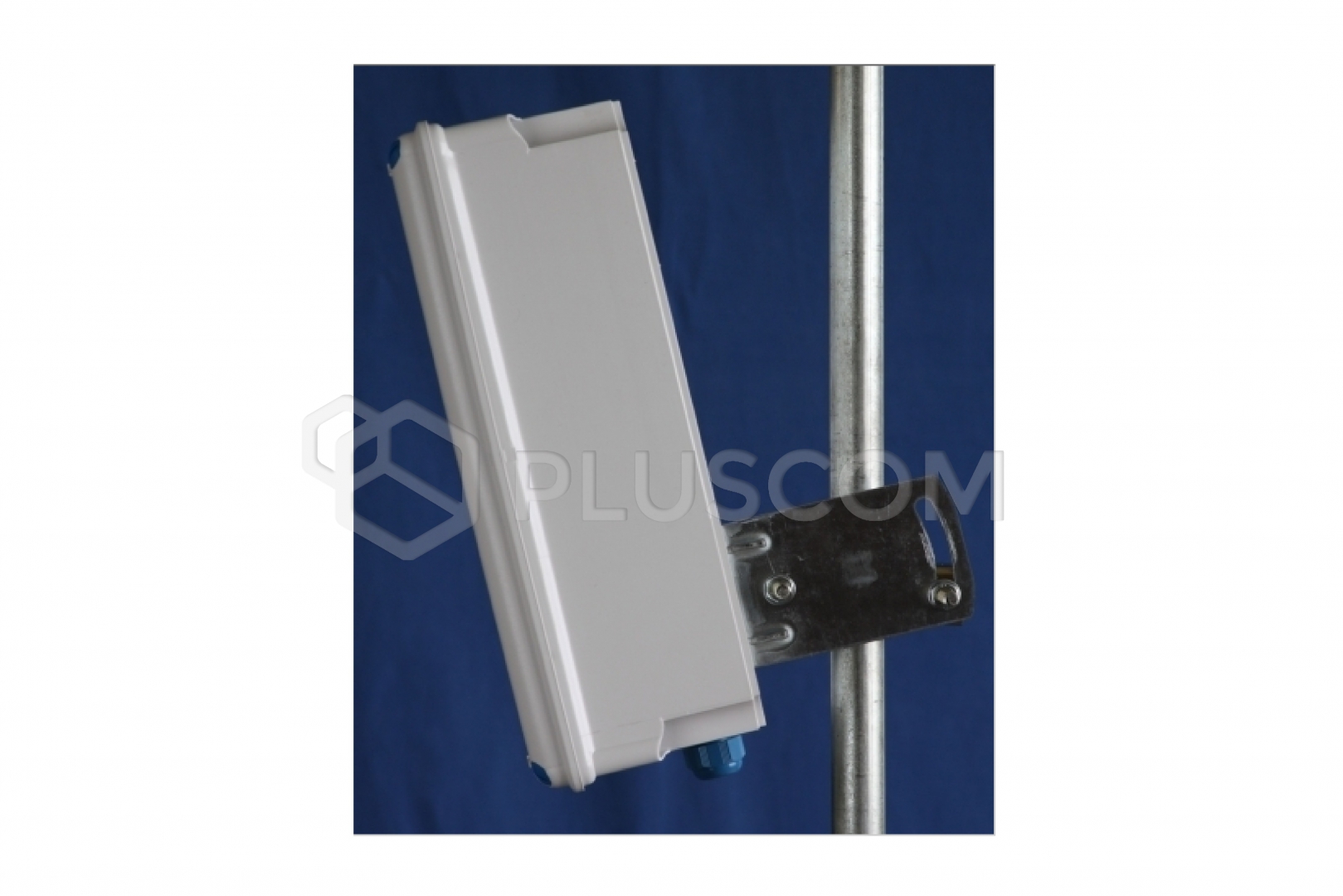

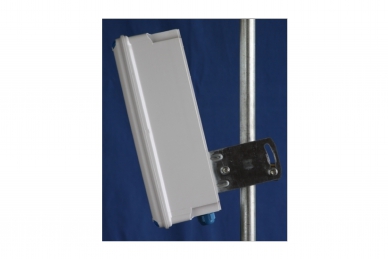

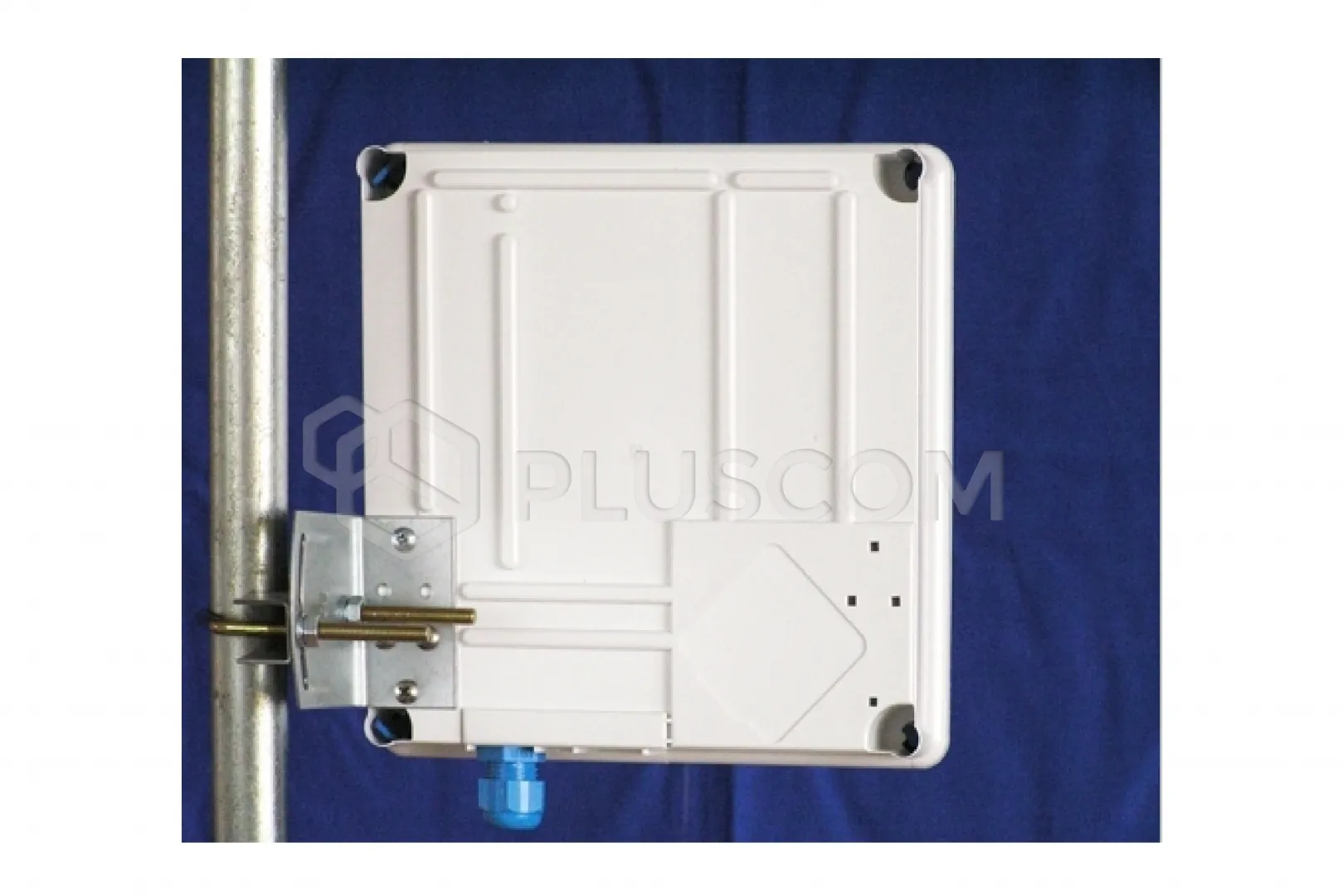

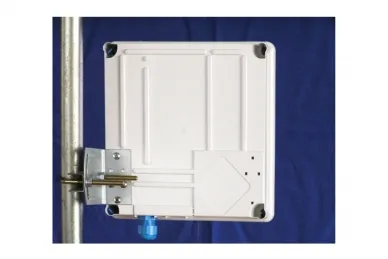

The GentleBOX JA-215 MIMO (UF-L) features an integrated, dual-polarized panel antenna with surge protection and a gold-plated housing for long life.
This antenna is the optimal solution for customers using the 2.4 GHz frequency band.

FEATURES:

• GentleBOX is an outdoor enclosure for APs, RouterBOARDs, and other electronic devices, featuring a unique groove and hole system for easy installation.
• Easy installation without drilling. Complete installation requires 1 flat-head screwdriver, 2 Phillips-head screwdrivers (PH1 and PH2), and a 10mm wrench.
• A cable gland is included, secured against rotation by specially formed JA-215 mounting lines.
• GentleBOX is prepared for simplified mounting of the RB411 and Rocket M2 using the GentleClip.

Technical specifications:

• Frequency range: 2.4 - 2.485 GHz.
• Gain: 14 dBi ±0.5.
• SWR: ≤ 1.9.
• -3 dB beamwidth: 32/32°.
• Cable connector: UF-L
• External dimensions: 203 x 203 x 65 mm
• Internal dimensions: 186 x 186 x 53 mm
• Polarization: Horizontal and vertical
• Material: UV-resistant ABS plastic, polyamide
• Pole mounting: ø 27 - 74 mm

Package Contents:

• Screws and plastic spacers for easy electronics mounting (4/4 pcs.)
• Easy-to-use self-adhesive plastic spacers
• MS-1 bayonet locks for easy locking that will never get lost (4 pcs.)
• It is recommended to lubricate the bayonet locks with Vaseline, preferably silicone (most oils dry out over time, so their use is not recommended).
• Special mount for a ø 19 - 54 mm pole (1 pc.)
• M20 cable gland for ø 4 - 10 mm cables, can be inserted through an RJ45 connector (1 pc.)
