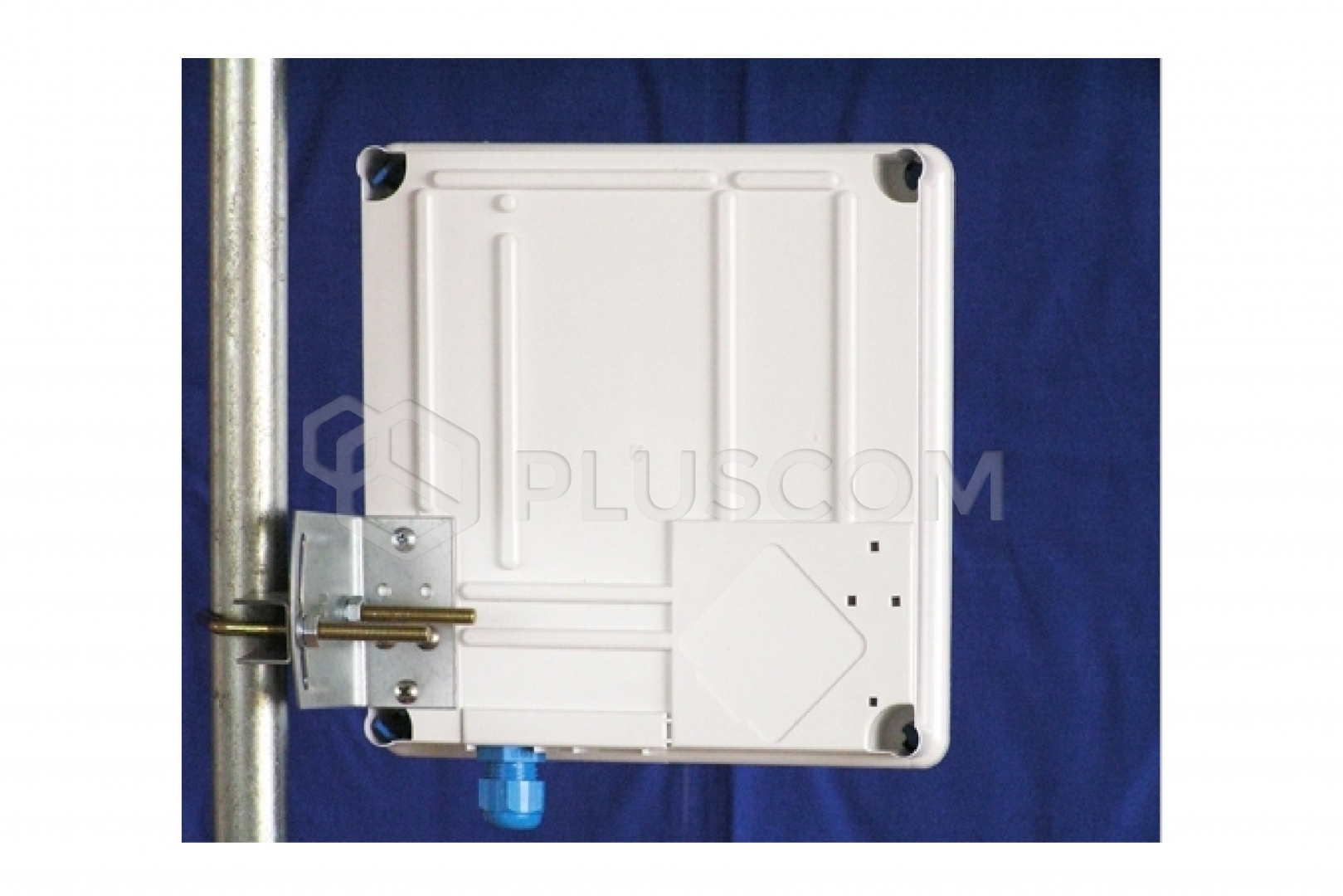

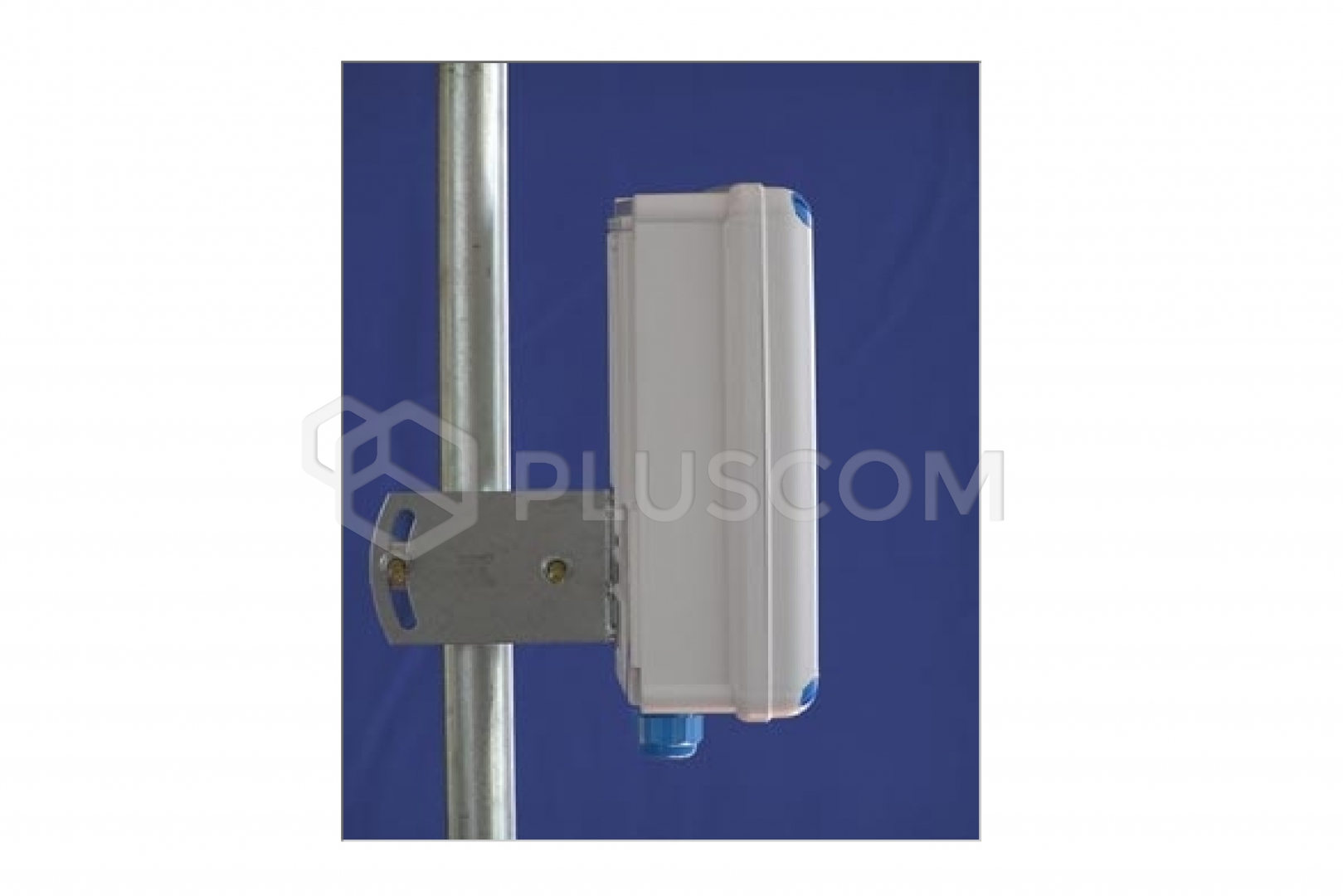

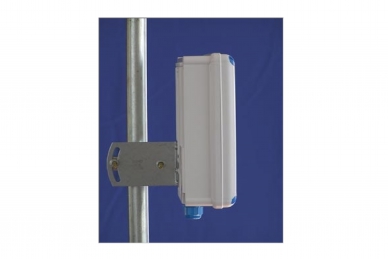

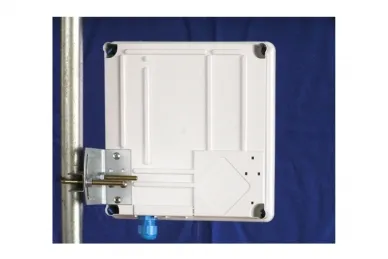

Jirous GentleBOX Integrated Panel Antenna JA-214 (UF-L)

Product code: #43072
Manufacturer: Jirous
  • Energy gain: 14 dBi ± 0.5
  • Beam width: 32/32°
  • Cable connector: UF-L
  • External dimensions: 203 x 203 x 65 mm / Internal dimensions: 186 x 186 x 53 mm
  • Polarization: Horizontal or vertical depending on the position of the cover
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous GentleBOX Integrated Panel Antenna JA-214 (UF-L)


The GentleBOX JA-214 features an integrated gold-plated panel antenna for long life.
This antenna is the optimal solution for clients in the 2.4 GHz frequency band at short and medium distances.

FEATURES:

  • Unique Groove System
  • GentleBOX is an outdoor enclosure for APs, RouterBOARDs, and other electronic devices that features a unique groove and hole system for easy installation.
  • Easy Installation with no drilling required. Complete installation requires 1 flat-head screwdriver, 2 Phillips-head screwdrivers (PH1 and PH2), and a 10mm wrench.
  • A cable gland is included, secured against rotation by specially formed JA-215 mounting lines.
  • GentleBOX is prepared for simplified RB411 installation.

Technical specifications:

  • Frequency range: 2.4 - 2.485 GHz.
  • Gain: 14 dBi ± 0.5.
  • SWR: ≤ 1.9.
  • Beam width - 3 dB: 32/32°.
  • Cable connector: UF-L
  • External dimensions: 203 x 203 x 65 mm
  • Internal dimensions: 186 x 186 x 53 mm
  • Polarization: Horizontal or vertical depending on the cover position
  • Material: UV-resistant ABS plastic, polyamide
  • Mounting on poles with diameters: 19 - 54 mm

Package contents:

  • Screws and plastic spacers for easy electronics mounting (4/4 pcs.)
  • Easy-to-use self-adhesive plastic spacers
  • MS-1 bayonet locks for easy locking that will never get lost (4 pcs.)
  • It is recommended to lubricate the bayonet locks Vaseline, preferably silicone (most oils dry out over time, so their use is not recommended)
  • Special mount for masts ø 19 - 54 mm (1 pc.)
  • M20 cable gland for cables ø 4 - 10 mm, can be inserted through an RJ45 connector (1 pc.)

Recommended accessories:

  • KM60 antenna mount
  • KNS2-K antenna mount
