Jirous GentleBOX Antenna JC-220 MIMO (UF-L)

Product code: #43095
Manufacturer: Jirous
  • Gain: 17 ± 0,5 dBi
  • Beamwidth: 20° H/V
  • Outer size: 203x203x65mm
  • Integrated housing on AP, Routerboard, Alix
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

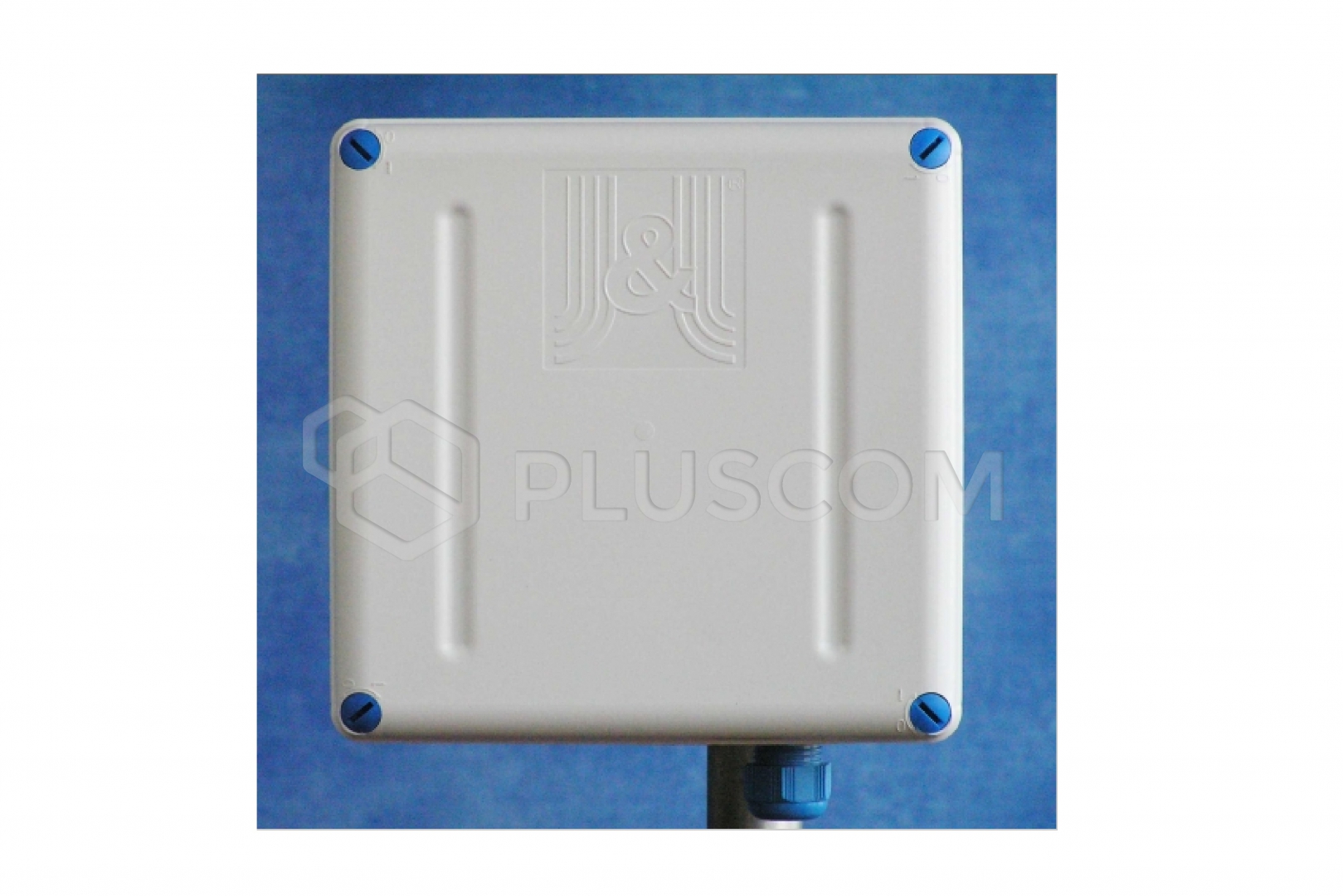

Jirous GentleBOX Antenna JC-220 MIMO (UF-L)


Application:


  • The GentleBOX JC-220 MIMO includes an integrated dual-polarization 5GHz antenna.
  • The antenna surface is gold-plated.
  • The GentleBOX JC-220 MIMO is an excellent solution for client installations in the 5GHz band.
  • The GentleBOX is the perfect outdoor box for an access point, router board, or other device.
  • With GentleBOX, you can forget about additional measuring and drilling! Everything is prepared.
  • With GentleBOX, you can forget about finding additional components for assembly! Everything is included. All you need is a flat-head screwdriver, a Phillips head, and a 10mm wrench.
  • The GentleBOX has pre-drilled holes for easy installation of a RouterBoard or other device. The kit includes screws and plastic posts.
  • For indoor and outdoor use.
  • For creating point-to-point connections.
  • You can calculate the maximum range using the calculator.
Technical parameters:
  • Frequency range: 5.1 - 5.9 GHz.
  • Energy gain: 17 ± 0.5 dBi.
  • VSWR: ≤ 1.9 dBi.
  • Main beam width: 20°.
  • Connector: UF-L, MMCX, or R-SMA depending on the version.
  • External dimensions: 203 x 203 x 65 mm.
  • Internal dimensions: 186 x 186 x 53 mm
  • Polarization: Horizontal or vertical depending on mounting.
  • Housing: UV-resistant ABS

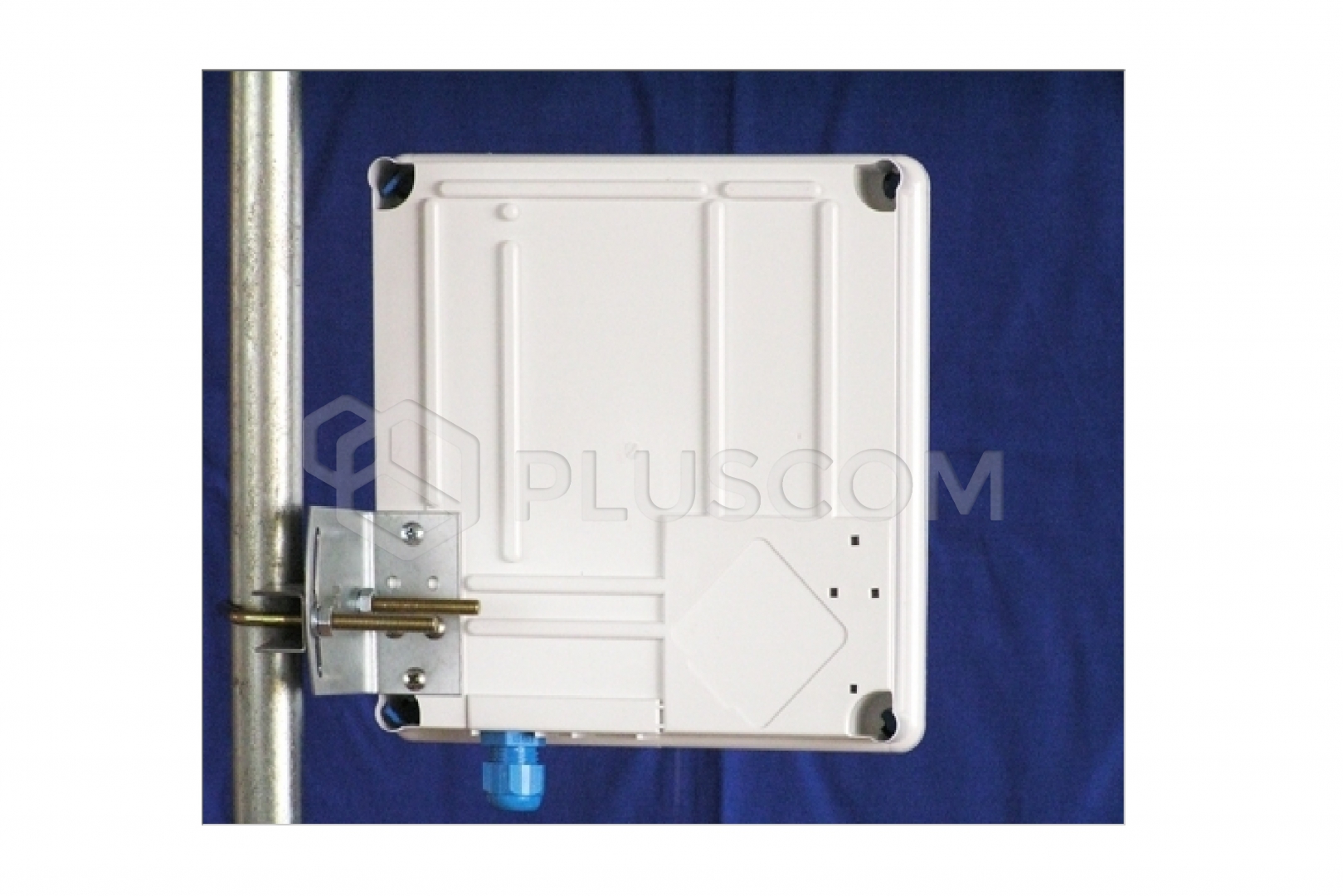

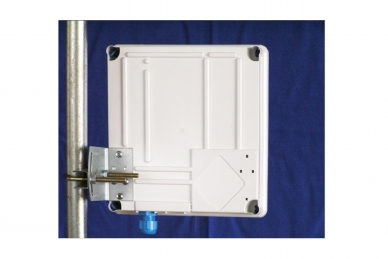

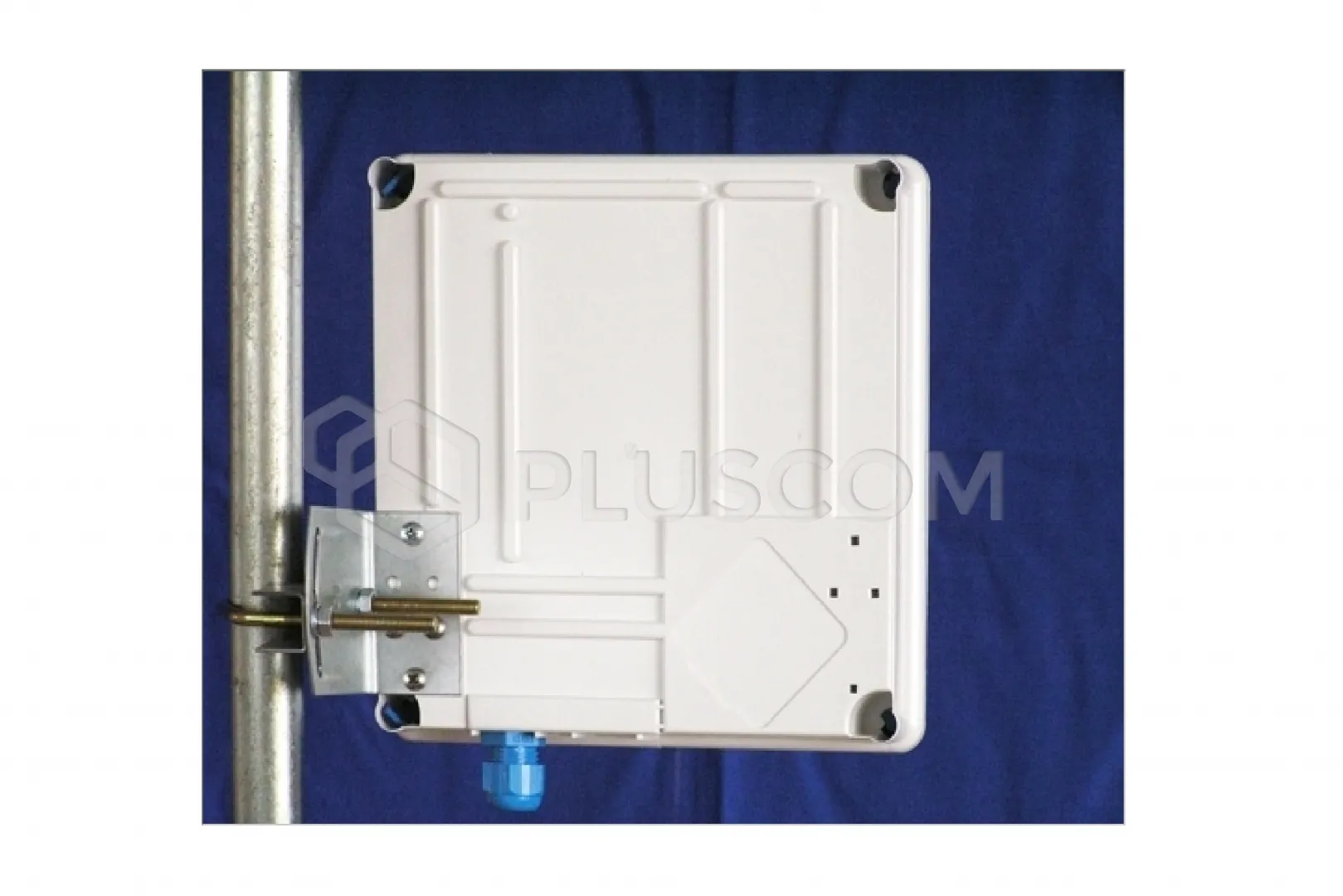

  • Mast mount: ø19 - 54 mm
The antenna cable is terminated with a connector depending on the version:
GentleBOX JC-220 UF - UF-L connector
GentleBOX JC-220 MCX - MMCX connector
GentleBOX JC-220 SMA - R-SMA connector

Included accessories:
  • Loss-free bayonet latches for easy housing closure - 4 pcs.

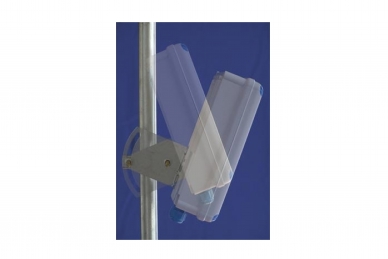

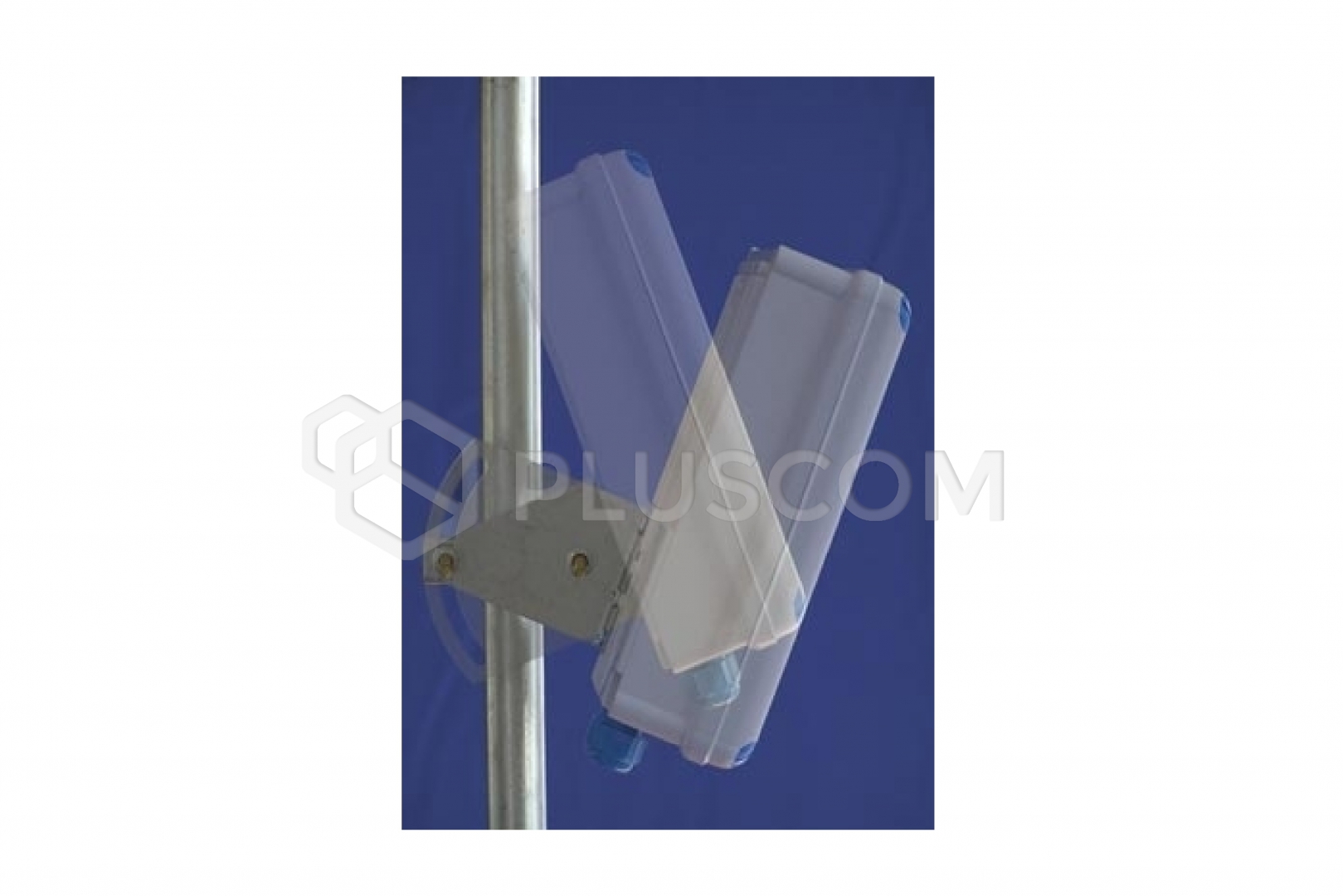

  • Special mast mount: ø19 - 54 mm - 1 pcs.
  • High-quality blue cable gland for ø 4 - 10 mm cables - 1 pc.
  • Screws for securing electronics + plastic posts - 4 + 4 pcs.
