Jirous Dual-polarized sector antenna JSC-16-60 MIMO

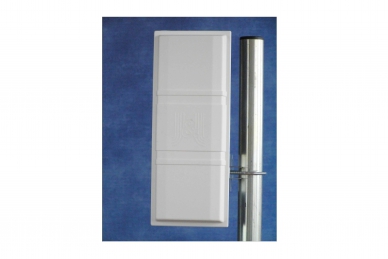

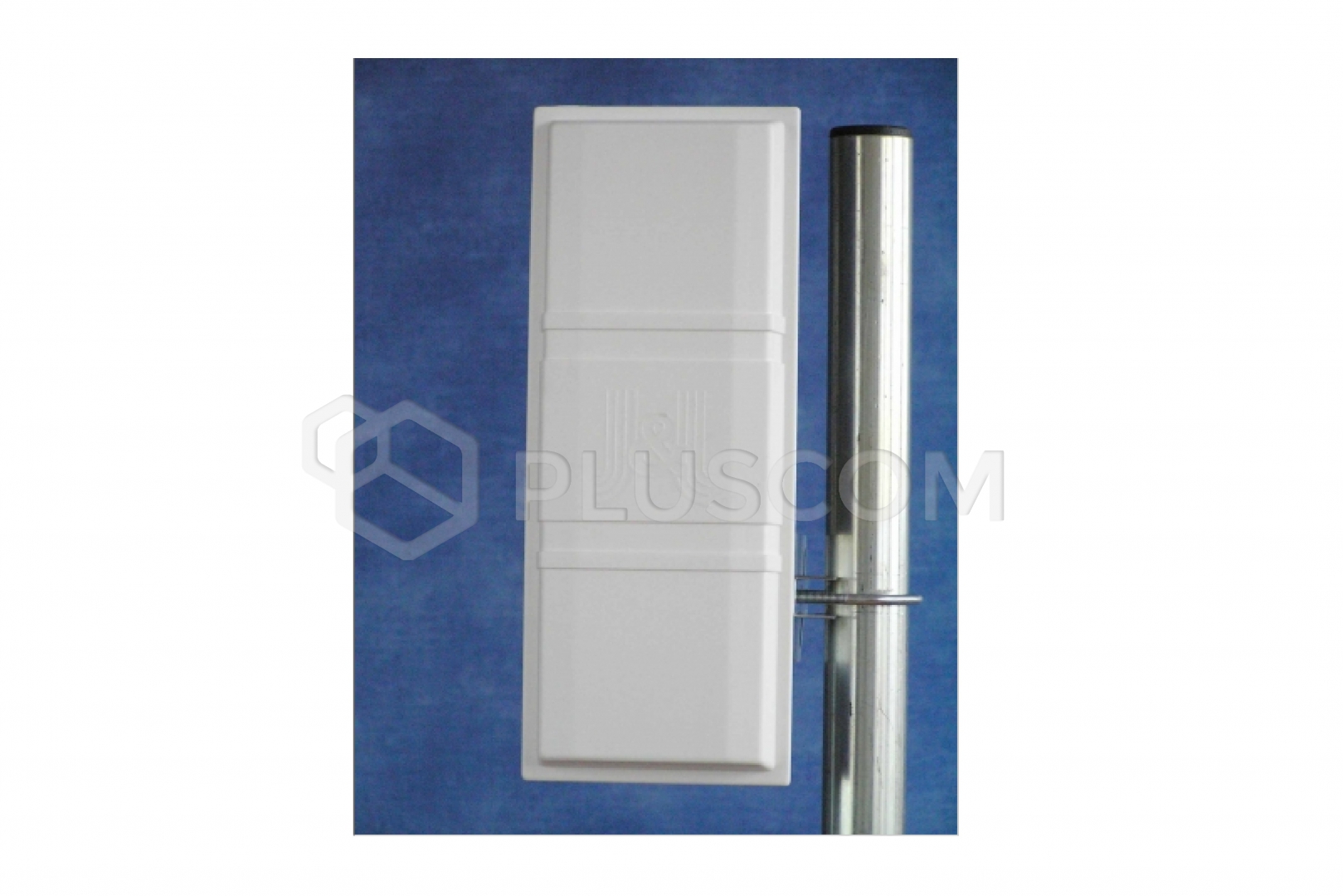

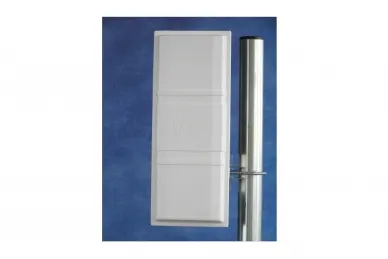

Jirous JSC-16-60 MIMO Dual-Polarization Sector Antenna

The JSC-16-60 MIMO dual-polarization sector antenna is designed for sector links in the 5 GHz frequency band. The antenna is designed for links in areas with high interference or for dividing an area into several sectors.

CCHY:

• Sector antenna with dual vertical and horizontal polarization
• Integrated surge protection
• Ready for harsh environments
• Vertical beam angle of 8-9° for ideal coverage
• Distance can be calculated in the calculation section
• Gold-plated housing ensures long service life

Electrical parameters:

• Frequency range: 5.4 – 5.85 GHz
• Gain: 16.0 ± 0.6 dBi
• SWR: ≤ 1.5
• Port isolation: 30 dB
• Width Beam angle -3 dB: 60° (azimuth)
• Beam width -6 dB: 90° (azimuth)
• Beam width -3 dB: 8.5˚ (elevation)
• Vertical and horizontal polarization

Mechanical parameters:

• Connector type: N – female, R-SMA
• Connector construction:
  - gold-plated contacts
  - PTFE (Teflon®) dielectric
• Shield: UV-stabilized ABS plastic
• Shield bonding technology: Di-Fix - lifetime warranty, durability
• Aluminum alloy backplate + galvanic coating
• Mounting on Mast diameter: ø 19 - 54 mm
• Dimensions (without connectors): 128 mm x 326 mm x 30 mm
• The antenna can be used in conjunction with the GentleBOX JR-200 external box for access points, RouterBOARDS, and other electronics, or with the GentleCLIP mount, which facilitates mounting the Rocket M5 or other devices with the same mounting system.
